The Characteristics

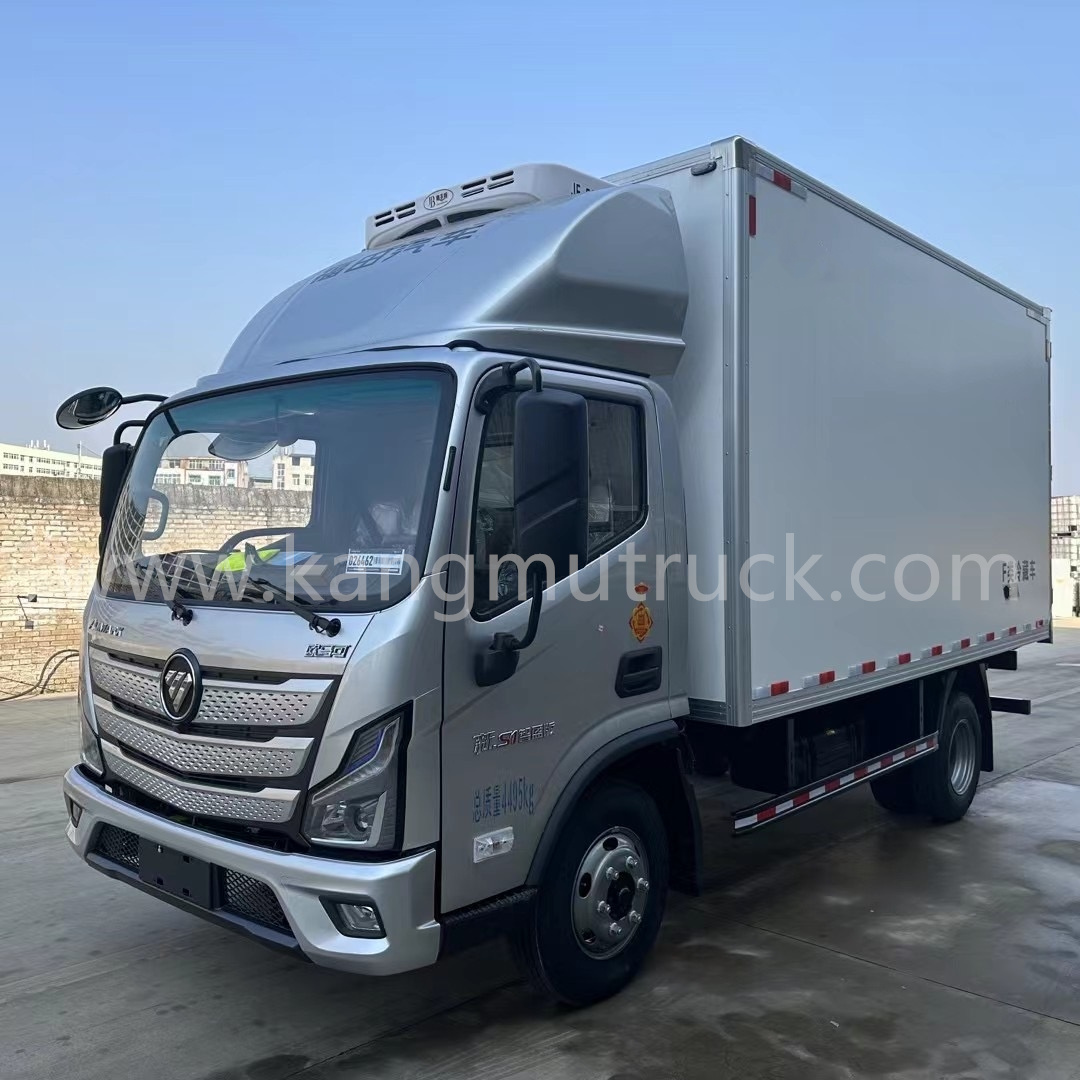

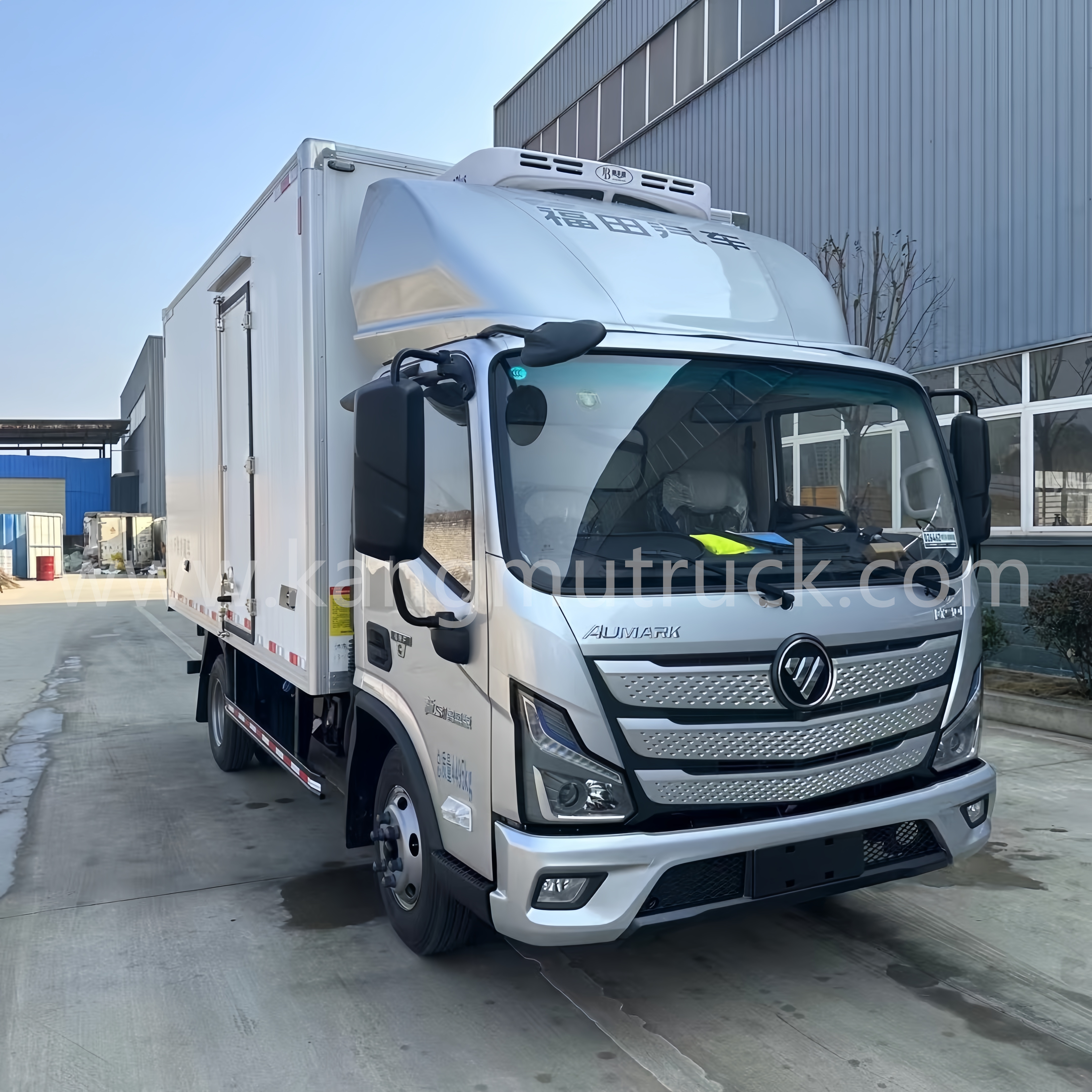

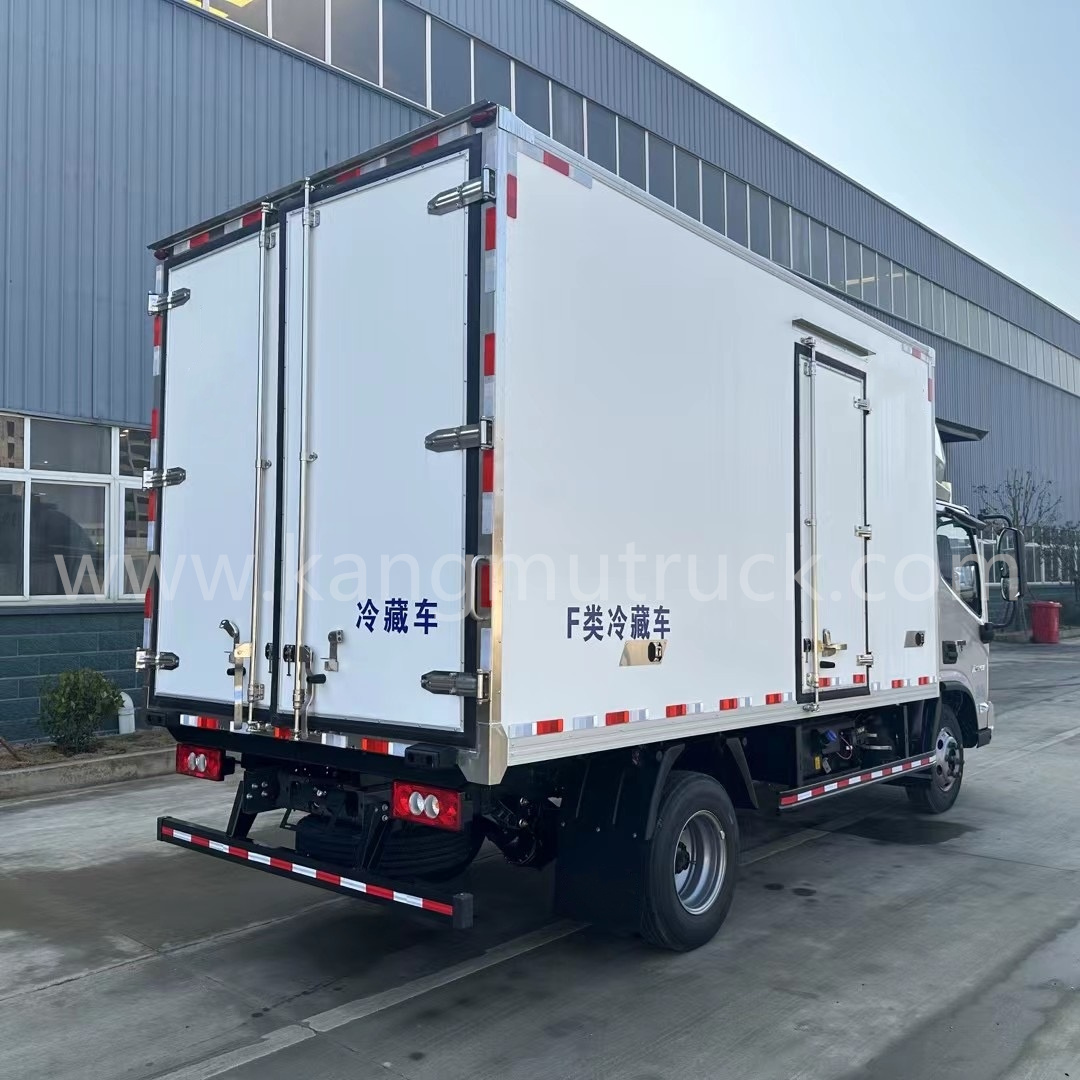

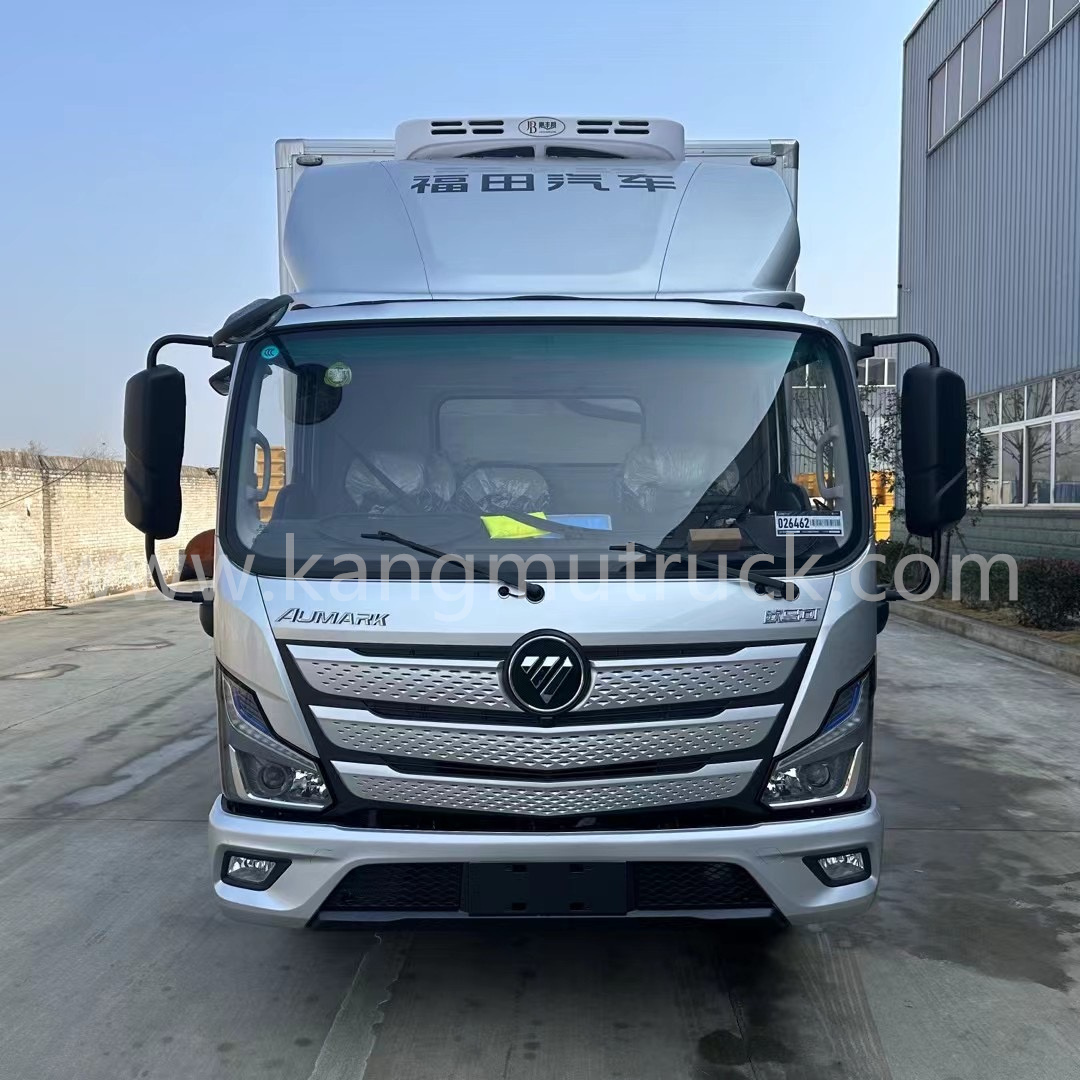

| Product Name | FOTON 4.2M 160HP Big Capacity Refrigerated Truck |
| Dimensions | 5990*2250*3250（MM） |
| Inner Dimensions | 4080*2300*2300（MM） |
| Engine | F2.5NS6B160, 2.5L displacement, 160HP |
| Transmission | 6 speed (optional) |
| Speed Ratio | 4.33 |
| Tire | 7.00R16 Vacuum tire |
| Inner Volume | 21CBM |

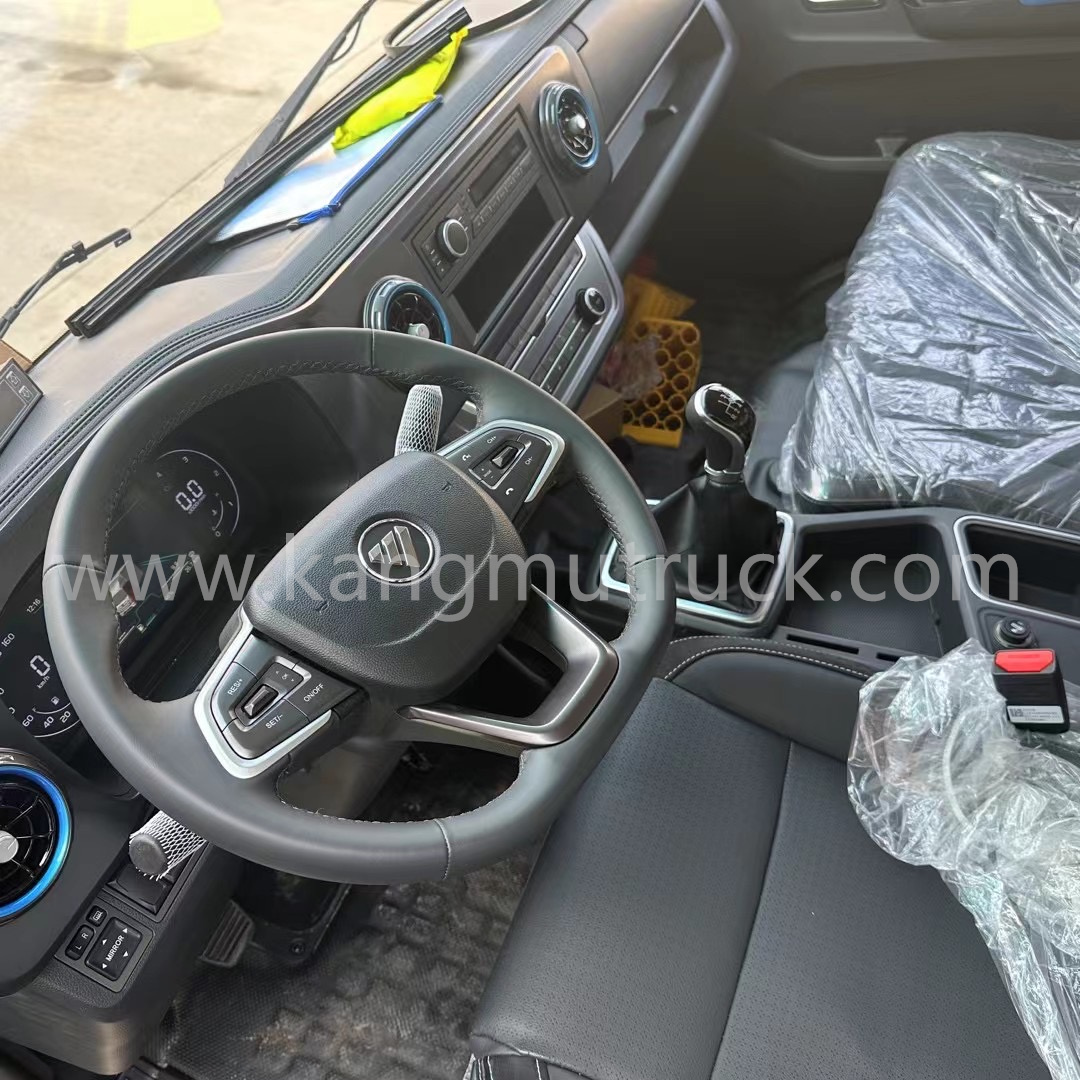

| Other Features | The EST features an upgraded Galaxy interior design with a high ceiling and raised floor. It includes a full-floating four-airbag suspension system for enhanced shock absorption, an airbag-equipped main seat, and an electric heated rearview mirror. The cab is equipped with electric flipping functionality, cruise control, remote central locking, and vehicle networking. Additional features consist of electric windows, daytime running lights, a 12-inch LCD instrument panel, knob gear shifting, automatic rain-sensing wipers, a 220Ah battery, a 1000W power outlet, and a 4-function multifunctional steering wheel. The vehicle also boasts a 10-inch multimedia touchscreen and LED high/low beam headlights (with optional airbag suspension and liquid buffer systems). |
Advantages：

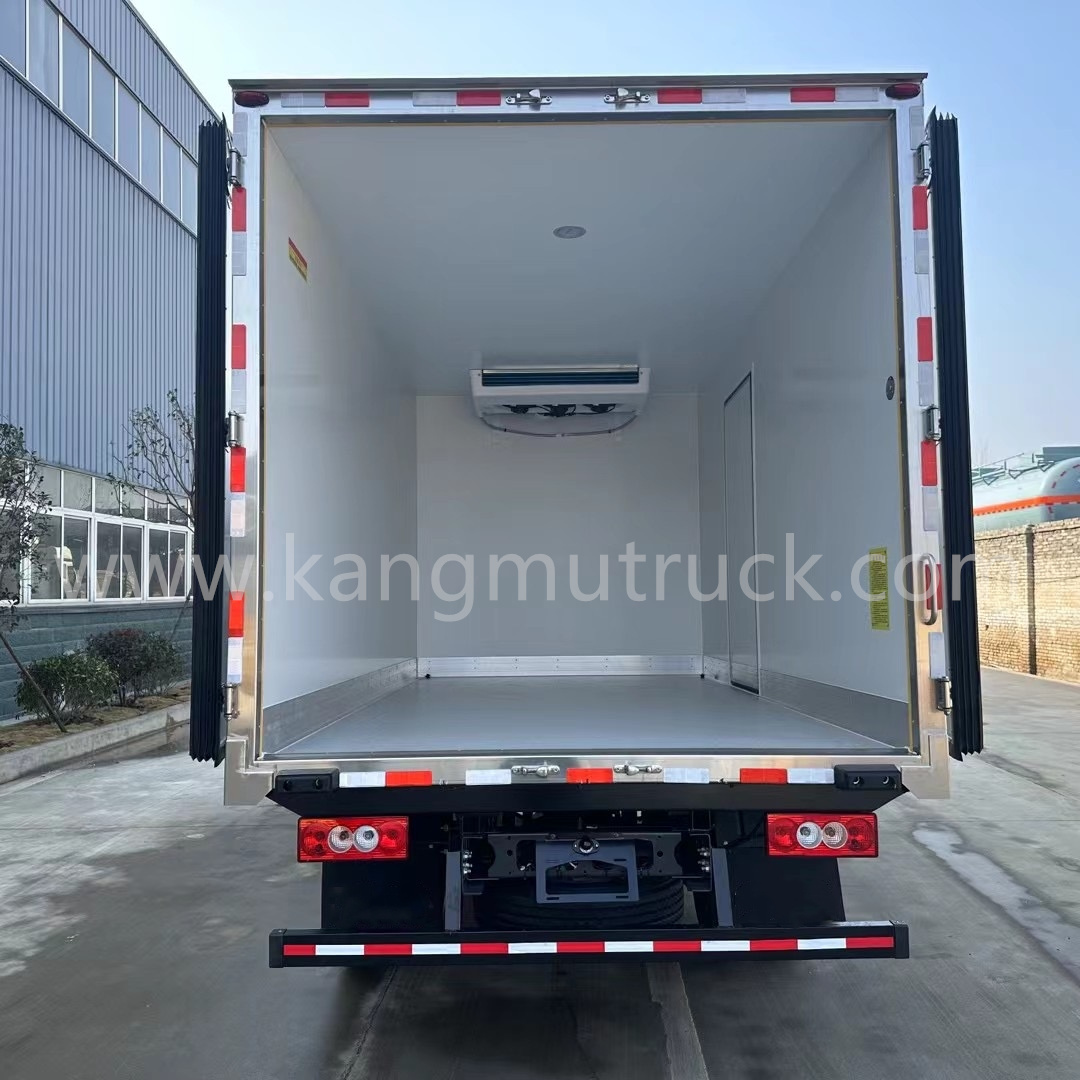

The refrigerated compartment is constructed using constant-temperature and pressure-controlled wet panels, offering excellent insulation and rapid cooling capabilities! A finite element model was developed for the box structure, enabling static analysis of both the panels and the overall box design. This includes static bending analysis and the evaluation of strength and stiffness metrics. The vehicle was tested under various conditions, such as emergency braking, heavy loads, and rainy or snowy weather! As a result, the design achieves benefits like superior insulation, high strength, lightweight construction, and aesthetic appeal!
