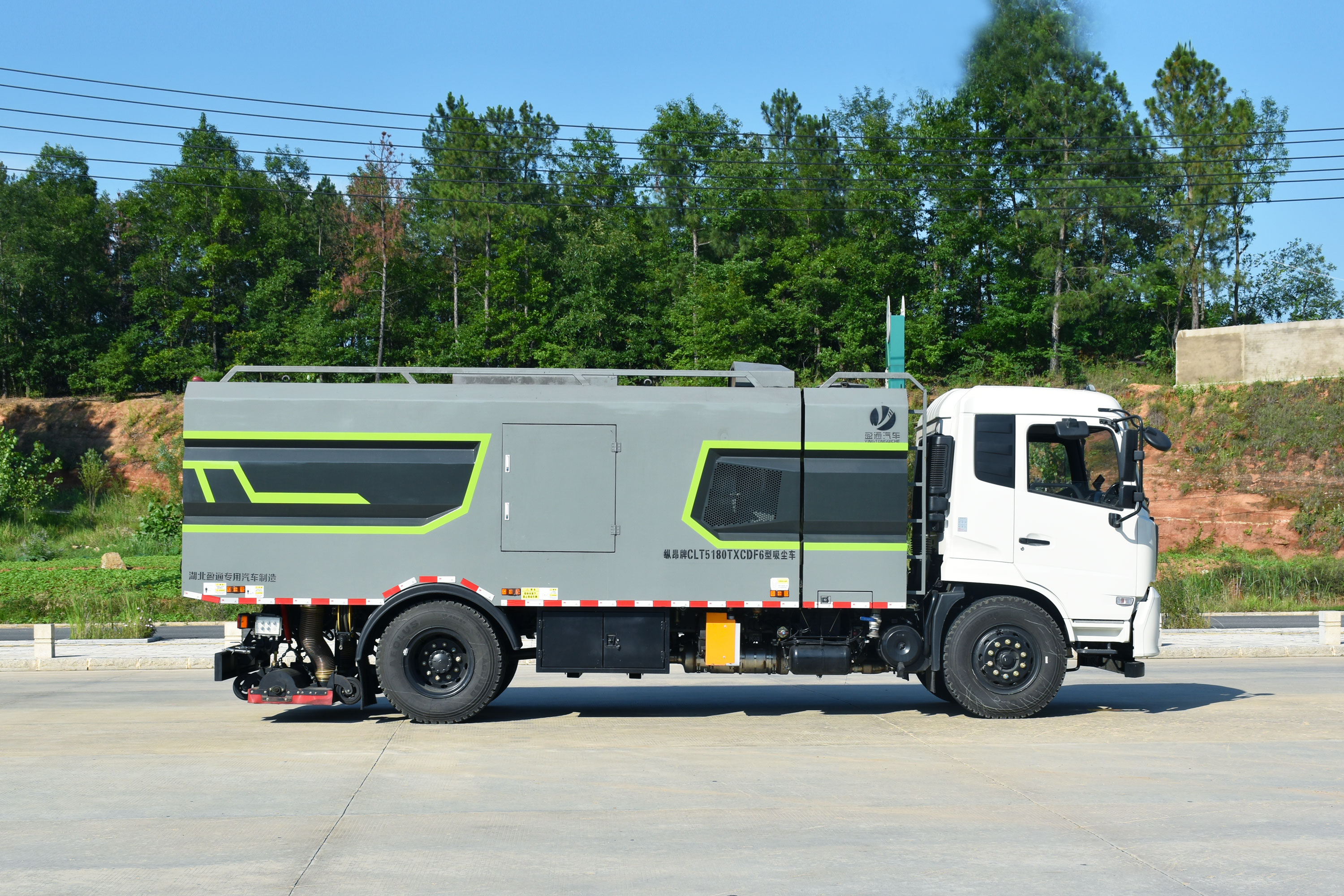

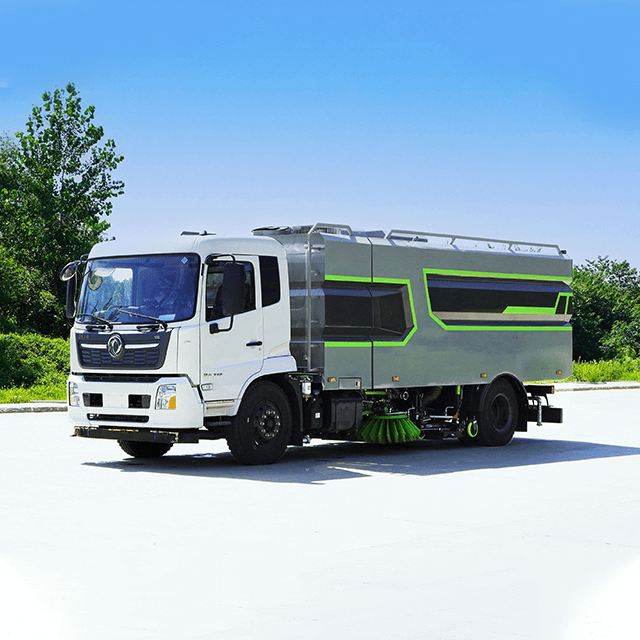

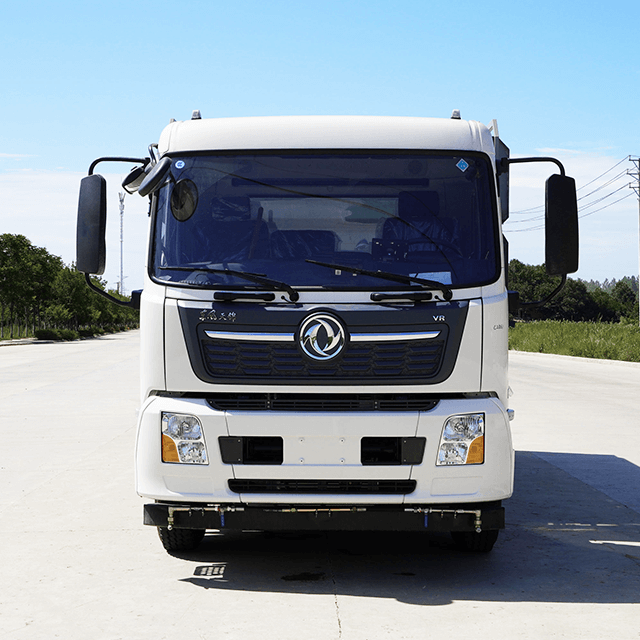

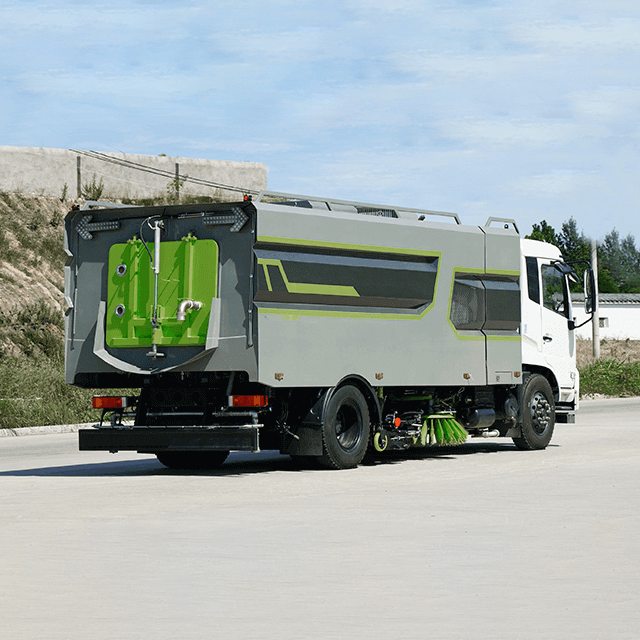

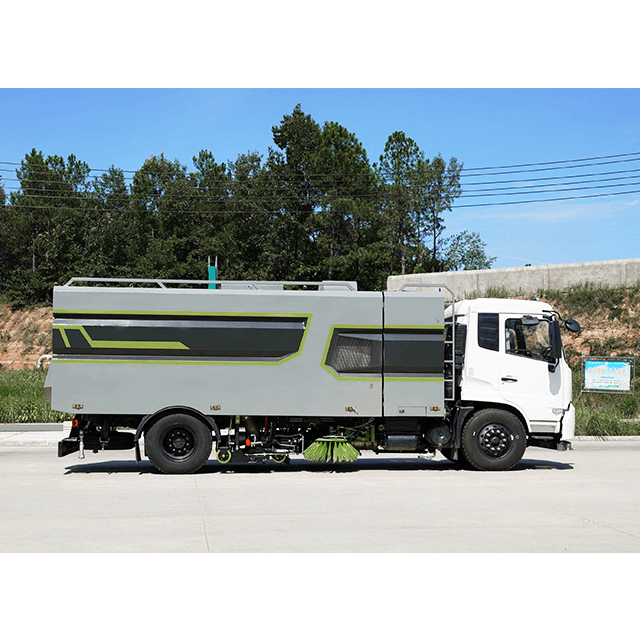

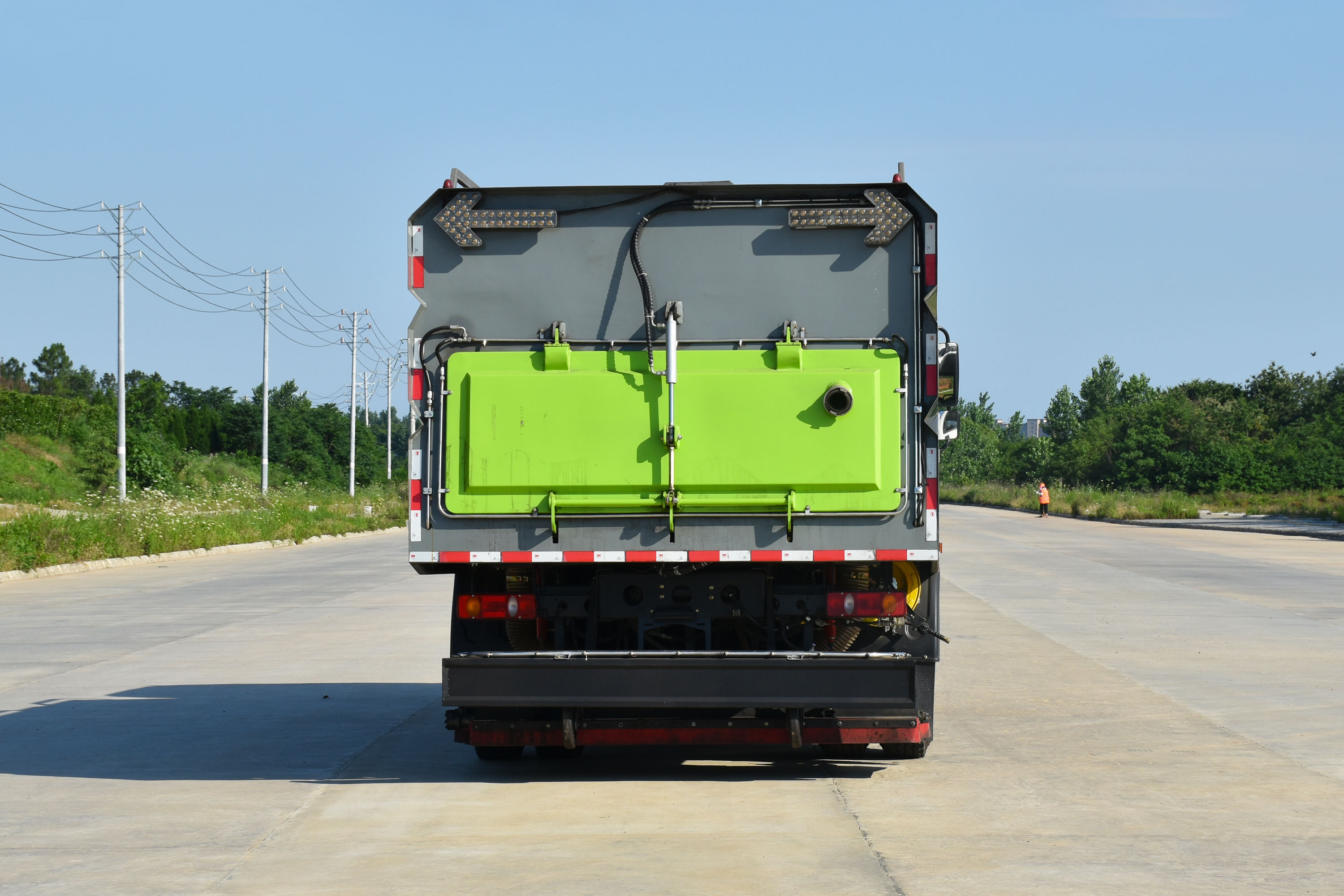

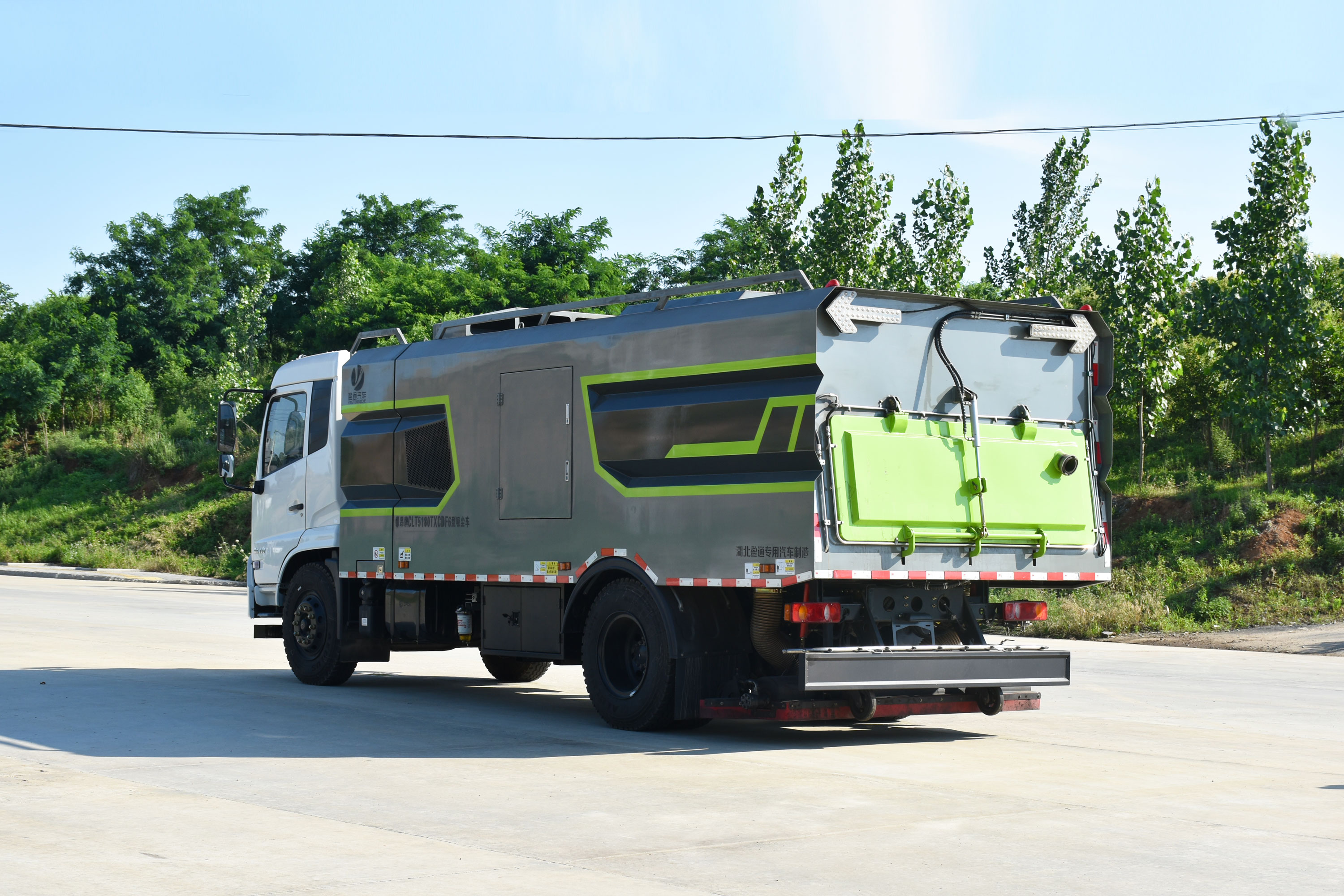

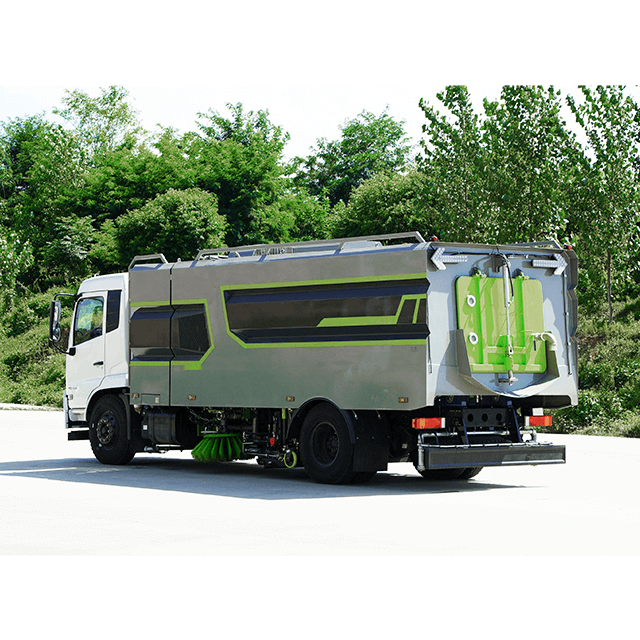

Dongfeng 4X2 High Pressure Street Road Sweeper & Cleaning Truck with 9cbm Water Tank

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: Dongfeng 3000 Liters Vacuum Sewer Cleaning Sewerage Tank Septic Sewage Suction Truck
  • Keywords: Sewage Suction Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:

Features of Dongfeng 4X2 High Pressure Street Road Sweeper & Cleaning Truck with 9cbm Water Tank

2 central sweep trays, Zhonglian (Germe) suction cups, Yifeng 60-90 low pressure Pump (front flush), central hedge sprinkler function. JPE high pressure pump (front spray, side spray,middle spray, post spray/rinse water gun/bin self-cleaning device), universal high pressure roadside cleaning Nozzle, touch screen control panel, safety lever with sensor, tail LED arrow light,Water tank with anti overflow/low water alarm device. Emergency hand pump, Hypes solenoid valve set, Astern/work monitor.

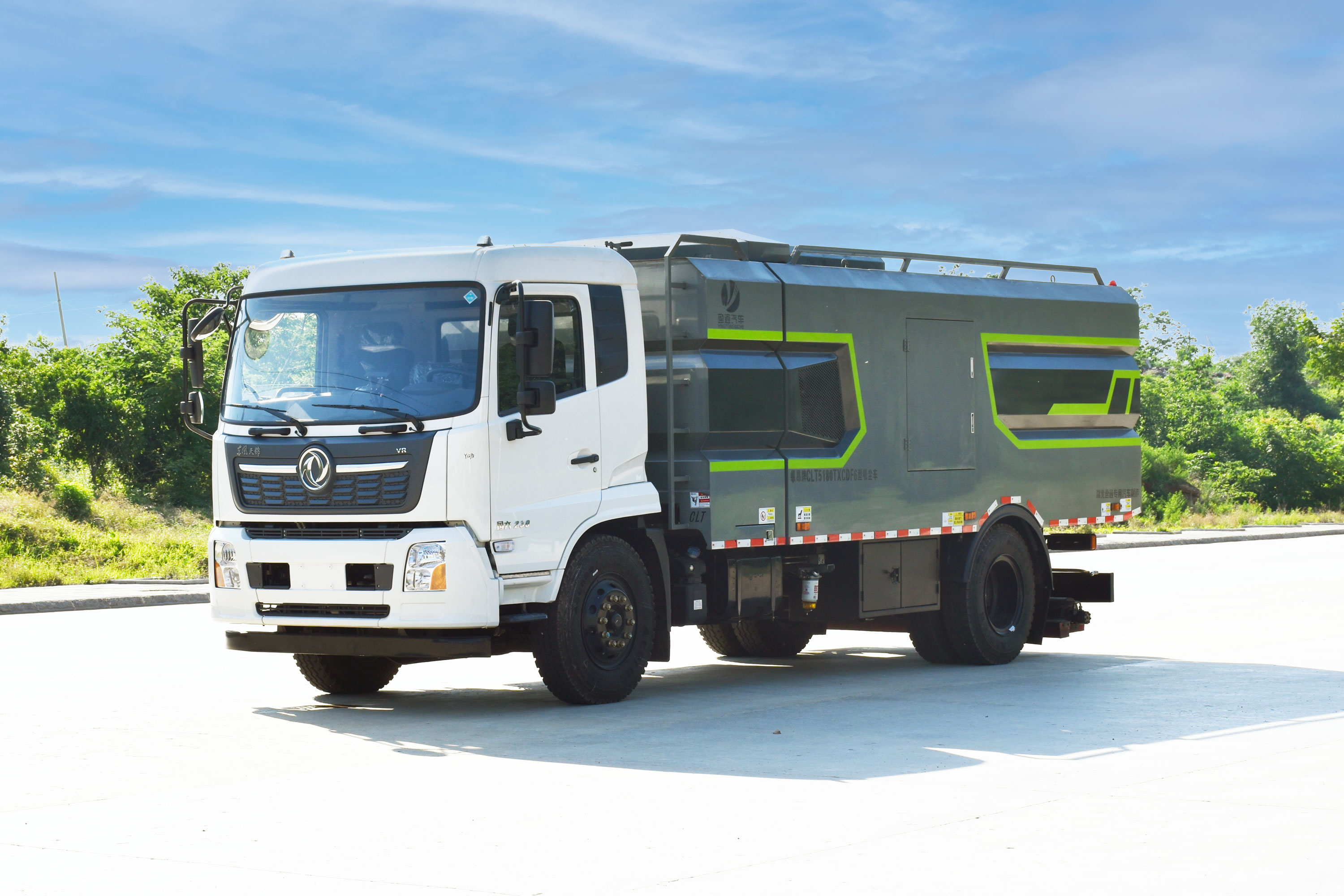

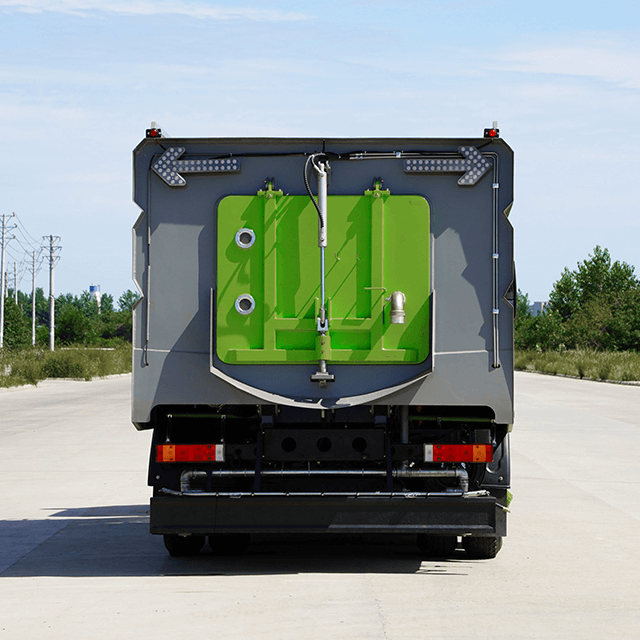

左45正后正右左后

The characteristics of Dongfeng 4X2 High Pressure Street Road Sweeper & Cleaning Truck with 9cbm Water Tank


[Technical Parameters of the Entire Vehicle]

Kerb Weight (Kg)

18000

Garbage Tank Volume (m3)

7

Tank Material

Stainless Steel / CARBON STEEL

Sweep Speed(km/h)

3-15

Max.Cleaning Width(m)

3.5

Tipper unloading angle(°)

45

Secondary engine Power(HP)

170

Overall Dimensions (mm)

8620×2500×3120

Water Tank Volume (m3)

9

Sweeper brush

2

Speed of Road Cleaning(km/h)

15-20

Max.Sweeping Capacity(m2/h)

54000

Max. Suction size(mm)

100

Sweeping Efficiency (%)

95

[Chassis Technical Parameters]

Brand Name

DONGFENG

Fuel Type

diesel

Front Axle/Rear Axle (t)

4/8

Number of Axles

2

Number of Tires

6

Brake

Air Brake/Oil Brake

Engine Power(HP)

230

Gearbox Model

8-Speed Manual

Wheelbase (mm)

5000

Tire Size

10R20 18PR
