Foton Navigation M5 Sliding Platform Recovery Tow Truck Wrecker Tow Truck

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: Foton Navigation M5 Sliding Platform Recovery Tow Truck Wrecker Tow Truck
  • Keywords: Wrecker Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:

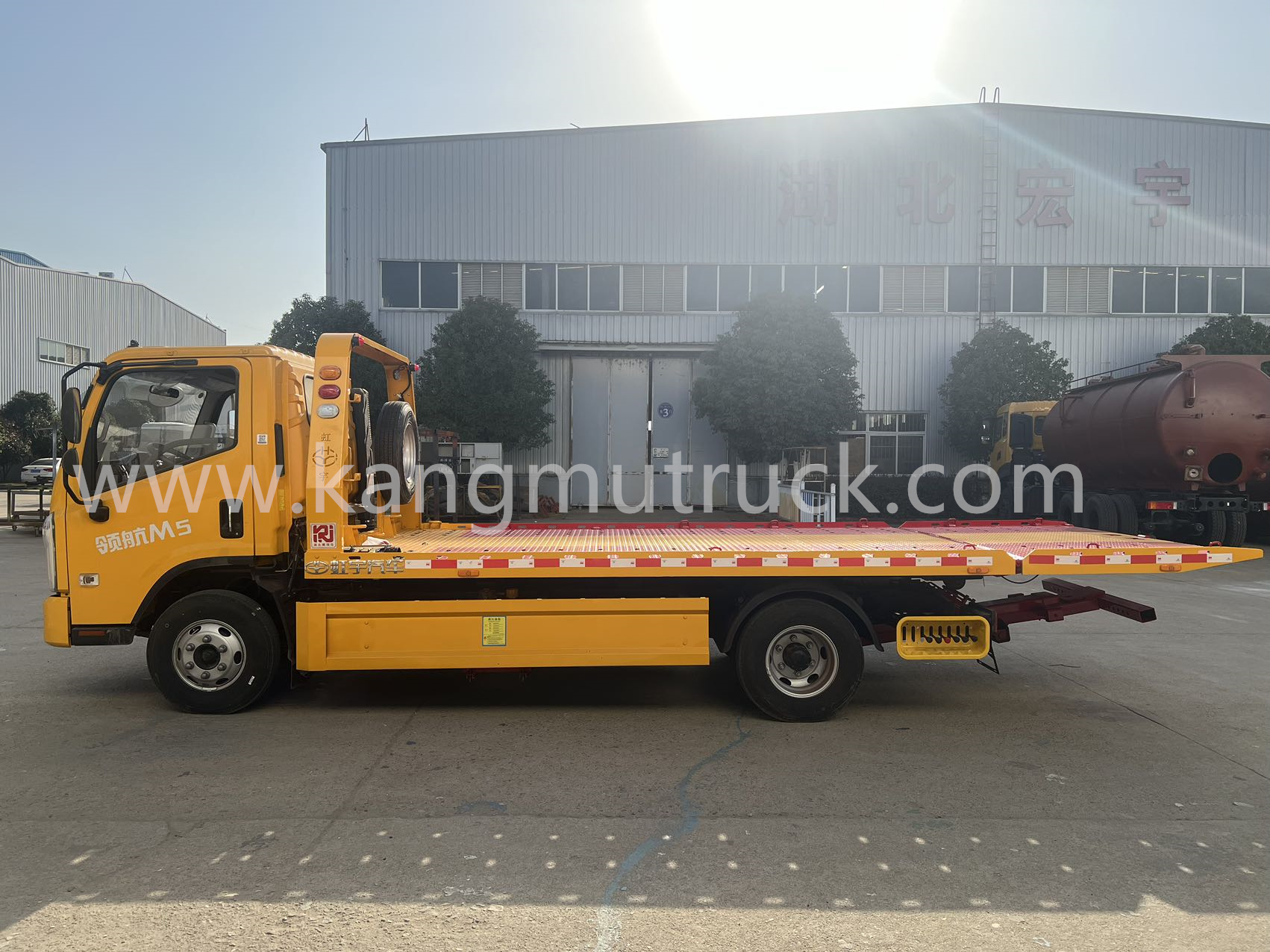

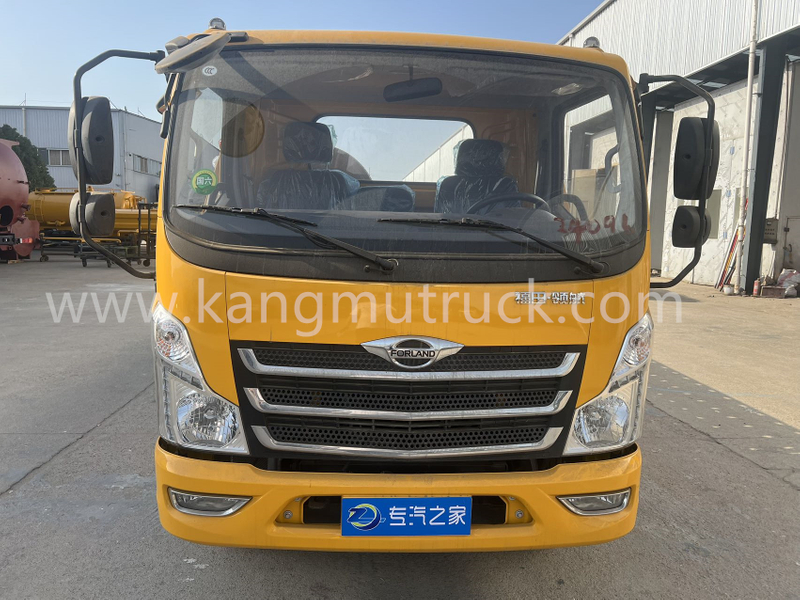

Foton Navigation M5 Sliding Platform Recovery Tow Truck Wrecker Tow Truck

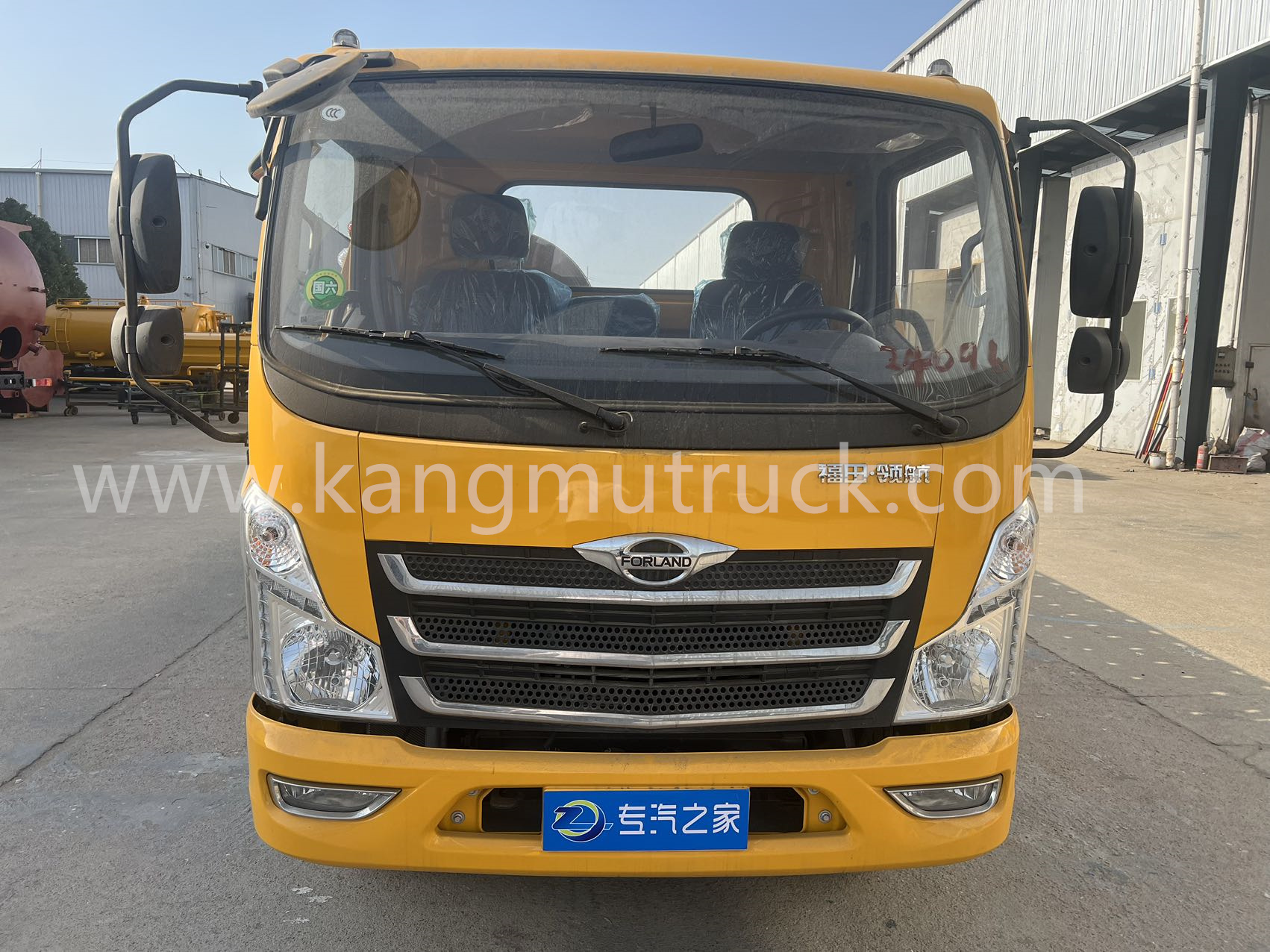

Chassis configuration: Foton Navigation M5 new cab (1850)
Full diesel engine with 152 horsepower

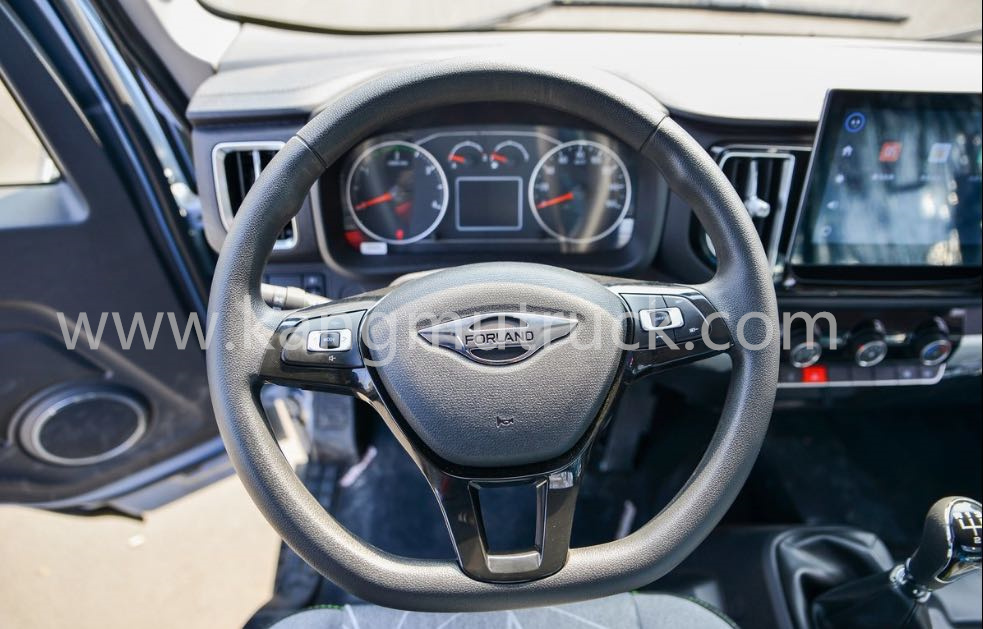

Heavy load: 8 - speed transmission, 6T rear axle, 7.00R16 tires, wheelbase of 3600mm, 170 - mm frame, original air conditioning, original power take - off (PTO), electric glass, central - control door and window, remote key, multifunctional steering wheel, fully - equipped interior, 6 + 7 reinforced rear leaf springs, double - layer straight beam, speed ratio of 4.875.
Upper Body Configuration

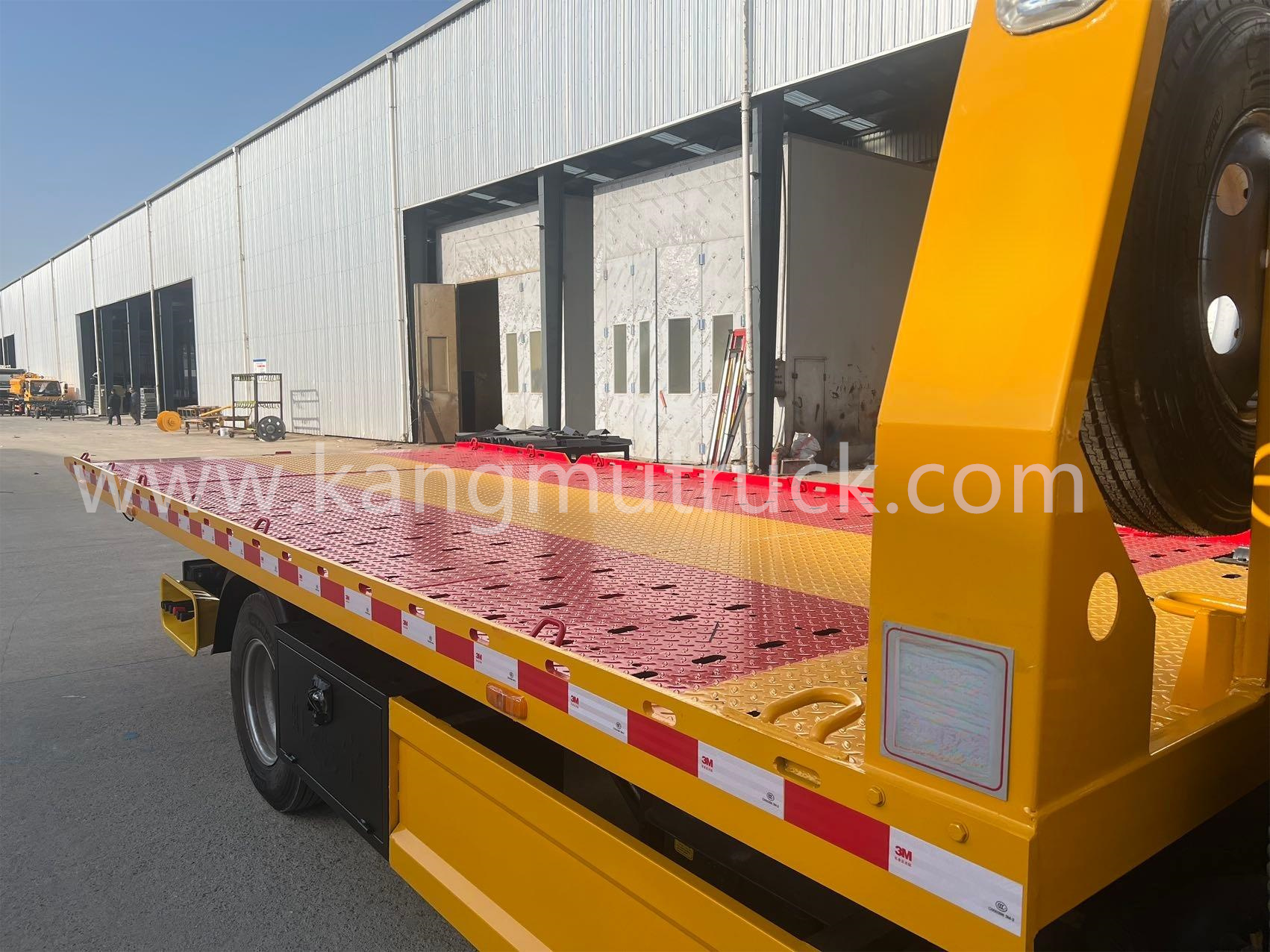

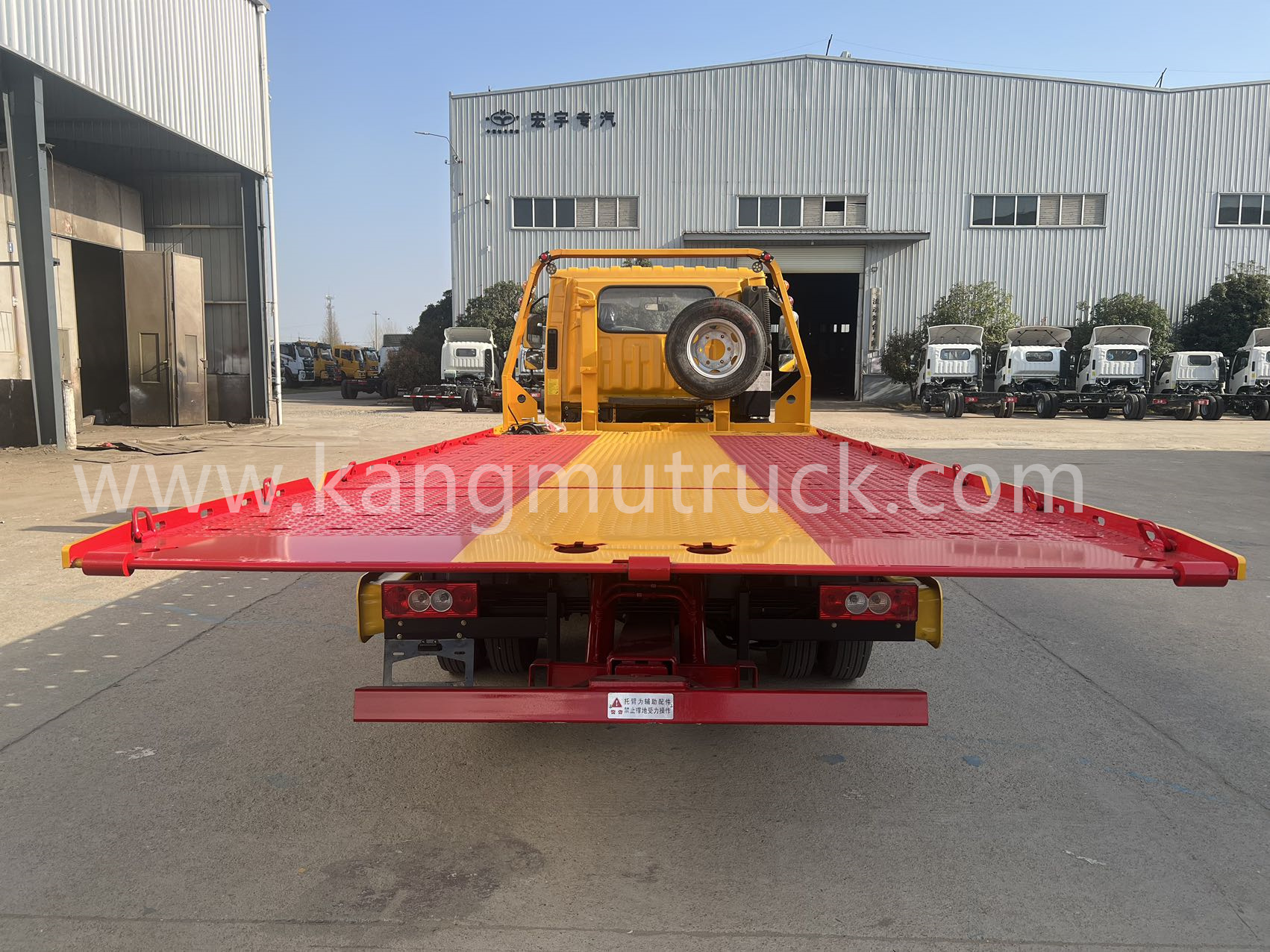

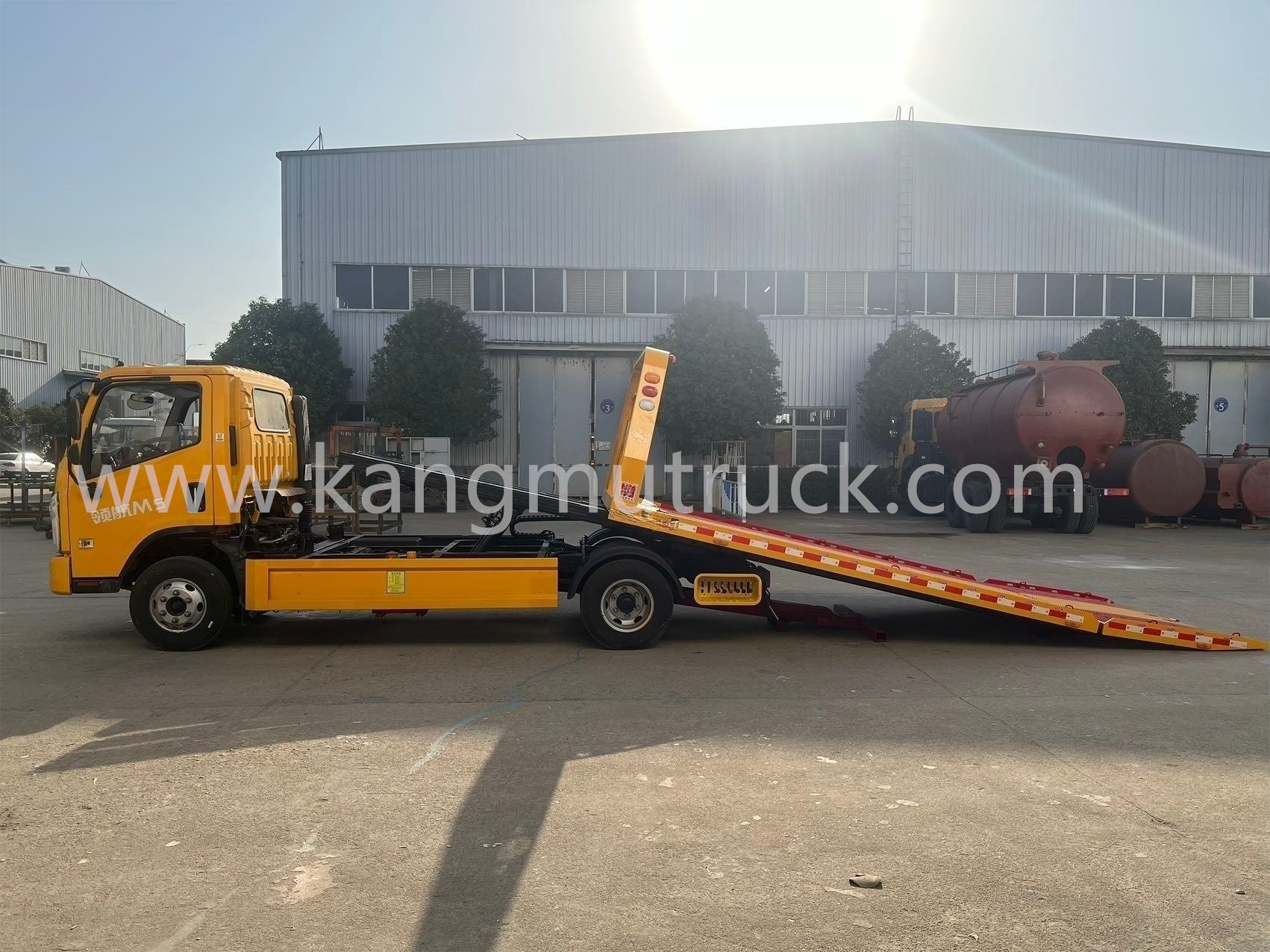

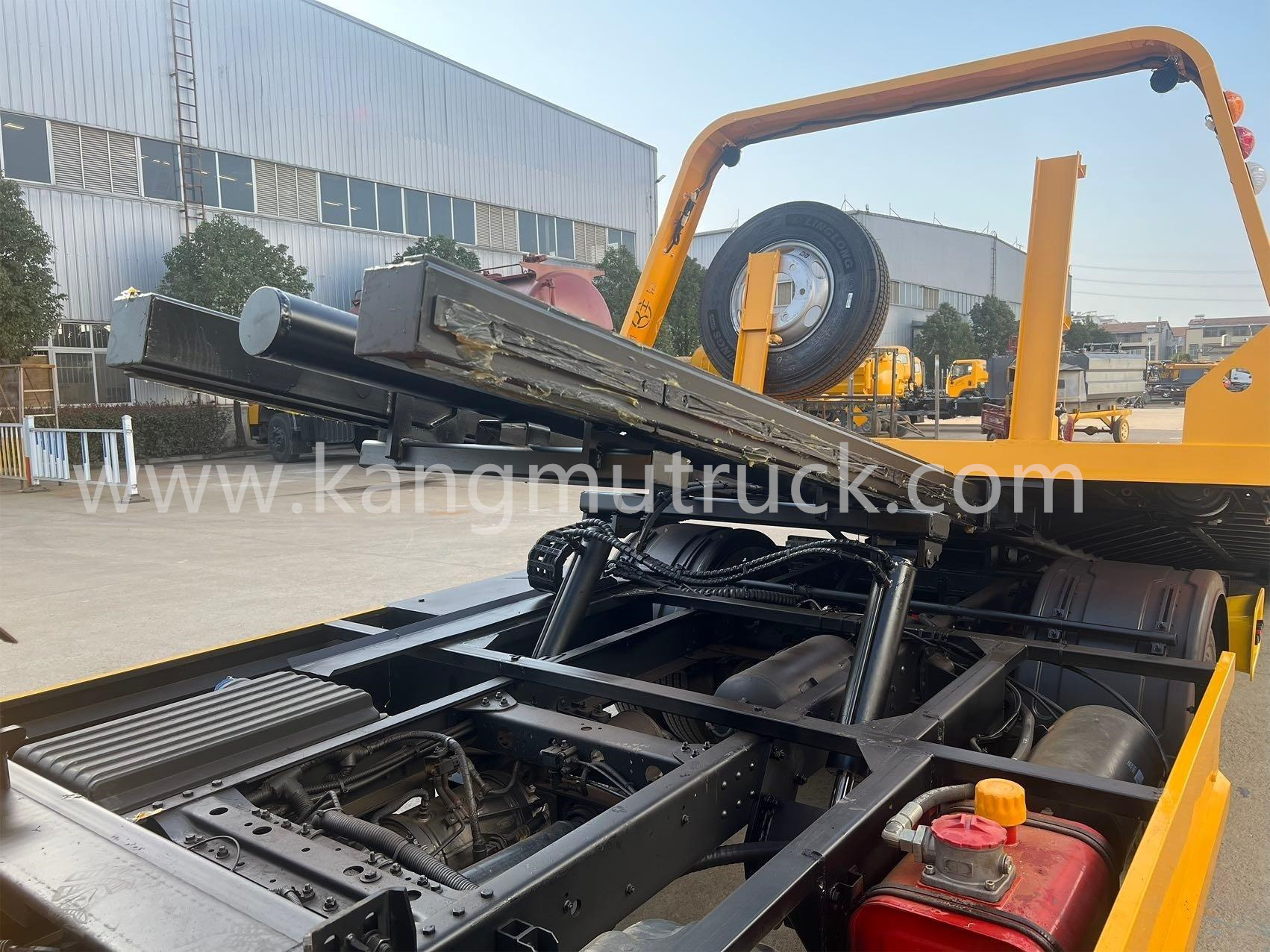

The main board features six thick patterned plates with holes, a hydraulically operated tail flip, 16 - mm - thick steel frame, main cylinder oil with a diameter of 105 mm, lifting oil cylinder with a diameter of 95 mm, 10 - mm - thick sliding rails, double subframe, a flat plate measuring 5.6 meters in length and 2.3 meters in width, dual - sided linkage operation, and a 4 - ton winch (with a 21 - meter wire rope).
Onboard tools include: a pair of auxiliary carts, four straps, one set of rear arm sleeves, one set of L - shaped forks, a pair of triangular limiters, and one toolbox.

微信图片_20240730135123微信图片_20240730135103微信图片_20240730135106微信图片_20240730135111微信图片_20240730135113微信图片_20240730135057微信图片_20240730135120微信图片_20240730135108
