Isuz Livestock Tansport Truck

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: ISUZ Livestock Transort Truck
  • Keywords:Livestock Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:

【 Main technical parameters 】

Product Name ISUZU Livestock Transport Truck Chassis Model QL1043MVHAY
Dimensions 5700,5995x2150x3050,3200 Wheelbase 3300
Box Size 3950,4200x1950x2000,2150 Engine Model 4KK1N6SD
G.V.W. 4495 Gearbox MSB-5MT
Kerb Weight 3200 Tire 7.00R16
Payload 1100 Emission Standard Euro 6,Diesel



Bodyparts data

All aluminum alloy material, multi-layer structure, the height can be customized (four to two to three to two) with air conditioning, heating, fan, drinking water, spray, air filtration, lighting, monitoring, temperature detection. The top cover opens hydraulically, the tail plate lifts vertically, and the remote control operates.


The aluminum alloy box is made of customized material, with a hydraulic lifting top or optional honeycomb insulation board manual flip cover at the top. The vehicle is equipped with a refrigeration unit, with two customized production: no layering, two layers, three layers, one partition in the middle, facing the door inside. The tail can choose a hydraulic lifting tailboard, or a double door tailboard at the tail, with hydraulic remote control operation. Each layer is equipped with a fan, spray drinking water, lighting, temperature sensors, camera system, and steel wire rope hydraulic lifting tailboard

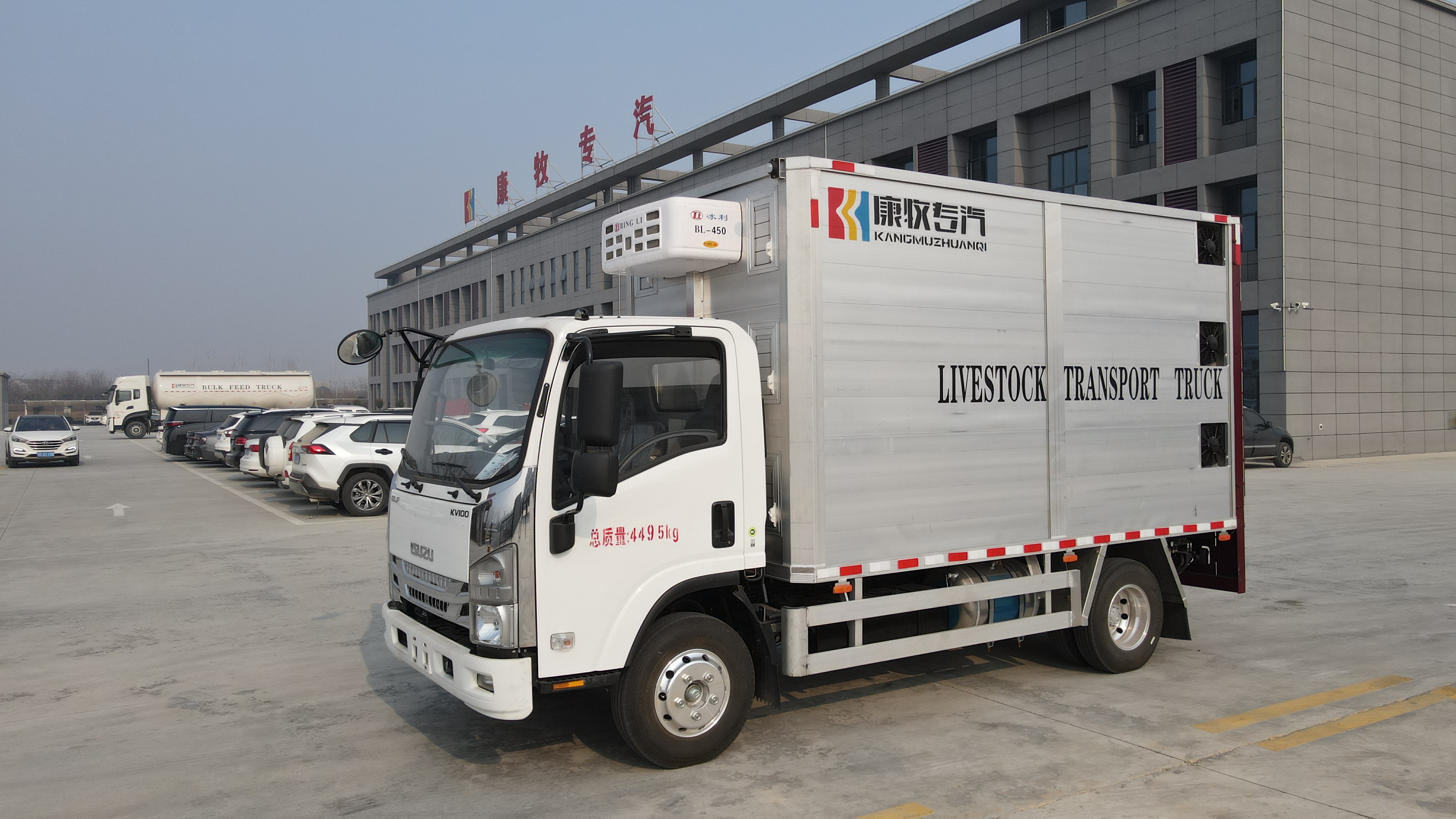

DJI_0038

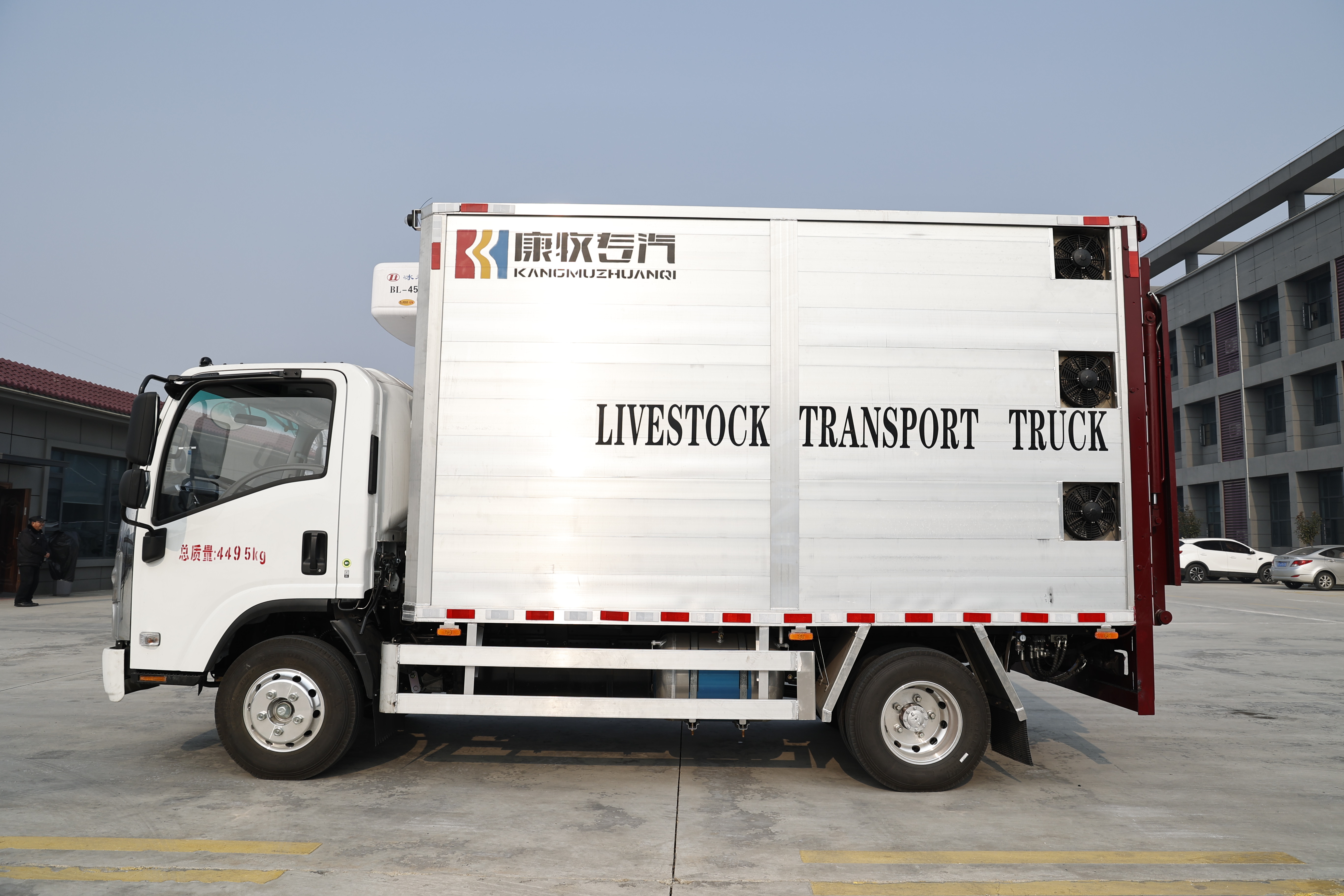

_67A3517

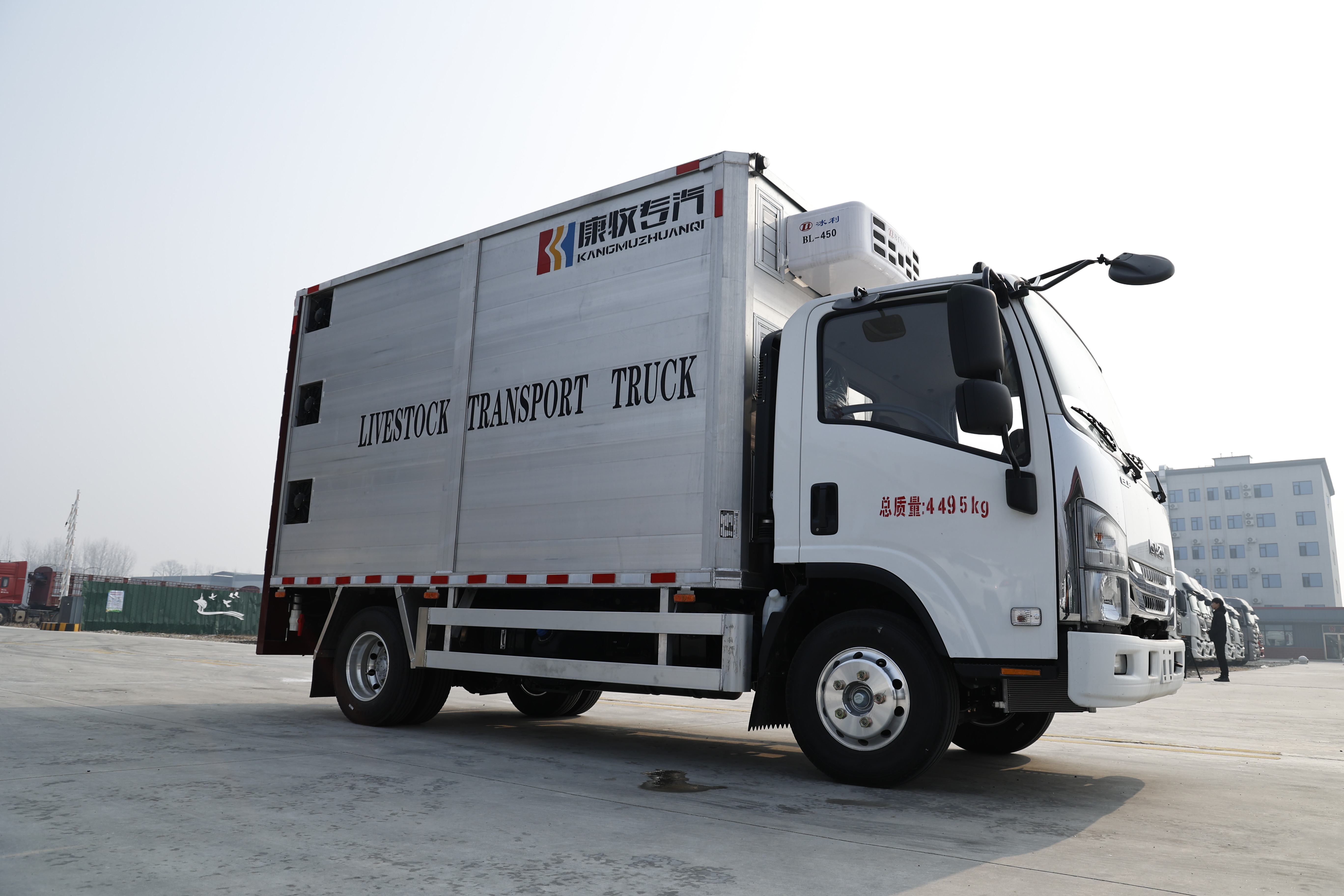

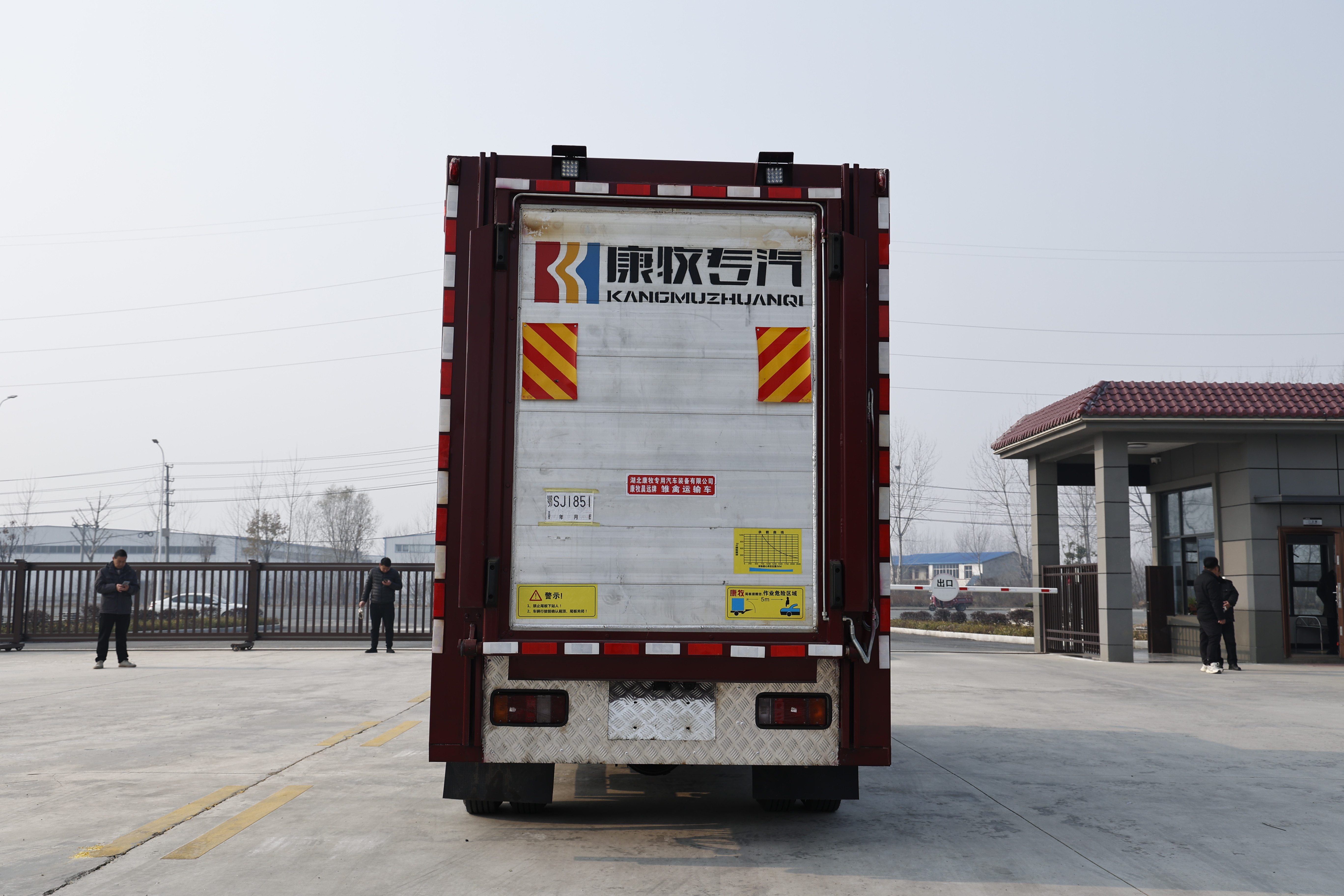

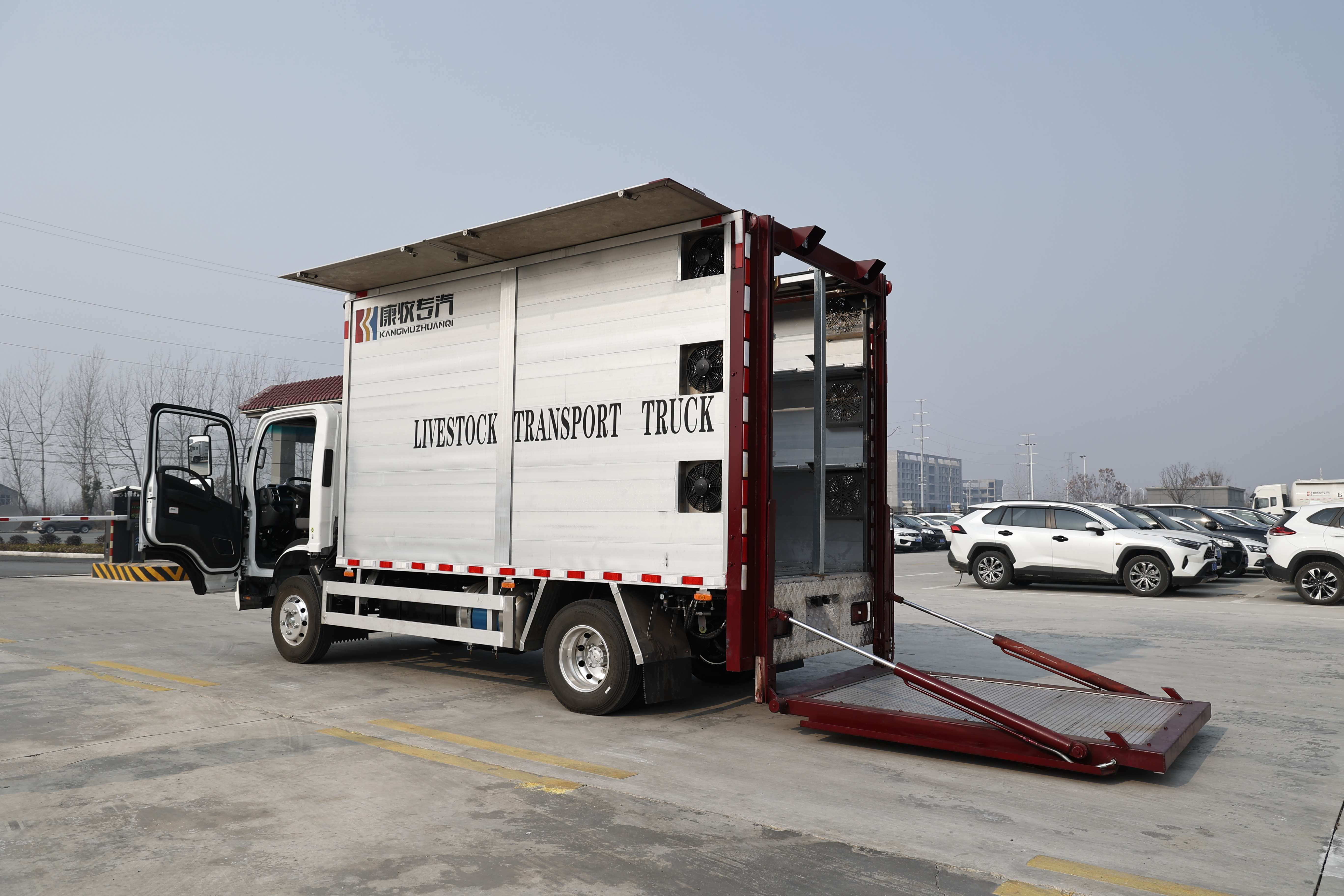

_67A3523_67A3531_67A3527




Hubei Kangmu Special Vehicle Equipment Co., Ltd. is a professional company that focus on automobile technology research and development, truck manufacturing, spare parts production and sales. Founded in March 2016, it covers an area of 120 acres and has more than 300 employees. We are the professional manufacturer of livestock and poultry transport trucks and trailers, bulk feed transport trucks and trailers, refrigerated truck, medical waste disinfection truck, garbage truck, fuel tank truck, sewage suction truck, water tank truck etc., with quality GB/T19001-2016/ISO9001: 2015 standard, and also complies with GB/T24001/2016/ISO14001: 2015 environmental standard. We fully support customization with your special requirements.


The company′s business philosophy of "quality is the life, service is the soul and integrity is the foundation of an enterprise" help us becoming the stable supplier of some famous and large group companies such as Wen′s, New Hope Group, Muyuan, Zhengbang, DaBeiNong, COFCO, etc. Our advanced technology, excellent quality and service make our products present all over the world, especially popular in Southeast Asia, the Middle East and Africa.


Welcome to visit our factory. We hope to cooperate with the friends from all over the world and make mutual benefits!
