【 Main technical parameters 】 | 【主要技术参数】 | ||

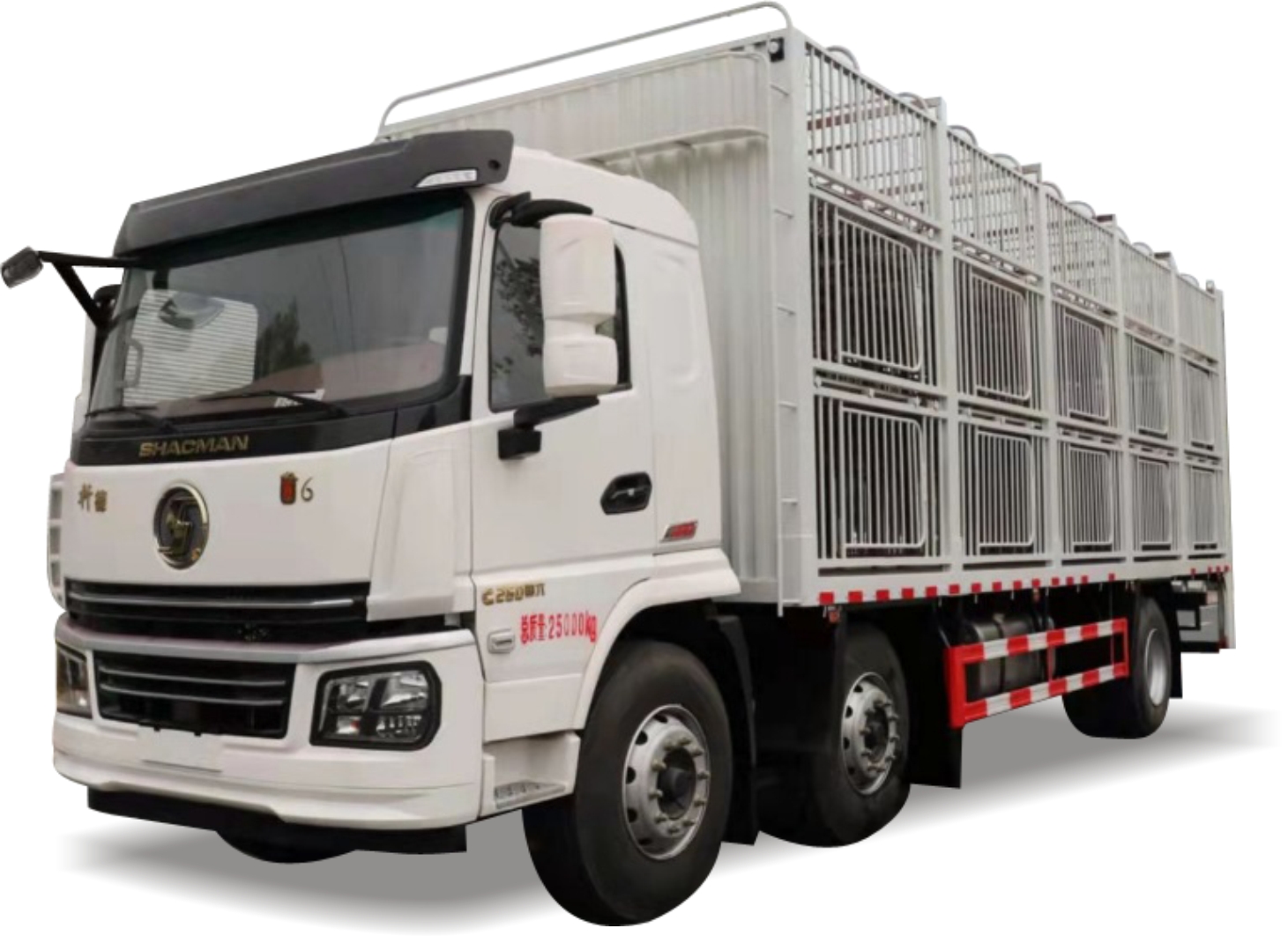

Product Name | SHACMAN Livestock Transport Truck | Chassis Model | SX1250GP6559 |
Dimensions | 9600,10100,11000x2500,2550x3800,3900 | Wheelbase | 1800+4100,5000 |
Box Size | 7200,7700,8300,8600x2350,2400,2450 | Engine Model | YCS06245-60A |
G.V.W. | 25000 | Tire | 11.00R20 18PR 12R22.5 18PR |
Kerb Weight | 10020 | Emission Standard | Euro 6, Diesel |
Payload | 14850 |
Bodyparts parameters
There are ten compartments in each of the three layers.
The bottom plate of the first layer is made of 3mm anti sliding plates.
The bottom plate of the second and third layers are made of 2mm galvanized punching plates.
The round pipes on both sides are 20mm diameter galvanized pipes with a spacing of 10cm.
The thickness of the round pipes is 2mm.
The partition layers inside the box are all removable. The longitudinal beam is made of 140 high-strength steel, the edge beam is made of 120 high-strength steel, the crossbeam is made of 100 high-strength steel, and the columns are 4mm thickness.

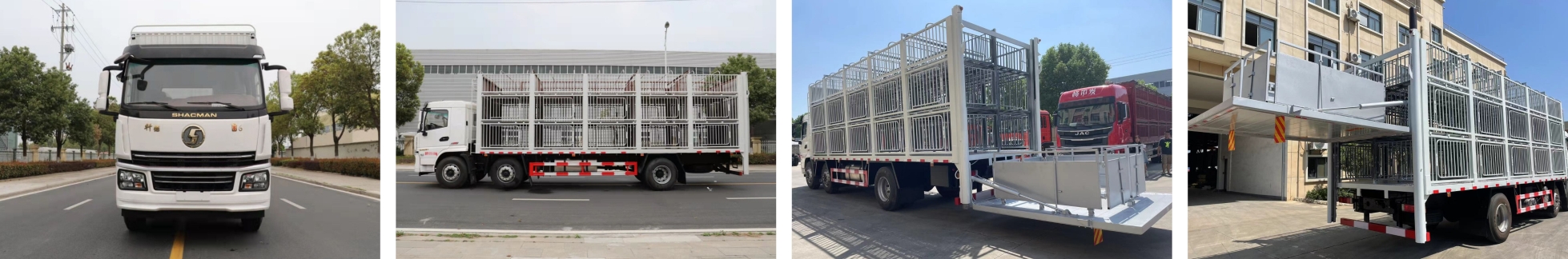

The multi-layer structure of the box, distribution of cages, and hydraulic tailboards can be selected according to actual needs.
