【 Main technical parameters 】 | |||
Product Name | Dongfeng KL 8×4 bulk feed truck (20-25 tons) | Chassis Model | Dongfeng KL |
Dimensions | 12000×2500×3995 | Wheelbase | 1850+4600+1350 |
Box Size | 9000×2495×2310 | Engine Model | dci350-51/Dongfeng |
G.V.W. | 31000 | Gearbox | 12JSD160TA/FAST |
Kerb Weight | 15870 | Tire | 11.00R20 |
Payload | 15130 | Emission Standard | Euro 5 |
Tank Volume | 42m3 | Compartment | 4 |
Advantages:
1: This vehicle is a specialized model for transporting bulk feed, announced by the Ministry of Industry and Information Technology of China. It can be registered and complies with national policies and regulations. It is an energy-saving and environmentally friendly National V model.
2: Chassis section:
Dongfeng Company's original National V automobile chassis, chassis model: DFH1310A1, Renault 350 horsepower engine, Faust 12 speed transmission, tire specifications: vacuum tires, with air conditioning, ABS, and driving recorder.
2: Upper part:

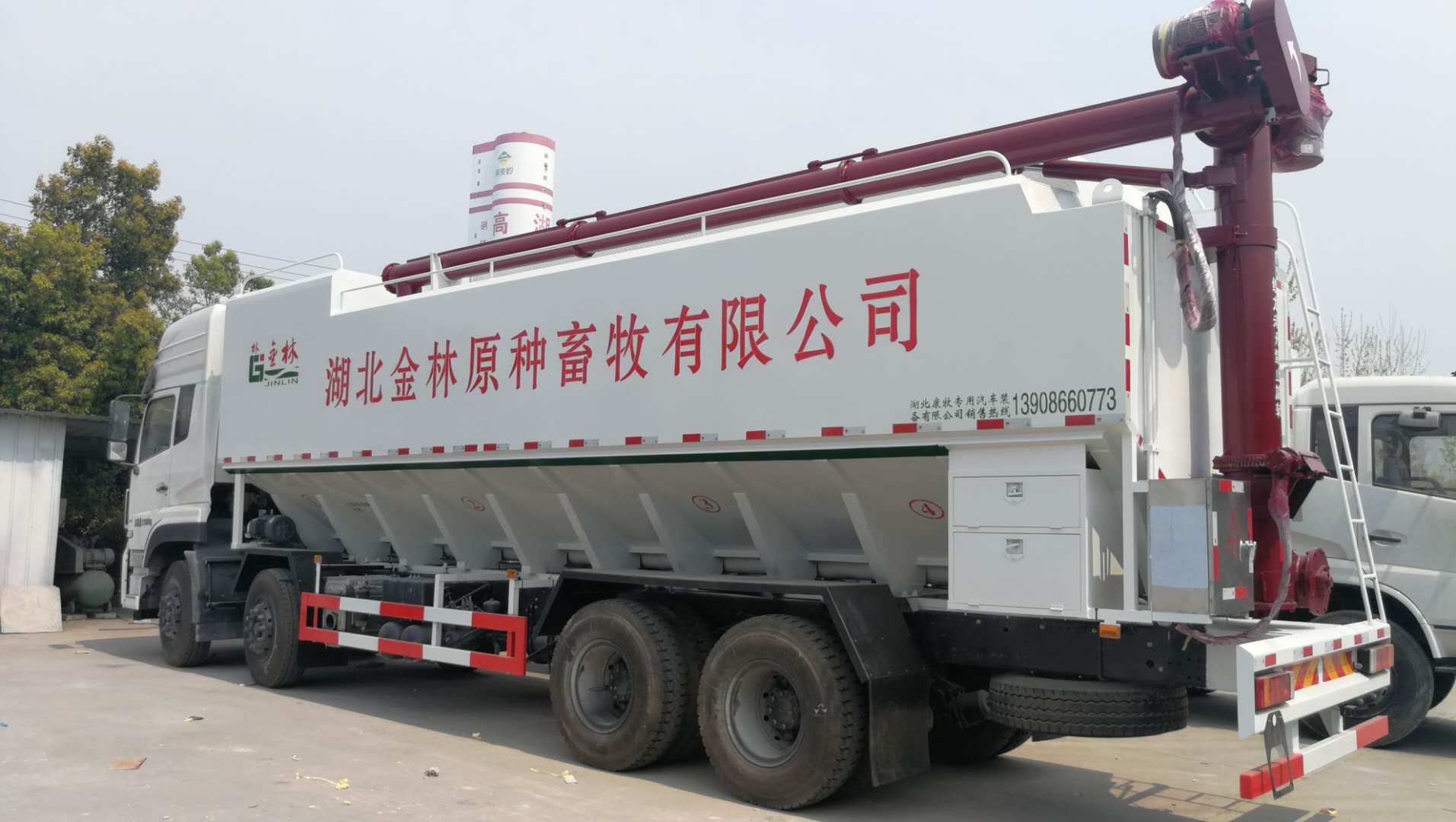

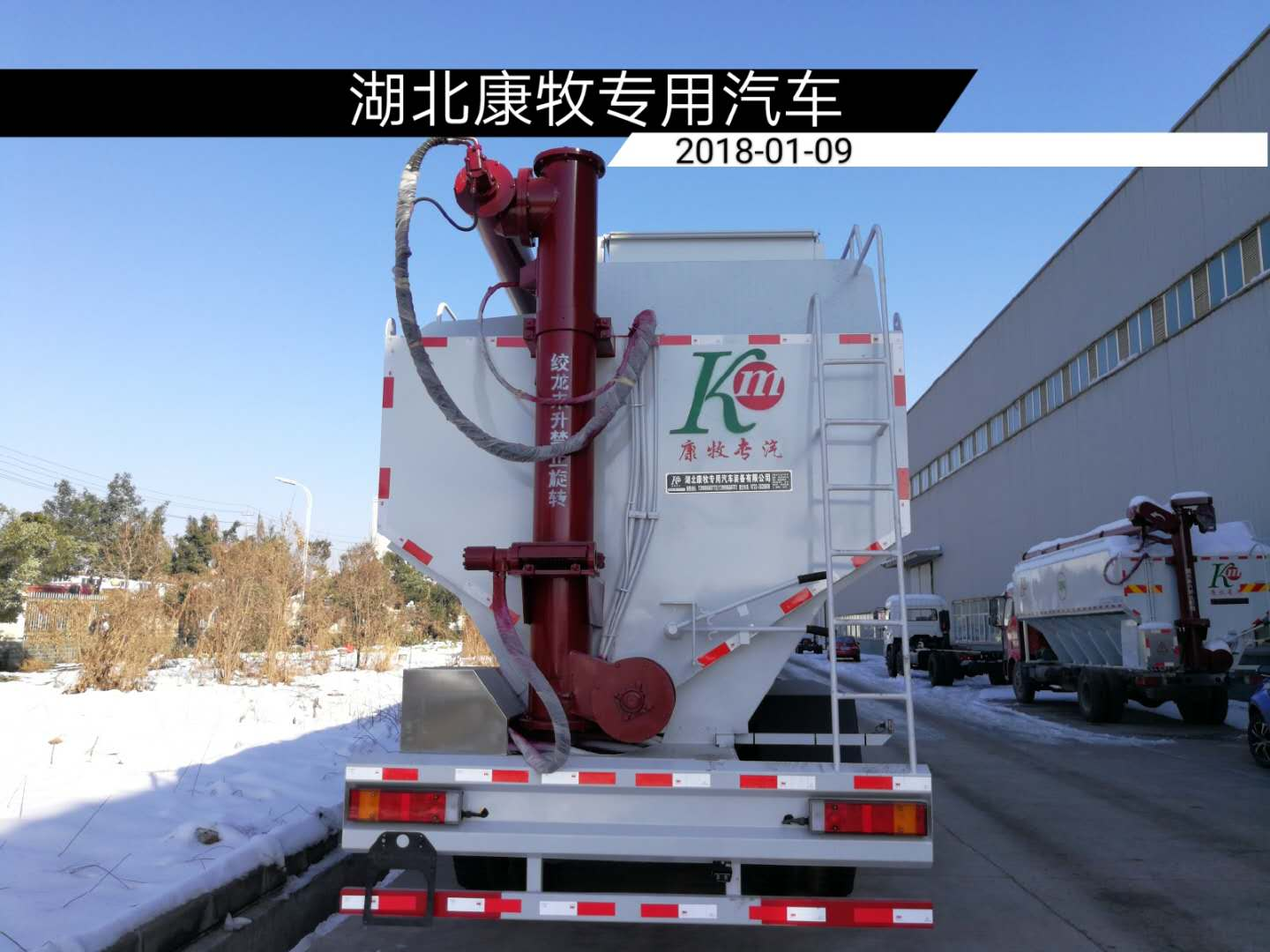

Actual volume of tank: 44m ⊃3;,The tank body is made of 4mm thick high-quality Wuhan Iron and Steel truckbon steel plate. There are four compartments inside the tank, which can be used to load and unload different types of feed. The external electric unloading method is optional, and the full hydraulic unloading method is installed. The unloading height is 8m, and the working radius is 7m. The vertical hinge diameter is increased, and the top hinge rotates and positions positive and negative 180 degrees. More convenient to use, more stable and reliable in quality.
After sales service:
After sales service:
1: The truck chassis is serviced by the local Dongfeng Company 4S store for one year with three guarantees.
2: Our factory is directly responsible for providing three guarantees of service for the upper garment for one year. If there is any malfunction, our maintenance personnel will arrive within 48 hours to solve it, and we will be responsible for lifelong maintenance at only the cost of production.
