BJ5045XLC8JDA-AB1
Foton
The Characteristics

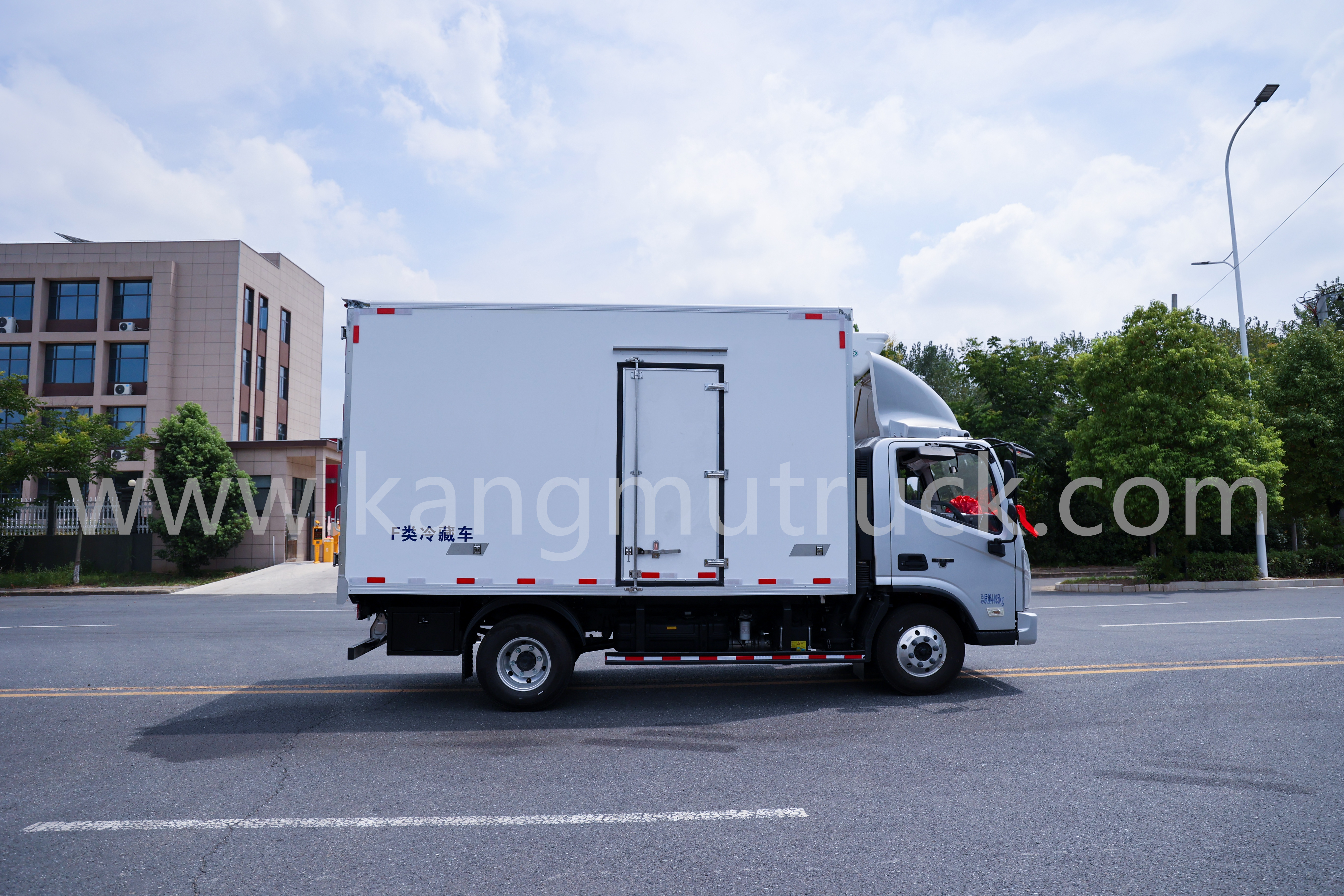

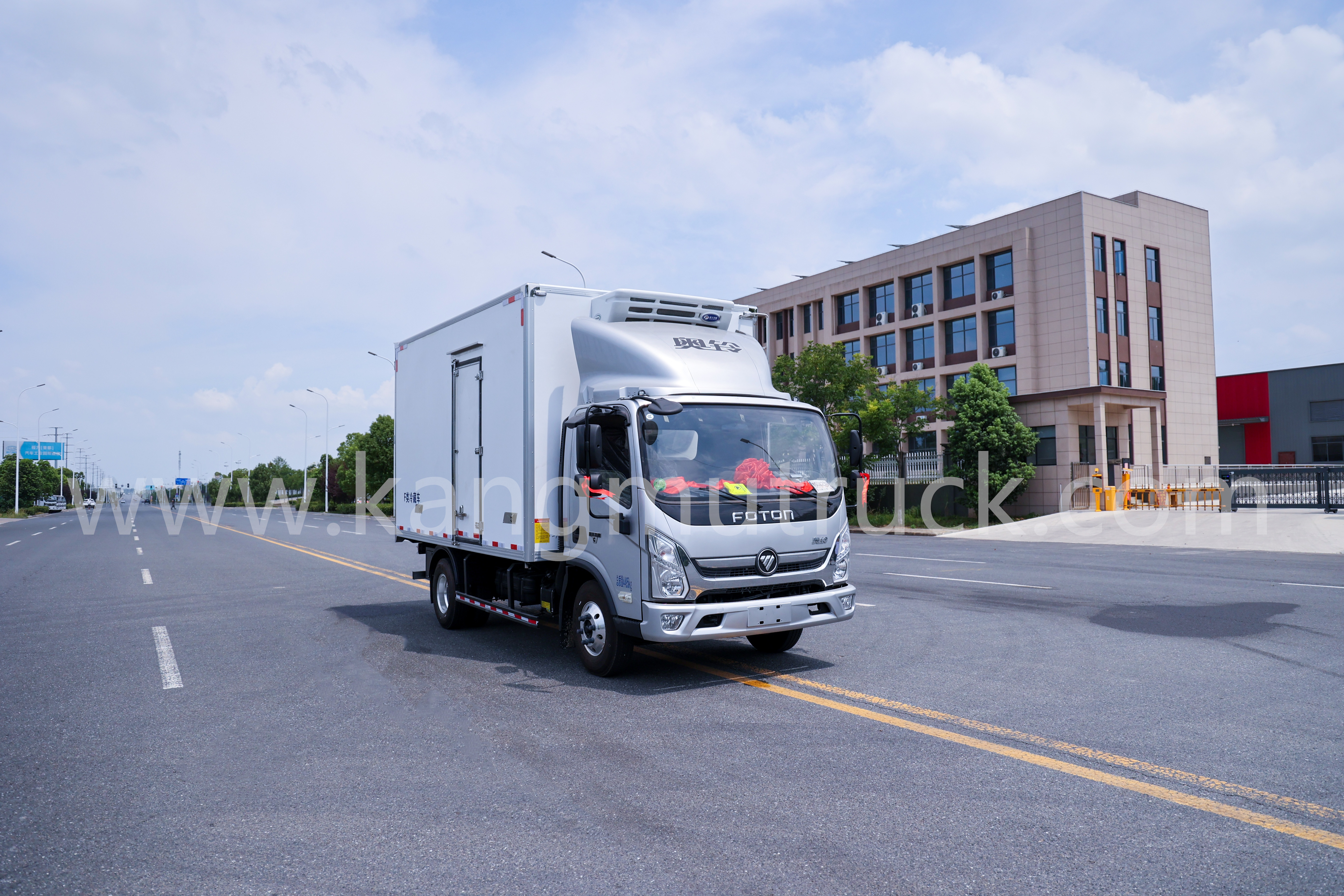

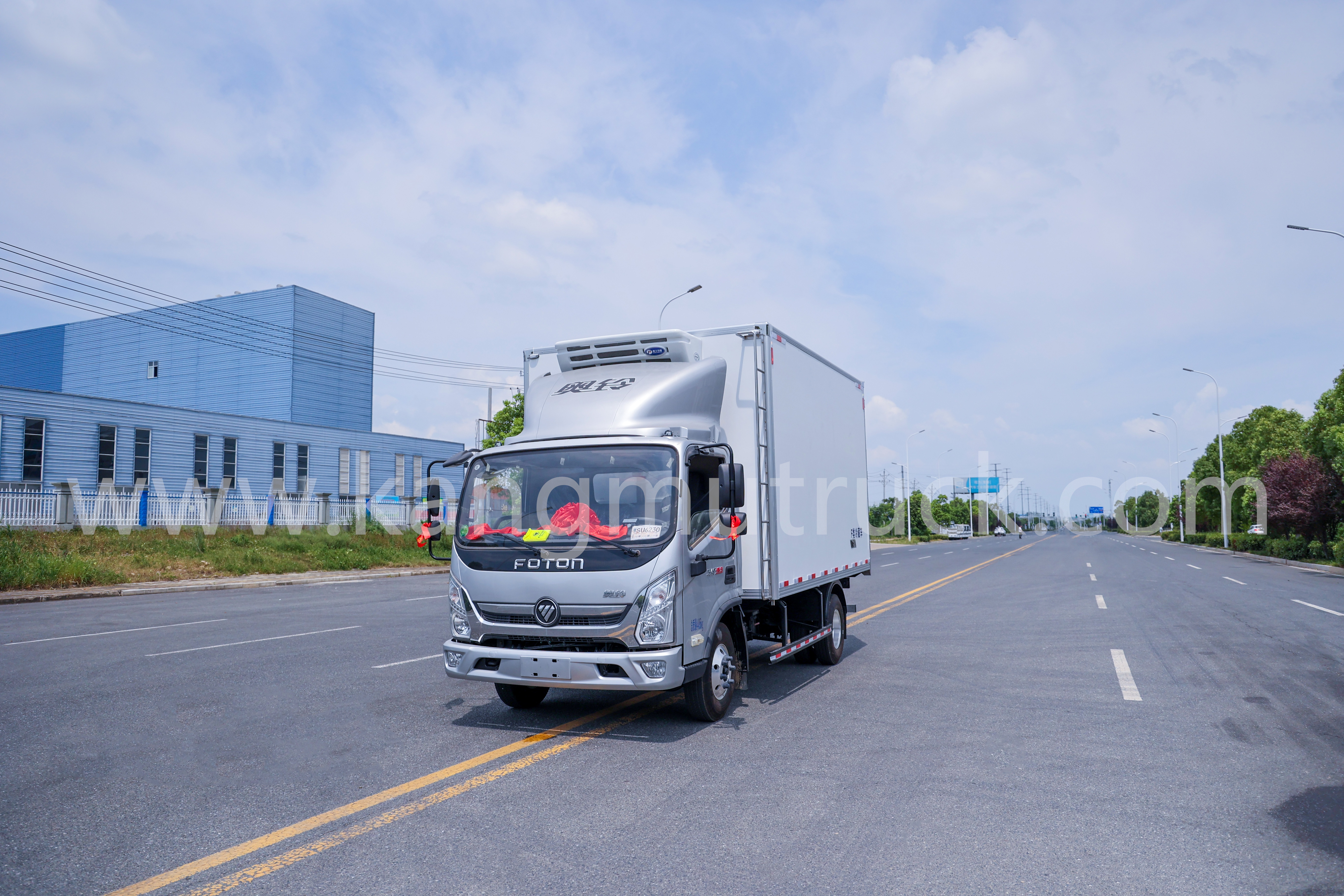

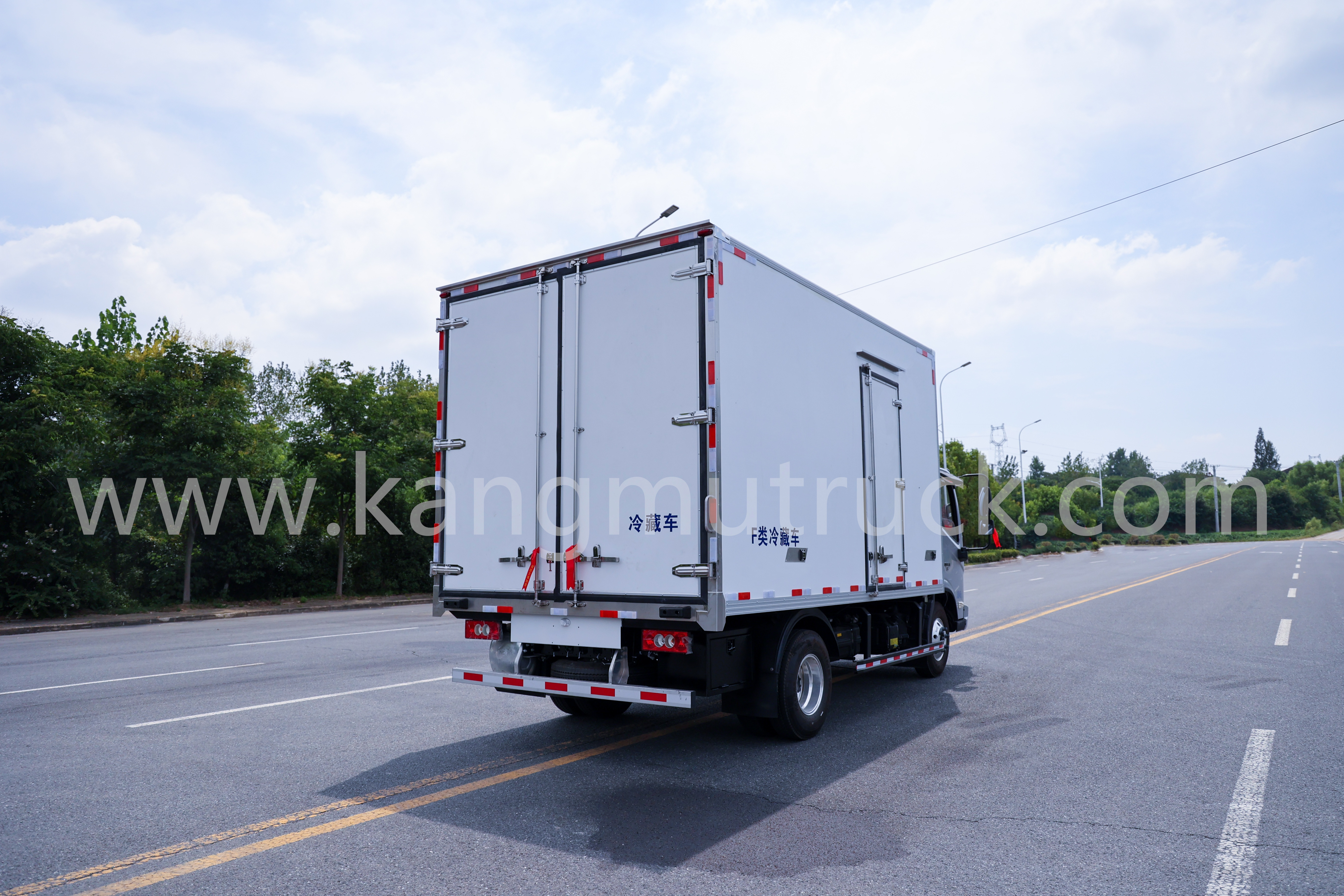

Product Name | FOTON 4.2M 158HP Refrigerated Truck |
Dimensions | 5995*2260*3265(MM) |
Inner Dimensions | 4085*2100*2100(MM) |
Engine | 4F25TC, Cummins, 2.5L displacement, 158HP |
Transmission | 5 speed (optional) |
Speed Ratio | 4.33 |
Tire | 7.00R16 Vacuum tire |
Inner Volume | 21CBM |

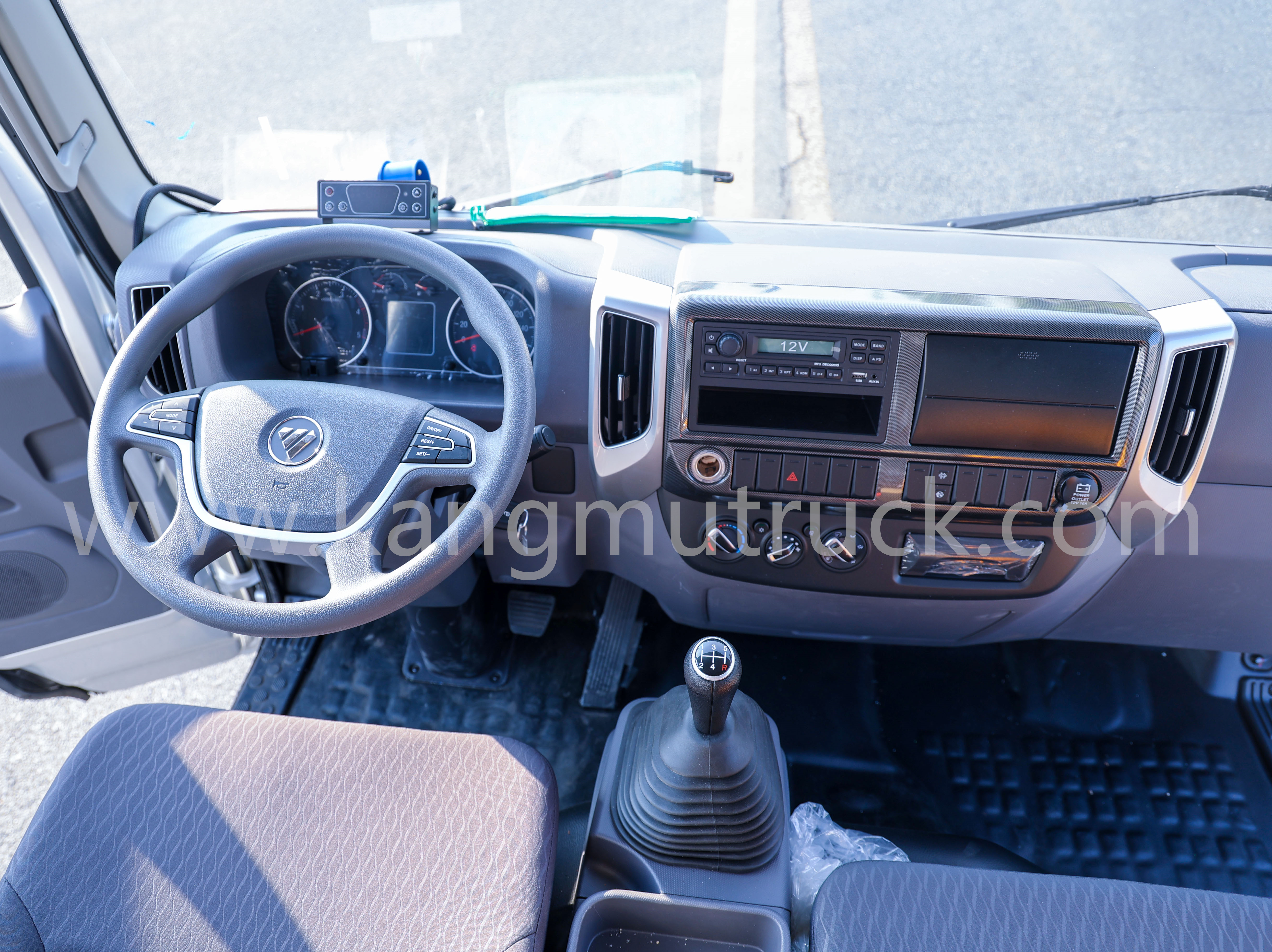

Other Features | The EST Galaxy interior now comes with a high ceiling and high floor design. It includes full-floating four airbag shock absorption, an airbag main seat, electrically heated rearview mirrors, electric cab flipping, cruise control, remote control central locking, vehicle networking, electric window lifting, and daytime running lights. The vehicle is equipped with a 12-inch LCD instrument panel, knob shift, automatic sensing wipers, a 220Ah battery, a 1000W power interface, four multifunctional steering wheels, a 10-inch multimedia touch screen, and LED high and low beam lights. Optional features are an airbag bridge and liquid buffer. |
Advantages

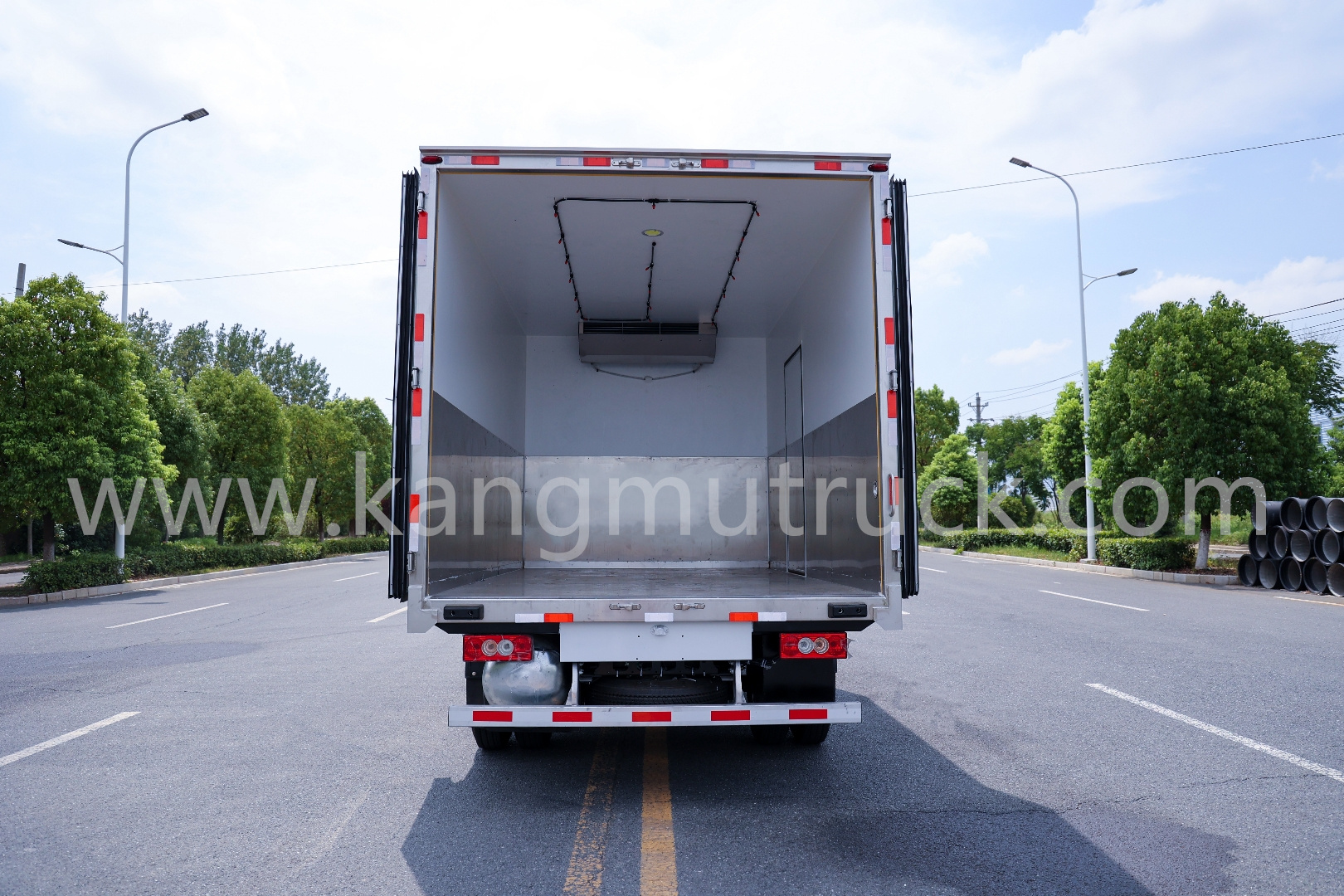

The refrigerated carriage body features a constant temperature and pressure wet board, which offers strong insulation and fast cooling speed. Finite element modeling of the box structure has been performed, along with static analysis of the plate and box structure, static bending analysis, and evaluation of strength and stiffness indicators. The vehicle has been tested under conditions such as emergency braking, heavy loads, and adverse weather to achieve benefits like high insulation, high strength, light weight, and an attractive appearance.
