Advertising LED Screen Truck with Stage

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: Advertising LED Screen Truck with Stage
  • Keywords: Led Advertising Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:

(Rear dual wheel, light gasoline)

Vehicle size: 5180 x 1760 x 2820


[Chassis configuration]

Wheelbase: 2650 wheelbase,

Engine: Liuzhou Wuling 112 horsepower,

Displacement: 1.5

Tire: 185R15LT 8PR tire,

Other: ABS, front disc braking, manual doors and windows, steering assistance, 5-speed transmission.


Blue brand light gasoline promotional vehicle (rear dual wheel)


[Upper Body configuration]

1. LED display screen

Front driver's side: Outdoor color screen, optional for p6, p5, and p4.

P6 color screen size: 2496 * 1536mm;

P5 color screen size: 2560 * 1440mm;

P4 color screen size: 2560 * 1440mm.

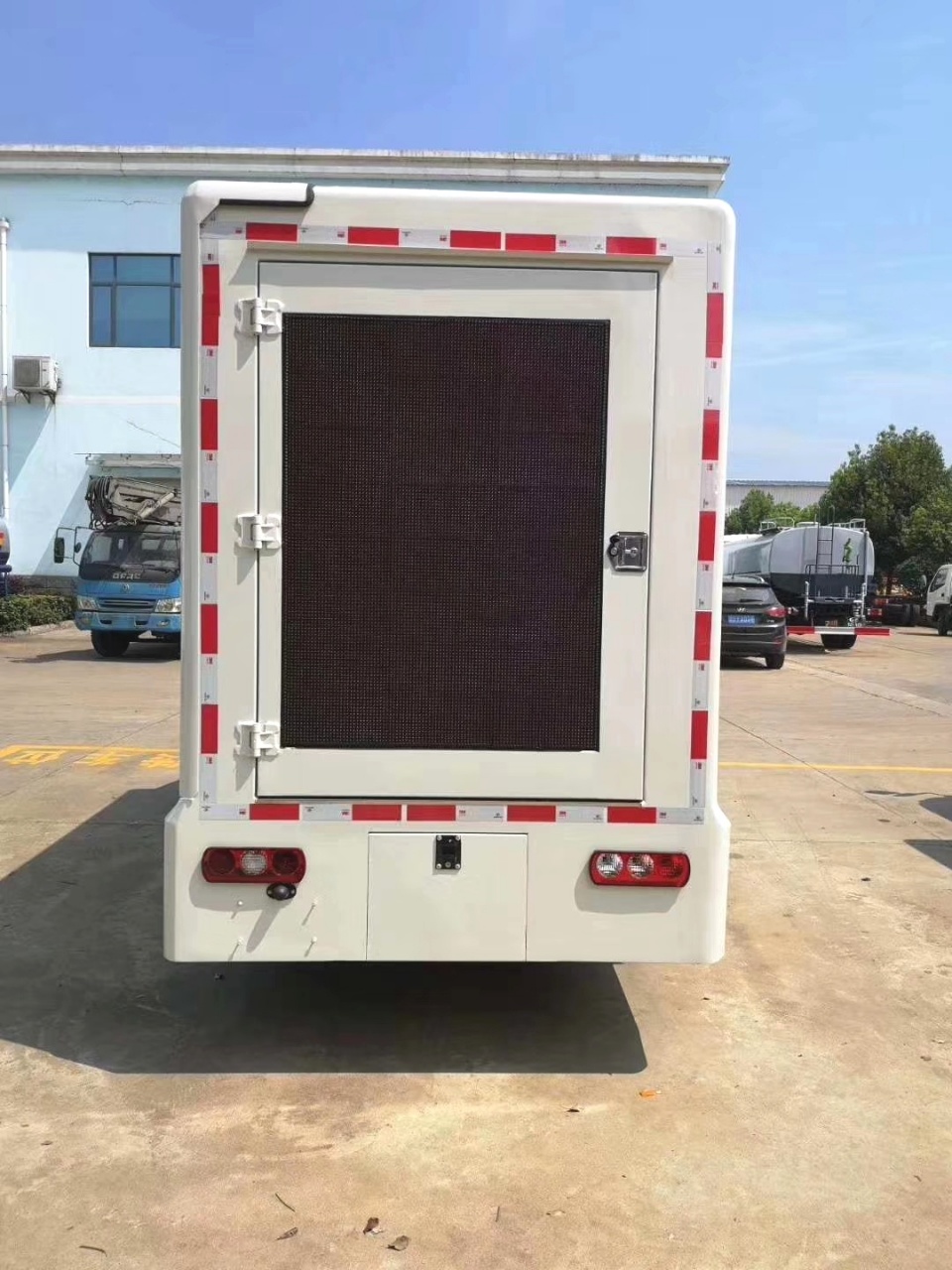

Tailgate single red screen size: 960 * 1280mm;

(Standard tailgate with p10 single red subtitle screen)


2. Roller advertising lightbox

Passenger side: Glass roller advertising light box,

Description: Can loop through 3-5 pairs of advertising lamp cloth

(When installing a double-sided screen, there is no glass roller device)


3. Power supply system

1 gasoline generator, brand: Chongqing Yihu.

Type: air-cooled, electric starting, manual starting.

Power: 6.5kw (equipped with a single-sided color screen);

8kw (equipped with double-sided color screen).

Mains: Internal and external power switching device, 220V mains interface.


4. [Operating System]

Computer: 1 Hangjia industrial control computer with AOC display.

Power amplifier: Yvette broadcast grade power amplifier, power: 200W.

Waterproof sound column: 2, power: 30W.


5. Ventilation system

One top ventilation skylight, with a front panel louver ventilation design,

The generator base is equipped with a high-power exhaust fan.

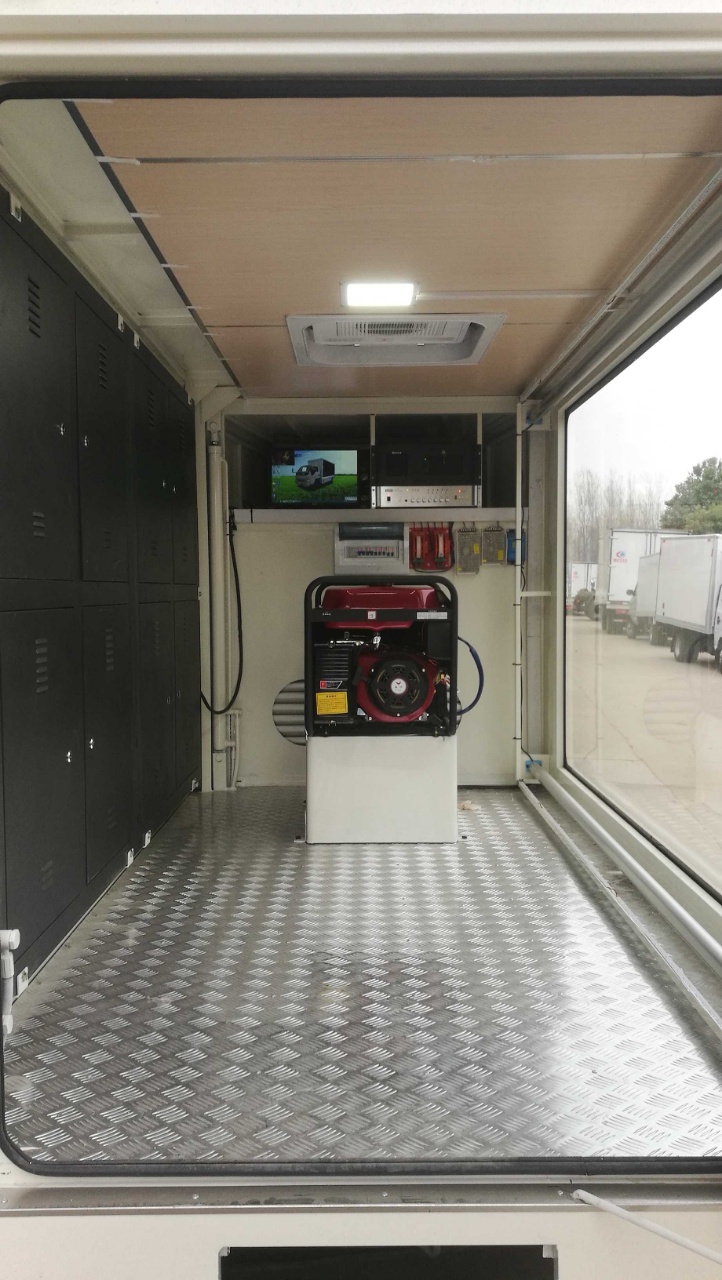

6. [Box body technology]

Carbon steel frame, covered with 1.2 cold-rolled steel plate, base layer anti rust paint, coated with putty, and sprayed with specialized car paint. The interior of the cabin is made of wood grain panels, with LED lighting and aluminum patterned flooring.


7. [Upper Assembly Accessories]

1 color screen, 1 power box, 10 ribbon cables, and 20 meters of external wires;


8. [Optional part]

★ Optional configuration 1:

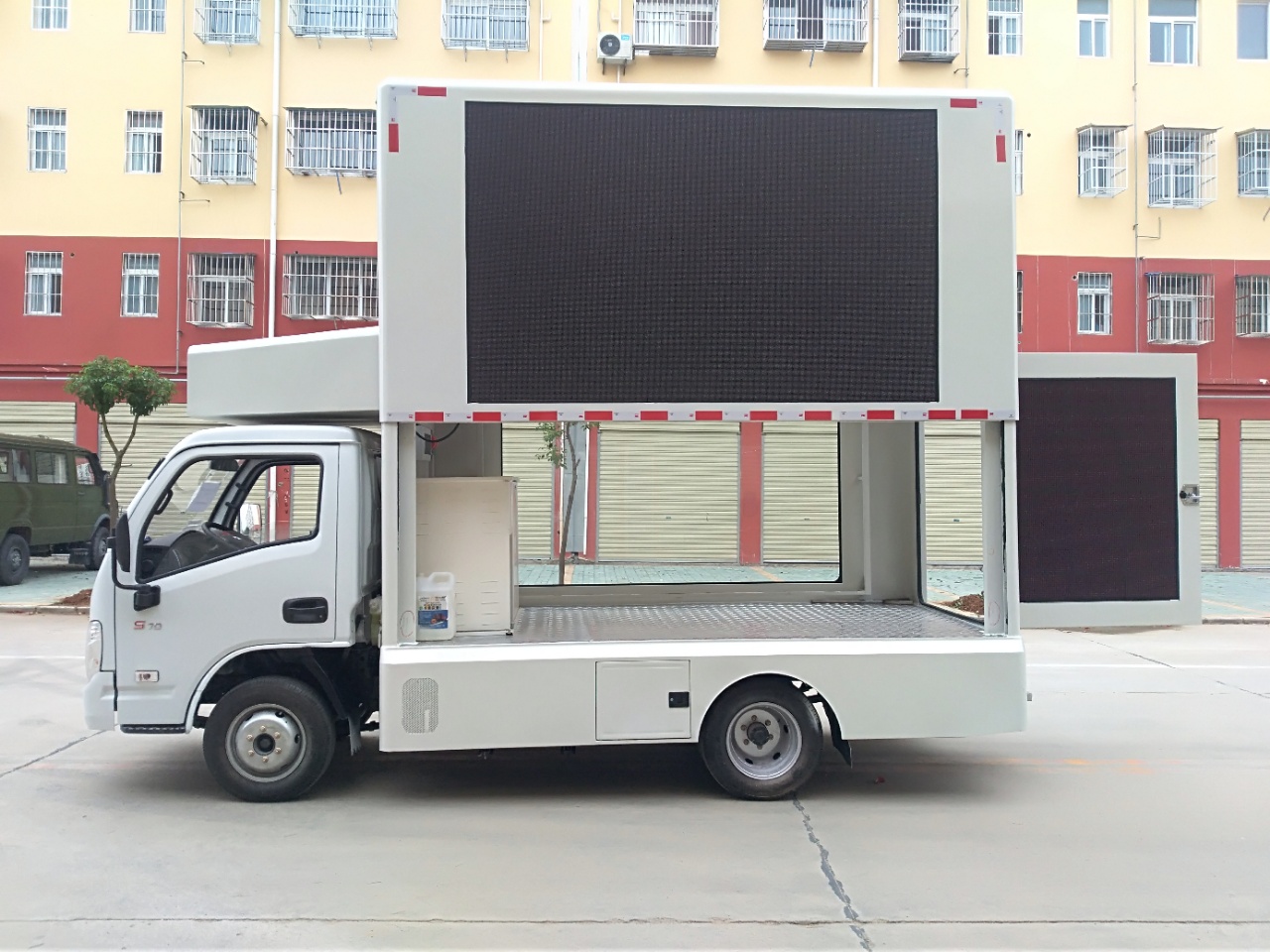

Screen hydraulic lifting (lifting height 1200mm);

★ Optional configuration 2:

Handmade stage construction (approximately 4m) ⊃2;)
