【 Main technical parameters 】 | |||

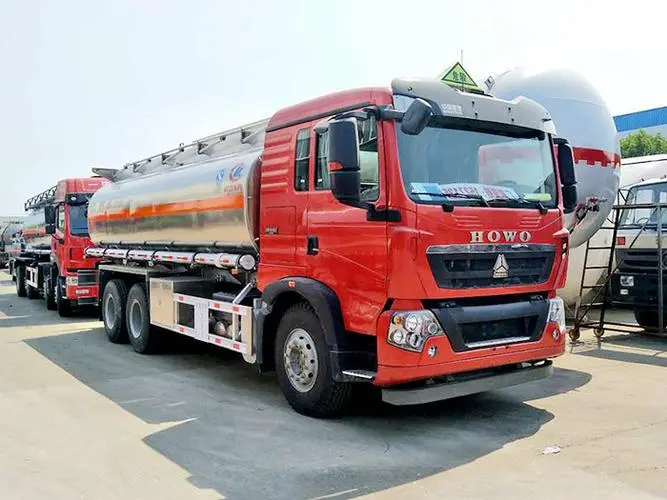

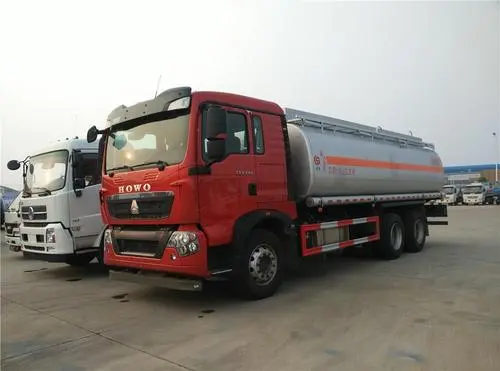

Product Name | HOWO Aircraft Refueling Truck with Oil Tank | ||
Tank Thickness | 5.6mm | Loading cargo | Jet fuel and aviation gasoline |
Tank Material | Aluminum Alloy | Gearbox | VGD75 |
Tank Volume | 20CBM | Inlet | 2 European standard inlets |
Advantages:
Tank body thickness5.6mm, head thickness 5.7mm, partition thickness 5.7mm,
single compartment, dedicated 50 # hydraulic reel for refueling trucks with a flow rate of 500L/min, dedicated DN65 hydraulic reel with a flow rate of 850L-1200L/min with a flow rate of 500mm and an aviation stabilizing joint (with a flow rate of 0.2L/min);,
Explosion proof lamp; Equipped with European standard system, oil and gas recovery and anti overflow system, and coalescence separator (90F/hour);
Self suction centrifugal pump (pump in and pump out) with auxiliary drive shaft driving hydraulic station; 3-inch float level gauge;
Left HYJ-63X connector valve (equipped with oil and gas recovery connector, equipped with four-position three-way) with elastic soft connection;
Operating equipment box: remote magnetic control switch, manual throttle (including cylinder), pressure control valve inside the pipe, Venturi tube, high liquid level control valve, magnetic control refueling program controller. Four pressure gauges before (after) filtration, equipped with differential pressure gauge, Venturi pressure gauge, and hydraulic pressure gauge. Pre/post filter/discharge sampling (closed circuit sampler); And make a self-made sampling and recovery cylinder.
Laying protective nets on the top of the tank, equipped with movable guardrails, and climbing ladders inside/outside the tank; Two unloading boxes/one toolbox/one operation box each;
Two sets of single bridge folding mudguards, equipped with side protection/rear protection/pipelines/ball valves/gaskets/bolts;
Other accessory factory labels;
Clean the surface thoroughly, and label/reflective stickers according to the factory logo.
