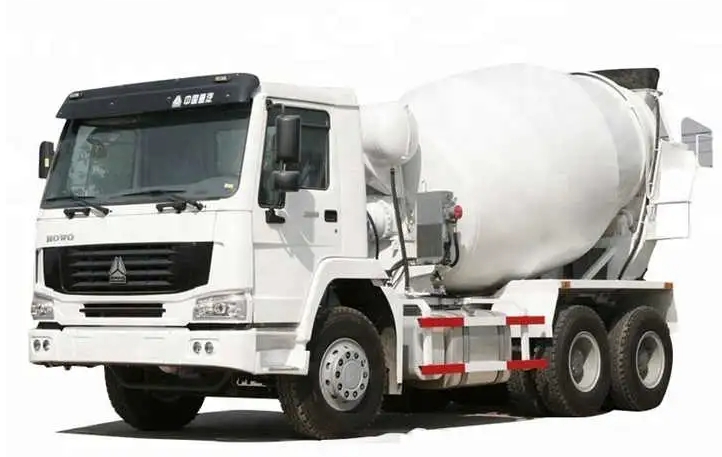

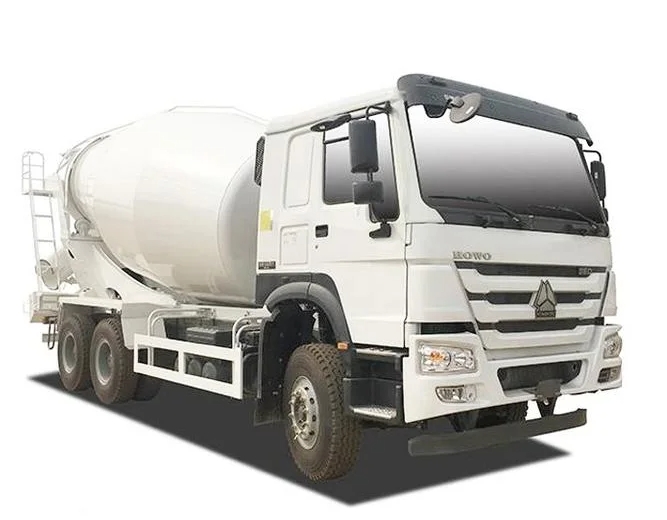

| 10 Cubic Meters Mixer Truck Concrete Trucks Mixer |
| Product Parameter | More parameters |
| Chasis brand | SINOTRUK -HOWO | more |
| Truck Model | ZZ1257V4047B1 | / |
| Geometric Volume | 8 CBM | 6,8,9,10,12,14,16,18 |
| color | option | option |
| Water Tank Volume(L) | 400 | Water Tank Volume(L) |
| Engine | WD615.69, Euro 2 | Euro 2 |
| Wheel base (mm) | 3225+1350 |
|
| Overall Dimension (mm) | 8560x2496x3850 |
|
| Clutch | SINOTRUK's 430C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | HW19710, 10 forward and 2 reverse |
| Ratio: 4.42 4.8 5.73 |
| Front Axle | New HF9 series, with drum brake system |
| Rear Axle | HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system. |
| Steering | ZF8118, hydraulic steering with power assistance |
| Ratio: 22.2-26.2:1 |
| Wheels&Tyres | Types: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20 |
| Driver'sCab | HW76 (one sleeper) all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, |
| adjustable co-driver's seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air |
| conditioner |
| Cargo body | American Eaton pump and motor, Rexroth reducer, water tank 400L, head 8mm, tank 5mm, blade 4mm |
