HOWO 8x4 Truck With Crane Dump Truck Cargo Flatbed Truck

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: HOWO 8x4 Truck With Crane Dump Truck Cargo Flatbed Truck
  • Keywords: Dump Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:
HOWO 8x4 Truck With Crane Dump Truck Cargo Flatbed Truck
Chassis Model Left/ Right Hand Driving Type Optional
Engine Euro II Emission, 371HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L
Clutch Single-plate dry diaphragm spring clutch, diameter 430mm,hydraulically operating with air assistance
Gearbox manual operation, HW19710, 10 forward and 2 reverse, with Power Take-Off (PTO)
Front Axles VGD95, 9500kg with drum brake system
Rear Axles HC16, 2X16000kg, double stage reduction (central+ hub), cast axle housing, ratio: 5.73
Suspension Front suspension: 10 pcs leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer
Steering System power steering, hydraulic steering with power assistance
Braking System Front drum rear drum brake, four-circuit protection valve
Service brake: dual circuit compressed air brake
Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms
Tires 12.00R20 (12.00R22.5, 315/80R22.5 optional), with one spare tyre
Fuel Tank Volume (L) 400
Dead Weight 7900
Gross Vehicle Weight (kg) 16000
Rated Loading Weight (kg) 8100
Overall Dimension 10500x2550x3500
(LxWxH) (mm)
Wheelbase (mm) 1500+4200+1350
Min.Ground Clearance (mm) 314
Approach/Depart Angle(°) 19/ (27/65)
Gradeability (%) ≥50
Min. Turning Diameter (m) 15
Cargo Body Size (LxWxH) (mm) 6500x2300x600
Max lifting capacity of the crane 1/2/3/4/5/6.3/8/10/12
Remark (Engine Power Option) 266;336HP; 371HP

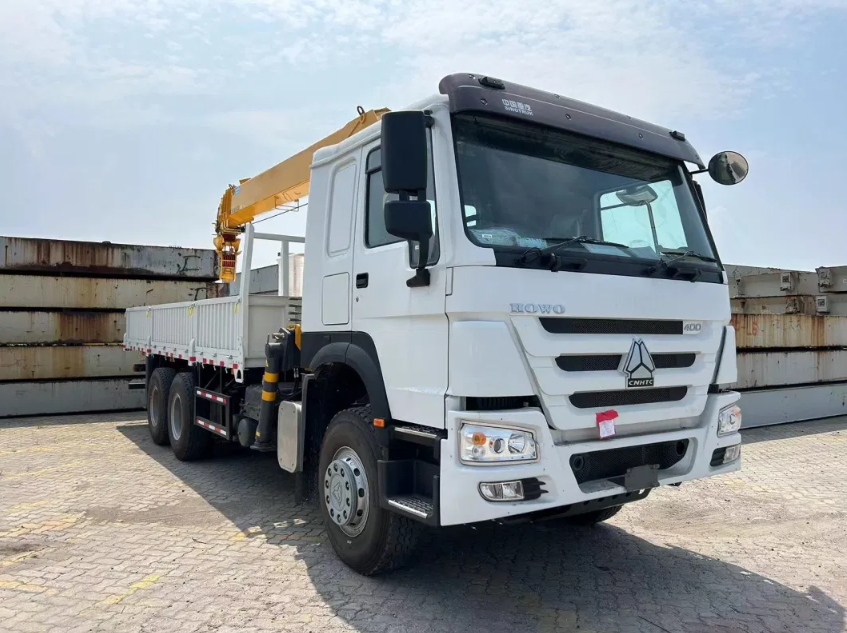

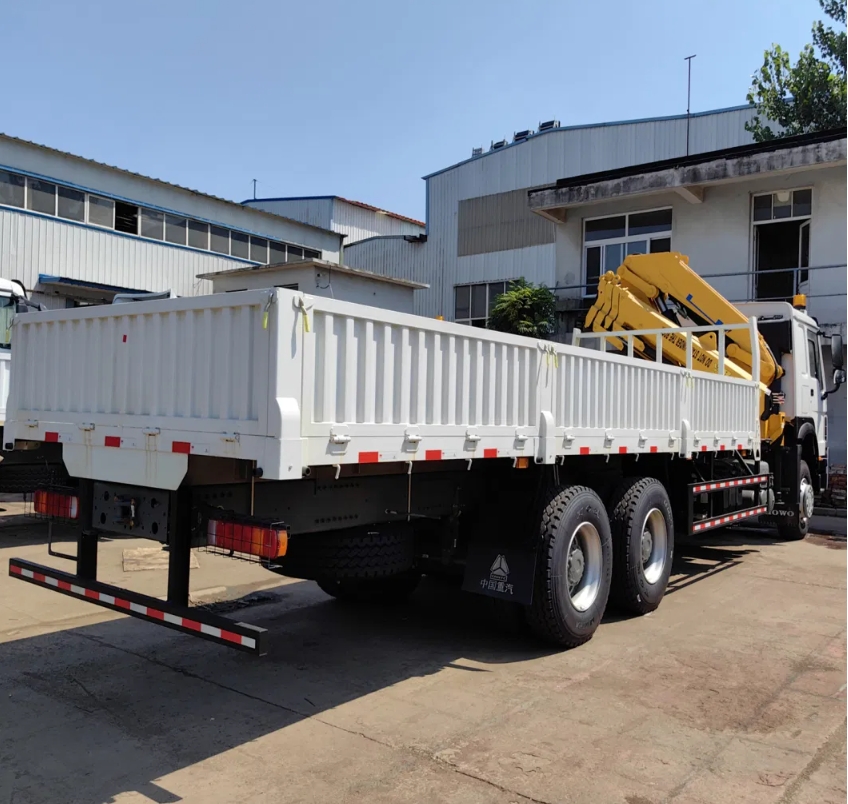

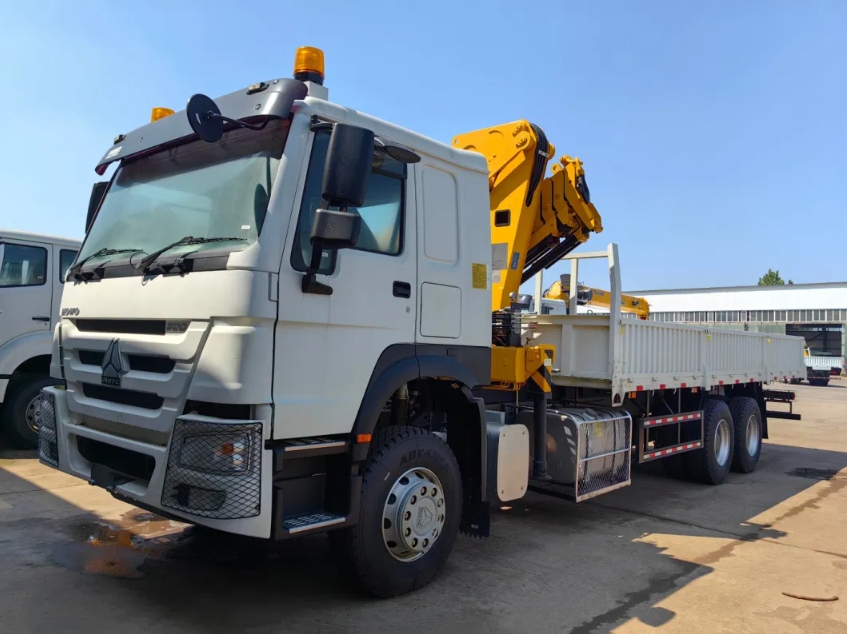

微信截图_20240328133304微信截图_20240328133317微信截图_20240328133250
