KMH5045XCCE6
Dongfeng Dolika 3308mm Wheelbase Food Truck | |||
【Vehicle Technical Parameters】 | |||
Product Name | Food Truck | Product Model | KMH5045XCCE6 |
Gross Mass (Kg) | 4495 | Curb Weight (Kg) | 4365 |
Number of Approved Passengers in Cab (persons) | 2, 3 | Overall Dimensions (mm) | 5995×2090×3340 |
Approach Angle/Departure Angle (°) | 27.7/14 | Front Overhang/Rear Overhang (mm) | 1055/1632 |
Axle Load (Kg) | 1600/2895 | Maximum Speed (Km/h) | 110 |
【Remarks】 | 1.ABS model/manufacturer: ABS/ASR-12V-4S/4M/Xiangyang Dongfeng Longcheng Machinery Co., Ltd; | ||
2.Optional carriage structure style, only with 3308mm wheelbase, Quanchai 136 horsepower, power windows, central locking; | |||
3.The side protection and rear lower protection devices are integral skirt structures, made of Q235, and the ground clearance of the rear lower protection is 490mm; | |||
4.The top of the carriage is closed and cannot be opened; | |||
5.This vehicle is used for cooking food and catering processing, and the internal equipment in the carriage includes cooking utensils, stoves, freezers, etc; | |||
6.Optional different internal layouts of the carriage. The cab can be optionally equipped with the chassis. | |||
【Chassis Technical Parameters】 | |||
Chassis Model | EQ1045SJ3CDF | Chassis Name | Truck Chassis |
Trademark Name | Dongfeng Brand | Manufacturer | Dongfeng Motor Co., Ltd |
Number of Axles | 2 | Number of Tires | 6 |
Wheelbase (mm) | 3308 | ||
Tire Specification | 7.00R16LT 8PR | ||
Number of Leaf Springs | 6/6+5, 3/3+3, 2/3+2, 5/7+3, 5/4+3, 6/4+3, 6/5+2, 6/3+3, 3/3, 3/3+2, 3/6+5, 3/8+6, 3/5+2, 7/10+7 | ||
Front Track (mm) | 1525, 1519, 1472, 1545, 1613, 1609 | ||
Rear Track (mm) | 1498, 1516, 1586, 1458, 1650, 1800, 1472, 1670, 1564 | ||
Displacement (ml) | 2300 | ||
Power (Kw) | 100 | ||
Fuel Type | Diesel | ||
Emission Standard Basis | GB17691-2018 National VI | ||
Engine Model | Q23-136E60 |
Vehicle Introduction:

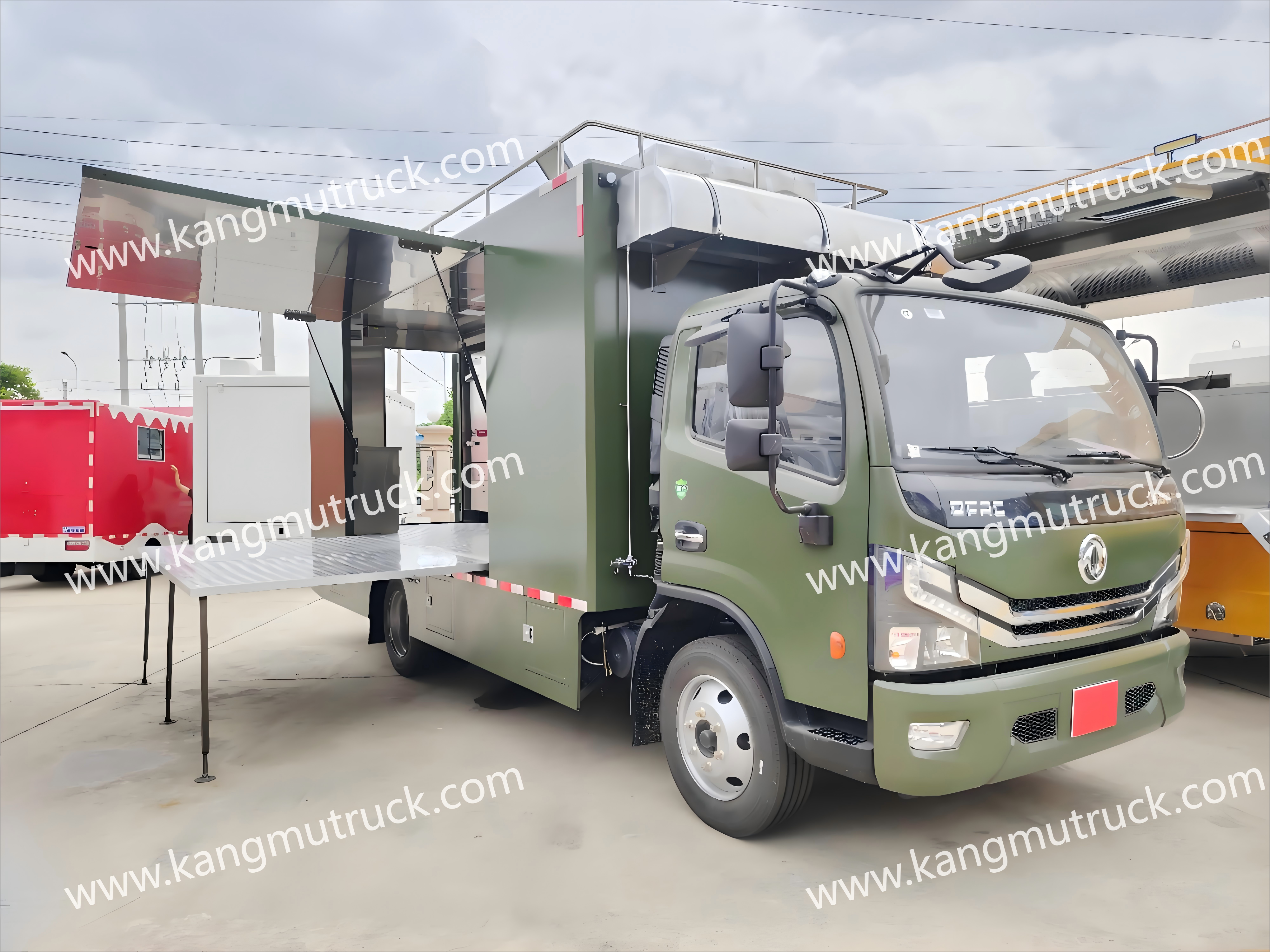

The KMH5045XCCE6 food truck body can be expanded on one side to serve as a food passing platform. The roof is equipped with a powerful exhaust fan and ventilation and heat dissipation windows. The equipment inside the carriage, such as stoves, smoking equipment, cooking equipment, refrigerators, vegetable racks and storage shelves, are all made of high - quality stainless steel, and the carriage is divided into a hot food room and a cold food room. It is also equipped with a clean water tank and a sewage tank, with a reasonable layout and convenient use, just like a small kitchen but a big stage.
All steel structural parts of the vehicle are made of high - strength materials, which are heat - resistant, cold - resistant and have high toughness. It can be driven with a blue license (C license), with good mobility, and is very suitable for the needs of mobile cooking scenarios.
