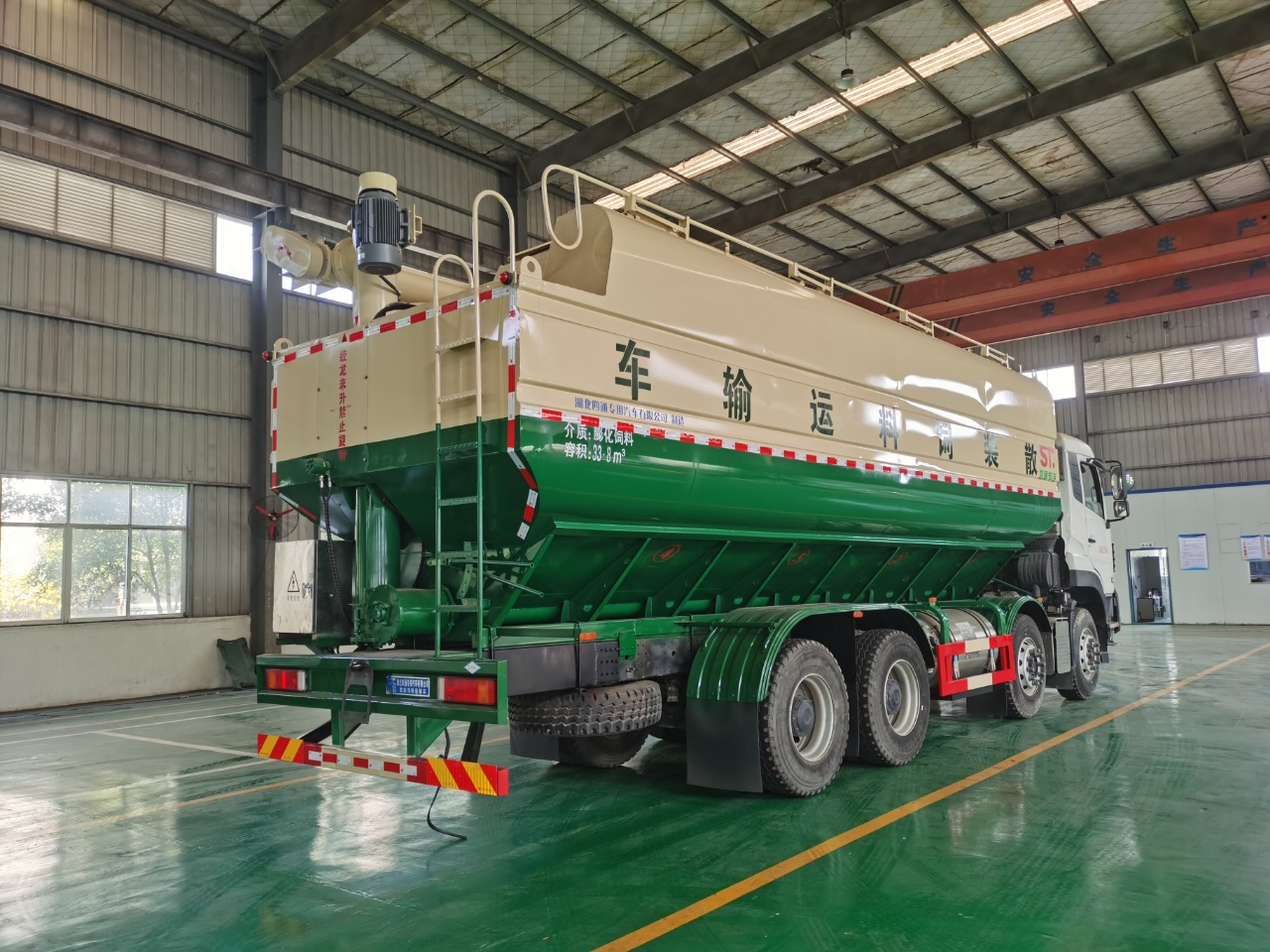

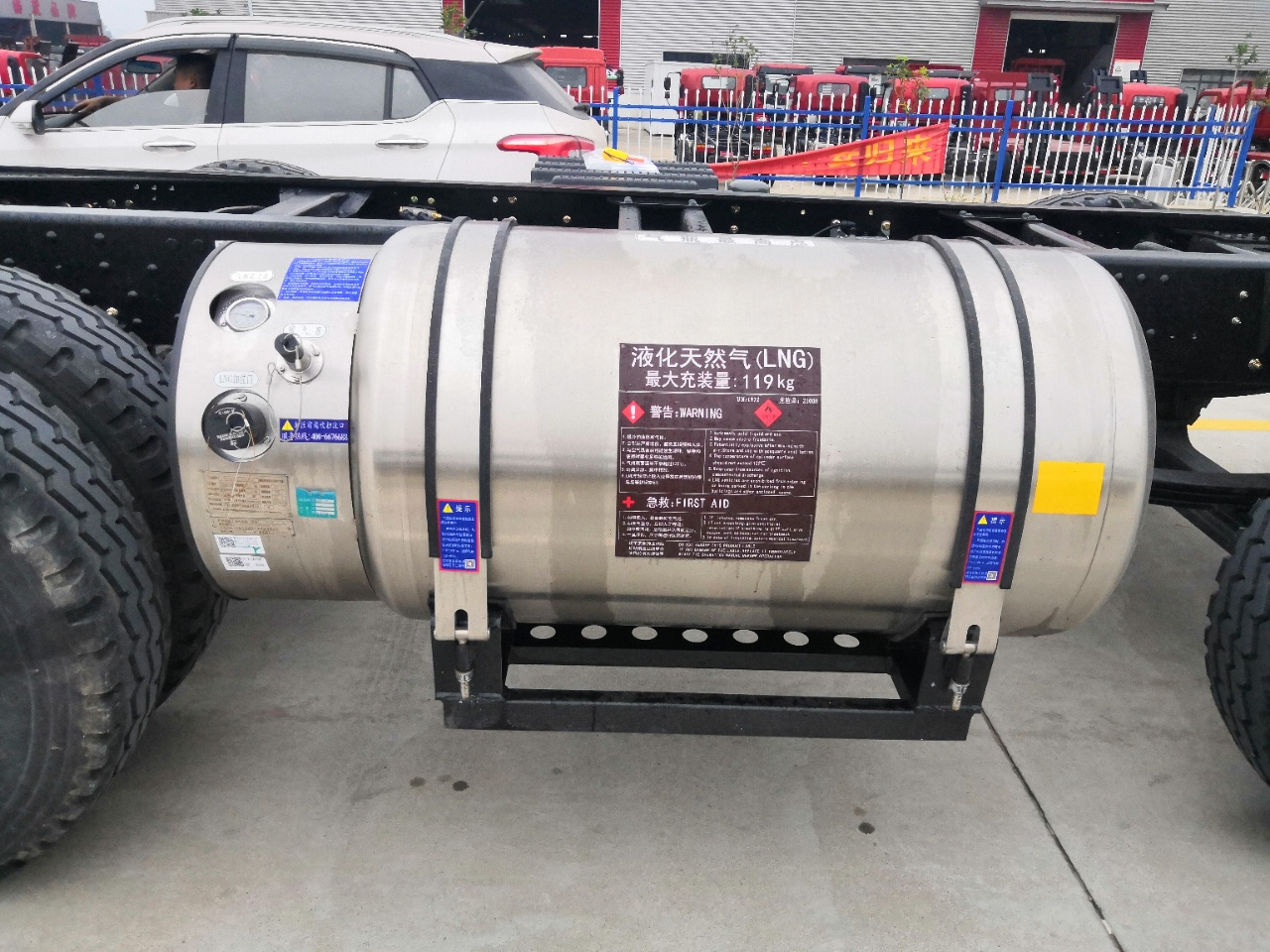

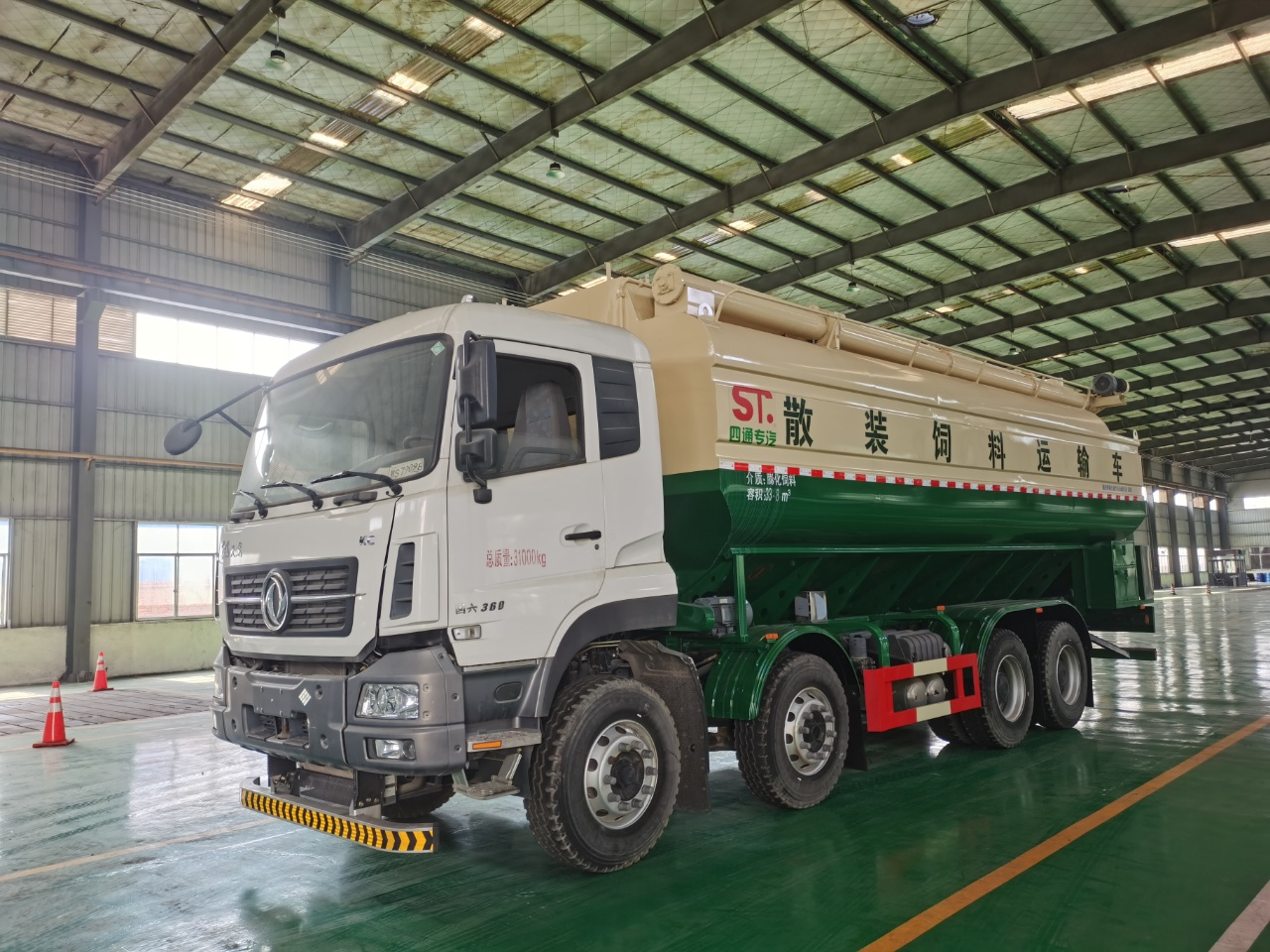

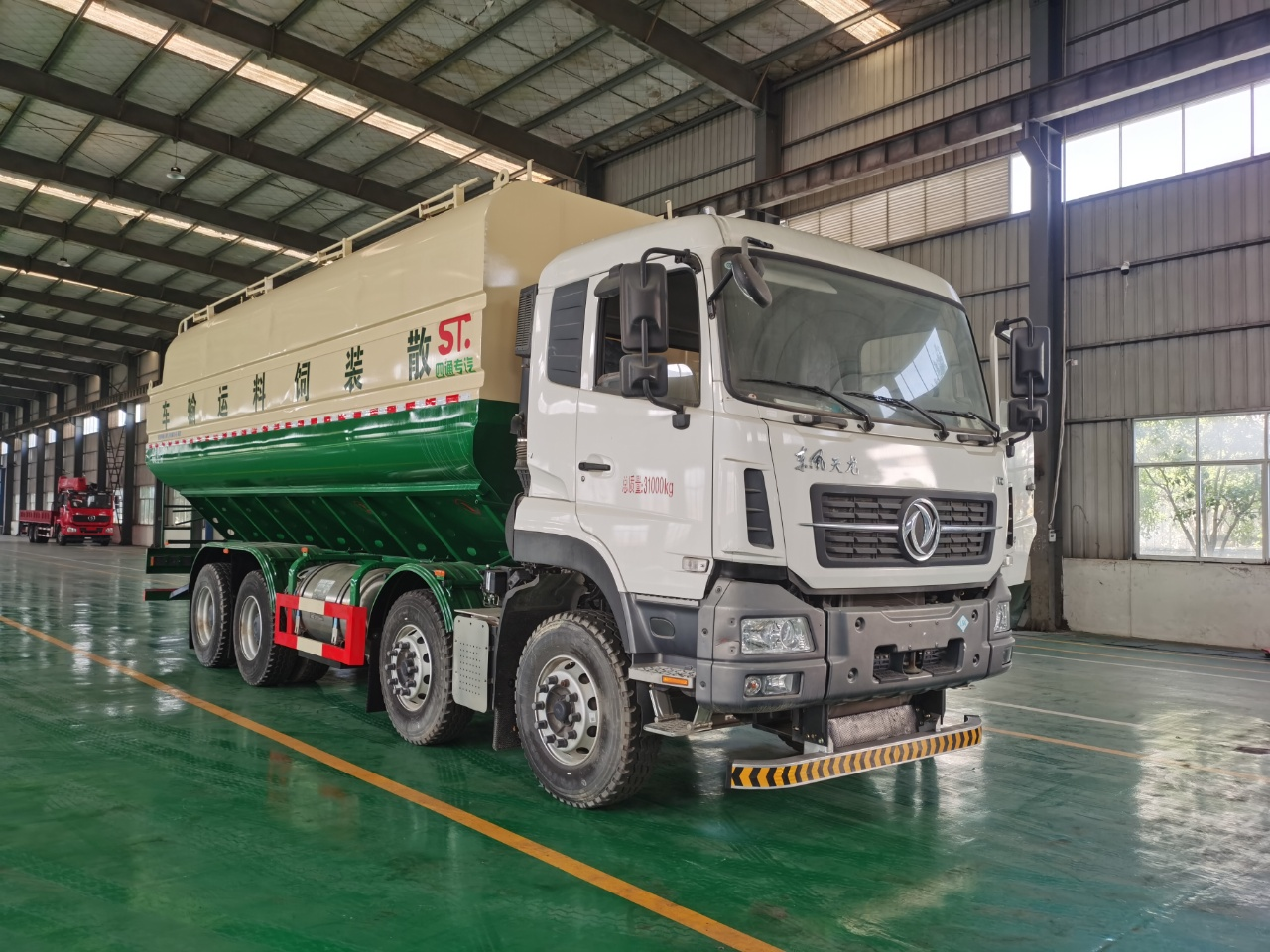

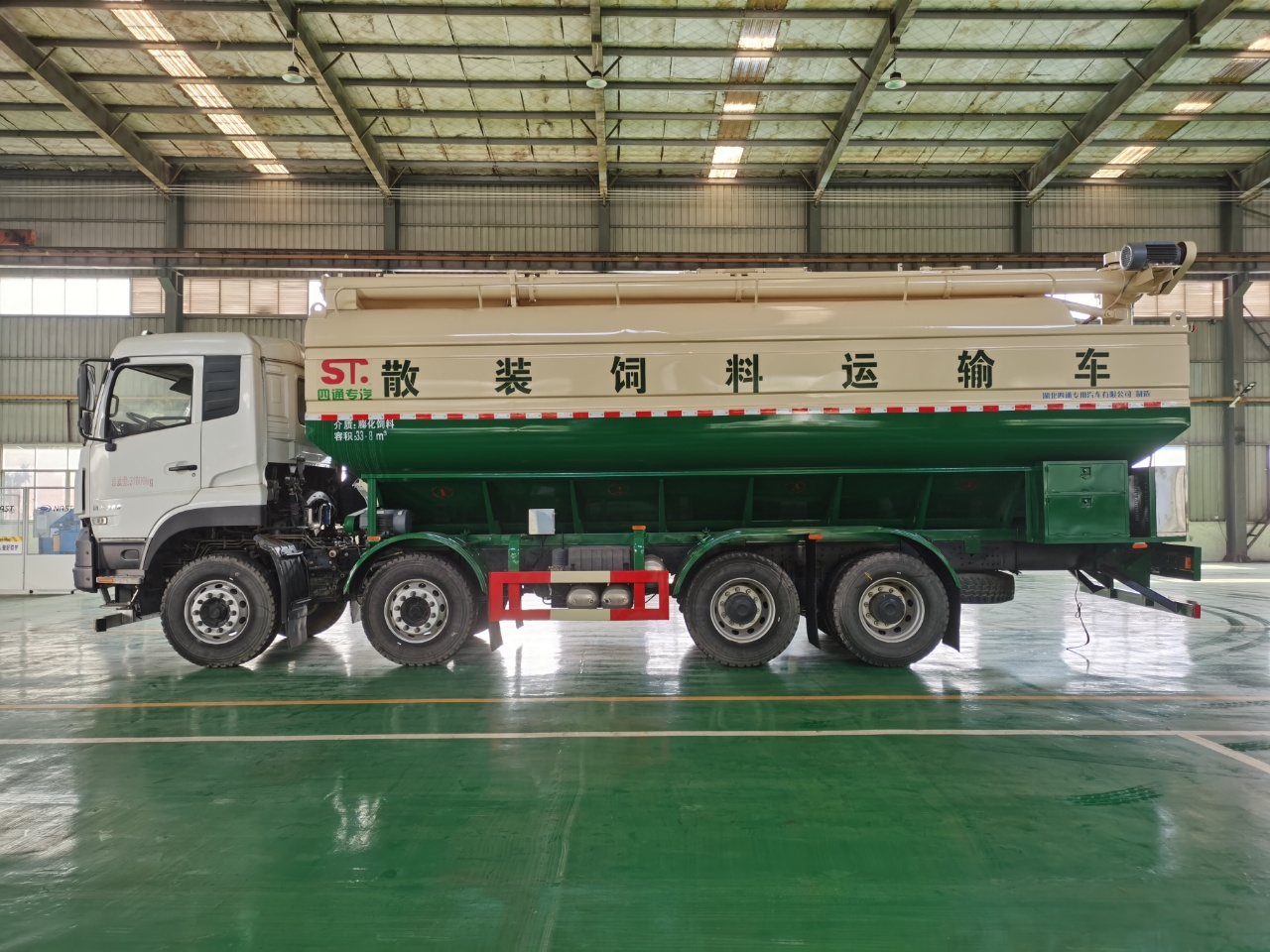

Dongfeng KL 4 Axles LNG 44 CBM Bulk Feed Truck is modified from the original Dongfeng TL 62 chassis. The whole vehicle has the characteristics of light weight, high strength, low center of gravity, multiple loads, and good handling. The tank body is formed by welding high-quality and high-strength steel plates. Equipped with hydraulic or electric unloading systems. Standard version.
Vehicle model: STD5310ZSLN;
Chassis model: DFV1318GP6NJ;
Chassis trademark: Dongfeng TL;
Total weight: 31000kg;
Vehicle size: 10500 x 2550 x 4000mm;

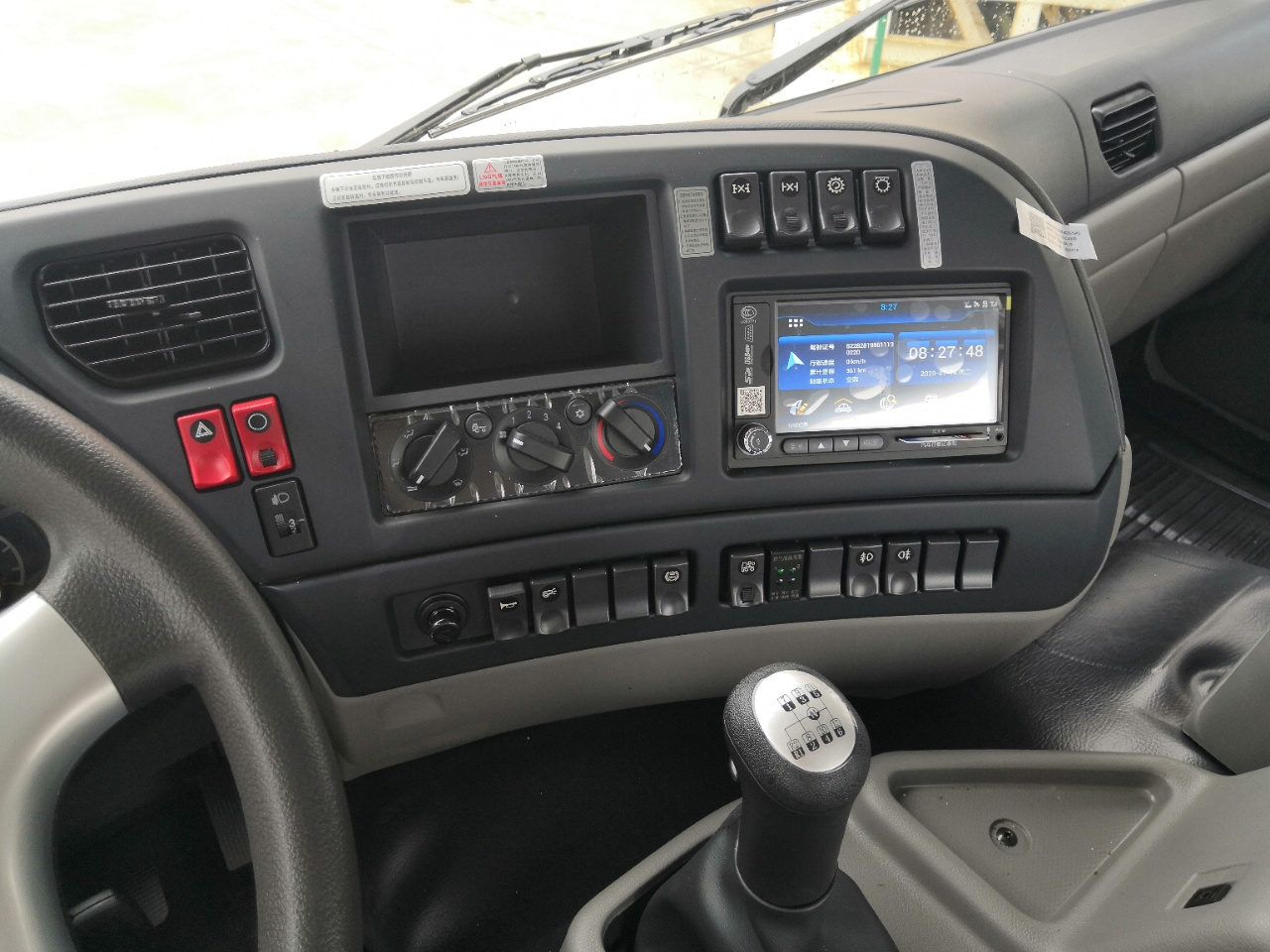

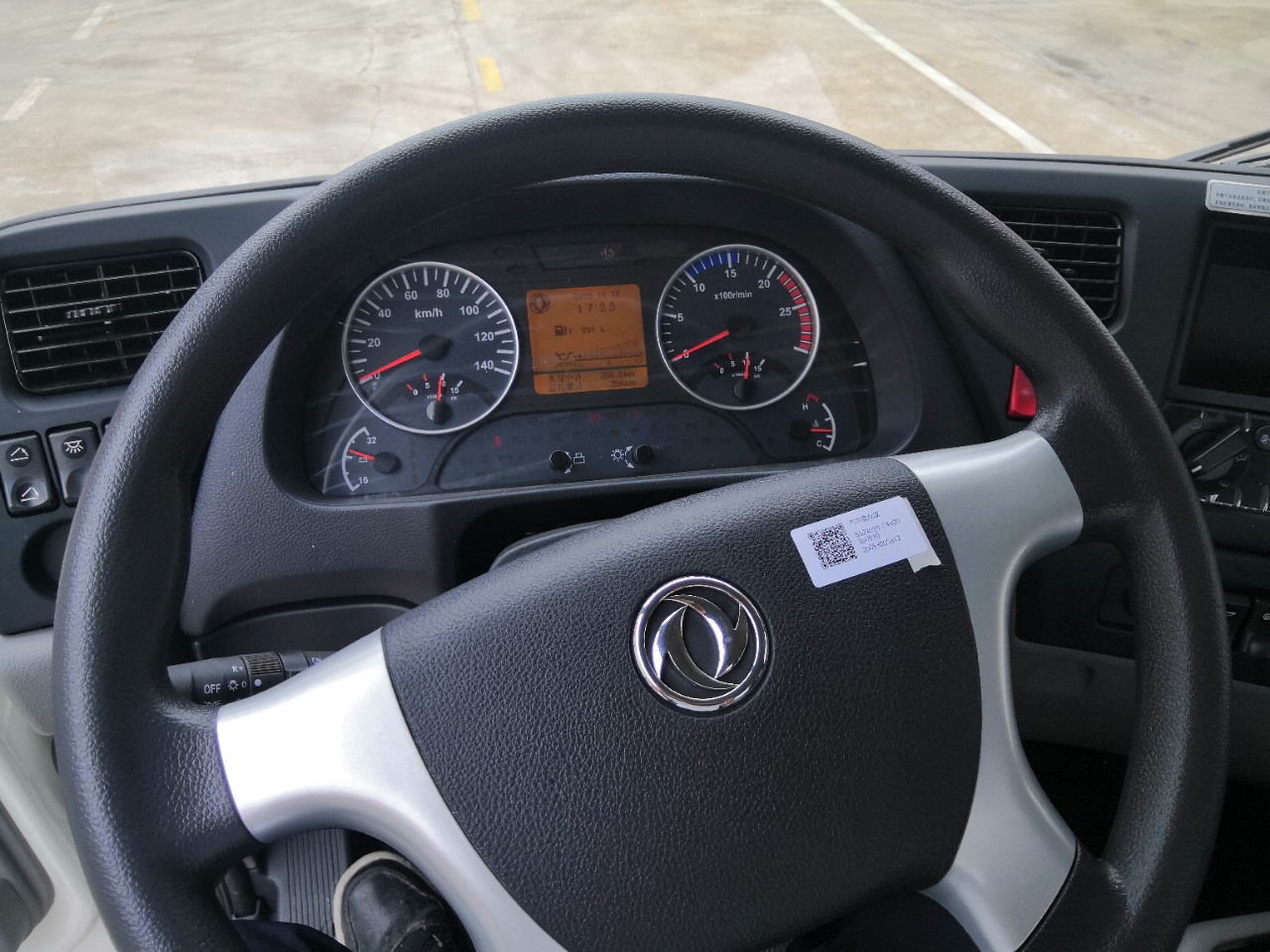

Driver's cab: TL semi high roof;
Engine horsepower: YCK11360N-60 Yuchai K Series 11 liter 360 horsepower;
Transmission: HW19712C Datong 12 speed aluminum alloy, with a super large output torque of 1970 N · m;
Wheelbase: 1995+3000/3100/3200+1350mm;
Front/rear axle, number ratio: 5.5T double/13T double maintenance free wheel reduction axle, 4.57;
Tire specifications: 11.00R20 18PR steel wire tire/12.0012R22.5 18PR steel wire tire/295/80R22.5 18PR vacuum tire;
Curb weight: 13500kg;
Maximum load: 19000-22000kg;
Upper body parameters
Number of tank compartments: 3 compartments (optional);
Tank size: 8050 x 2500 x 2450, 2600mm;
Unloading speed: 500-600kg/min;
Rotation angle of the active unloading winch: ± 180 degrees;
Maximum horizontal conveying distance: 8.4m (optional);
Maximum elevation angle of the movable unloading and twisting dragon: 60 degrees;
Maximum tank volume: 44 cubic meters;
Maximum vertical conveying distance: 8.5m;
Twisted dragon diameter: 273mm;
Loading tonnage: 19-22 tons;
Vehicle unloading time: 35 minutes;
Residual rate: 0.01%
Unloading principle: Hydraulic auger, blade rotating auger blade material alloy steel;

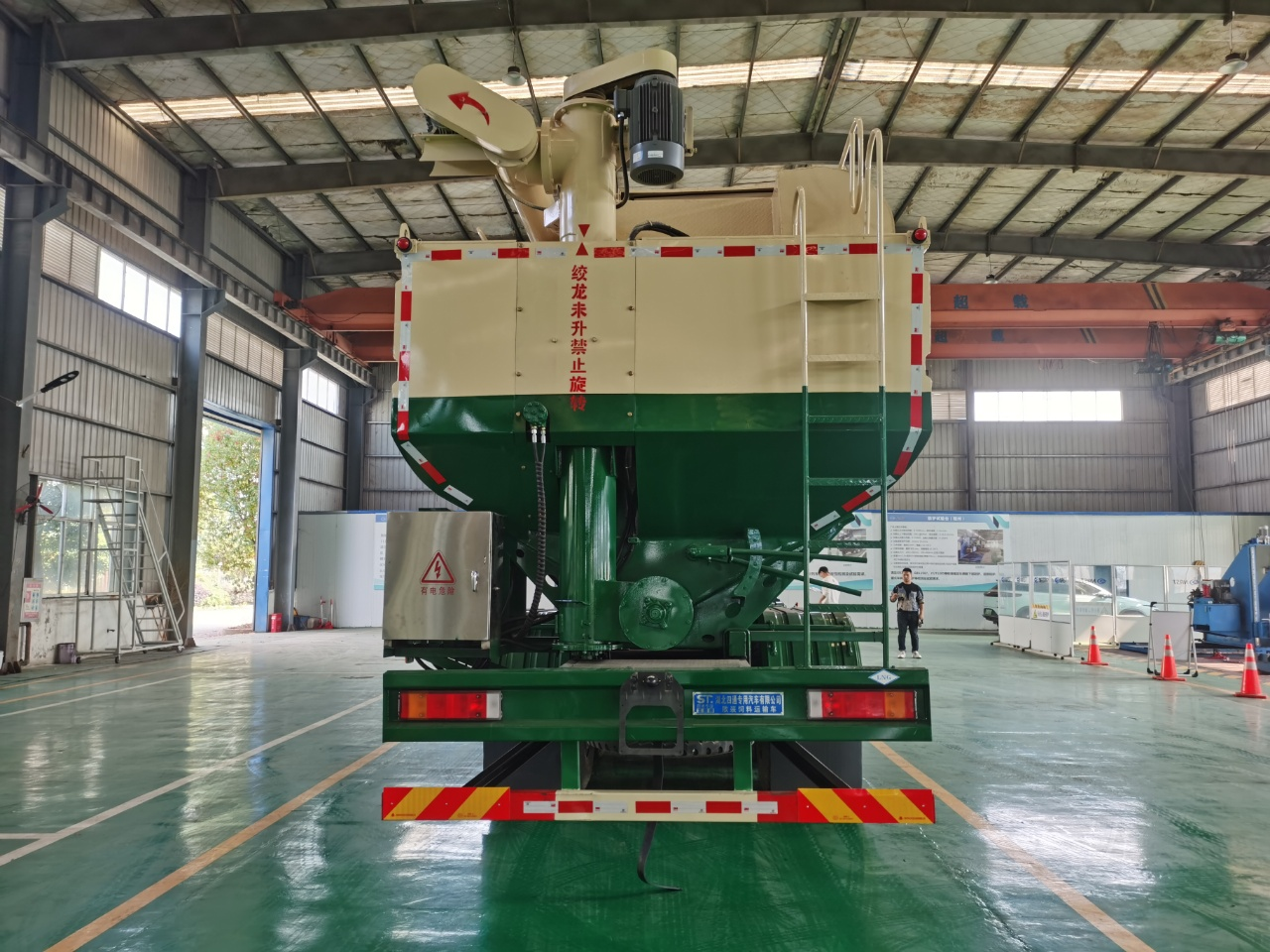

Unloading system (blade rotation) horizontal auger (bottom feeding of horizontal tank 273mm), vertical auger (lifting 273mm), and movable auger (top discharging 219mm)
Operating system
The electric operating system adopts three 5.5KW imported three-phase asynchronous motors, an electrical control system, equipped with a 200 meter external power cord and remote control, with the advantages of low vibration and low noise. Waterproof and dustproof.
Hydraulic operating system imported accessories: Denison/Eaton/Bangfei Li/ZF and other hydraulic pumps, motors, hydraulic valves: Taiwan Oil Power, with radiator and remote control.
