KMH5040TYHE6
KANGMU

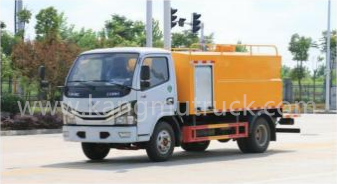

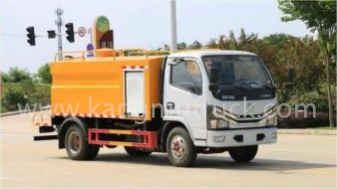

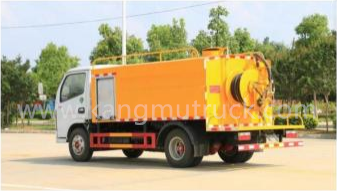

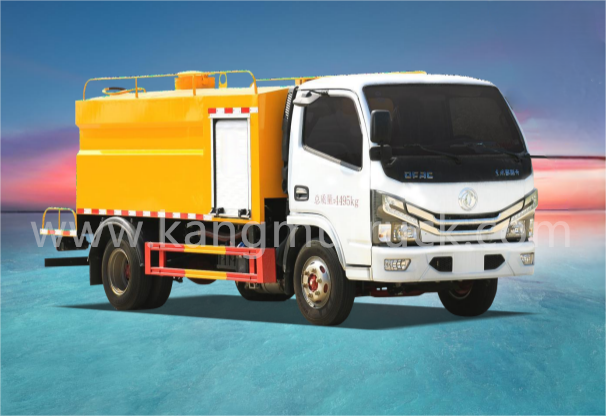

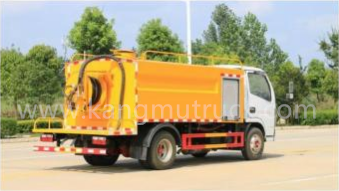

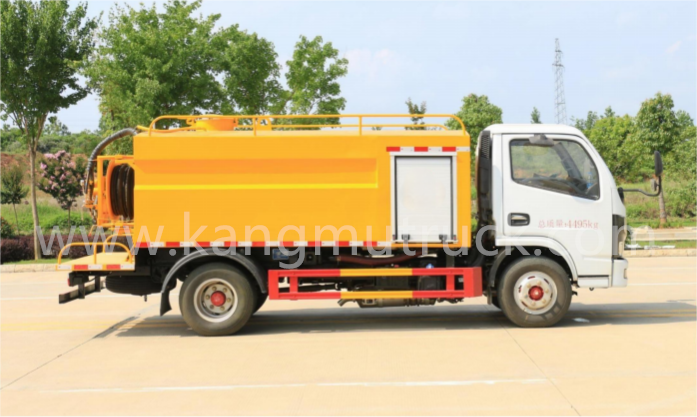

Dongfeng Dolika D6 4Cbm High Pressure Cleaning Truck
NAME | SPECIFICATIONS | |
1 | Vehicle Model | KMH5040TYHE6 |
2 | Wheelbase | 3308MM |
3 | Engine Model | D20TCIF1,YCY24140-60,Q23-115E60,CA4DB1-13E6,CA4DB1-11E6,CY4BK461 |
4 | Engine Power | 92KW/103KW/85KW/95KW/81KW/ 95KW |
5 | Vehicle Dimensions(L*W*H) | 5980*2030*2300MM |
6 | Curb Weight | 4050KG |
7 | Total Quality | 4495KG |
8 | Tank Volume | 4CBM |
9 | Fuel Type | Diesel oil |
10 | Emission Standard | National VI |
Product Features:
1. The tank body and metal accessories of the entire vehicle have undergone pre coating phosphating treatment, sprayed with polymer anti-corrosion primer and metal topcoat, with strong adhesion, good corrosion resistance, uniform paint film, bright and long-lasting color, and improved aesthetics. They can withstand adverse environments such as humidity, dust, salt spray, etc. Long term use will not cause problems such as cracking, peeling, fading, etc., which not only improves the appearance of the product, but also effectively prevents rust.
2. Square box body, compact and beautiful overall structure, increased capacity, high-pressure pump placed inside the rolling shutter door, easy maintenance.
3. Independent system, easy to operate, good performance. The high-pressure pump has a compact structure, reliable and balanced operation, uniform flow rate, smooth and reliable operation, simple operation, and easy maintenance.
Upper Body Configuration:
The water tank has a capacity of about 4.5 cubic meters and is made of high-quality steel plate with a wall thickness of 4. A wave proof plate is designed in the middle of the tank, and anti-corrosion treatment is carried out inside the tank. An inspection manhole is designed on the top of the tank, which can also be used as a water inlet. It is equipped with a water level measuring tube, a hand washing device, a high-pressure pump with a flow rate of 170, a pressure of 24 megapascals, a filter, an air blowing function, and a rolling shutter door. Rear high-pressure reel hydraulic tube release and collection, can rotate 160 degrees (with positioning). Can be equipped with sprinkler function, electronic water cannon, etc.
Dongfeng Dolika D6 4Cbm High Pressure Cleaning Truck
NAME | SPECIFICATIONS | |
1 | Vehicle Model | KMH5040TYHE6 |
2 | Wheelbase | 3308MM |
3 | Engine Model | D20TCIF1,YCY24140-60,Q23-115E60,CA4DB1-13E6,CA4DB1-11E6,CY4BK461 |
4 | Engine Power | 92KW/103KW/85KW/95KW/81KW/ 95KW |
5 | Vehicle Dimensions(L*W*H) | 5980*2030*2300MM |
6 | Curb Weight | 4050KG |
7 | Total Quality | 4495KG |
8 | Tank Volume | 4CBM |
9 | Fuel Type | Diesel oil |
10 | Emission Standard | National VI |
Product Features:
1. The tank body and metal accessories of the entire vehicle have undergone pre coating phosphating treatment, sprayed with polymer anti-corrosion primer and metal topcoat, with strong adhesion, good corrosion resistance, uniform paint film, bright and long-lasting color, and improved aesthetics. They can withstand adverse environments such as humidity, dust, salt spray, etc. Long term use will not cause problems such as cracking, peeling, fading, etc., which not only improves the appearance of the product, but also effectively prevents rust.
2. Square box body, compact and beautiful overall structure, increased capacity, high-pressure pump placed inside the rolling shutter door, easy maintenance.
3. Independent system, easy to operate, good performance. The high-pressure pump has a compact structure, reliable and balanced operation, uniform flow rate, smooth and reliable operation, simple operation, and easy maintenance.
Upper Body Configuration:
The water tank has a capacity of about 4.5 cubic meters and is made of high-quality steel plate with a wall thickness of 4. A wave proof plate is designed in the middle of the tank, and anti-corrosion treatment is carried out inside the tank. An inspection manhole is designed on the top of the tank, which can also be used as a water inlet. It is equipped with a water level measuring tube, a hand washing device, a high-pressure pump with a flow rate of 170, a pressure of 24 megapascals, a filter, an air blowing function, and a rolling shutter door. Rear high-pressure reel hydraulic tube release and collection, can rotate 160 degrees (with positioning). Can be equipped with sprinkler function, electronic water cannon, etc.
