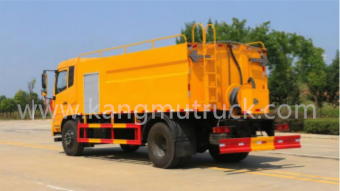

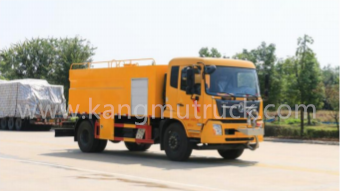

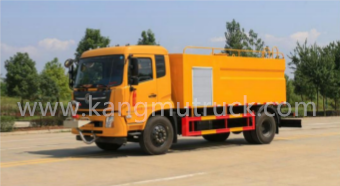

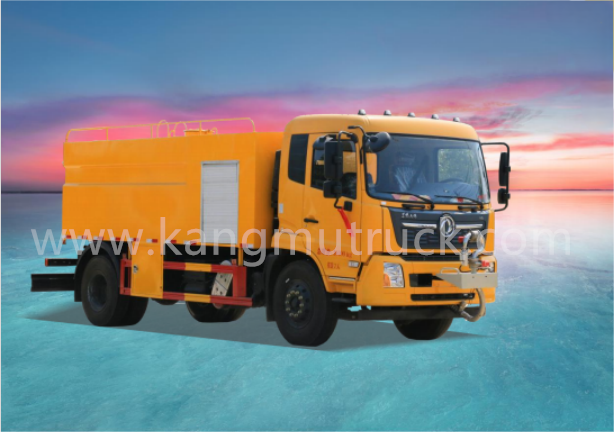

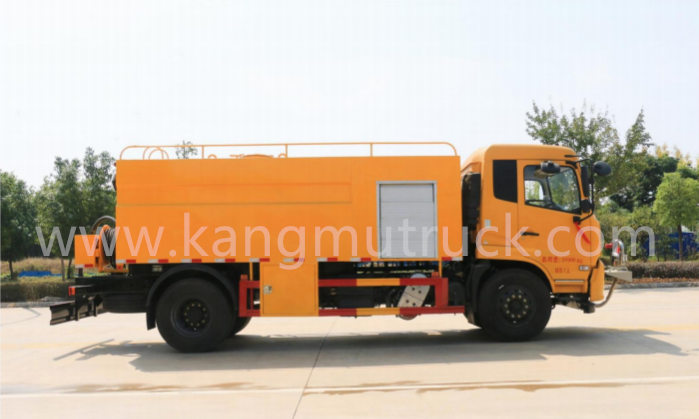

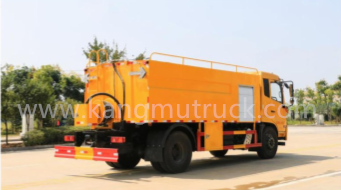

Dongfeng KR 10Cbm High Pressure Cleaning Vehicles

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: Dongfeng KR 10Cbm High Pressure Cleaning Vehicles
  • Keywords: High Pressure Cleaning Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:
  • KMH5180GQXE6

  • KANGMU

Dongfeng KR 10Cbm High Pressure Cleaning Vehicles



NAME SPECIFICATIONS
1 Vehicle Model KMH5180GQXE6
2 Wheelbase 4700MM
3 Engine Model B6.2NS6B210,B6.2NS6B230
4 Engine Power 154KW/169KW
5 Vehicle Dimensions(L*W*H) 7900,7930  *  2550  *  3200MM
6 Curb Weight 8460KG
7 Total Quality 18000KG
8 Tank Volume 10CBM
9 Fuel Type Diesel oil
10 Emission Standard National VI



Vehicle Description:

High pressure cleaning vehicles, also known as pipeline dredging vehicles, use the strong pressure generated by high-pressure water flow to flush open blocked pipelines. The main components are the tank body, high-pressure pump, hydraulic system, etc. High pressure cleaning vehicles are mainly used to clean sediments and dredge dead corners of urban sewers and pipelines. They can also be used to clean industrial drainage pipelines, walls, etc., and to clean roads and square floors.


The high-pressure washing vehicle can also be equipped with sprinklers, including greening sprinklers, forward flushing, rear spraying and side spraying, which can be used for greening watering, spray, dust suppression, high-pressure road flushing, etc., and can be used for fire fighting in an emergency.


Working principle: When the vehicle starts, the sandwich power take-off is attached to drive the high-pressure pump, which transfers clean water to the high-pressure pipe. Then, the gun head adapted to the high-pressure pipe forms a high-pressure water flow. The speed of this high-pressure water flow has enormous impact energy and can complete different types of tasks. The technology of using this highly concentrated high-pressure water flow to complete various pipeline dredging and dredging operations is called "high-pressure pipeline dredging".


Product Features:

1. The tank body and metal accessories of the entire vehicle have undergone pre coating phosphating treatment, sprayed with polymer anti-corrosion primer and metal topcoat, with strong adhesion, good corrosion resistance, uniform paint film, bright and long-lasting color, and improved aesthetics. They can withstand adverse environments such as humidity, dust, salt spray, etc. Long term use will not cause problems such as cracking, peeling, fading, etc., which not only improves the appearance of the product, but also effectively prevents rust.


2. Square box body, compact and beautiful overall structure, increased capacity, high-pressure pump placed inside the rolling shutter door, easy maintenance.


3. Independent system, easy to operate, good performance. The high-pressure pump has a compact structure, reliable and balanced operation, uniform flow rate, smooth and reliable operation, simple operation, and easy maintenance


Upper Body Configuration:

The water tank has a capacity of about 10 cubic meters and is made of high-quality steel plate with a wall thickness of 4 millimeters. A wave proof plate is reasonably designed in the middle of the tank, and an inspection hole is designed on the top of the tank, which can also be used as a water filling hole. It is equipped with a water level measuring tube, and the water inlet of the water tank is a ball valve type fire hydrant, one on each side (convenient for opening and closing, durable for a long time), with a fire interface, a hand washing valve, and a low water level drainage function. The high-pressure pump adopts the German Pinfu 215 flow model, with a pressure of 22 megapascals. The independently developed large filter (prevents impurities from entering the pump) has an air blowing function (in winter, the water in the high-pressure pump and high-pressure pipe can be blown dry to prevent freezing damage), and the high-pressure reel hydraulic drain and collect pipes, with When recycling, the high-pressure pipe can be flushed, and the tail large reel is enlarged, thickened, and reinforced. The reel can rotate 160 degrees and the operating system is arranged neatly, All have operating instructions and precautions, with 2 toolboxes and a rolling shutter door (convenient for maintenance and repair of high-pressure pumps). The vehicle is equipped with galvanized protective nets and patterned anti slip guardrails (beautiful and durable). Can be equipped with sprinkler function, electronic water cannon, etc.


图片 1图片 2图片 5图片 3图片 4图片 6图片 7图片 8
