【 Main technical parameters 】 | |||

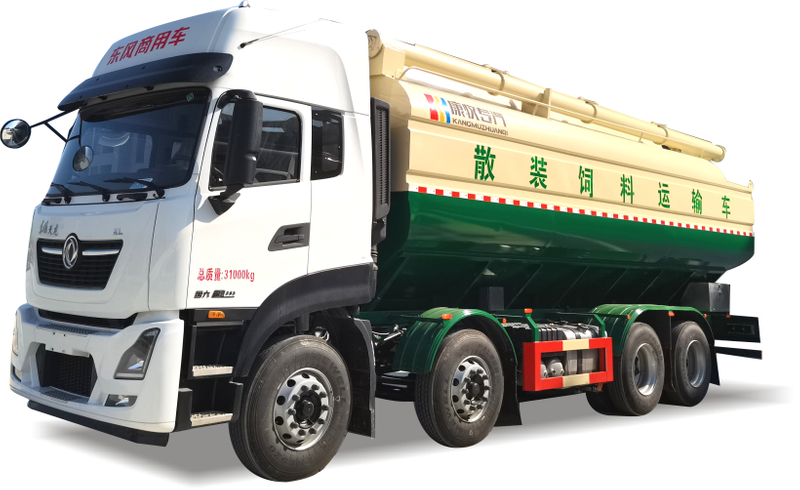

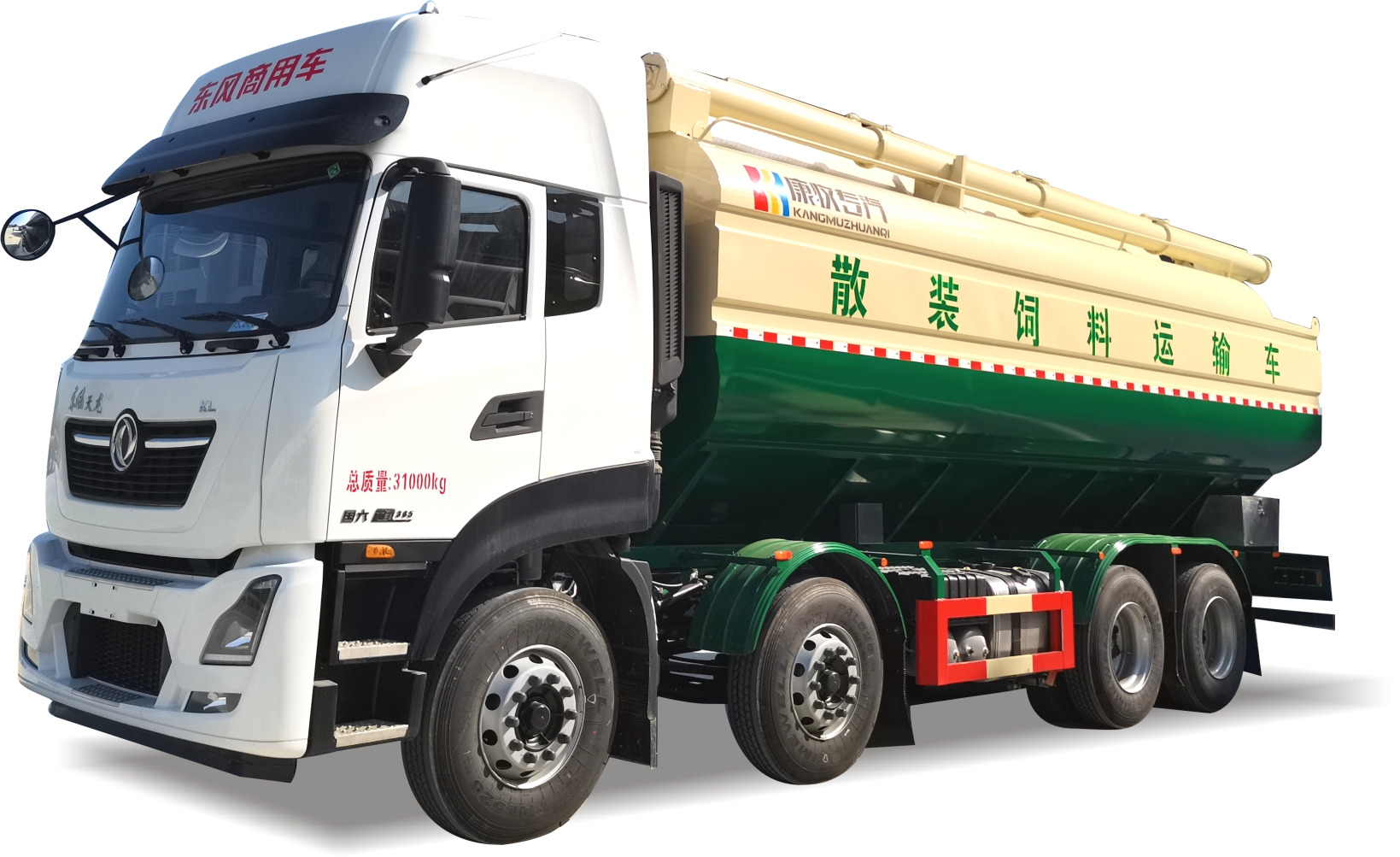

Product Name | Dongfeng KL Bulk Feed Truck | Chassis Model | DFH1310D13 |
Dimensions | 9500,10000,11000x2550x3800,3900 | Wheelbase | 2050+3200,4600+1350 |
Box Size | 7000,7500,8350x2500x2450,2550 | Engine Model | DDi75E300-60 |
G.V.W. | 25000 | Gearbox | 9JS119T-BDD |
Kerb Weight | 9500 | Tire | 295/80R22.5 18PR |
Payload | 14305-15370 | Emission Standard | Euro 6, Diesel |
Tank Volume | 35-40CBM | Compartment | 3 |
Bodyparts parameters
(1) Auger production process:
The blade is made of high strength wear-resistant steel, patented intermediate support structure, graphite bearing, horizontal hanging connection, and the hydraulic control rotation mode of turbo worm is stable and reliable.
(2) Tank production process:
The use of domestic large steel enterprises high-quality steel, tank body taper, high strength, beautiful appearance; The top adopts the inclined top to improve the filling coefficient, fluidity and safety factor; Strict welding process to ensure quality.
(3) Paint process:
Powder painting, sand blasting in one process, grinding in two processes, cleaning agent cleaning in three processes, powder spraying in four processes, high temperature baking in five processes; Corrosion resistance, high temperature baking resistance long service life.
