KANGMU
【 Main technical parameters 】 | |||

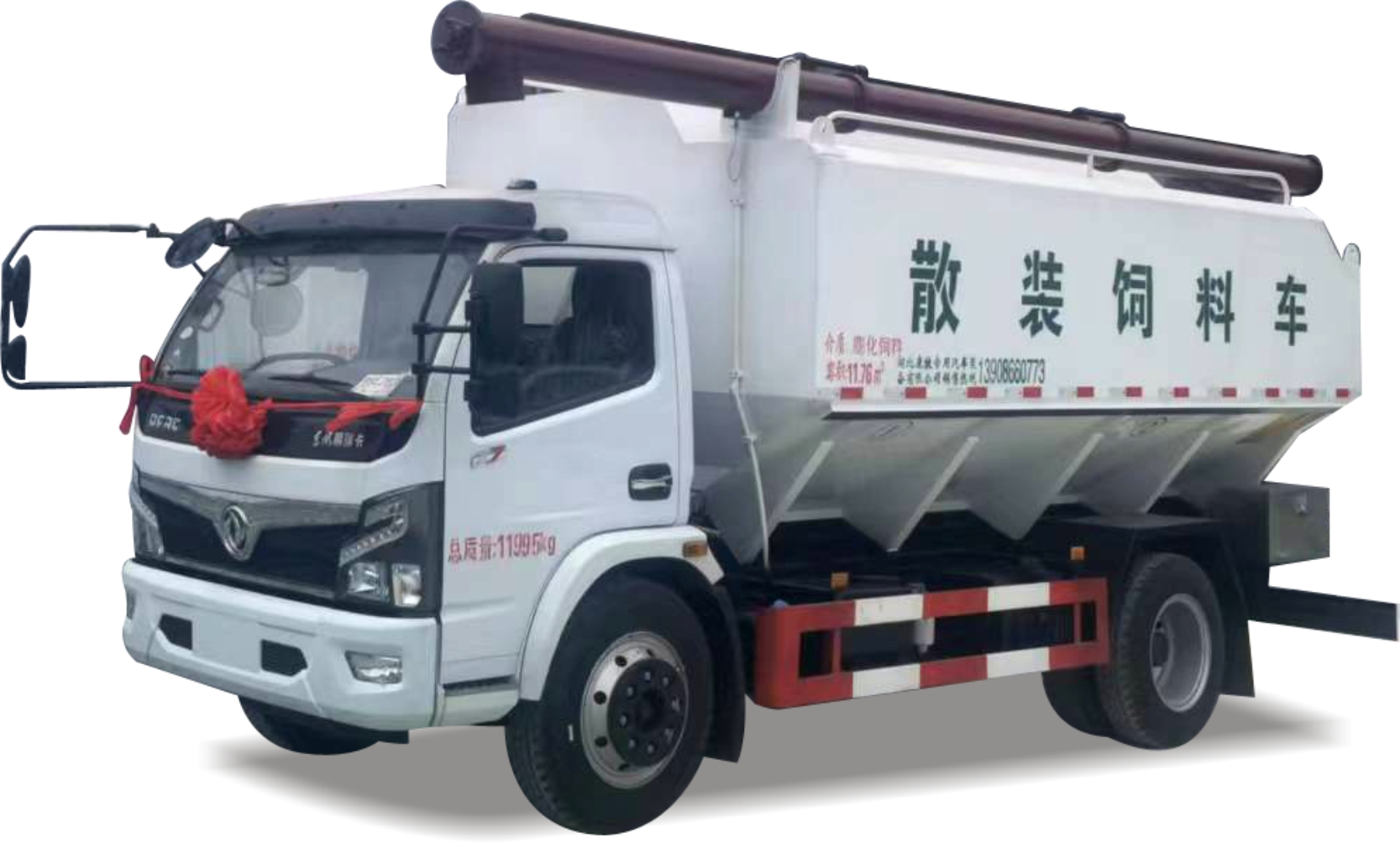

Product Name | Dongfeng Dolica Bulk Feed Truck | Chassis Model | EQ1125SJ8CDC |
Dimensions | 7300x2350,2400x3300,3400mm | Wheelbase | 3800 |
Box Size | 4800x2300x1850 | Engine Model | D30TCIF1 170HP |
G.V.W. | 11995 | Gearbox | 6TS60 8档 |
Kerb Weight | 6200 | Tire | 8.25R20 |
Payload | 5600 | Emission Standard | Euro 6, Diesel |
Tank Volume | 12CBM | Compartment | 2 |
Discharge system
(1) External electric discharge mode and optional self generation discharge mode:
Three 5.5KW Siemens motors with 380V voltage; Self-discharge mode maintenance-free permanent magnet self-motor (opti onal 24KW,30KW); Wireless remote control system. It is recommended to use external power supply unloading mode, low cost, environmental friendly, and less vehicle wear-out.
(2) Full hydraulic discharge method:
Denison double hydraulic pump, Eaton Motor, Taiwan oil hydraulic valve (optional full remote control and semi-remote control).
【 Main technical parameters 】 | |||
Product Name | Dongfeng Dolica Bulk Feed Truck | Chassis Model | EQ1125SJ8CDC |
Dimensions | 7300x2350,2400x3300,3400mm | Wheelbase | 3800 |
Box Size | 4800x2300x1850 | Engine Model | D30TCIF1 170HP |
G.V.W. | 11995 | Gearbox | 6TS60 8档 |
Kerb Weight | 6200 | Tire | 8.25R20 |
Payload | 5600 | Emission Standard | Euro 6, Diesel |
Tank Volume | 12CBM | Compartment | 2 |
Discharge system
(1) External electric discharge mode and optional self generation discharge mode:
Three 5.5KW Siemens motors with 380V voltage; Self-discharge mode maintenance-free permanent magnet self-motor (opti onal 24KW,30KW); Wireless remote control system. It is recommended to use external power supply unloading mode, low cost, environmental friendly, and less vehicle wear-out.
(2) Full hydraulic discharge method:
Denison double hydraulic pump, Eaton Motor, Taiwan oil hydraulic valve (optional full remote control and semi-remote control).
