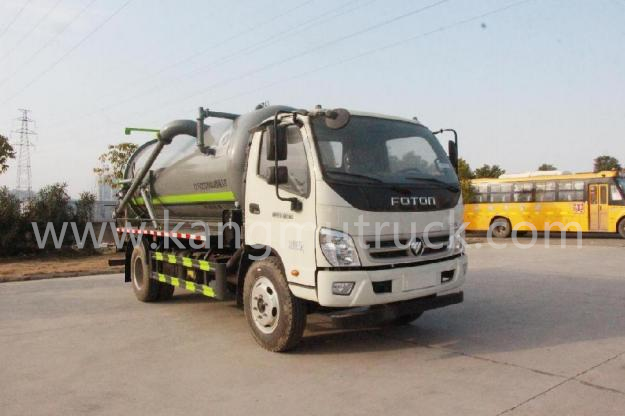

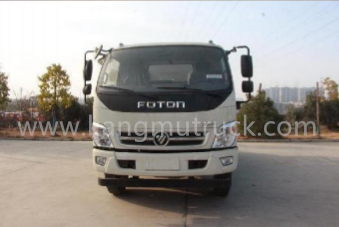

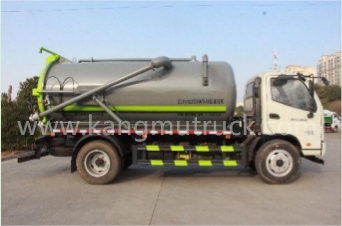

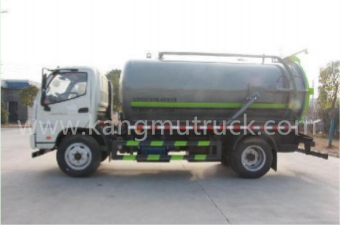

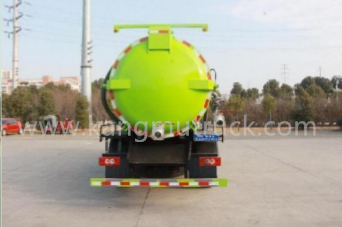

Foton Ollin Yunnei150HP 8Cbm Sewage Suction Truck
| NAME | SPECIFICATIONS |
| 1 | Vehicle Model | KMH5122GXWBJ6 |
| 2 | Chassis Model | BJ1128VGJEA-AC1 |
| 3 | Wheelbase | 3800mm |
| 4 | Engine Model | D25TCIF1 YUNNEI 150HP |
| 5 | Engine Power | 110KW |
| 6 | Vehicle Dimensions(L*W*H) | 6850×2350 or 2450×3050 or 3150mm |
| 7 | Curb Weight | 6000KG or 5850KG |
| 8 | Total Quality | 11995KG |
| 9 | Tank Volume | 8CBM |
| 10 | Hydraulic System Pressure | 18MP |
| 11 | Fuel Type | Diesel oil |
| 12 | Emission Standard | National VI |
| 13 | Operation Type | Manual |
Product Performance:
The tank body and metal accessories of the entire vehicle have undergone pre coating phosphating treatment, sprayed with polymer anti-corrosion primer and metal topcoat, with strong adhesion, good corrosion resistance, uniform paint film, bright and long-lasting color, and improved aesthetics. They can withstand adverse environments such as humidity, dust, salt spray, etc. Long term use will not cause problems such as cracking, peeling, fading, etc., which not only improves the appearance of the product, but also effectively prevents rust.
Suction trucks are widely used for the suction, transportation, and discharge of various liquid and semi liquid substances, as well as sludge, feces, wastewater, suspended debris sludge, small bricks, crushed stones, and other media under various ditches and channels. They can also be used for emergency response to sudden environmental pollution accidents. By fully utilizing vacuum technology, the dual anti-overflow pump device can better prevent tank overflow and extend the service life of the vacuum pump. The overall design structure of the vehicle is reasonable, with excellent performance and flexible and easy operation.
Product Advantages:
1. The body adopts a round tank body with a tighter structure, which can withstand higher pressure and provide stronger suction capacity. The suction range is far, and the rear discharge port is designed with a hydraulic cylinder extension method, which can help discharge the absorbed impurities with less residue.
2. The whole vehicle has the advantages such as: high suction efficiency, self-suction, self-discharge, long service life, fast working speed, easy operation, and convenient transportation.
