| 【 Main technical parameters 】 |
|
|
|
|
|
|
| Product Name | SHACMAN Sewage Suction Truck | G.V.W. | 18000 |
| Dimensions | 8950,8750x2550,2500x3600,3550,3500 | Kerb Weight | 12295 |
| Tank Size | 5400 x 1900 | Payload | 5510, 5575 |
| Chassis Model | SX1189LA1F1C | Tire Quantity | 6 |
| Axles No. | 2 | Tire | 10.00R20 18PR |
| Wheelbase | 4700 | ABS | ZQFB - V |
| Engine Model | YCS06245-60 | Emission Standard | Euro 6, Diesel |
Advantages
The dedicated device of this vehicle is mainly composed of a clear water tank and a sewage tank, and these two tanks are utilized for sewage discharge and dredging operations. The tank body is equipped with a lifting function. The clear water tank and the sewage tank are two separate and independent tanks. The clear water tank serves the purpose of cleaning, while the sewage tank is for the suction function. It should be noted that the cleaning and suction functions cannot be carried out simultaneously, and the two tanks cannot reach their full - load capacity at the same time. The side and rear protective materials are made of Q235 and are joined together by welding.
Details:
1 grenade nozzle, 1 diamond nozzle, 1 dredging tugboat, and 1 cleaning spray gun;

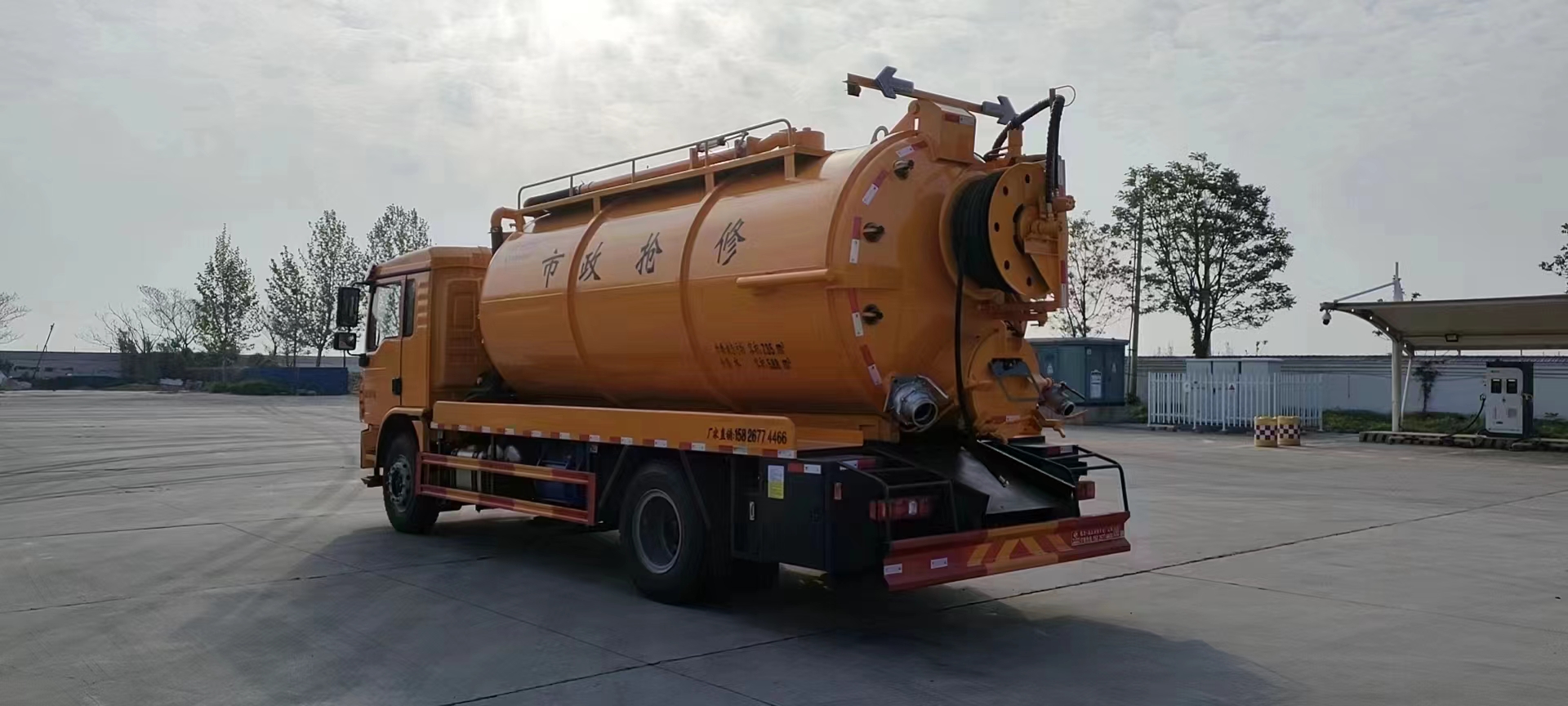

The rear - mounted hydraulic cleaning reel has a 180 - degree hydraulic rotation feature. Hydraulic control is employed for the left - and - right placement, tube rolling up, and tube release of the reel. It comes with automatic overflow protection and a pressure - relief safety valve. The lifting angle is 25 degrees.
A partition with a thickness of 8mm separates the two compartments, and the cylinder head is welded automatically. Below the lifter, there is a safety support, and the water and sewage systems are interconnected.

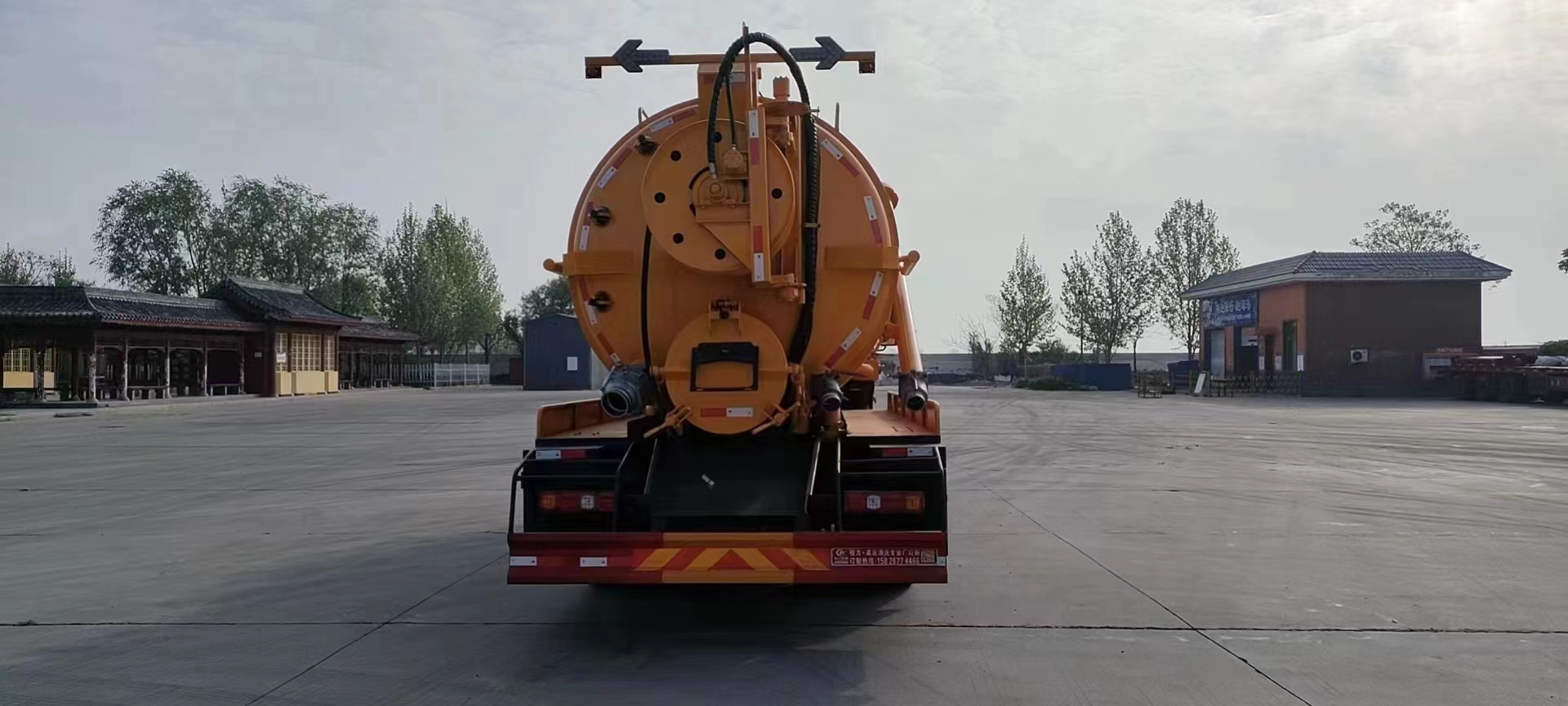

On the top of each clean water tank and sewage tank, a three - claw cement tank mouth is installed. At the rear end, there is one DN150 and one DN100 drain outlet. On the right - hand side of the vehicle, there is a DN100 side - suction valve and a DN100 clear - water valve. The inlet elbow has dimensions of 8mm + 10mm, and the tank top is made of patterned plates with protective railings on both sides.
A toolbox is installed on each side of the vehicle. Additionally, there are license - plate lights, LED arrow lights, and lighting for night - time work.
