I. Product description:
Fire truck also called fire tanker,fire engine ,fire appatatus ,water fire truck ,foam fire truck ,fire rescue truck) is a vehicle designed primarity for fire fighting operations-to extinguish fire efficientyly to prevent fire spread ,reducing the loss caused by fire maximumly.
Fire fighting truck can be divided into many types:
a. According to vehicle size ,there are mini fire fighting truck ,light fire fighting truck ,medium fire fighting truck ,heavy-duty fire fighting truck;
b. According to chassis drive type ,there are 4x2 fire fighitng truck ,6x4 fire fighting truck ,8x4 fire fighitng truck and off-road type 4x4,6x6 fire truck;
c. According to chassis brand,ther are I-SUZU ,Dongfeng,FOTON,FAW ,SINOTRUCK ,etc.
d. According to fire agent,there are water tank fire fighting truck ,water/foam fire fighting truck ,dry powder fire fighting truck

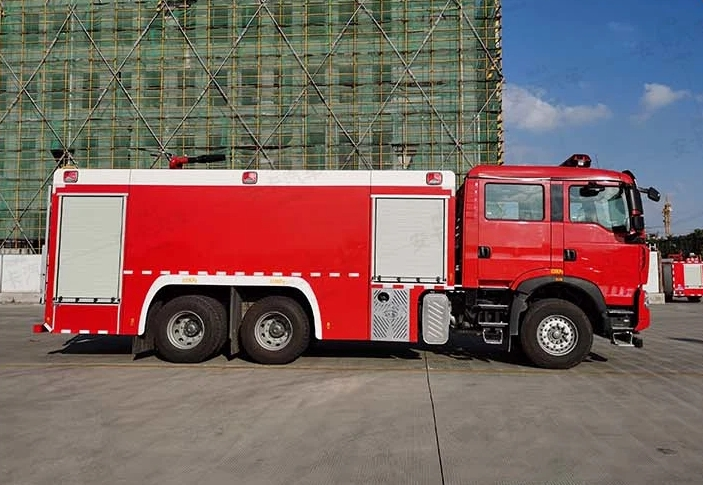

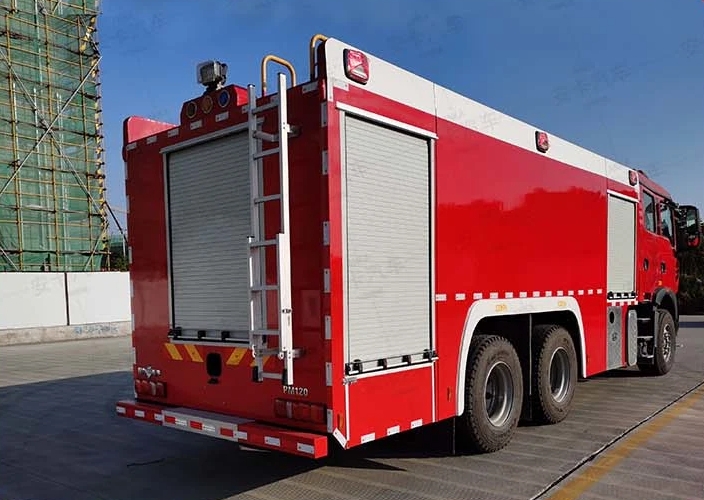

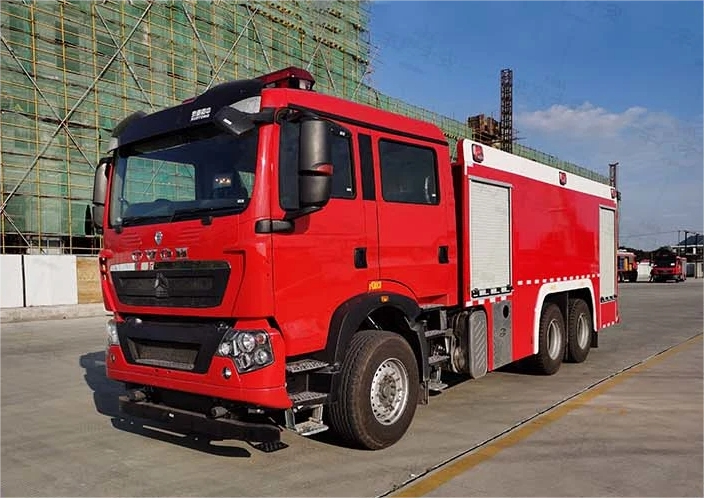

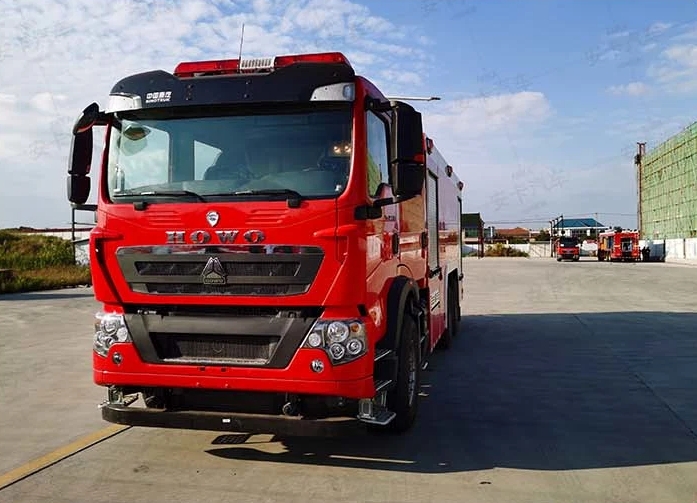

| HOWO 6*4 12000 Liters Foam Water Tank Fire Fighting Truck |
|
|
|
| Technical Parameters of the Entire Vehicle |
| Fire Pump | CB10/60 Normal Pressure Fire Pump |
| Fire Pump Flow Rate | 60L/S |
| Fire Pump Pressure | Low Pressure 1.0MPa |
| Number of Passengers Allowed in the Cab (person) | 6 |
| Overall Dimensions (mm) | 9970x2500x3800 |
| Maximum Suction Head of Fire Pump(m) | 7 |
| Fire Pump Diversion Time | ≤35s |
| Range | ≥60m |
| Water Tank Capacity (kg) | 9000 |
| Chassis Technical Parameters |
| Brand Name | Sinotruk |
| Fuel Type | Diesel |
| Front/Rear Axle(t) | 3.6t/8t |
| Number of Axles | 3 |
| Number of tires | 10 |
| Brakes | Air Brake |
| Engine Power(KW) | 338 |
| Transmission | 6-Speed Transmission |
| Wheelbase(mm) | 4300+1400 |
| Tire Size | 385/65R22.5 |
