【 Main technical parameters 】 | ||||
Product Name | Water Purification Truck | Chassis Model | EQ1125SJ8CDC | |
产品名称 | 吸污净化车 | 底盘型号 | ||
Dimensions | 7050x2250/2350x3400mm | Wheelbase | 3800 | |
Box Size | 5200x2200x2200mm | Engine Model | NV30-C6G | |
G.V.W. | 11995KG | Purification rate | 60-80m3/h(clean water 15-30 m3/h) | |
Kerb Weight | 9400KG | Tire | 245/70R19 | |
High Pressure Pump | 16/21/24 MPa | Emission Standard | Eur VI, DIESEL | |
Dirty Tank Volume | 3.5m³ | Water Tank Volume | 1/3m³ |
Advantages

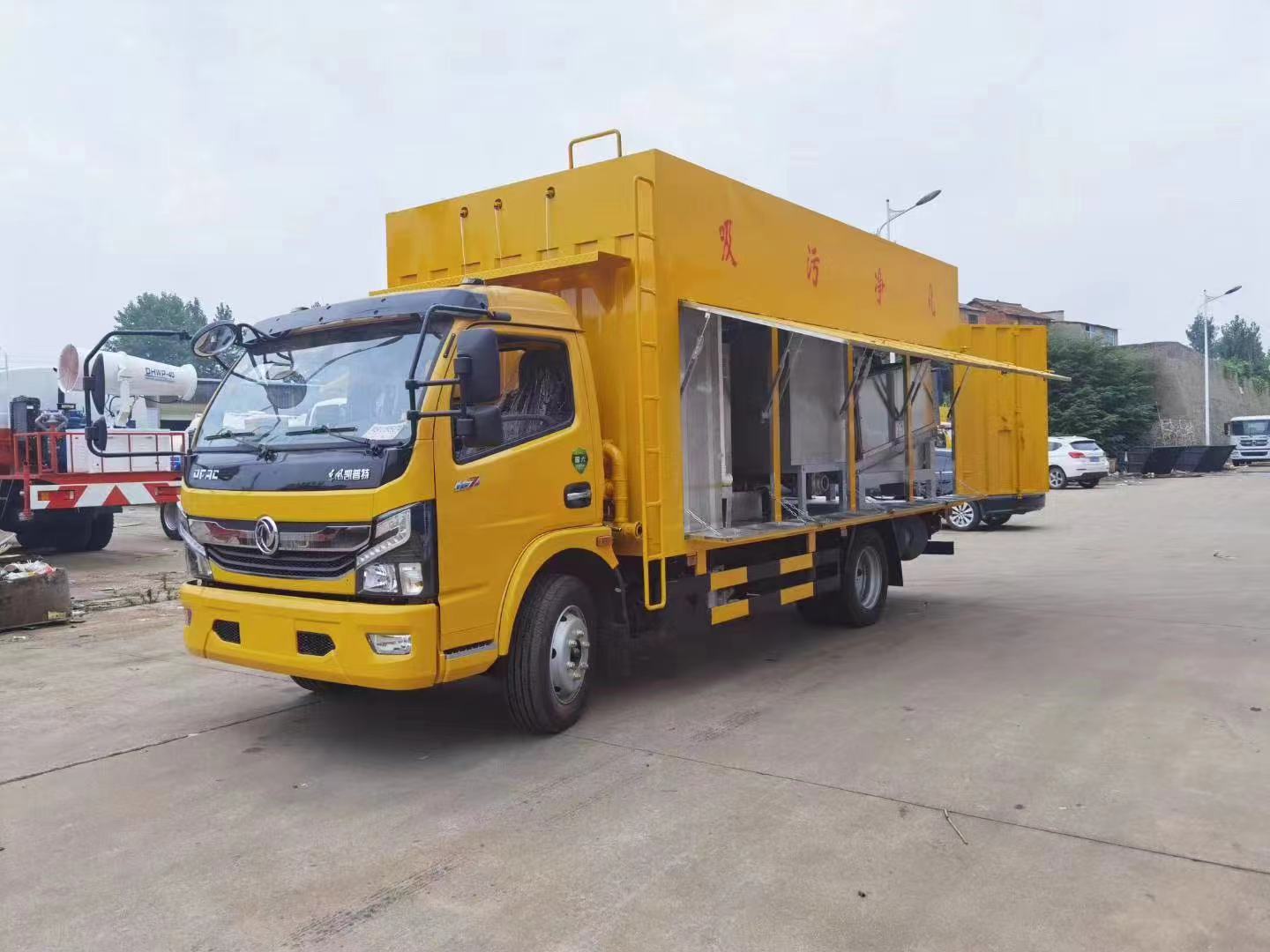

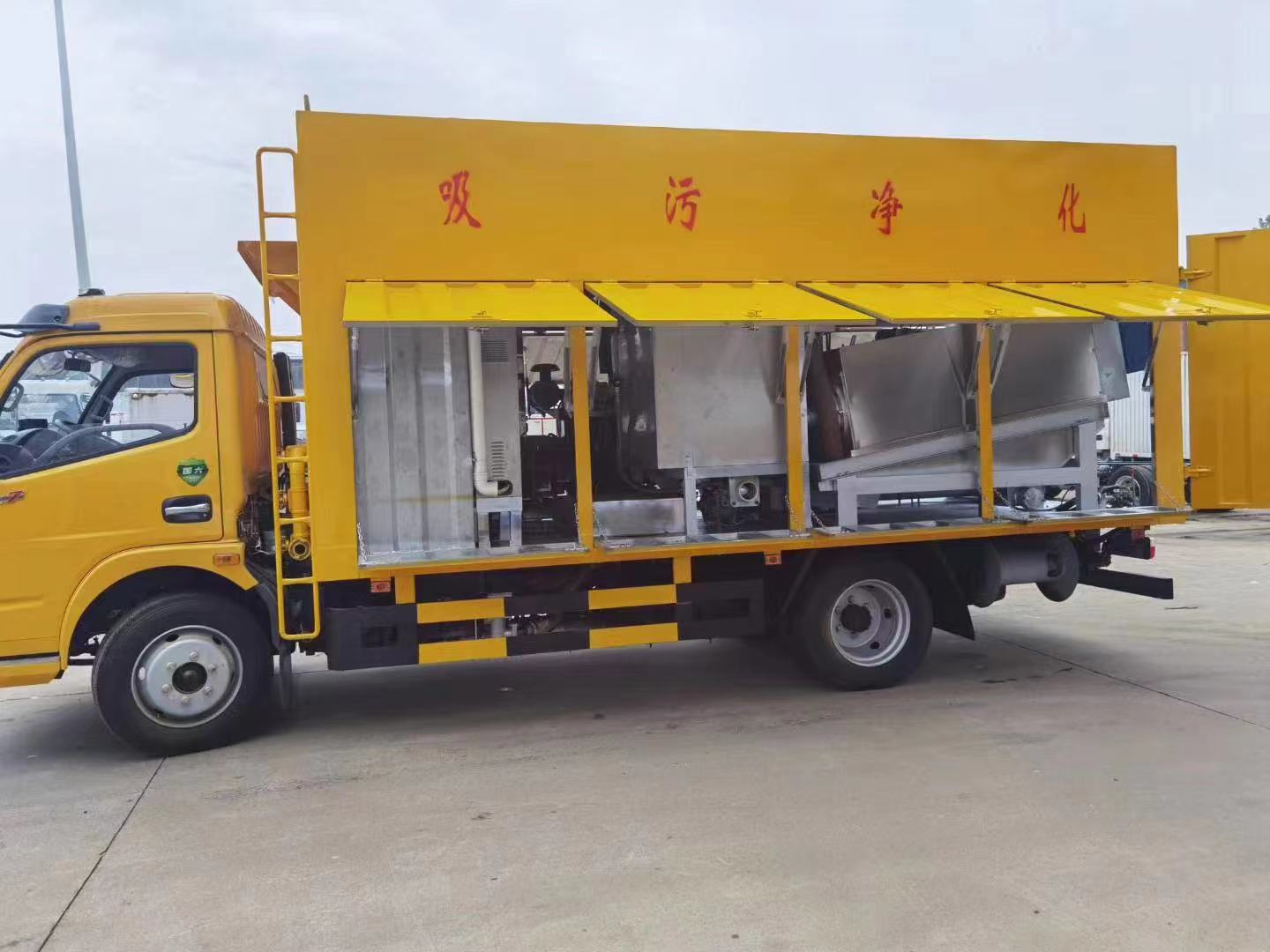

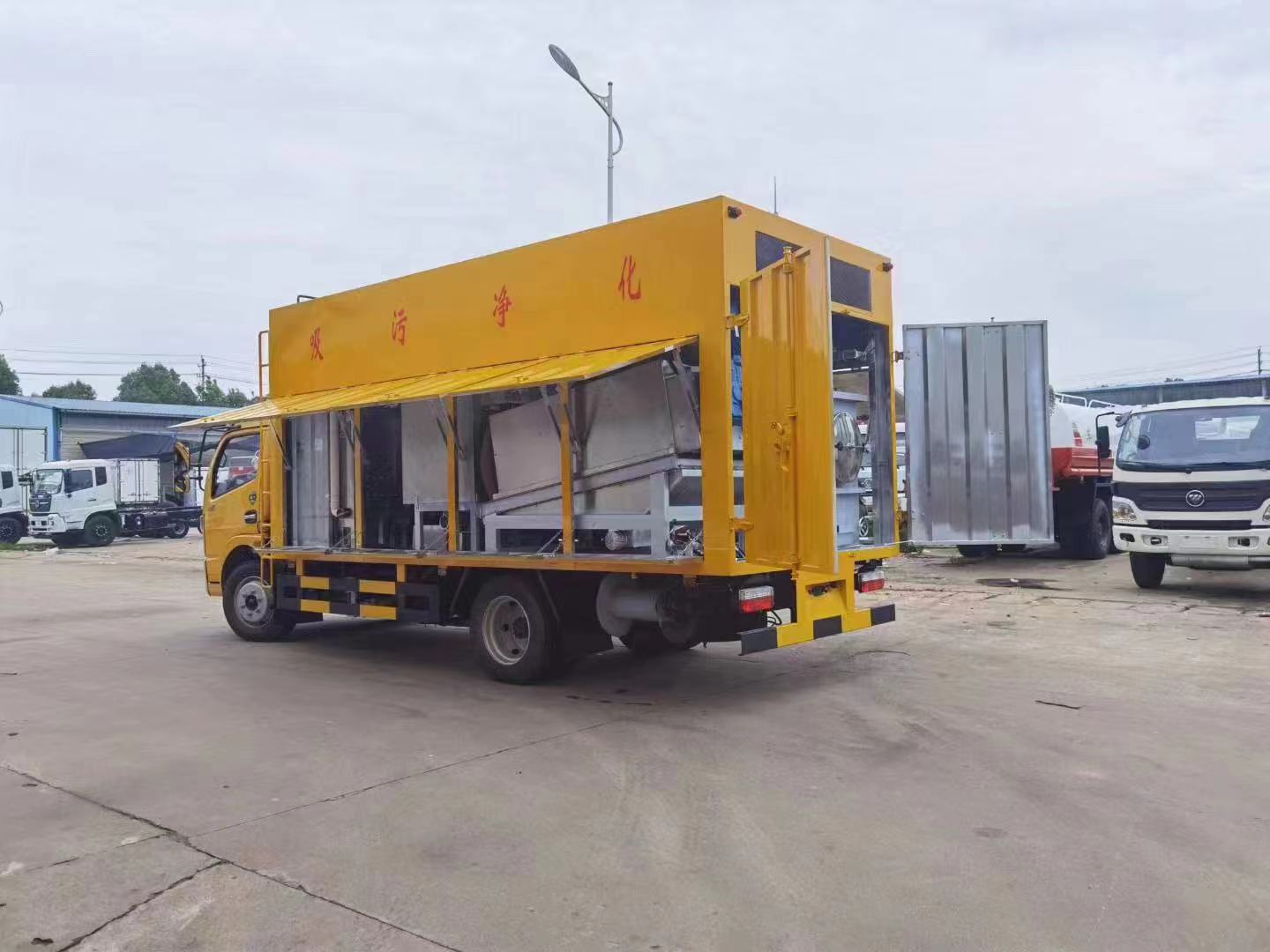

Double stack screw suction purification truck:
Chassis configuration:
Dongfeng Dorika Euro6 Yuchai 165 horsepower chassis, daytime driving lights, central control lock, electric doors and Windows, abs, air brake, air conditioning, double girder,
Top equipment configuration:

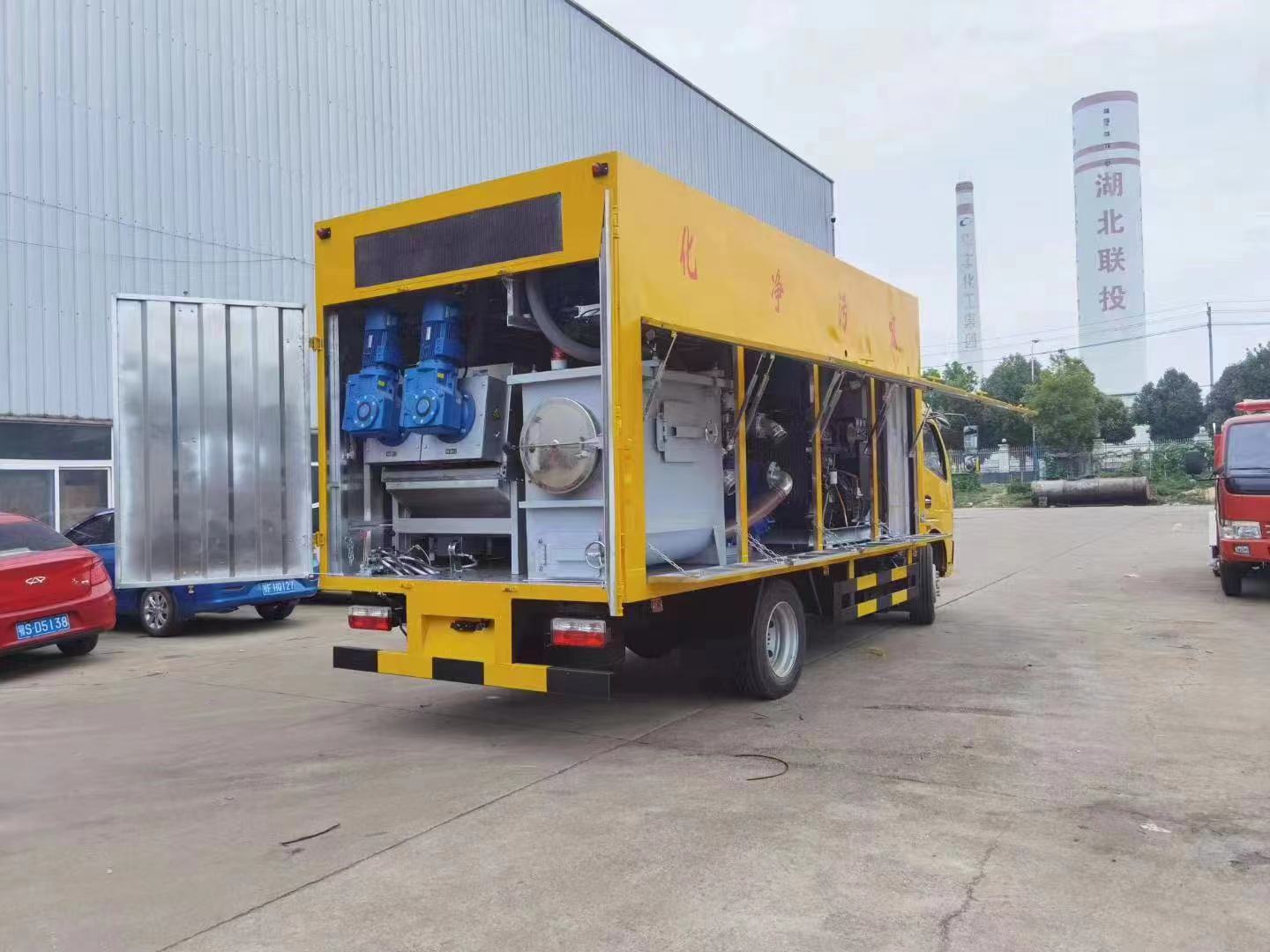

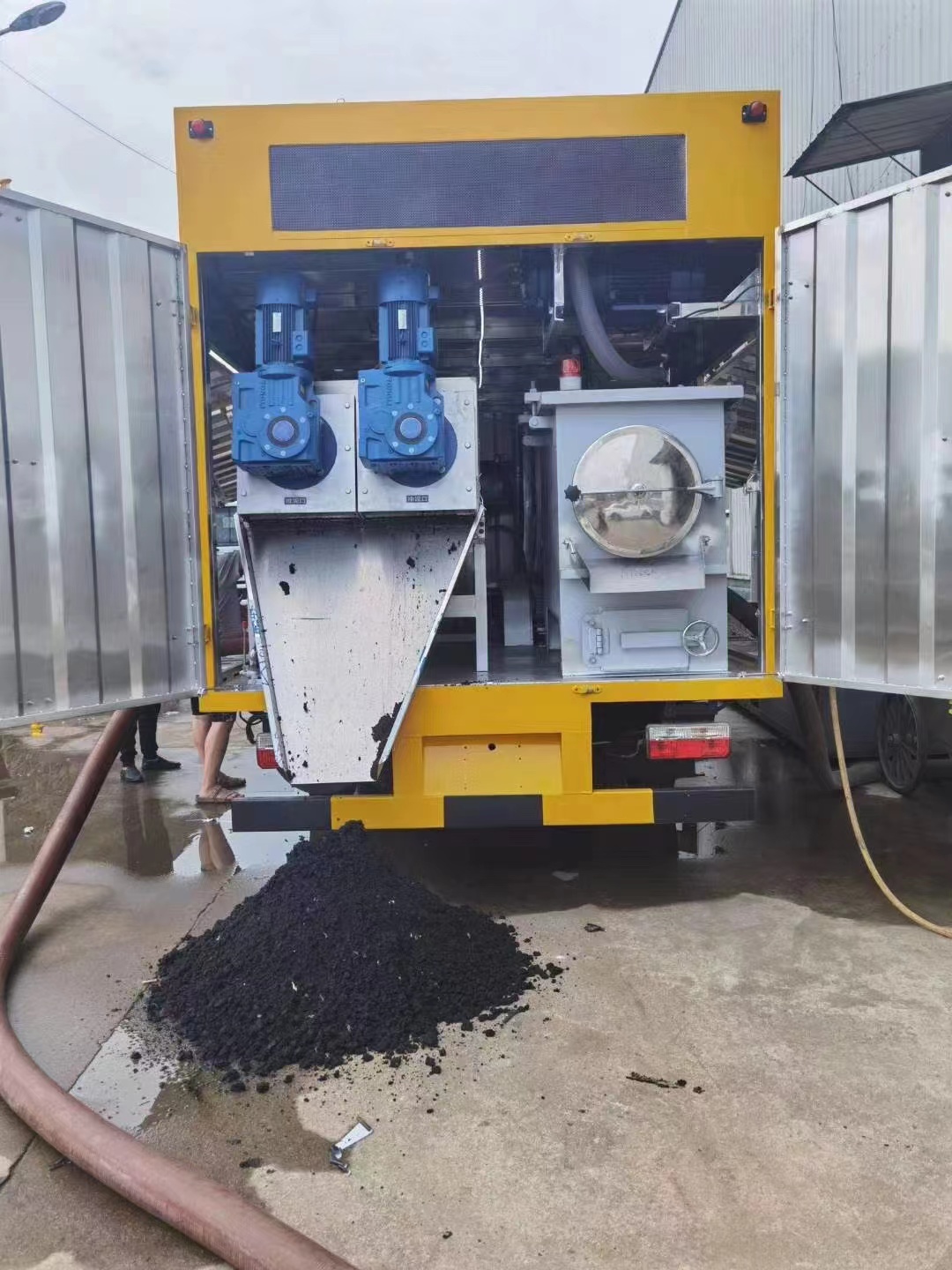

3cbm stainless steel water tank, high pressure pump Pfu 215 flow, authentic 402 double axis stack screw machine, 50kw generator set, 11kw water cycle vacuum pump, P4 sewage pump, LED advertising screen, 60m high pressure pipe, 24m suction pipe, 10 standard sprinklers, stainless steel dosing pump, stainless steel sewage tank, stainless steel mixing tank.
Processing speed per hour: Clean water and organic fertilizer 18 to 25 squares, directly pumped straight row 60 to 100 squares.
【 Main technical parameters 】 | ||||
Product Name | Water Purification Truck | Chassis Model | EQ1125SJ8CDC | |
产品名称 | 吸污净化车 | 底盘型号 | ||
Dimensions | 7050x2250/2350x3400mm | Wheelbase | 3800 | |
Box Size | 5200x2200x2200mm | Engine Model | NV30-C6G | |
G.V.W. | 11995KG | Purification rate | 60-80m3/h(clean water 15-30 m3/h) | |
Kerb Weight | 9400KG | Tire | 245/70R19 | |
High Pressure Pump | 16/21/24 MPa | Emission Standard | Eur VI, DIESEL | |
Dirty Tank Volume | 3.5m³ | Water Tank Volume | 1/3m³ |
Advantages
Double stack screw suction purification truck:
Chassis configuration:
Dongfeng Dorika Euro6 Yuchai 165 horsepower chassis, daytime driving lights, central control lock, electric doors and Windows, abs, air brake, air conditioning, double girder,
Top equipment configuration:
3cbm stainless steel water tank, high pressure pump Pfu 215 flow, authentic 402 double axis stack screw machine, 50kw generator set, 11kw water cycle vacuum pump, P4 sewage pump, LED advertising screen, 60m high pressure pipe, 24m suction pipe, 10 standard sprinklers, stainless steel dosing pump, stainless steel sewage tank, stainless steel mixing tank.
Processing speed per hour: Clean water and organic fertilizer 18 to 25 squares, directly pumped straight row 60 to 100 squares.
