Availability: | |
---|---|
Quantity: | |
KMH5120GQXE6
KANGMU

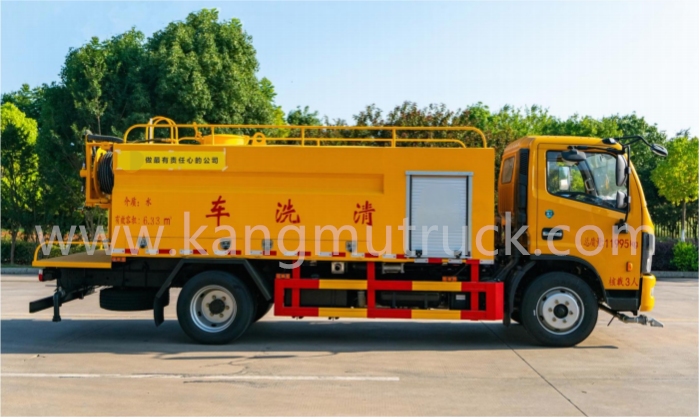

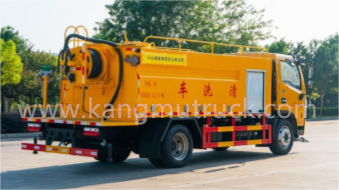

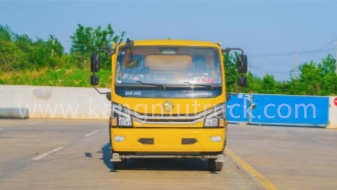

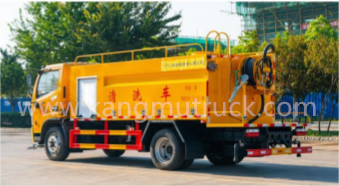

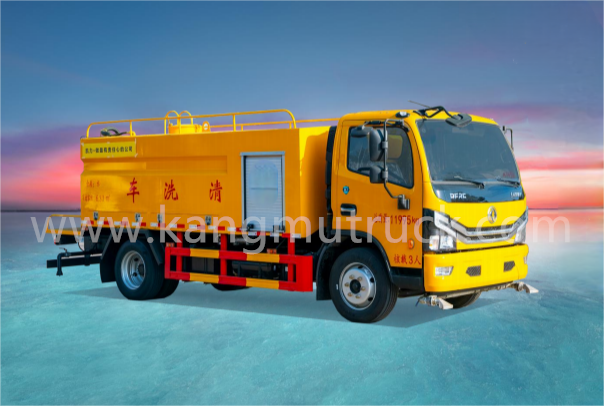

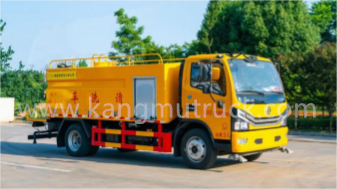

Dongfeng Dolika D7 8Cbm High Pressure Cleaning Truck
NAME | SPECIFICATIONS | |
1 | Vehicle Model | KMH5120GQXE6 |
2 | Wheelbase | 3800MM |
3 | Engine Model | YUCHAI 165HP, YUNNEI 150HP |
4 | Engine Power | 121KW/110KW |
5 | Vehicle Dimensions(L*W*H) | 7000,7050,7187,7180 * 2350,2270 ,2170 * 2350,2270,2170MM |
6 | Curb Weight | 5470KG |
7 | Total Quality | 11995KG |
8 | Tank Volume | 8CBM |
9 | Fuel Type | Diesel oil |
10 | Emission Standard | National VI |
Product Features:
1. The tank body and metal accessories of the entire vehicle have undergone pre coating phosphating treatment, sprayed with polymer anti-corrosion primer and metal topcoat, with strong adhesion, good corrosion resistance, uniform paint film, bright and long-lasting color, and improved aesthetics. They can withstand adverse environments such as humidity, dust, salt spray, etc. Long term use will not cause problems such as cracking, peeling, fading, etc., which not only improves the appearance of the product, but also effectively prevents rust.
2. Square box body, compact and beautiful overall structure, increased capacity, high-pressure pump placed inside the rolling shutter door, easy maintenance.
3. Independent system, easy to operate, good performance. The high-pressure pump has a compact structure, reliable and balanced operation, uniform flow rate, smooth and reliable operation, simple operation, and easy maintenance.
Upper Body Configuration:
The water tank is made of high-quality steel plate, with a capacity of 8 square meters and a wall thickness of 4 millimeters. A reasonable anti wave plate is designed in the middle of the tank, and an inspection manhole is designed on the top of the tank, which can also be used as a water filling hole with a water level gauge. The water inlet of the water tank is a ball valve type fire hydrant (easy to switch, durable), with a fire interface, a hand washing valve, and a low water level drainage function. The high-pressure pump adopts the German Pinfu 215L model, with a pressure of 22 megapascals, double stainless steel large diameter filter screen (to prevent impurities from entering the pump), with air blowing water function (in winter, the water in the high-pressure pump and high-pressure pipe can be blown clean to prevent freezing damage), and the high-pressure pipe is 60 meters long. Can be equipped with sprinkler function, electronic water cannon, etc
Dongfeng Dolika D7 8Cbm High Pressure Cleaning Truck
NAME | SPECIFICATIONS | |
1 | Vehicle Model | KMH5120GQXE6 |
2 | Wheelbase | 3800MM |
3 | Engine Model | YUCHAI 165HP, YUNNEI 150HP |
4 | Engine Power | 121KW/110KW |
5 | Vehicle Dimensions(L*W*H) | 7000,7050,7187,7180 * 2350,2270 ,2170 * 2350,2270,2170MM |
6 | Curb Weight | 5470KG |
7 | Total Quality | 11995KG |
8 | Tank Volume | 8CBM |
9 | Fuel Type | Diesel oil |
10 | Emission Standard | National VI |
Product Features:
1. The tank body and metal accessories of the entire vehicle have undergone pre coating phosphating treatment, sprayed with polymer anti-corrosion primer and metal topcoat, with strong adhesion, good corrosion resistance, uniform paint film, bright and long-lasting color, and improved aesthetics. They can withstand adverse environments such as humidity, dust, salt spray, etc. Long term use will not cause problems such as cracking, peeling, fading, etc., which not only improves the appearance of the product, but also effectively prevents rust.
2. Square box body, compact and beautiful overall structure, increased capacity, high-pressure pump placed inside the rolling shutter door, easy maintenance.
3. Independent system, easy to operate, good performance. The high-pressure pump has a compact structure, reliable and balanced operation, uniform flow rate, smooth and reliable operation, simple operation, and easy maintenance.
Upper Body Configuration:
The water tank is made of high-quality steel plate, with a capacity of 8 square meters and a wall thickness of 4 millimeters. A reasonable anti wave plate is designed in the middle of the tank, and an inspection manhole is designed on the top of the tank, which can also be used as a water filling hole with a water level gauge. The water inlet of the water tank is a ball valve type fire hydrant (easy to switch, durable), with a fire interface, a hand washing valve, and a low water level drainage function. The high-pressure pump adopts the German Pinfu 215L model, with a pressure of 22 megapascals, double stainless steel large diameter filter screen (to prevent impurities from entering the pump), with air blowing water function (in winter, the water in the high-pressure pump and high-pressure pipe can be blown clean to prevent freezing damage), and the high-pressure pipe is 60 meters long. Can be equipped with sprinkler function, electronic water cannon, etc
