KMH5070GXWZ6
KANGMU

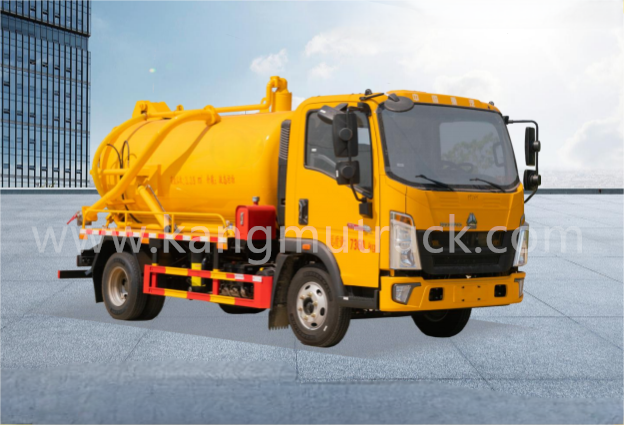

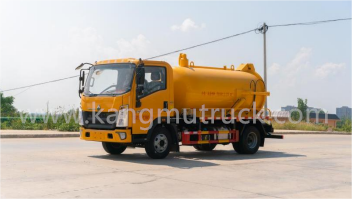

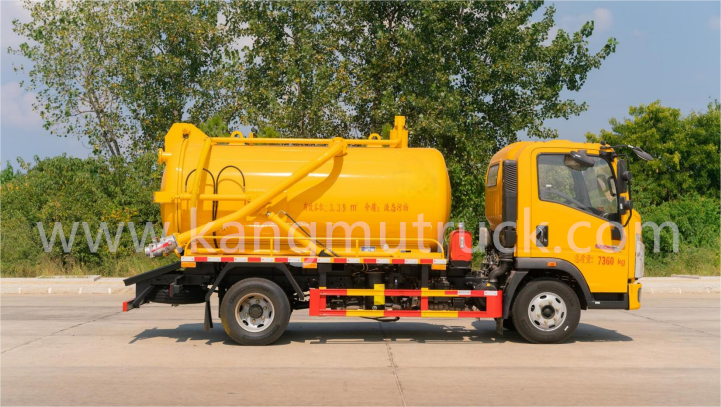

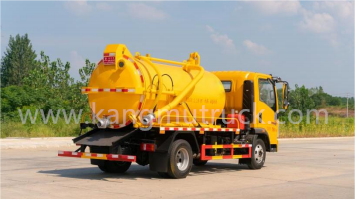

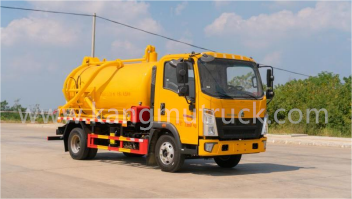

Howo 5Cbm Sewage Suction Truck
NAME | SPECIFICATIONS | |
1 | Vehicle Model | KMH5070GXWZ6 |
2 | Wheelbase | 3308MM |
3 | Engine Model | WP2.3NQ130E61 |
4 | Engine Power | 96/130HP |
5 | Vehicle Dimensions(L*W*H) | 5995×2050×(2710, 2670)MM |
6 | Curb Weight | 4450KG |
7 | Total Quality | 7360KG |
8 | Tank Volume | 5CBM |
9 | Hydraulic System Pressure | 18MP |
10 | Fuel Type | Diesel oil |
11 | Emission Standard | National VI |
12 | Operation Type | Manual |
13 | Tank Dimensions | 3500×1310MM (HEIGHT*DIAMETER) |
14 | Tank Material | 5MM CARBON STEEL |
Upper Body Configuration:
The appearance dimensions are designed in accordance with the announcement. It features a butterfly - shaped head. The rear door of the tank body is opened hydraulically and mechanically locked. The tank body has the functions of lifting and self - unloading. There is a sight pipe above the rear head of the tank body and a 100 - sized ball valve below the rear head. It is equipped with double 5 - ton vacuum pumps, water - oil separators, overflow valves, live side lights, an 8 - meter suction pipe, and other standard equipment.
Product Advantages:
1. The tank body adopts a circular tank body with a tighter structure, which can withstand higher pressure and provide greater suction. The suction range is far, and the tail discharge port is designed with a hydraulic cylinder lifting method, which can more comprehensively discharge the absorbed impurities.
2. The whole vehicle has the characteristics of high suction efficiency, self suction, self discharge, long service life, fast working speed, easy operation, and convenient transportation.
