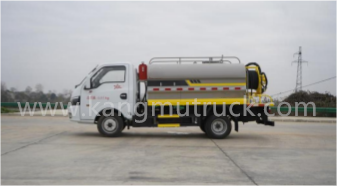

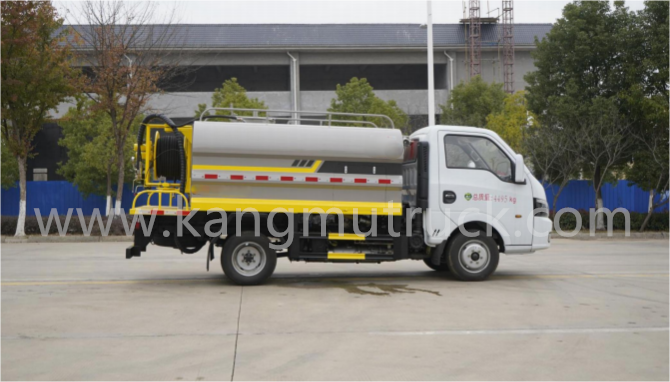

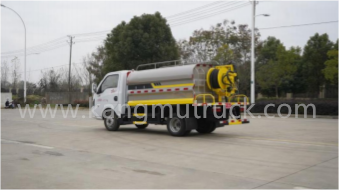

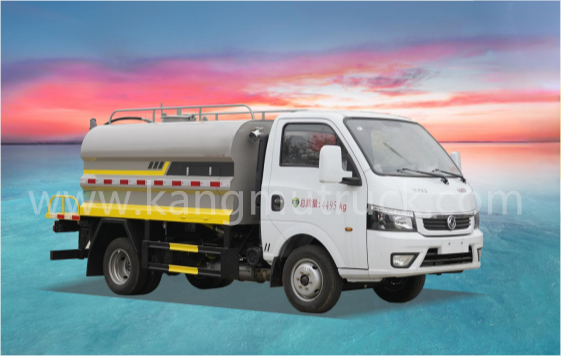

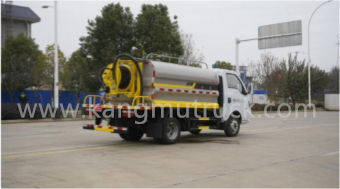

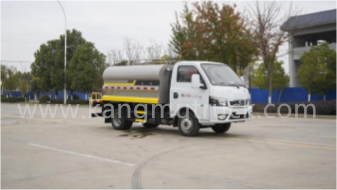

Dongfeng Tuyi 2Cbm High Pressure Cleaning Truck

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: Dongfeng Tuyi 2Cbm High Pressure Cleaning Truck
  • Keywords: High Pressure Cleaning Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:
  • KMH5042TYHE6

  • KANGMU

Dongfeng Tuyi 2Cbm High Pressure Cleaning Truck



NAME SPECIFICATIONS
1 Vehicle Model KMH5042TYHE6
2 Wheelbase 2800MM
3 Engine Model Q23-95E60
4 Engine Power 70KW
5 Vehicle Dimensions(L*W*H) 5460*1860*2230MM
6 Curb Weight 2860KG
7 Total Quality 4495KG
8 Tank Volume 2CBM
9 Fuel Type Diesel oil
10 Emission Standard National VI



Product Features:

1. The tank body and metal accessories of the entire vehicle have undergone pre coating phosphating treatment, sprayed with polymer anti-corrosion primer and metal topcoat, with strong adhesion, good corrosion resistance, uniform paint film, bright and long-lasting color, and improved aesthetics. They can withstand adverse environments such as humidity, dust, salt spray, etc. Long term use will not cause problems such as cracking, peeling, fading, etc., which not only improves the appearance of the product, but also effectively prevents rust.

2. Square box body, compact and beautiful overall structure, increased capacity, high-pressure pump placed inside the rolling shutter door, easy maintenance.

3. Independent system, easy to operate, good performance. The high-pressure pump has a compact structure, reliable and balanced operation, uniform flow rate, smooth and reliable operation, simple operation, and easy maintenance.


Upper Body Configuration:

The water tank has a capacity of about 2 cubic meters and is made of Q235 carbon steel with a 3mm thick tank body. It is equipped with a 130L/MIN-160bar high-pressure pump and a pressure of 18 megapascals. It is equipped with a self-developed large filter (to prevent impurities from entering the pump and the filter is non removable and washable), with a low-level drainage function. The tank body is reinforced with ribs on the front, back, left, and right sides, which are sturdy, durable, and not deformed; Long rectangular toolboxes on both sides for convenient storage of work tools; The front part is equipped with a rolling shutter door, providing ample maintenance space for essential components such as the gearbox, sandwich power take-off, and high-pressure pump; The tail high-pressure reel can rotate 180 °, making it convenient to retract and clean pipes from various angles. The operating system is located on the reel, making it easy to operate.

图片 1图片 2图片 3图片 4图片 5图片 6图片 7图片 8
