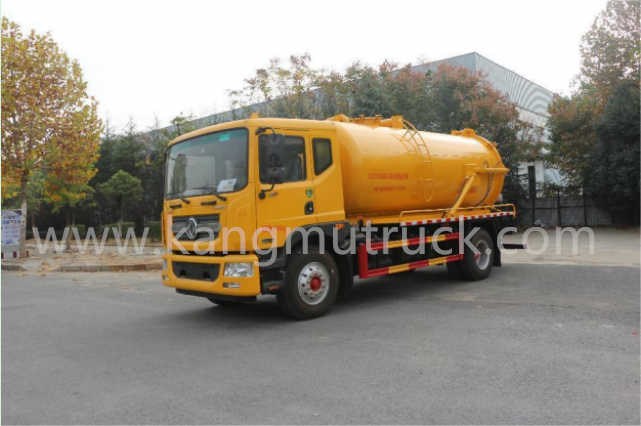

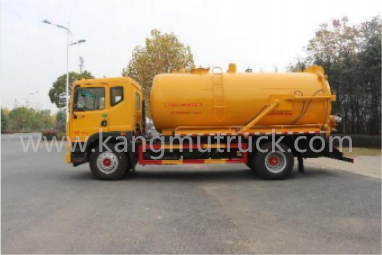

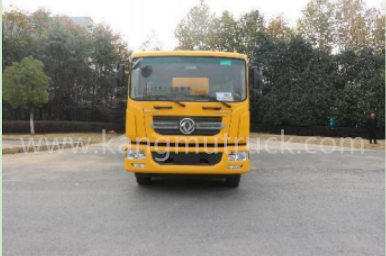

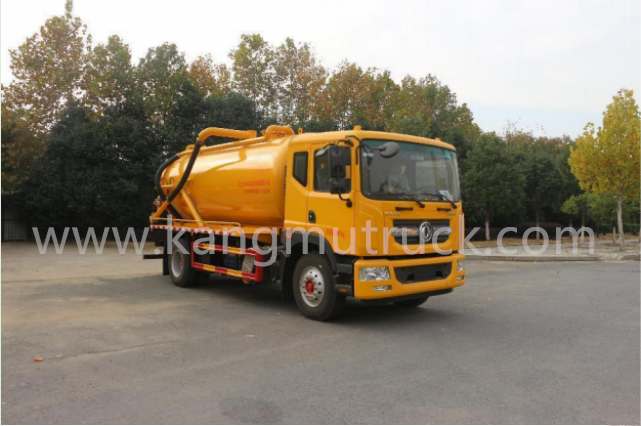

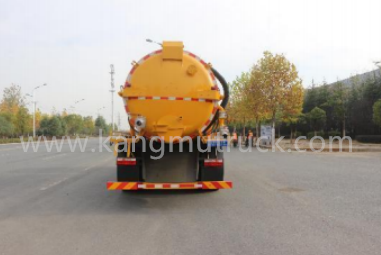

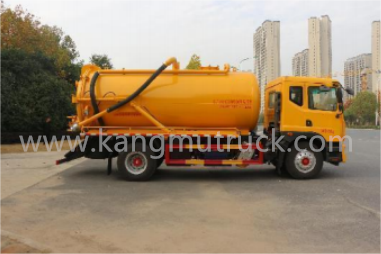

Kangmu D9 Cummins 230HP 10Cbm Sewage Suction Truck
NAME | SPECIFICATIONS | |
1 | Vehicle Model | KMH5181GXWEQ6 |
2 | Chassis Model | EQ1185LJ9CDE |
3 | Wheelbase | 3950mm |
4 | Engine Model | B6.2NS6B230 Cummins230HP |
5 | Engine Power | 169KW |
6 | Vehicle Dimensions(L*W*H) | (8000 or 7450) × (2500 or 2550) × 3400mm |
7 | Curb Weight | 9300KG or 8600KG |
8 | Total Quality | 18000KG |
9 | Tank Volume | 10CBM |
10 | Hydraulic System Pressure | 18MP |
11 | Fuel Type | Diesel oil |
12 | Emission Standard | National VI |
13 | Operation Type | Manual |
Product Performance:
1. Each component of the vehicle, including the tank and metallic fittings, has been subjected to an initial phosphating process prior to coating. This is followed by the application of a polymer-based primer designed to combat corrosion, along with a protective metal finish. The result is a coating that adheres tenaciously, exhibits excellent resistance to decay, and presents a consistent and visually appealing finish that maintains its vibrancy and hue over time, enhancing the visual appeal of the vehicle. The coating is capable of enduring harsh conditions, including high moisture levels, particulate matter, and saline mist. Even with prolonged exposure, the finish remains intact, avoiding issues such as flaking, chipping, or discoloration. This not only enhances the product's aesthetic qualities but also provides a robust defense against oxidative degradation.
2. Vacuum vehicles are extensively deployed to handle the extraction, conveyance, and emptying of diverse fluid and semi-fluid materials, including sewage, waste, effluent, floating debris, sludge, and solid particles like rubble and pebbles, within a range of trenches and conduits. These vehicles are also equipped to tackle unforeseen incidents that lead to environmental contamination. Leveraging vacuum technology to its fullest, the vehicle is equipped with a twin anti-overflow pump system that effectively safeguards against tank overspill and enhances the longevity of the vacuum pump. The vehicle's design is well-thought-out, ensuring superior functionality and ease of maneuverability.
Product Advantages:
1. The vehicle is equipped with a compact, circular tank design that enhances its ability to endure elevated pressures and deliver a more potent suction force. This design extends the reach of the suction process. The rear ejection outlet incorporates a hydraulically actuated extension mechanism, facilitating the expulsion of collected contaminants with minimal retention.
2. This vehicle boasts a suite of beneficial features, including superior suction performance, the capability for autonomous intake and outflow of materials, enduring durability, swift operational tempo, user-friendly controls, and hassle-free portability.
