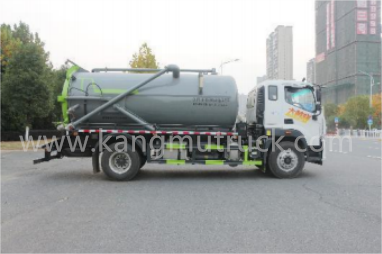

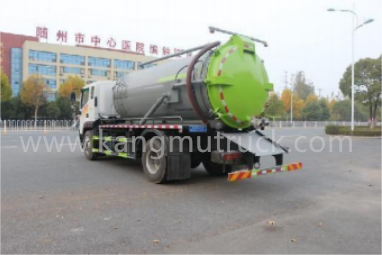

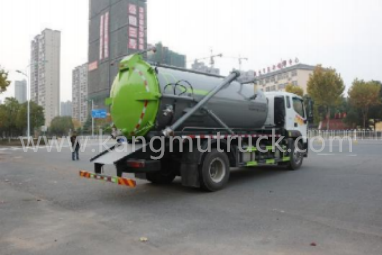

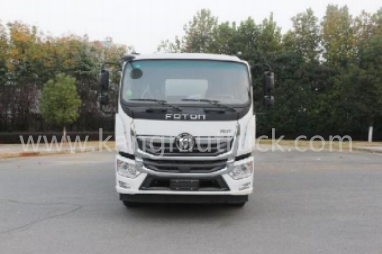

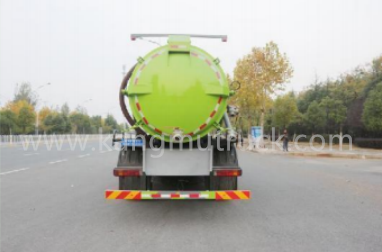

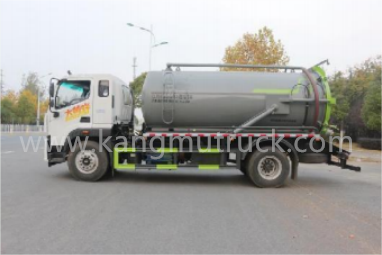

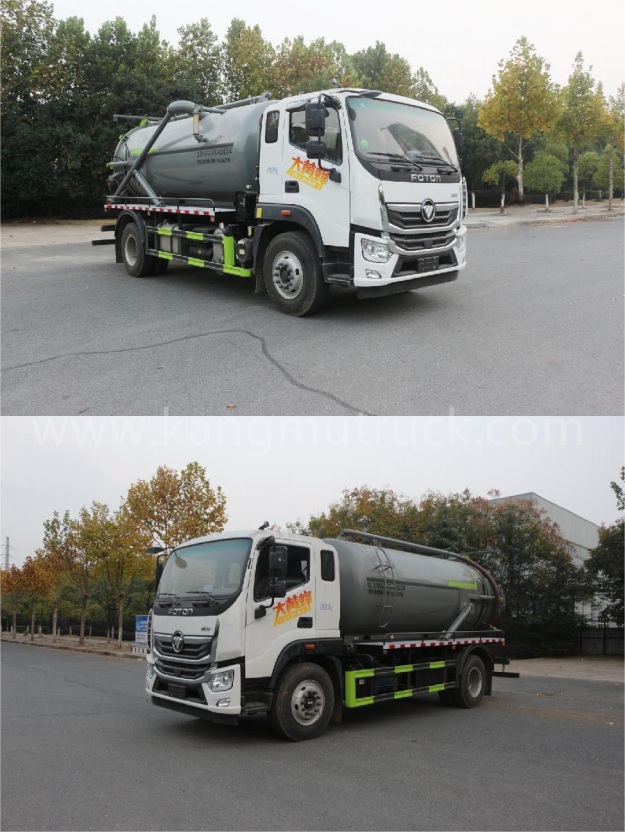

Kangmu Foton Ollin Yuchai 200HP Sewage Suction Truck

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: Kangmu Foton Ollin Yuchai 200HP Sewage Suction Truck
  • Keywords:Sewage Suction Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:
  • KMH5183GXWBJ6

  • KANGMU

Kangmu Foton Ollin Yuchai 200HP Sewage Suction Truck



NAME SPECIFICATIONS
1 Vehicle Model KMH5183GXWBJ6
2 Chassis Model BJ1188VKPFK-AD1
3 Wheelbase 4500mm
4 Engine Model YCS04200-68Yuchai 200HP(with synchronizer)
5 Engine Power 147KW
6 Vehicle Dimensions(L*W*H) (8350 or 7700)/(2500 or 2550)/3400mm
7 Curb Weight 9200KG or 8600KG
8 Total Quality 18000KG
9 Tank Volume 12CBM
10 Hydraulic System Pressure 18MP
11 Fuel Type Diesel oil
12 Emission Standard National VI
13 Operation Type Manual


Product Performance:


1. IMPROVED DURABILITY AND AESTHETIC QUALITY OF VEHICLE PARTS

The tank body and all metal components of the vehicle undergo a pre-treatment phosphating process, followed by the application of a polymer anti-corrosion primer and a premium metal topcoat. This ensures strong adhesion, exceptional corrosion resistance, and a smooth, vibrant, and long-lasting paint finish that enhances the vehicle's overall appearance. The coating is engineered to withstand extreme environments, such as humidity, dust, and salt spray, without experiencing cracking, peeling, or fading. This not only preserves the product's visual appeal but also delivers reliable rust protection.

2. Versatile Application and Advanced Design of Suction Trucks

Suction trucks are widely used for the suction, transportation, and disposal of a wide range of liquid and semi-liquid substances. This includes sludge, waste, wastewater, suspended solids, small bricks, and crushed stones in various ditch and channel environments. These vehicles are also designed for rapid response to unexpected environmental pollution incidents. Utilizing advanced vacuum technology, the dual anti-overflow pump system is designed to prevent tank overflows and extend the life of the vacuum pump. The overall design of the vehicle is rational, with superior performance, and is known for its agility and user-friendly operation.


Product Advantages:

1. Streamlined Tank Design for Enhanced Suction Efficiency

The suction truck features a compact, circular tank designed to withstand high pressures and produce a strong suction force, which significantly enhances the efficiency of the suction process. This innovative design also increases the suction range. The rear ejection outlet is equipped with a hydraulic extension mechanism, which simplifies the discharge of collected materials and reduces residue.

2. Advanced Features for Optimal Performance and Convenience

The vehicle stands out with a range of advanced features, including superior suction capabilities, the ability to control material intake and outflow, durability for long-term use, fast operational speed, user-friendly control systems, and easy maneuverability. These features collectively ensure smooth and efficient operation.


图片 2图片 3图片 4图片 5图片 6图片 7图片 9图片 10
