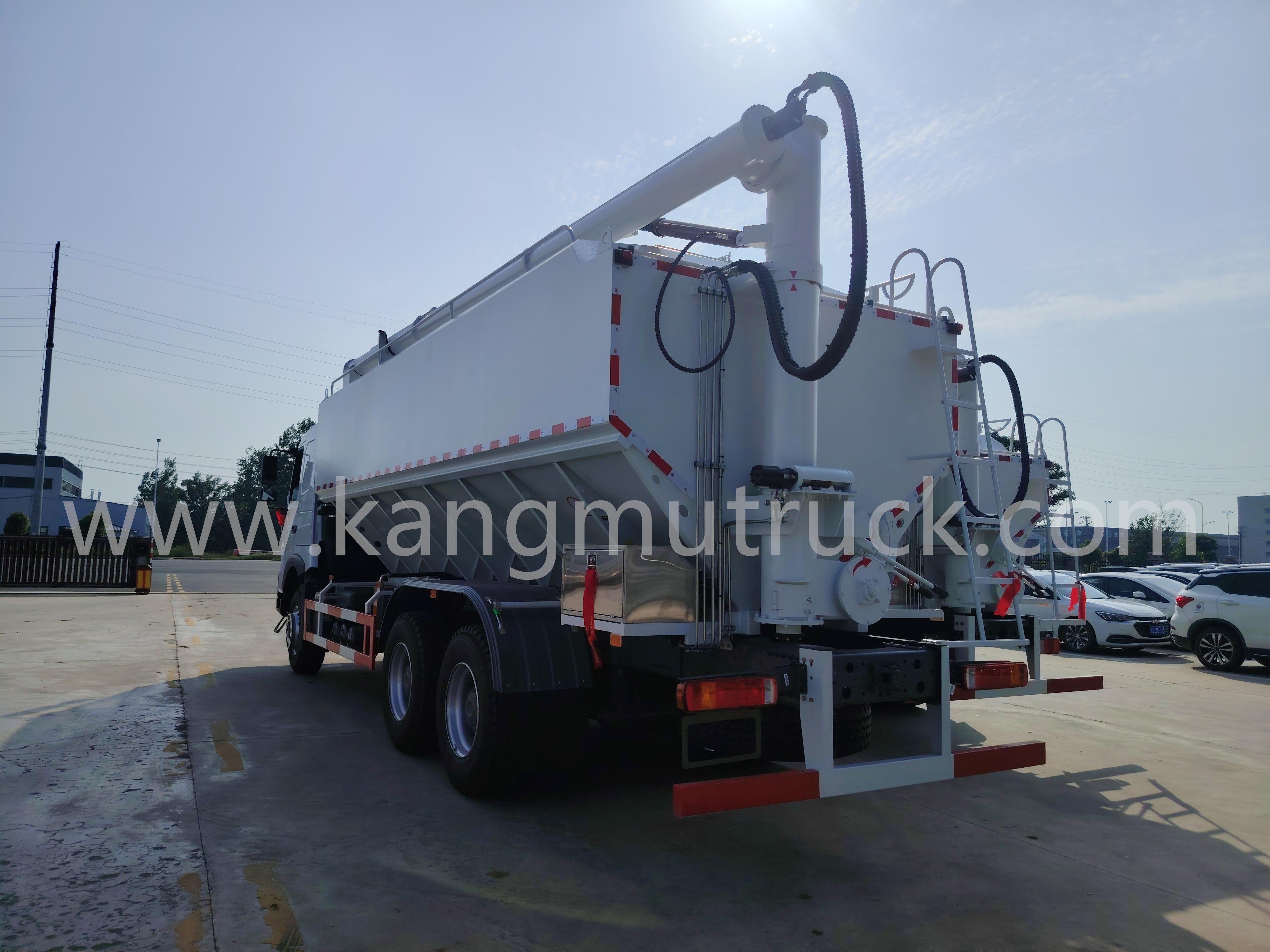

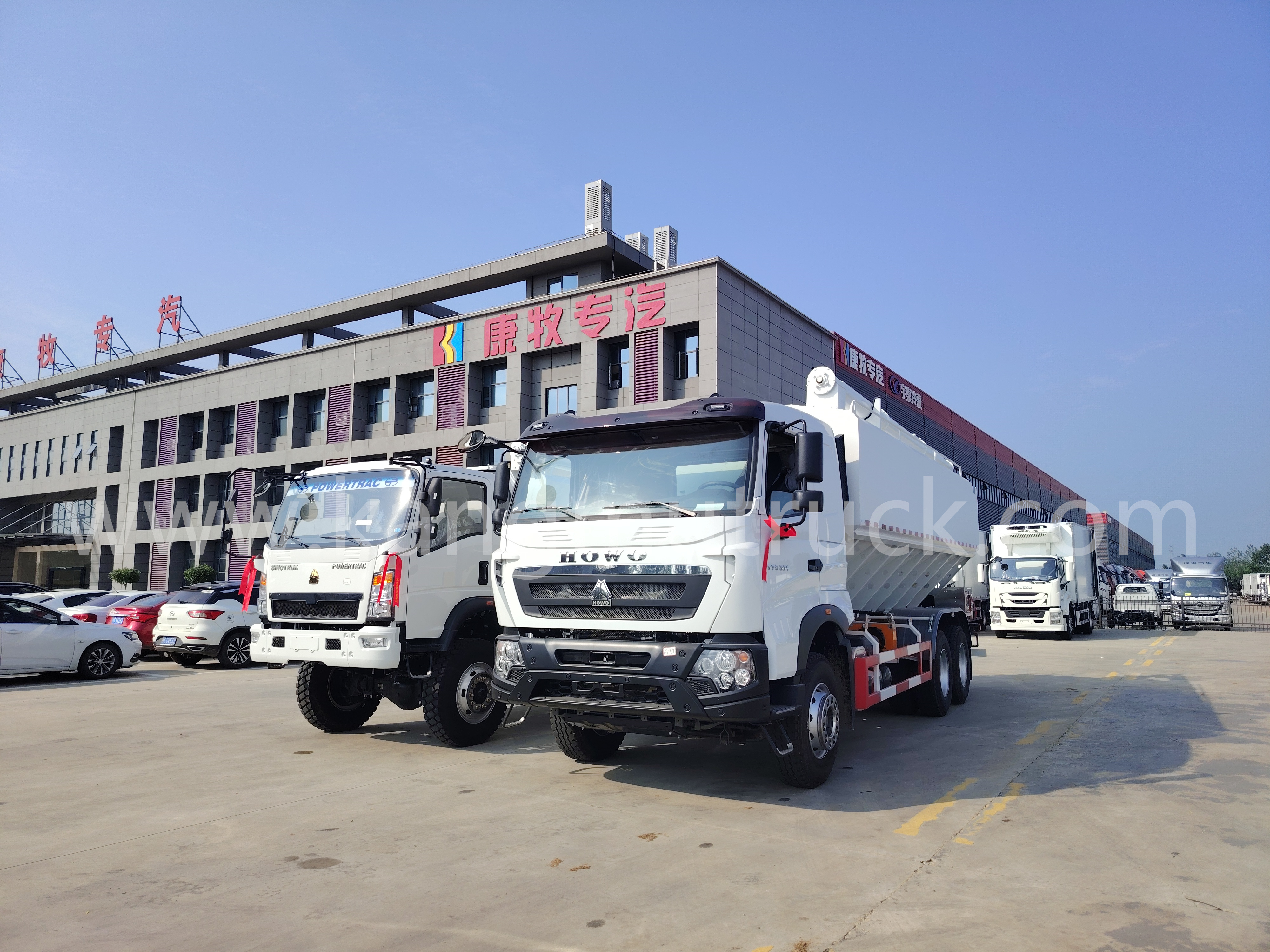

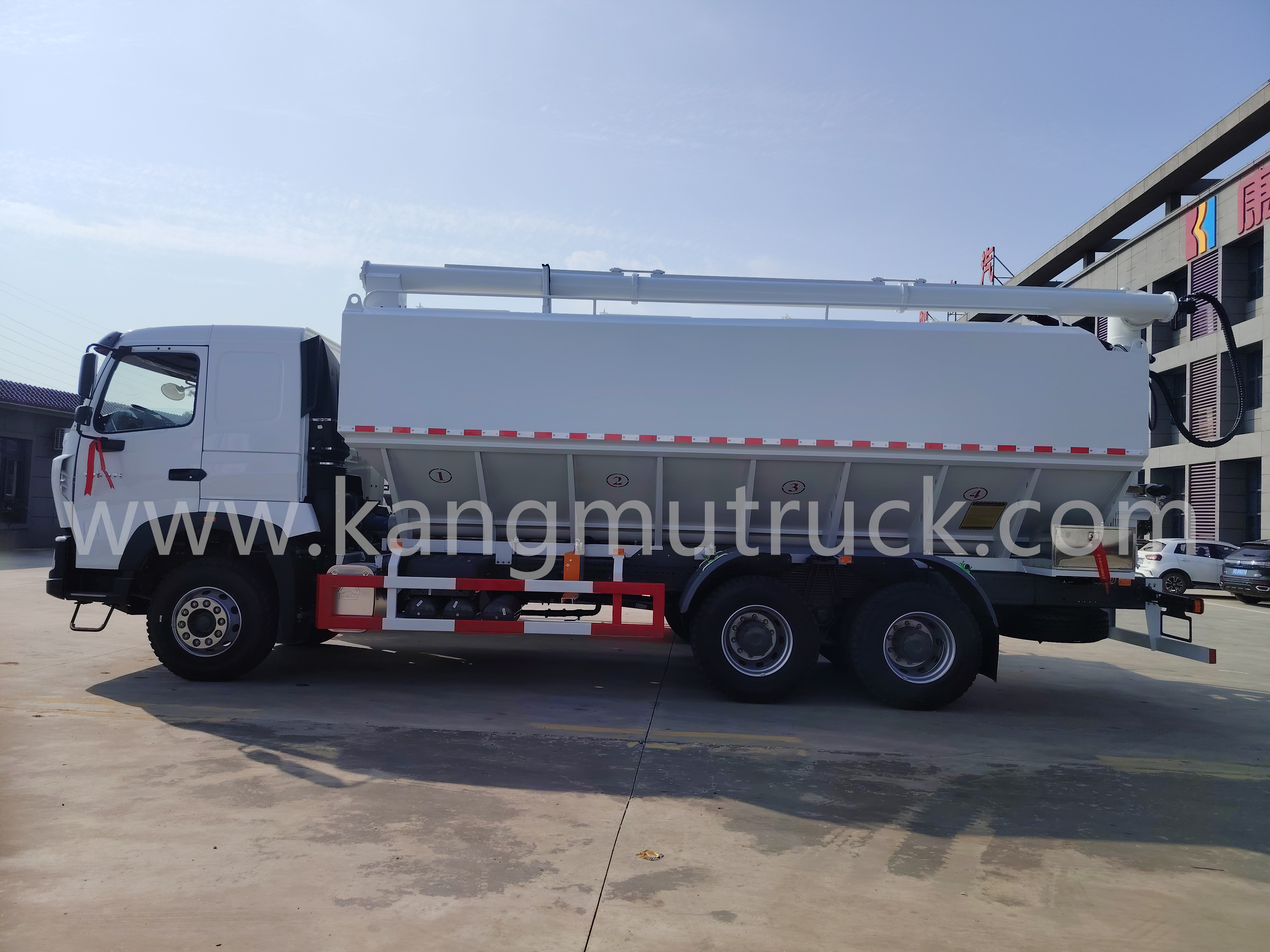

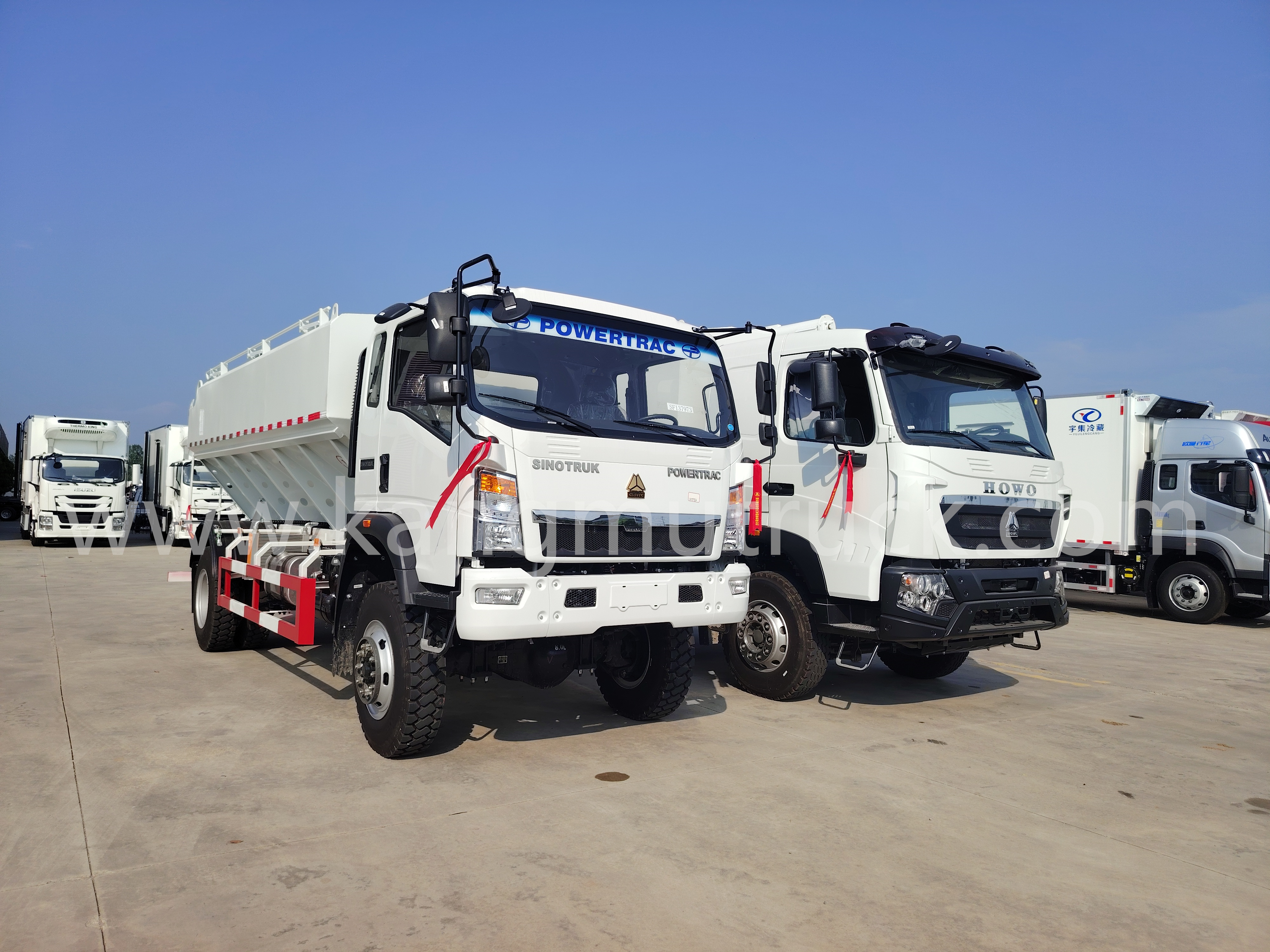

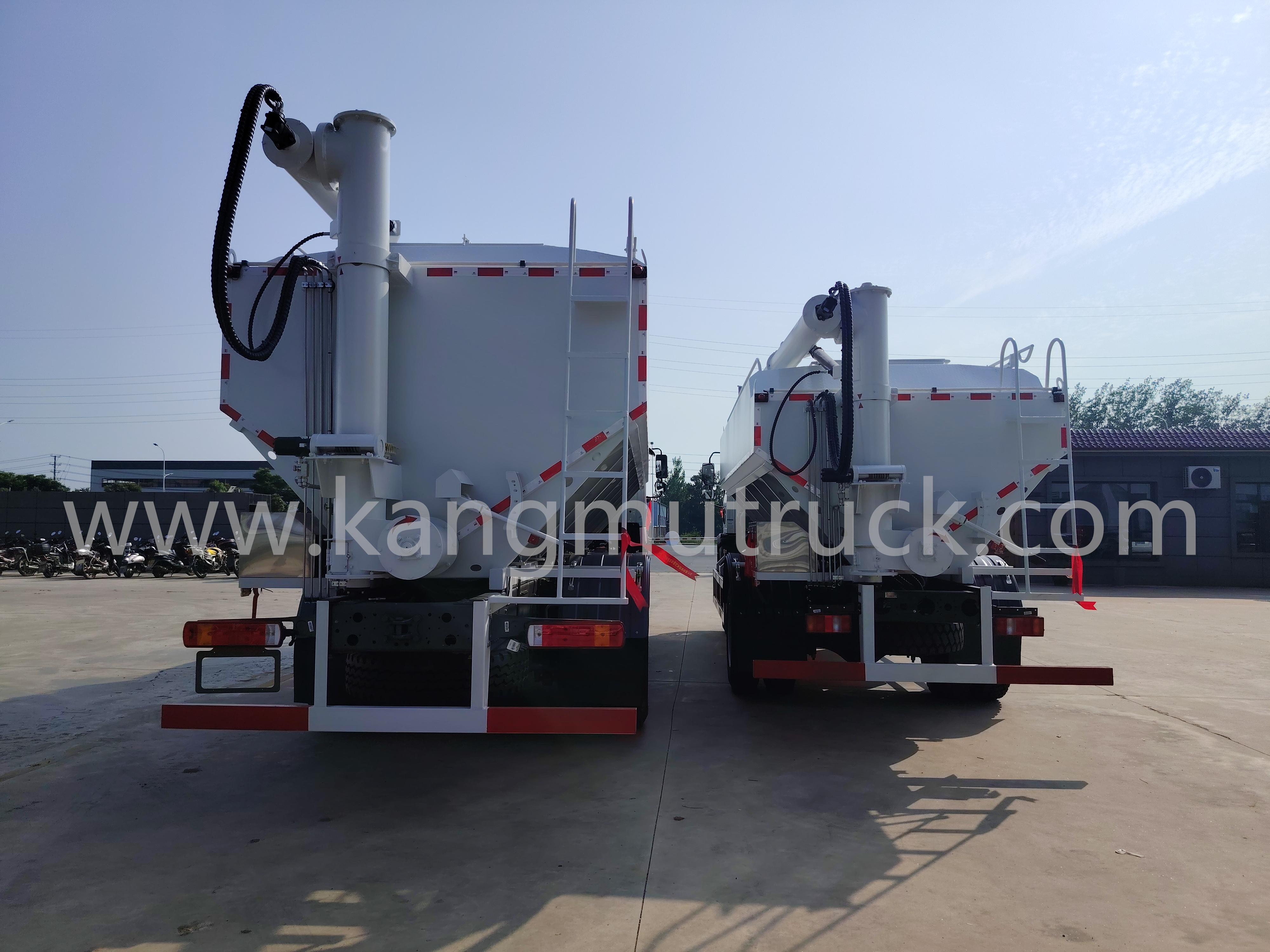

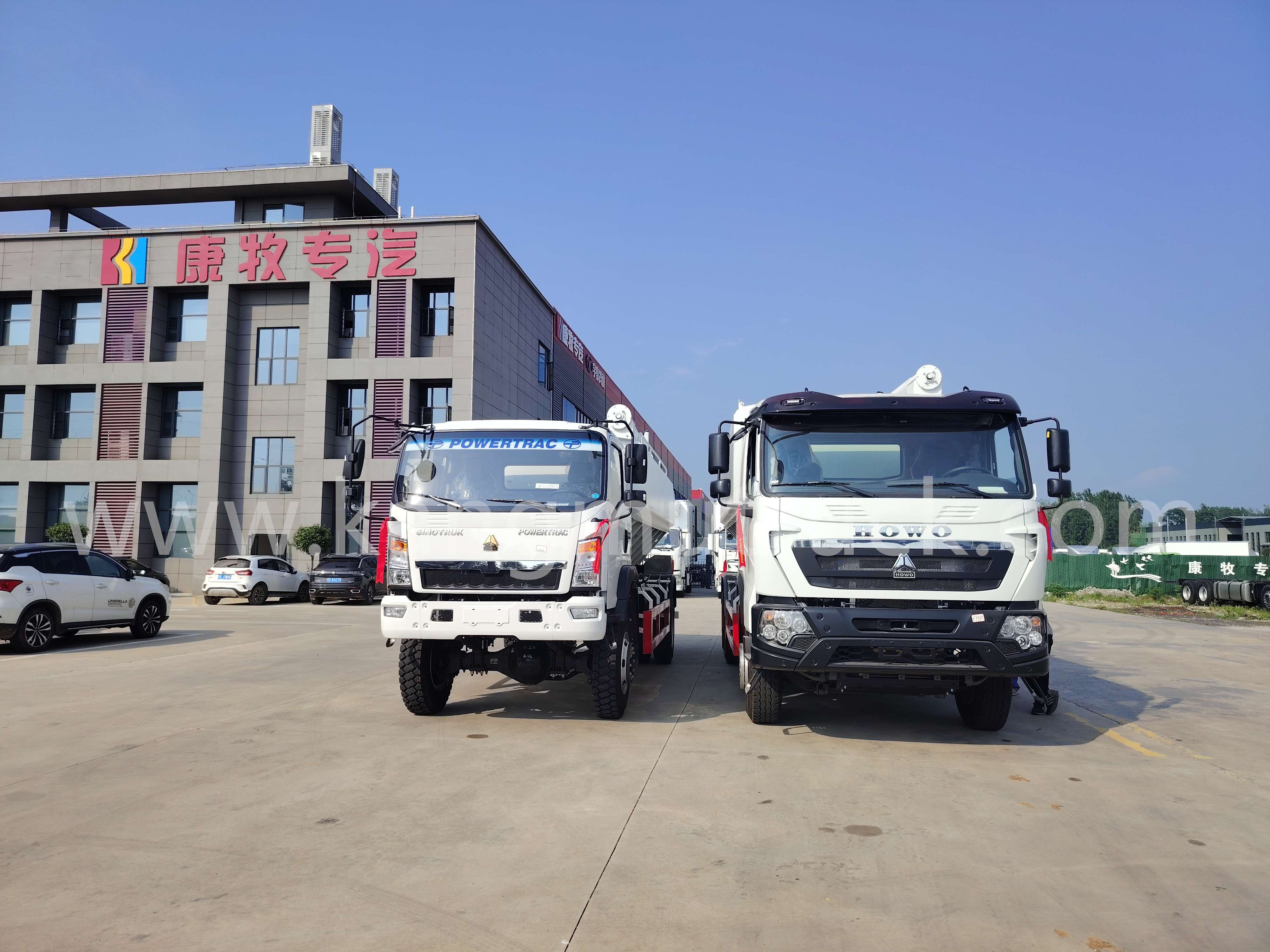

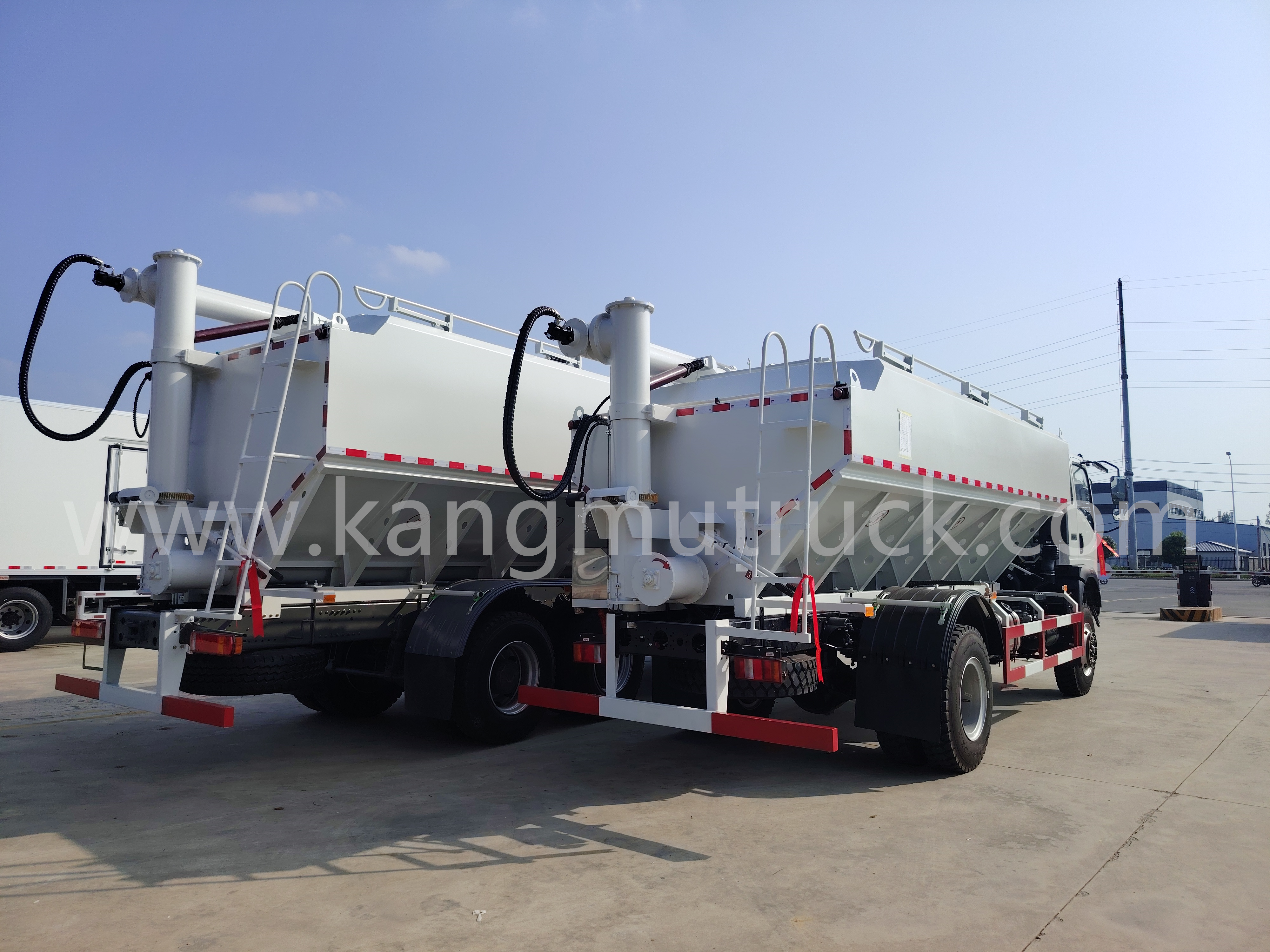

SINOTRUK HOWO 6X4 BULK FEED TRUCK

Product Specifications:

Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd
Product Name: SINOTRUK HOWO 6X4 BULK FEED TRUCK
Keywords: Livestock Transport Truck
Attributes: With After-Sale Service, One Year Warranty,Truck

Availability:

Quantity:



Inquire Add to Basket

Brand:
KANGMU

Features

SINOTRUK HOWO 6X4 BULK FEED TRUCK TECHNICAL DATA
Item	Description
Dimension(LxWxh)	AROUND 10000×2550×3995mm
Wheel Base	4600+1350mm
Kerb Weight	11.3T
Drive Type	6X4,LHD
Chassis Brand	Sinotruk HOWO NX
Horsepowder	371HP
Emission Standard	Euro II
Tire	315/80R22.5,10+1unites
Fuel Tank	400L
Tank Volume	37 CBM
Tank Material	Carbon Steel Q235
Tank Thikness	3mm
Tank Shape	U-Shape
Compartment	4
Discharge Auger Length	7.8M
Discharge Method	Hydraulic PTO
Discharge Height(m)	More than 6.8
Discharge Rate(kg/min)	550~650

Other Details：

Equipped with A/C,and other standard features.

Upper body configuration:tank size:around 7300×2500×2650mm,

The top auger conveyor rotates and positions with plus or minus 180 degree.

discharge auger elevation angle(°):0~60,residual rate(%):≤0.22

unloading method:Hydraulic PTO

Painting:yellow+green color,non logo,no special painting.
