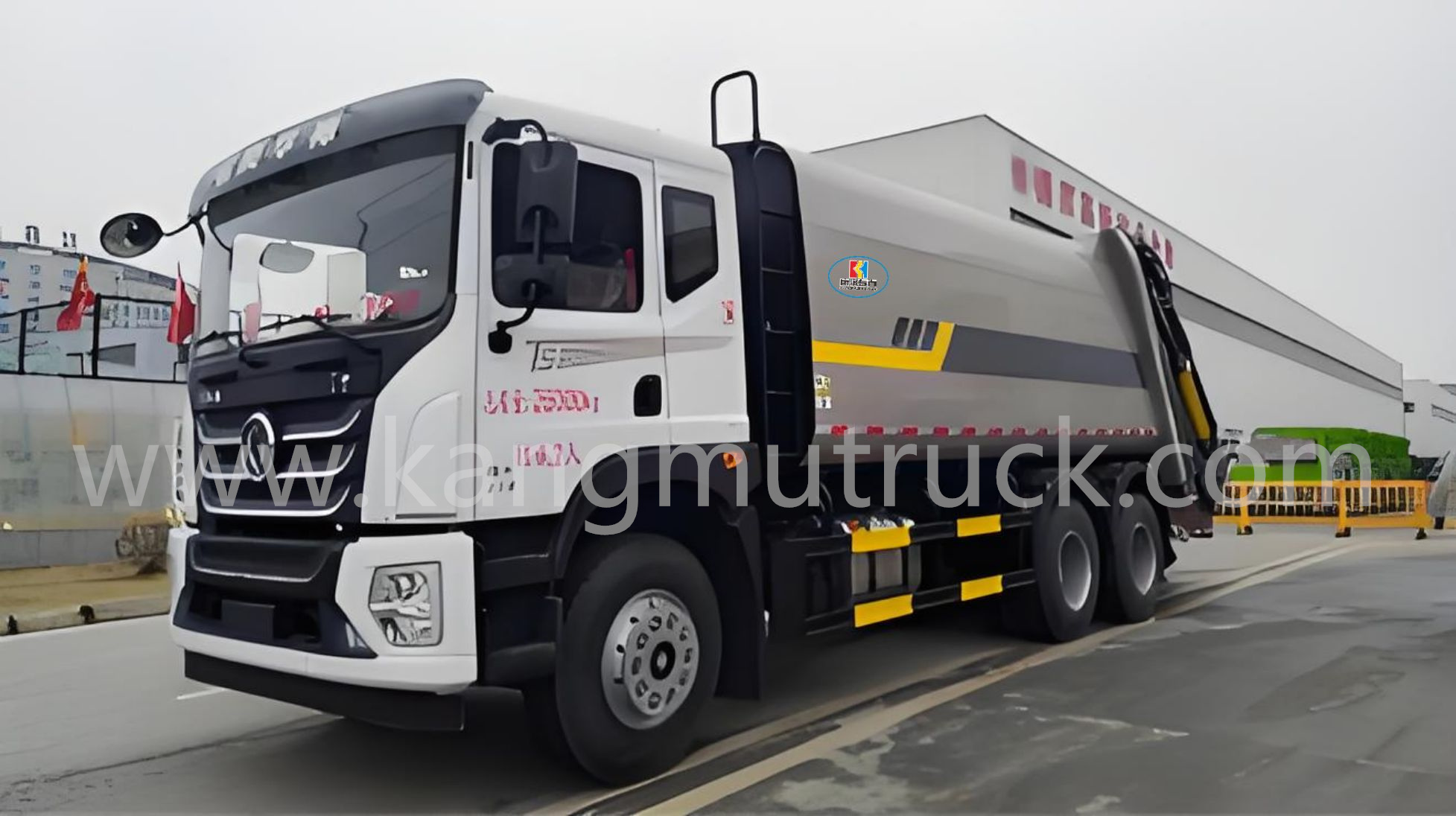

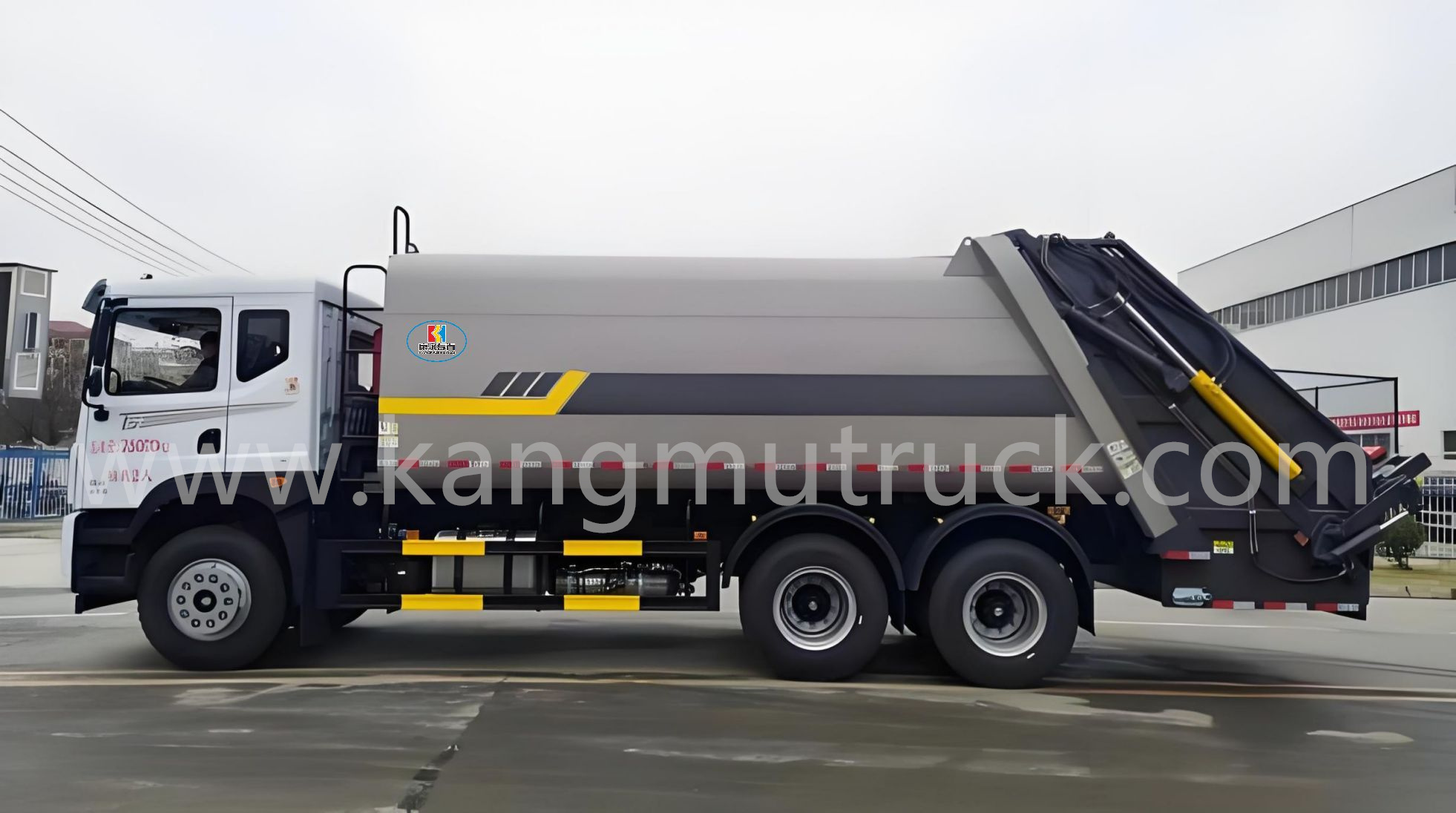

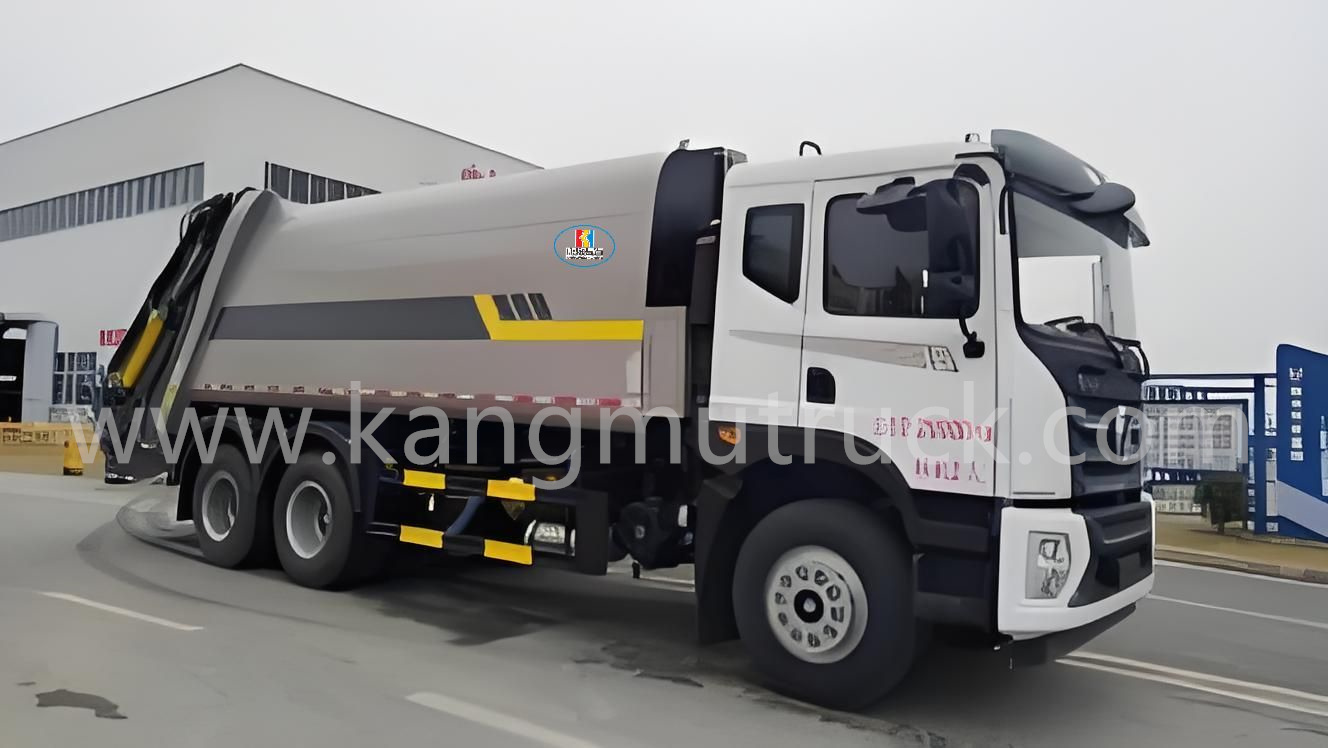

Dongfeng Huashen T5 22Cbm Compression Garbage Truck
| NAME | SPECIFICATIONS |
| 1 | Vehicle Model | KMH5250ZYSE6 |
| 2 | Wheelbase | 4350+1350 |
| 3 | Tire Specifications | 11.00 Steel Wire Tire |
| 4 | Engine Model | B6.2NS6B230（CUMMINS 230） |
| 5 | Engine Power | 169/180/191/199KW |
| 6 | Vehicle Dimensions(L*W*H) | 10050*2550*3520 |
| 7 | Curb Weight | 13525KG |
| 8 | Total Quality | 25000KG |
| 9 | Rated Load Capacity | 11345KG |
| 10 | Tank Volume | 22CBM |
| 11 | Operation Type | Electric/Manual/Remote |
| 12 | One Feed Cycle Time | 12—25S |
| 13 | Unloading Time | ≤90S |
| 14 | Rear Device | Flip Board |
| 15 | Fuel Type | Diesel |
| 16 | Emission Standard | National VI |
PRODUCT CONFIGURATION:
The appearance of the box body features an arc-shaped streamlined design, which is formed by rolling the arc at one time using a four-axis plate rolling machine, eliminating the risk of leakage. It is simple and beautiful in appearance, has strong anti-deformation performance and good structural reliability. At the same time, it effectively increases the actual volume, surpassing similar products. The high-strength manganese steel plate is used as the material, which is not easy to deform, resistant to wear and has strong corrosion resistance.
The electrical system equipped on the whole vehicle can realize the full-automatic control of the engine output, ensuring that the acceleration or idling state can be selected under working or other working conditions, reducing power loss and the failure rate, reducing fuel consumption, and being more stable and energy-efficient.
The intelligent control system adopts the design of imported CAN bus and a modular structure. By combining two methods of proximity switches and oil pressure sensing, an efficient, stable and easy-to-maintain compression scheme is realized. It is equipped with three sets of operation modes: manual, automatic and semi-automatic. It can be operated inside the cab, at the front of the box body and at the rear of the box body, and is equipped with a remote control, which is convenient and efficient for different working environments in all directions.

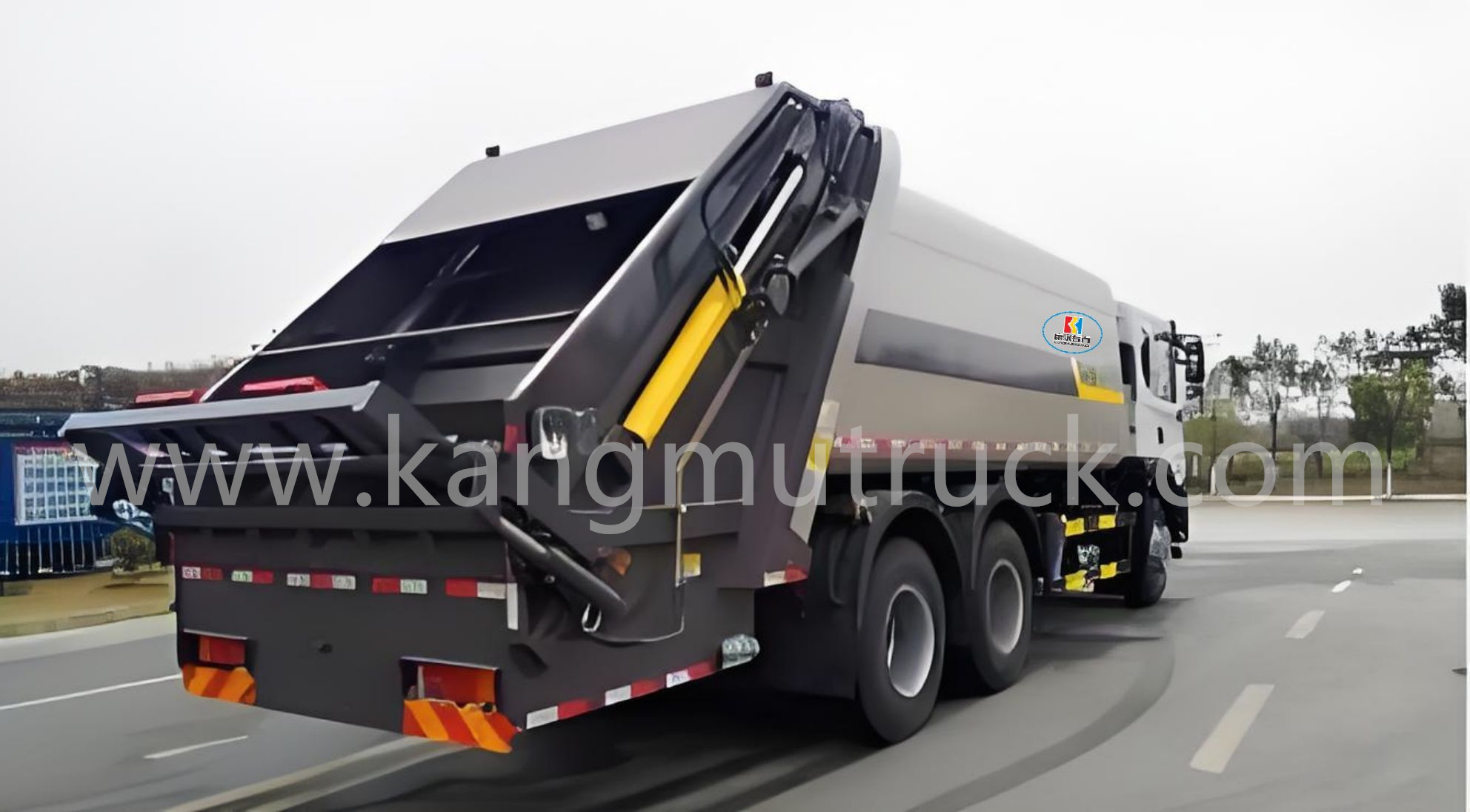

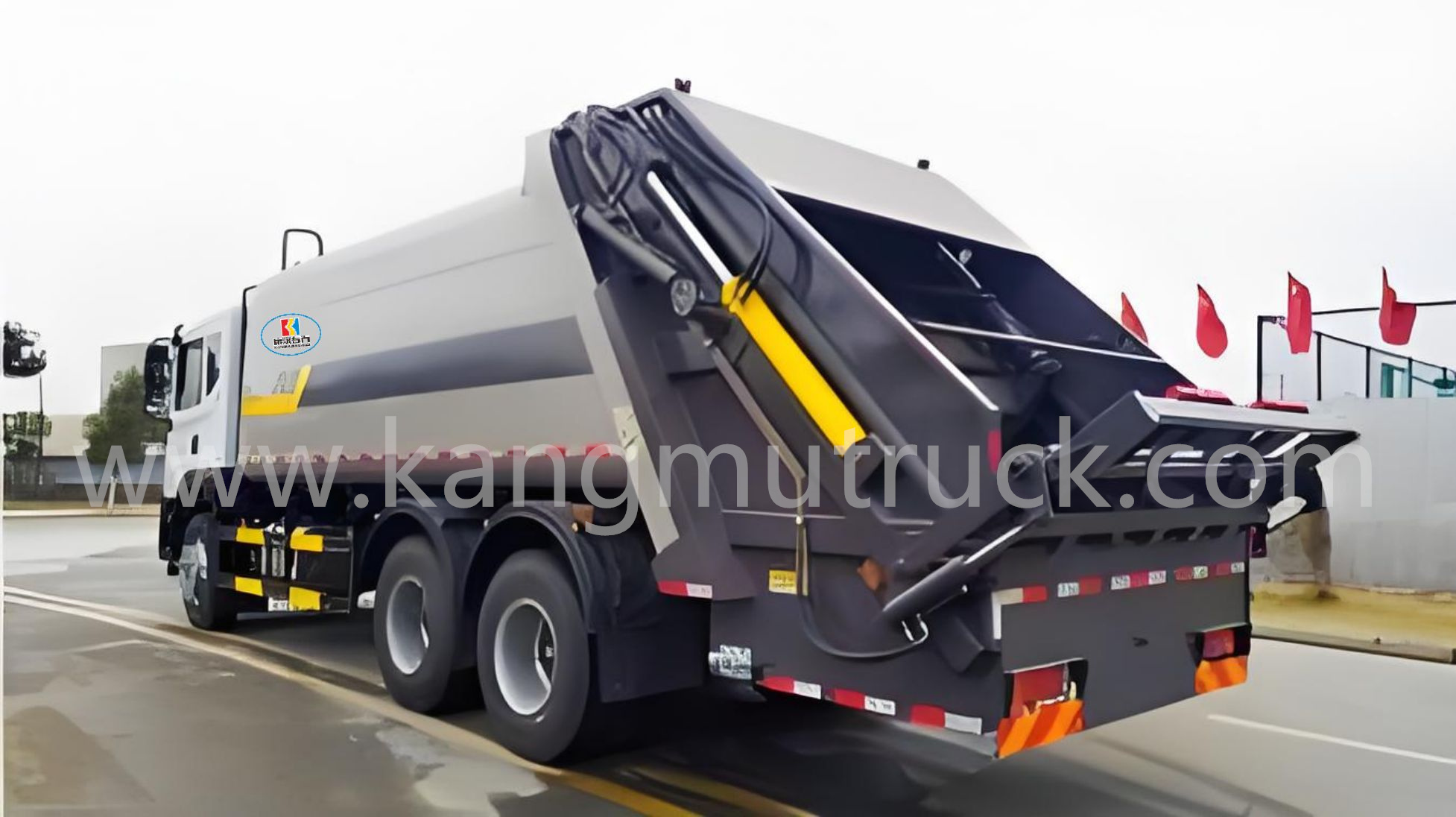

The latest external oil cylinder structure and two-way compression technology are adopted. With the use of first-class brand accessories at home and abroad, the compression ratio exceeds 1:2.5, and the single cycle is ≤ 20 seconds, achieving a doubling of the garbage collection efficiency.
The customer's usage environment is taken into account to the greatest extent, and there are many highlights of humanized design, including a night lighting lamp, a double sewage tank, a drainage pipe, remote control operation, and a complete operation and maintenance manual and video.
Special personnel conduct test drives, simulating various complex working environments, and conduct physical tests before the vehicle is dispatched.
After-sales guarantee: For any failure that is not caused by the customer, unconditional after-sales service will be provided, and the customer can solve the problem at zero cost.
