| Item | Specification |

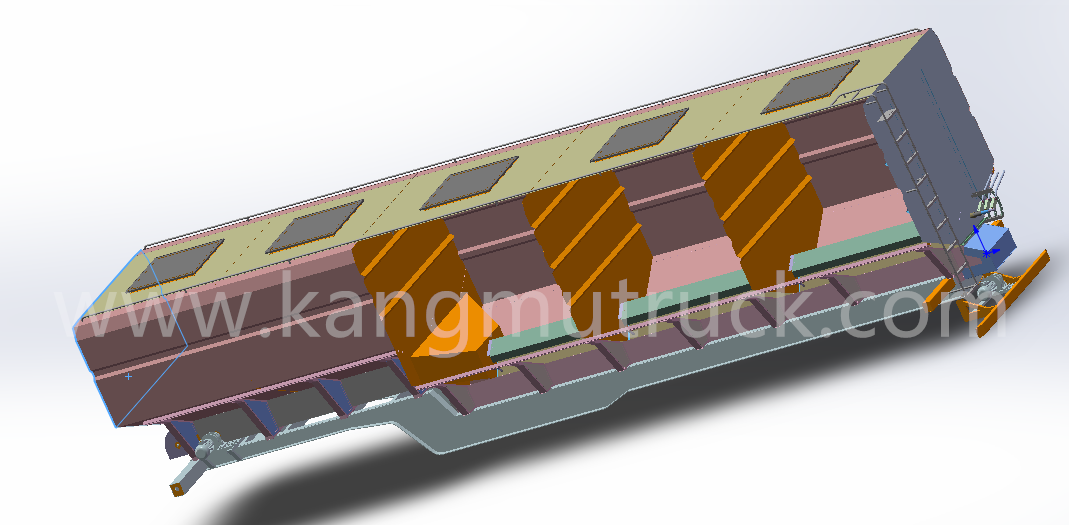

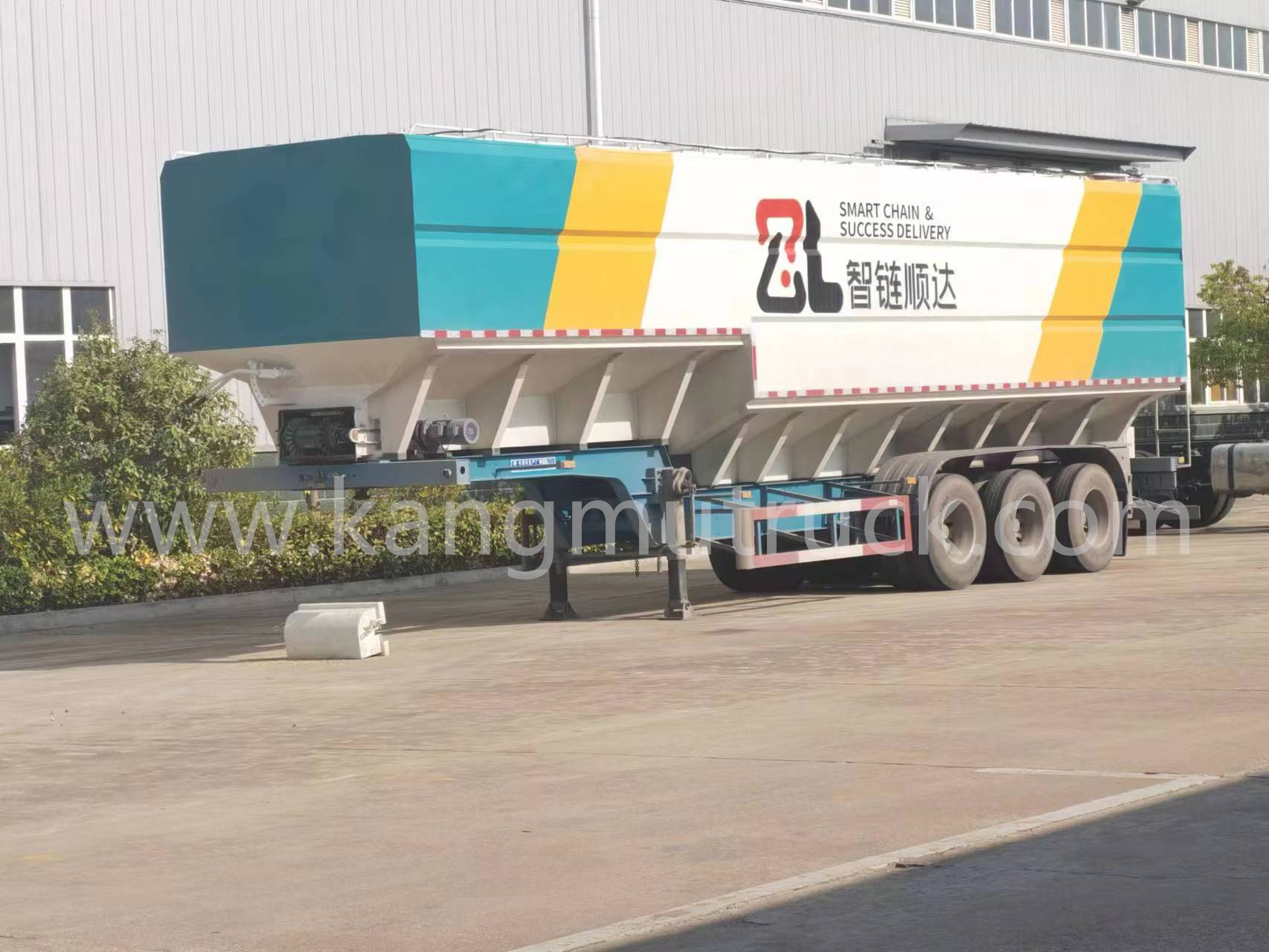

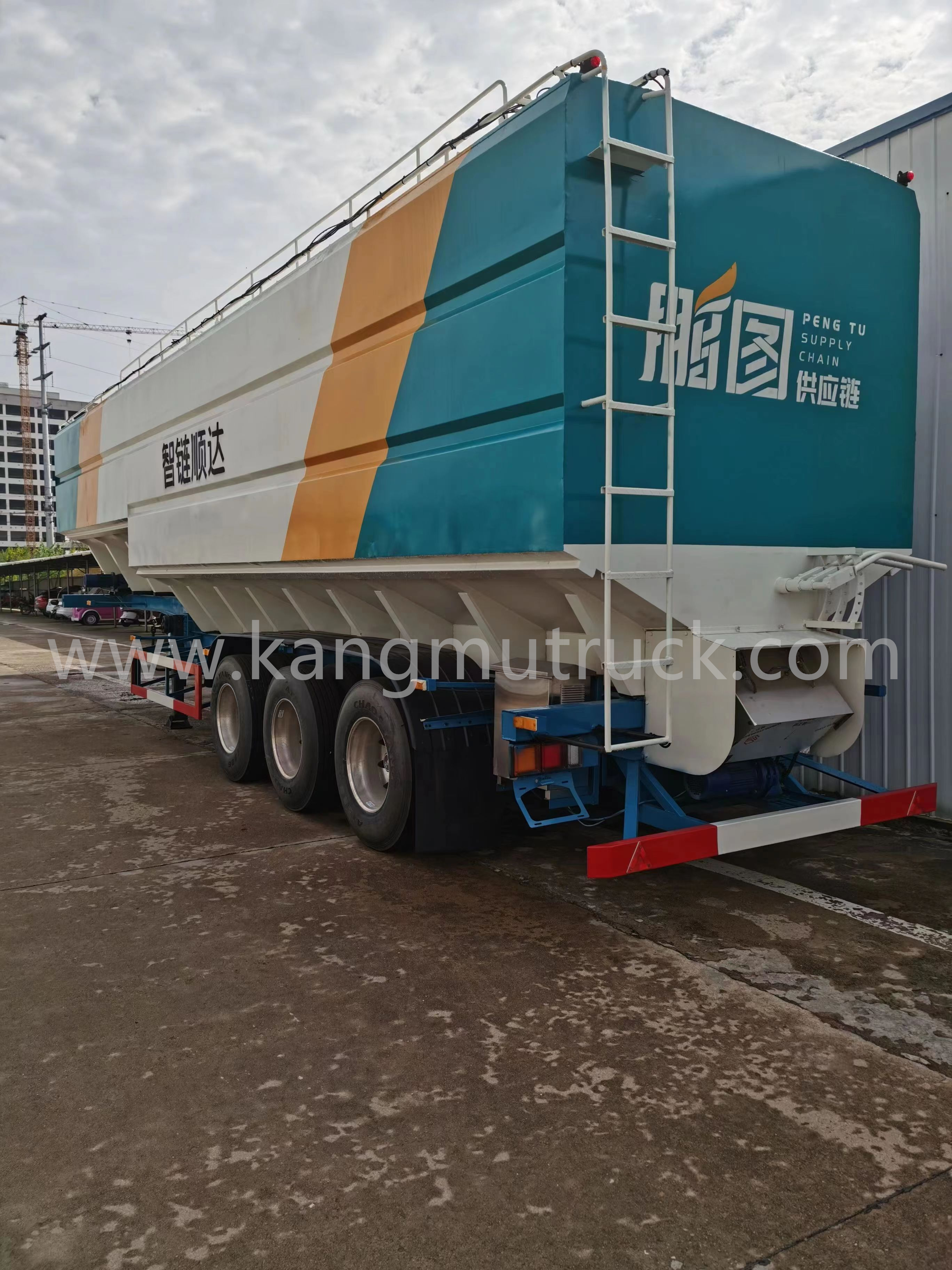

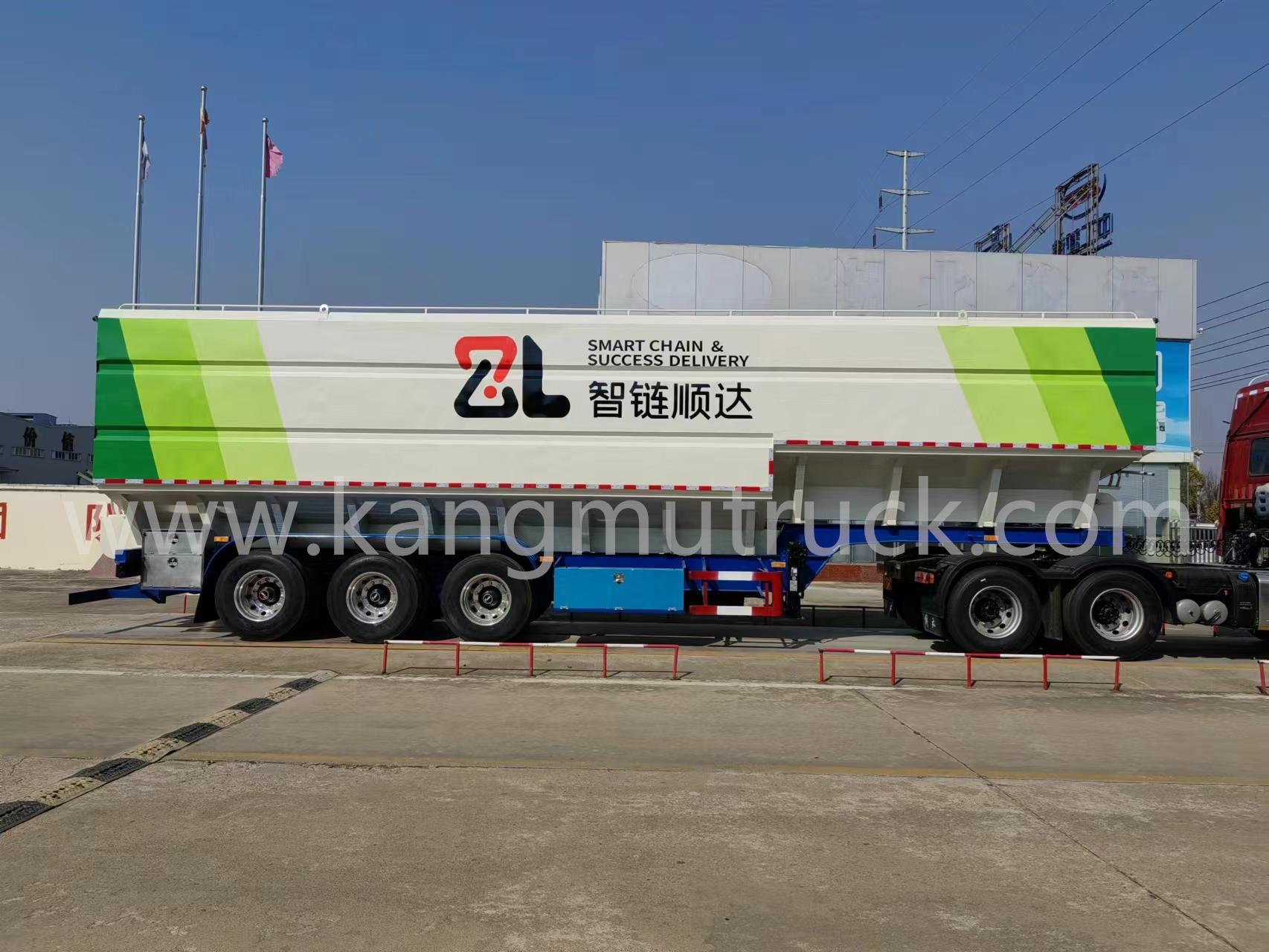

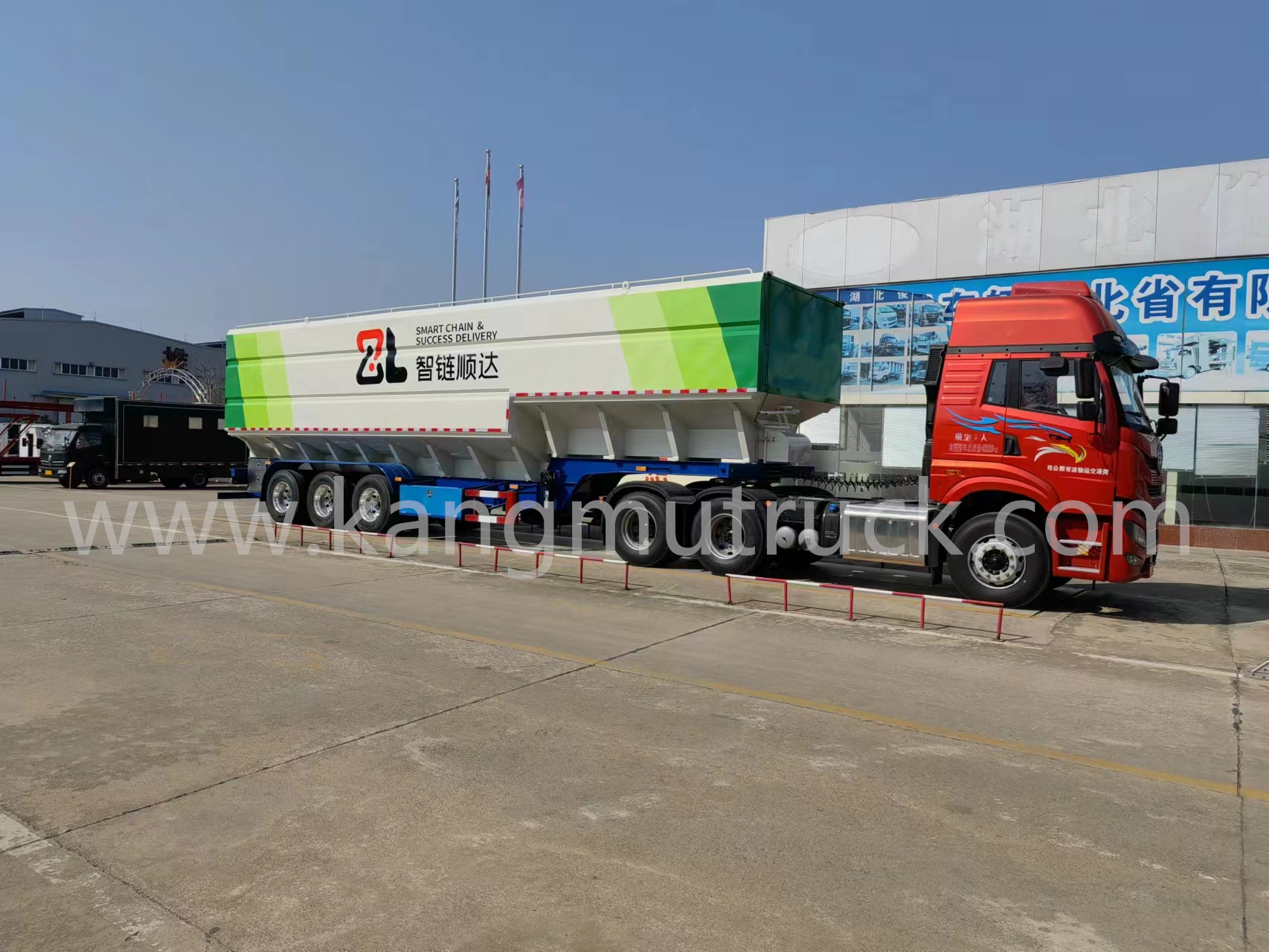

| Product Name | 11.7m 3-Axle Grain Transport Trailer |
| Suspension Type | Reverse Mounted |
| Beam Hollow Size (mm) | 930 |
| Longitudinal Beam Height (mm) | 200-450 |
| Wheelbase | 6880+1310+1310 |
| Front Overhang (mm) | 370-950 |
| Lower Flange Thickness (mm) | 10 |
| Web Thickness (mm) | 5 |
| Upper Flange Thickness (mm) | 8 |
| Gooseneck Drop (mm) | 400 |
| Fifth Wheel Specification | 2 pcs of 50# detachable, installed at wheelbase position |
| Support Leg Type | Fuhua 28T Single Action |
| Axle Brand / Model | Guangdong Shunde Fuhua, track width 1840, ABS with extended screw rod |
| Leaf Spring | 4 pieces |
| Tire Brand / Quantity | Chaoyang AT286, 12 pieces |
| Rim / Quantity | Matching aluminum alloy, 12 pieces |
| Wheel Cylinder Specification | 4 double, 2 single |
| Air Tank / Quantity | 2 aluminum tanks installed at rear (see attached drawing) |
| With Quick Connector | Yes |
| Tire Specification | 12R 22.5 |
| ABS Brand | Xihe |
| Spare Tire Carrier Quantity | 1 piece |
| Warranty | Lifetime warranty for main beam under rated load |
| Protective Net | Aluminum Alloy |
| Toolbox | 1 piece of 1.5m, movable and detachable |
| Overall Dimensions (LWH) mm / Tank Dimensions mm | 12500*2550*3995, 3900 / 12200*2530*2640, 2550 |

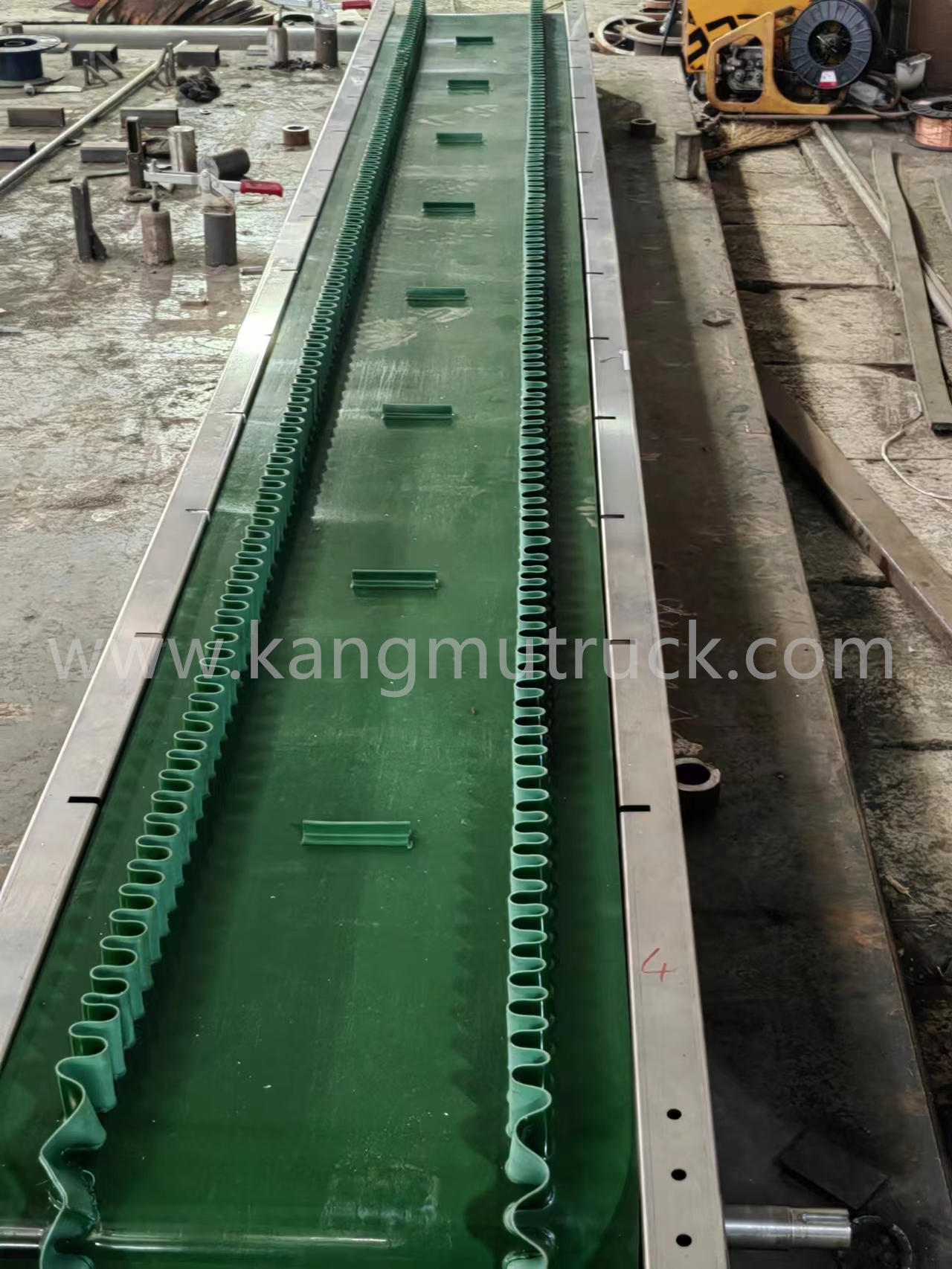

| Conveyor Belt Brand / Size (2 sets) | Customized Zhejiang Miou (food-grade material) / 9200*500 / 16200*500 |
| Motor Brand / Power (2 motors) | Jiangsu Kende explosion-proof motor / 2.2kw / 3kw |
| Electric Control Brand | Delixi Electric Control Assembly |
| Tank Thickness (mm) / Tank Material | 2.5 / T700 Manganese Steel |
| Vehicle Paint | High-quality baking paint process |
| Tank Volume | Approx. 68 cubic meters |
| Compartment | 5 |
