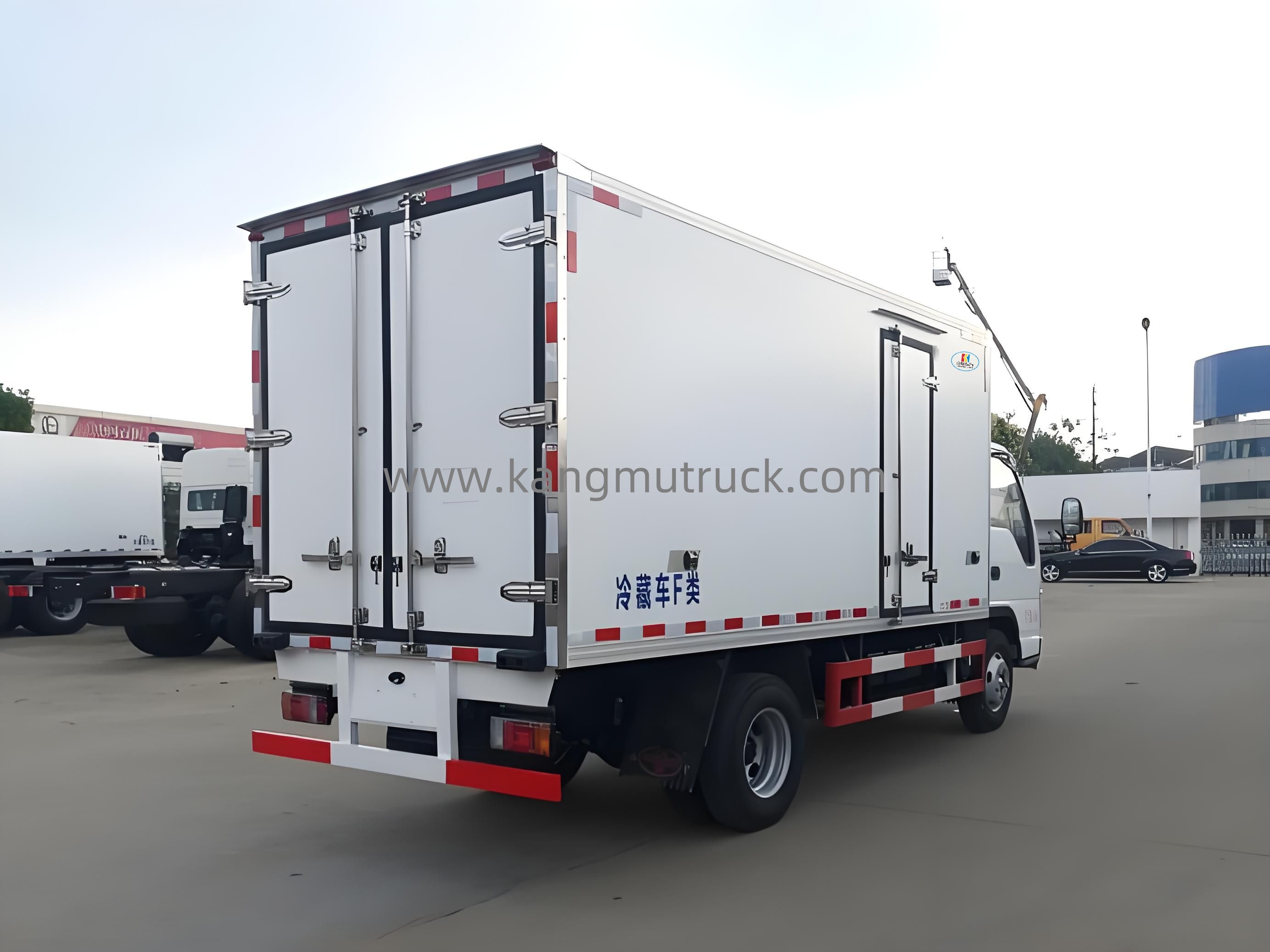

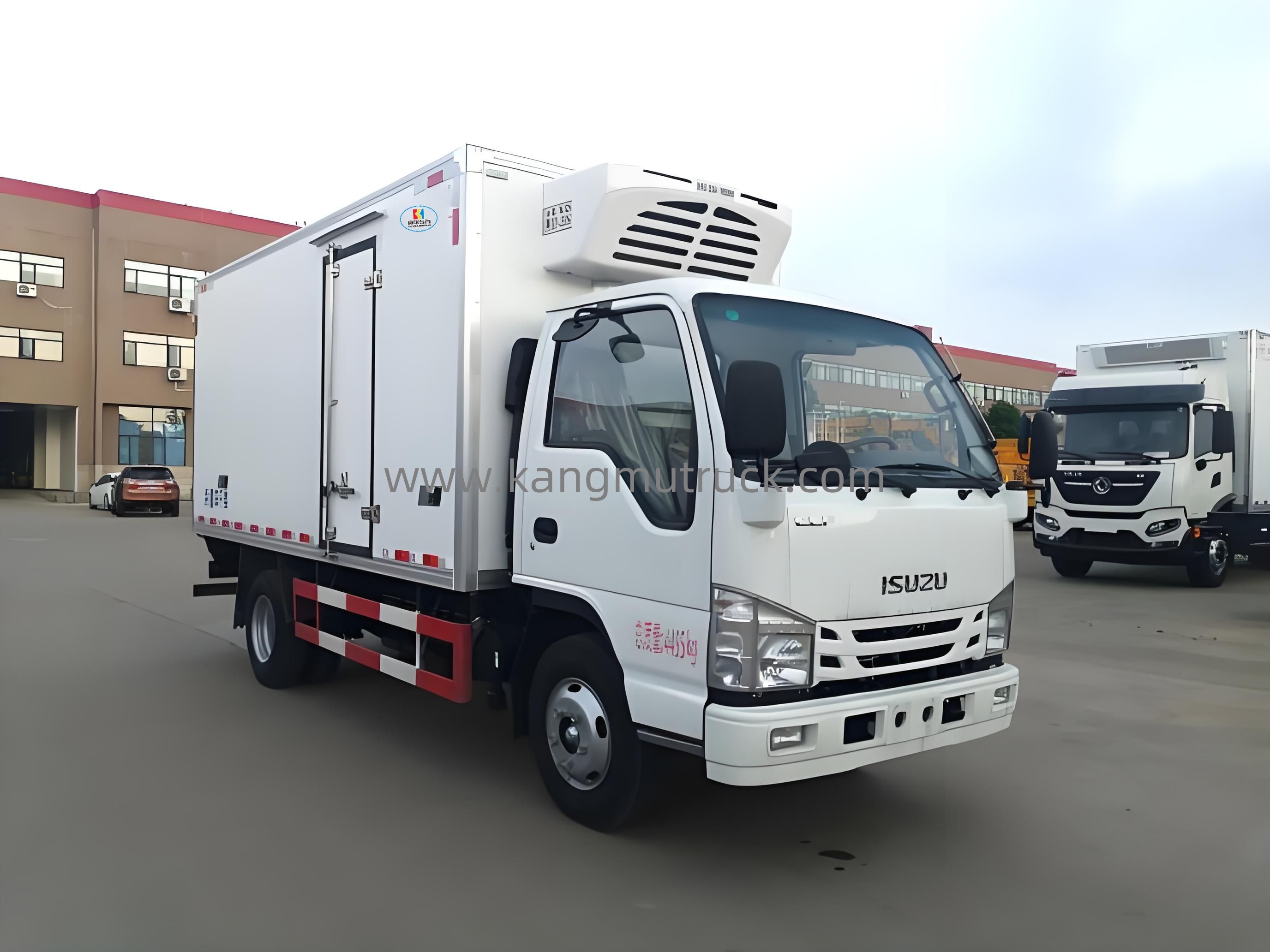

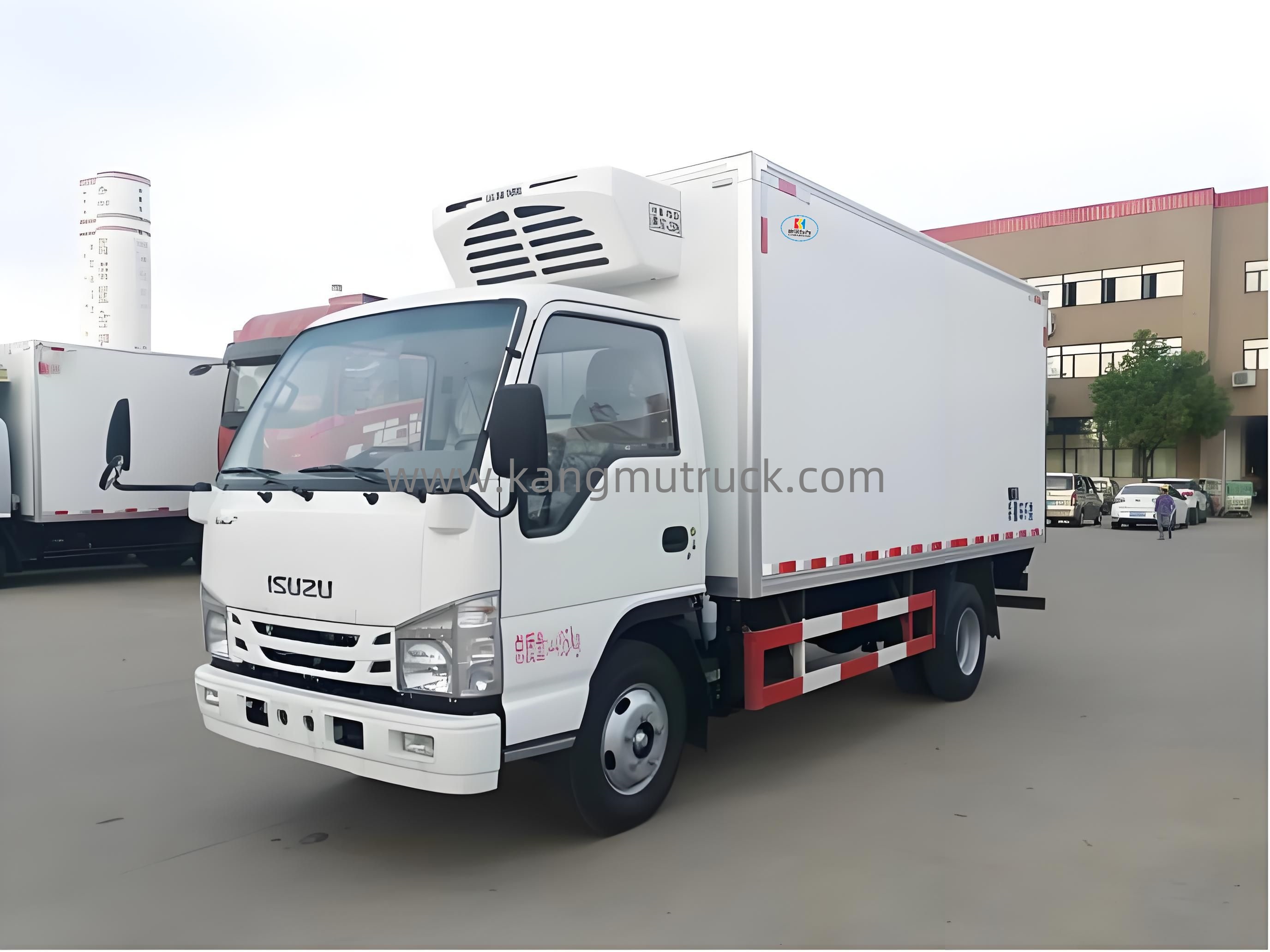

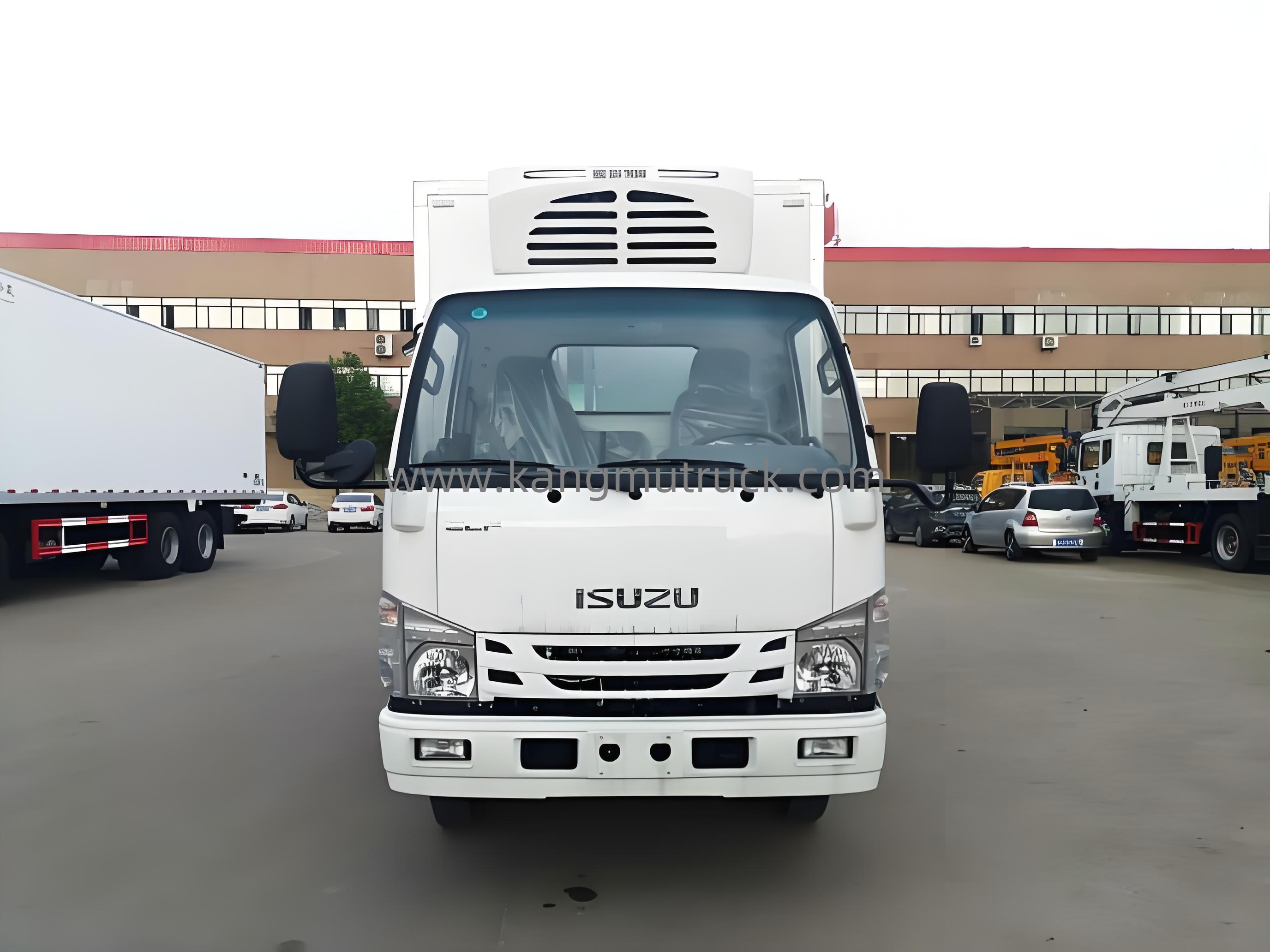

Qingling Isuzu 100P Meat Hook Refrigerated Truck

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: Qingling Isuzu 100P Meat Hook Refrigerated Truck
  • Keywords: Refrigerated Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:
  • KMH5042XLCQ6

  • KANGMU

Qingling Isuzu 100P Meat Hook Refrigerated Truck



NAME SPECIFICATIONS
1 Vehicle Model KMH5042XLCQ6
2 Total Weight 4495KG
3 Rated Loading Capacity 1165KG, 1285KG
4 Vehicle Dimension 5995×1980×2900MM
5 Curb Weight 3200KG, 3080KG
6 Tank Dimension 4150×1750×1750MM
7 Chassis Model QL1040BUHAY
8 Wheelbase 3360MM
9 Tire Specification 7.00R16LT 8PR
10 Fuel Type Diesel
11 Emission Standard National VI
12 Engine Model 4KH1CN6LB
13 Engine Displacement 2999ML
14 Engine Power 88KW


Product configuration:

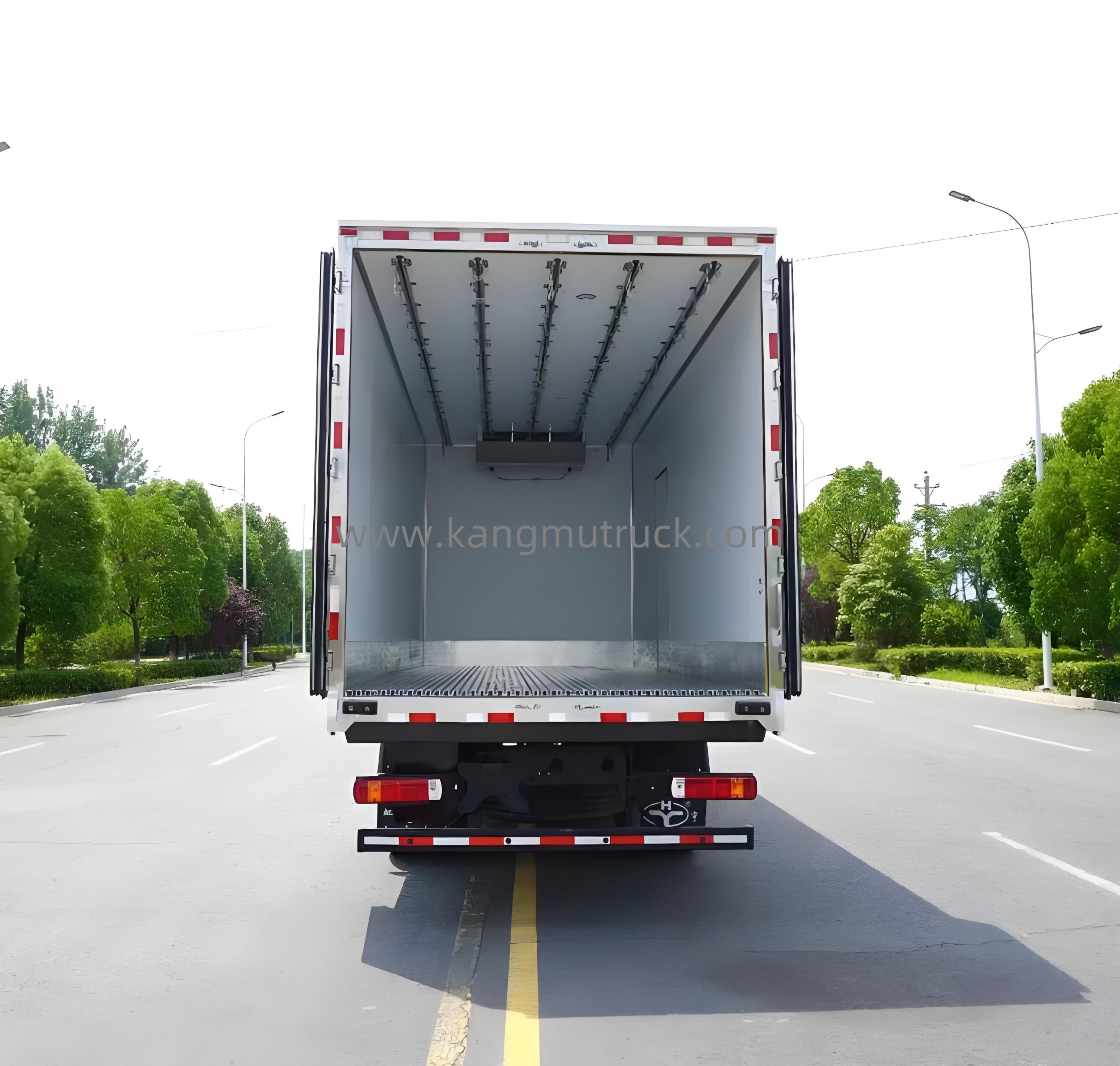

The insulation performance of the box body meets the national A-level standard, using advanced wood technology, selecting non-toxic chemical raw materials from well-known international and domestic brands, XPS extruded polystyrene board with good insulation performance, and reinforcement materials. The board is formed by pressing, heating, and vacuuming with a special mold, and the high-strength imported adhesive is used to overlap the polymer composite box body. The sealing is good, and it is not easy to bulge or leak. The cooling speed inside the box is fast, the heat dissipation is slow, and the insulation effect is good. The box board is made of Q195 galvanized pipes 40 * 60 * 4, connected with environmentally friendly waterproof wooden boards using screws, thickened with 2.0mm Yinuo fiberglass, and the outer frame is made of Shanghai Baosteel 304 stainless steel, all of which are 304 stainless steel hinges, locks, corners, hinge seats, lock rods, handles, smooth and durable. The bottom plate auxiliary beam is made by folding four thick hot plates from Wugang at once, and the top of the compartment is equipped with a sliding track (meat hook).

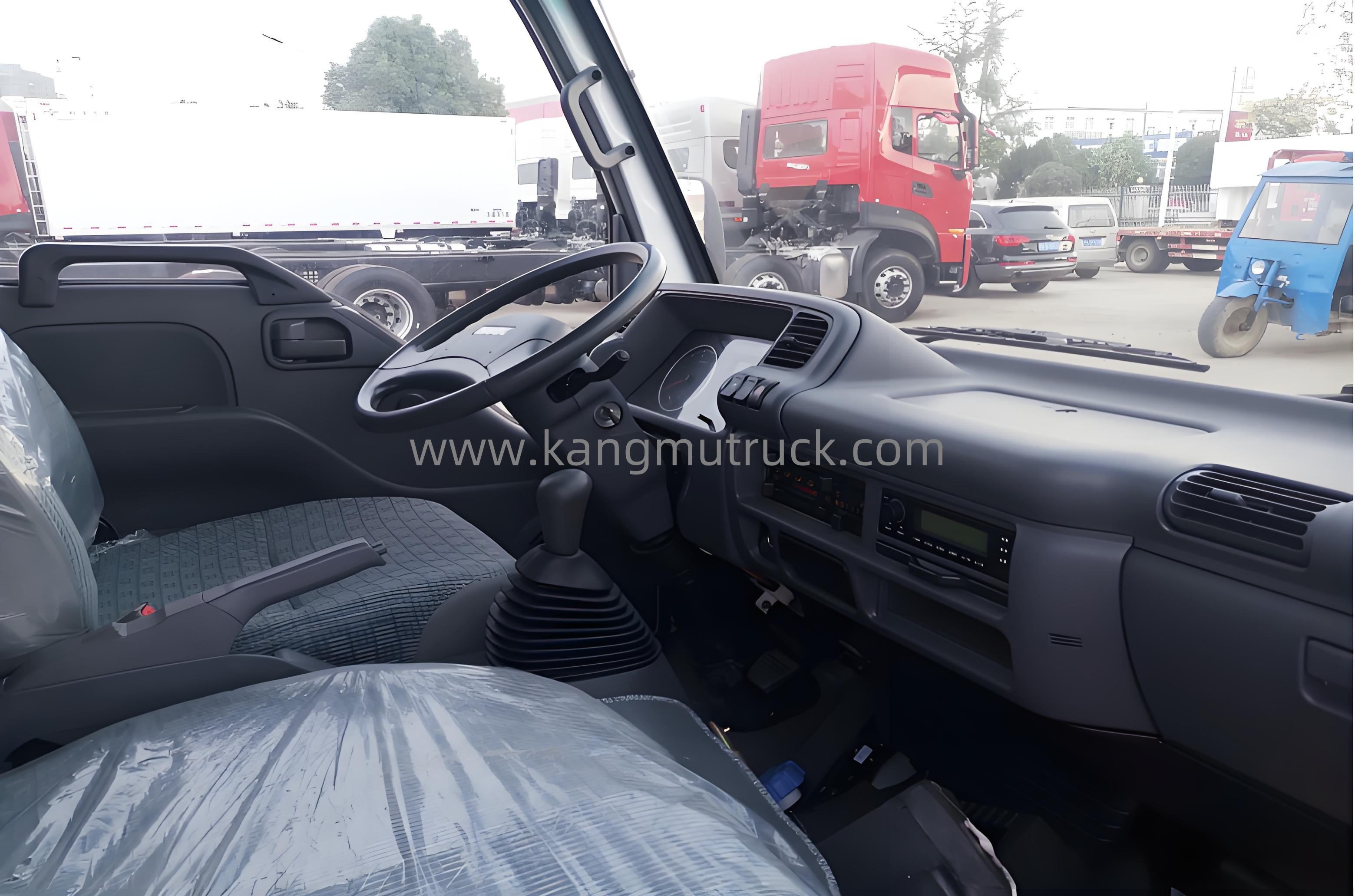

Chassis configuration: 100P driver's cab, single row driver's cab can be flipped, Isuzu MSB five speed transmission, wheelbase 3360mm, equipped with air conditioning, steering assistance, central locking, power windows, ABS, 7.00R16 tires, oil brake, Chongqing Qingling Isuzu engine (4KH1CN6LB).
