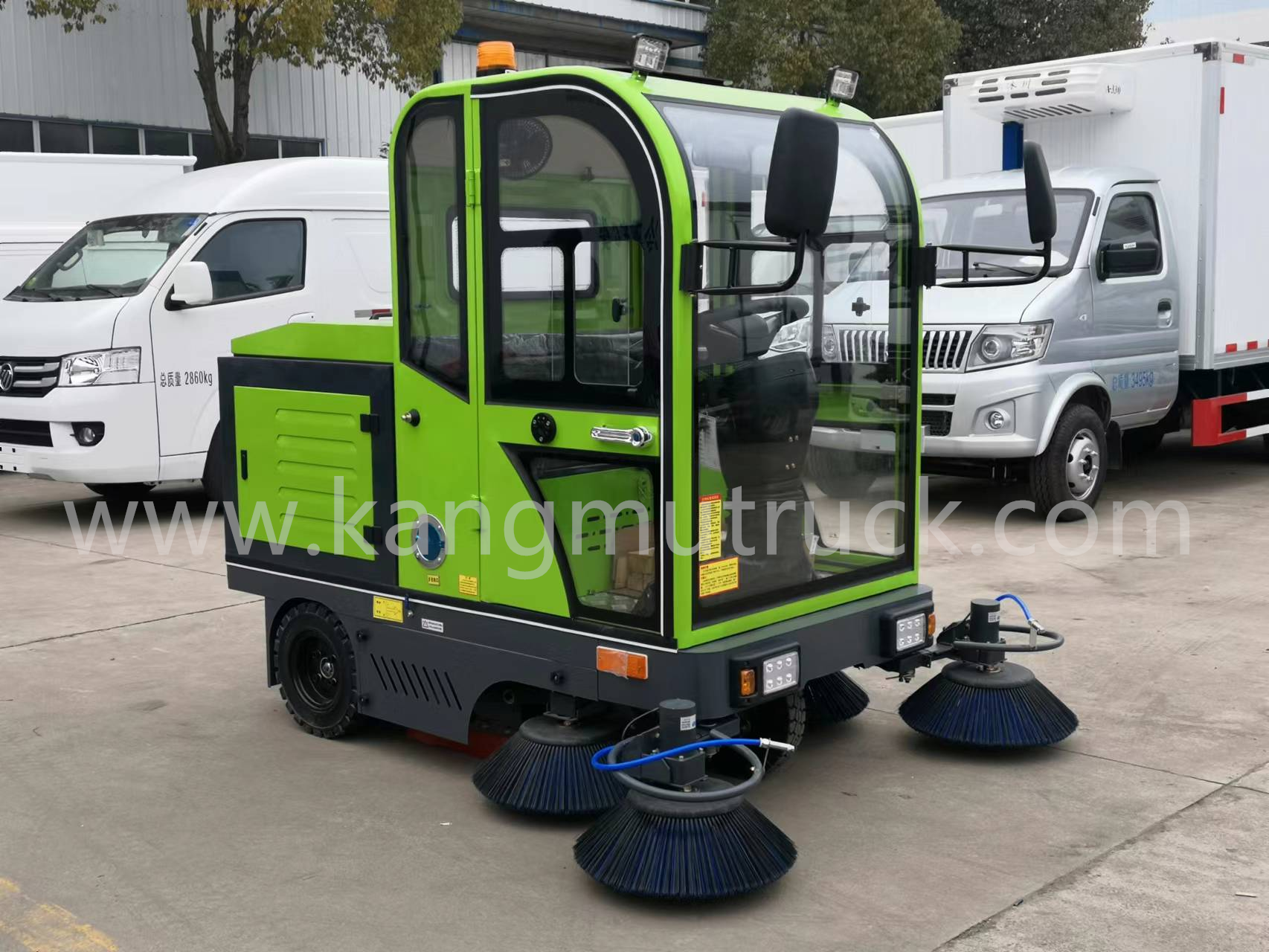

Fully Enclosed Three Wheeled Five Brush Road Sweeper


Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd
  • Product Name: Fully Enclosed Three Wheeled Five Brush Road Sweeper
  • Keywords: Road Sweeper
  • Attributes: With After-Sale Service, One Year Warranty, Semi-Trailer

Availability:
Quantity:
  • KANGMU

Fully Enclosed Three Wheeled Five Brush Road Sweeper



NAME SPECIFICATIONS
1 Battery 48V100ha (Lead acid maintenance free dry battery)
2 Charger Portable intelligent charger
3 Charging Time 6-8 hours
4 Allowable Passenger 1
5 Vehicle Dimension 2200× 1200 ×1900(mm)±50(mm)
6 Walking Speed 0-12KM/H
7 Minimum Turning Radius 1.2m
8 Max Gradeability >25-30°
9 Braking Distance ≤4m
10 Sweep Width 1900MM
11 Main Brush Width 700MM
12 Working Efficiency 8000-15000㎡/H
13 System Voltage 48V
14 Motor Power 800W
15 Weight 625KG
16 Working Hours 3-4H
17 Garbage Tank Volume 180L
18 Rolling Brush Motor 700W
19 Power Supply 48V
20 Water Tank 80L


Vehicle Configuration:

1. Equipped with front mounted double-sided brush, center mounted double-sided brush and roller brush, the cleaning width can reach about 1.9 meters, suitable for large-scale cleaning and high work efficiency


2. High pressure atomization dust reduction system to avoid secondary dust and equipped with four nozzles.


3. The wiring harness of the sweeping machine meets the QC/T29106-2004 automotive wiring harness standard, with reliable power supply and all key connectors being flame-retardant and waterproof.


4. The chassis is made of high-quality structural steel with few welds, low internal stress, and high strength.


The shell of the sweeping machine is welded with carbon steel plate, which is corrosion-resistant, impact resistant, and resistant to high and low temperatures.


6. The sweeping machine has anti slip function, which allows it to stay at any slope without turning off the power, and releasing the handbrake will not cause any slip phenomenon


7. The bottom of the garbage bin is equipped with four small pulleys for easy dumping of garbage.


8. The bristles are made of PBT material, which has good wear resistance, low water absorption, and excellent oiliness


9. Equipped with a front windshield.

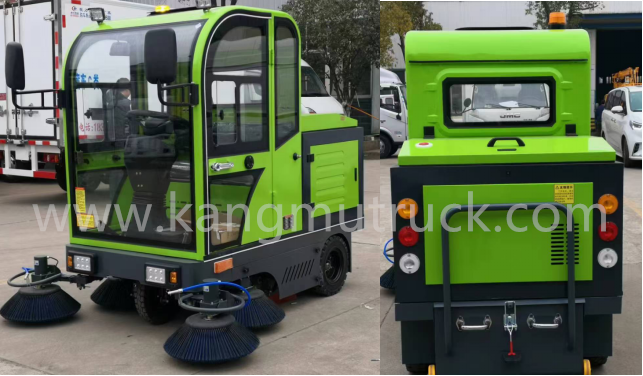

图片 2图片 1

驾驶室正后右后正前右45正右
