YCS06290
KANGMU

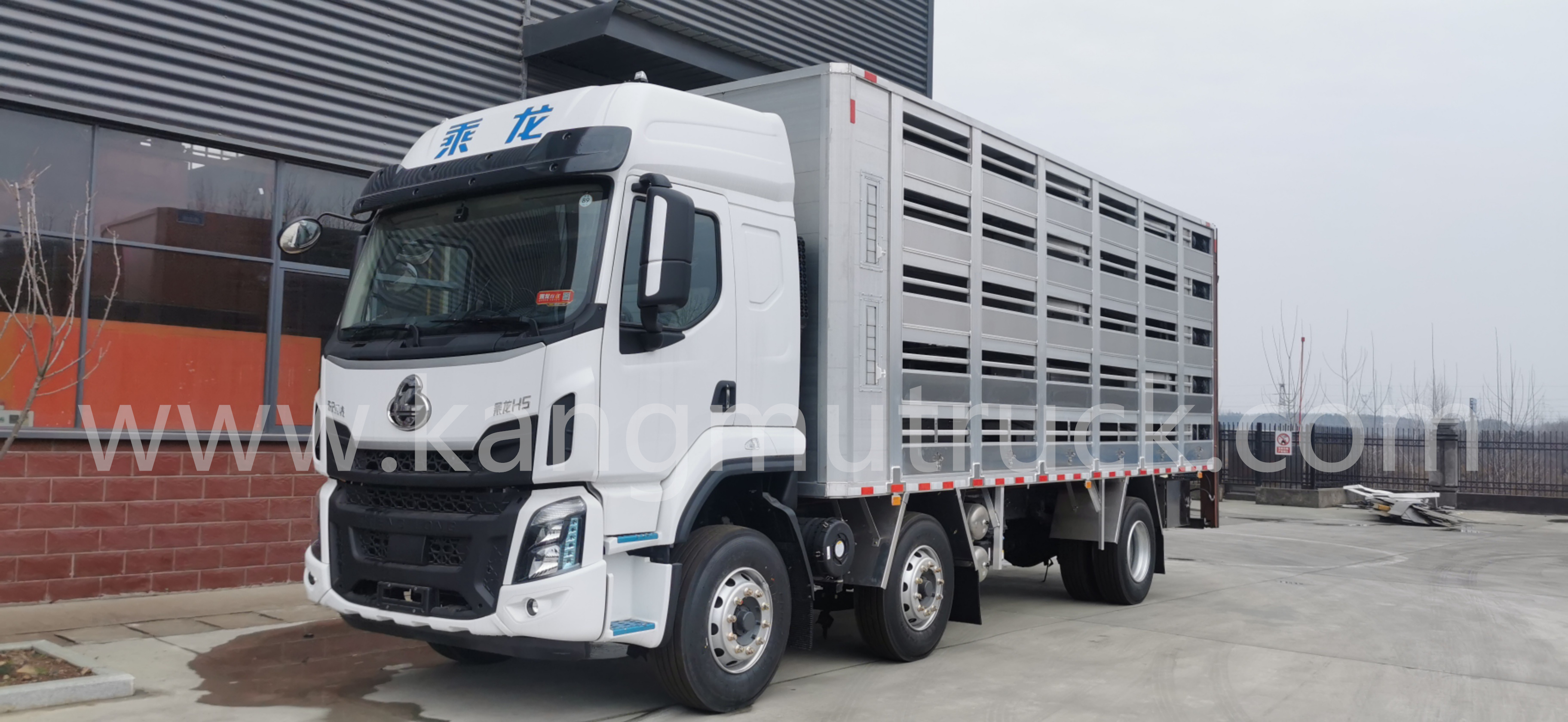

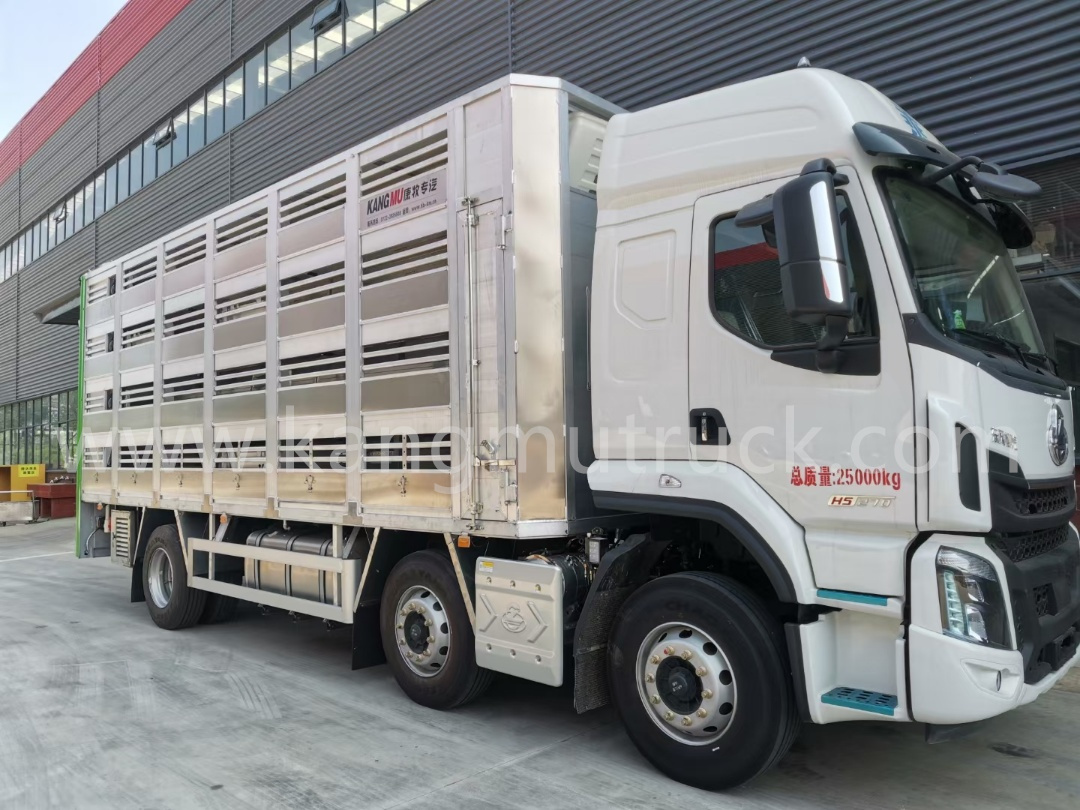

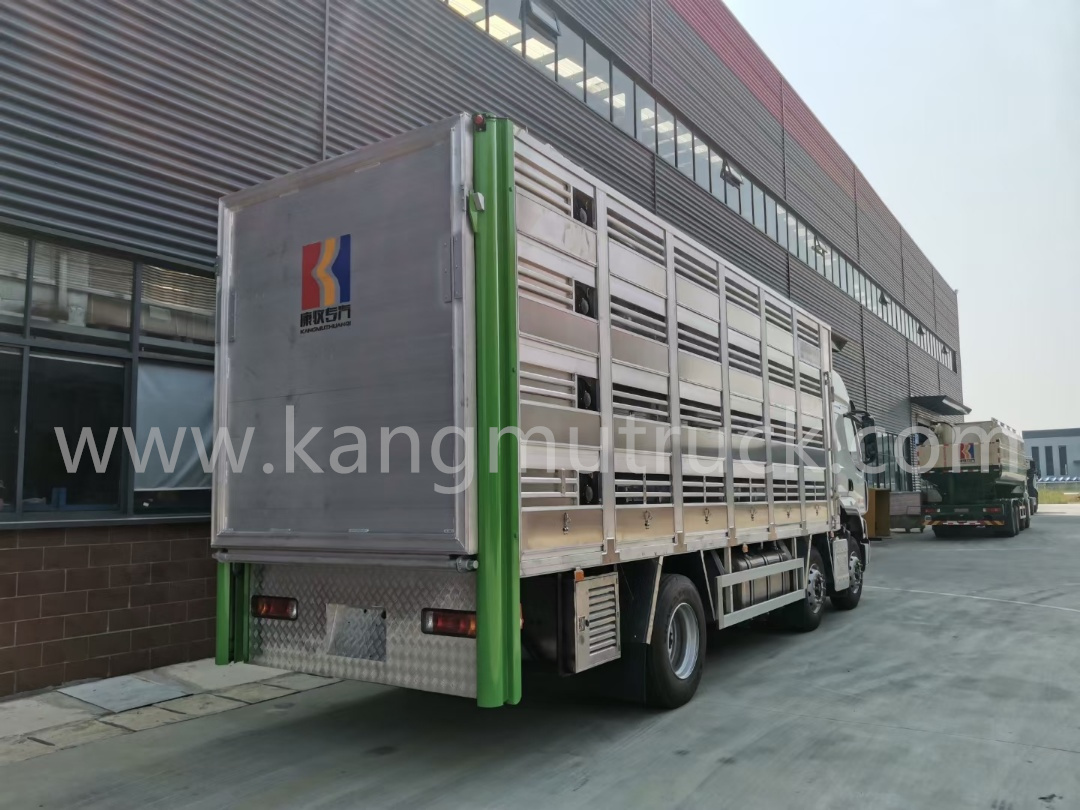

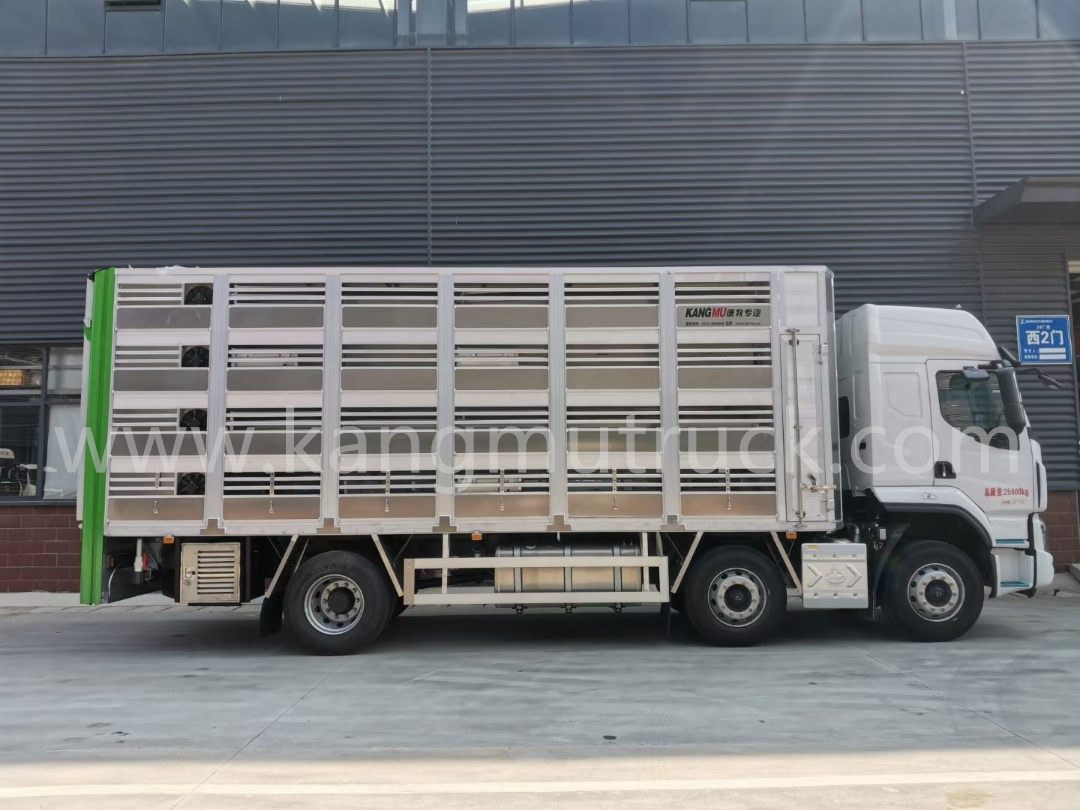

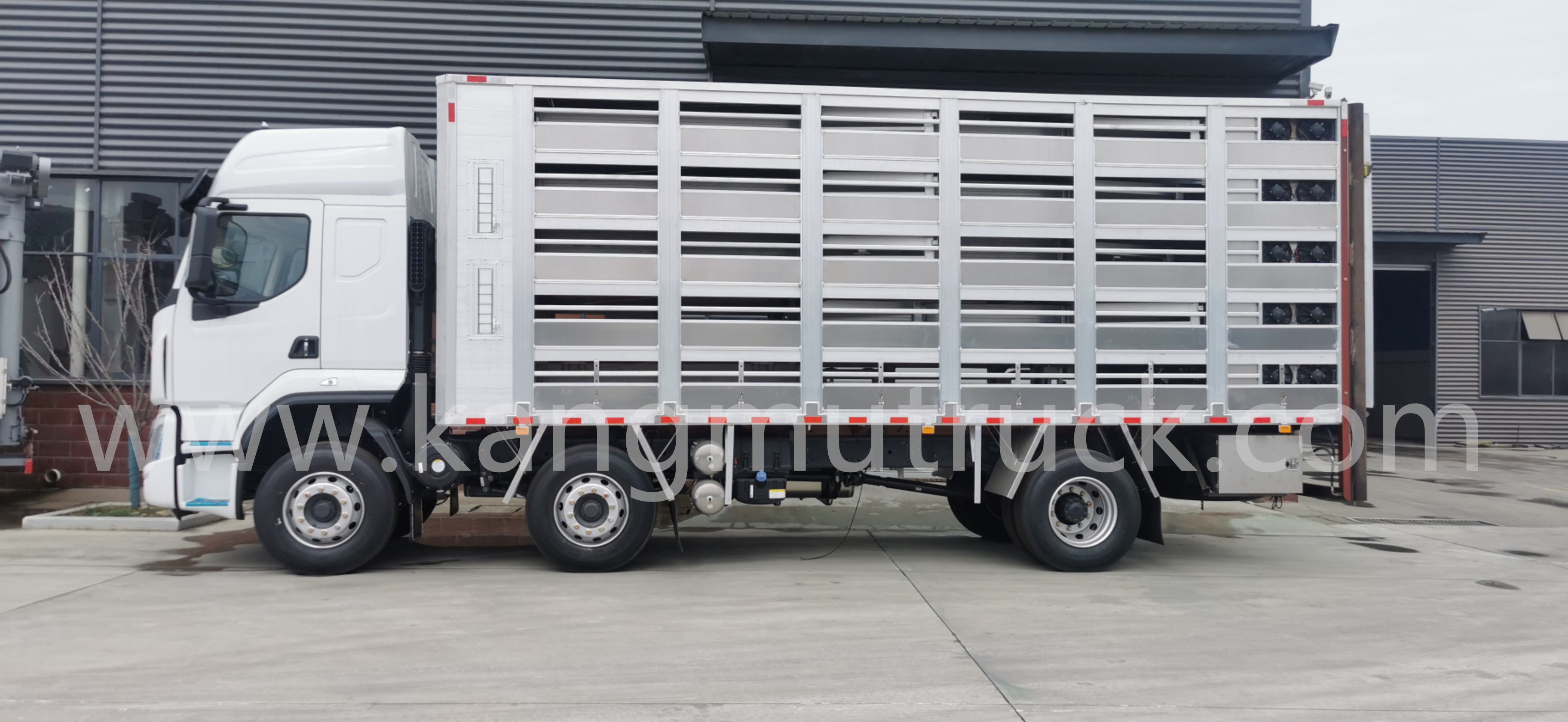

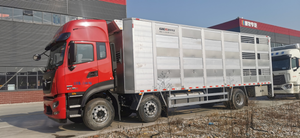

Dongfeng Aluminum 3 Axles Livestock and Poultry Transport Truck (290HP)
Chassis Configuration:
Wheelbase 2050+40502050+4450 YCS06290, Gearbox with PTO 8JS105TA (flange power take-off), 2 * 5.5T front axle, 440 rear axle, 600L aluminum fuel tank, 295/80R22.5-18PR, H53D cab, Φ 430 clutch, 282 (8) single-layer locally reinforced frame, plate spring number 10/10+9
Domestic valves (air handling unit, parking control valve, brake master cylinder), front mechanical rear airbag cab suspension
Electric hydraulic flip, laminated glass, electric glass lifter, airbag shock absorber driver's seat, metallic paint, electromagnetic clutch fan
Brand new interior, LCD instrument panel, MP5+reversing camera, automatic air conditioning, cruise control system, halogen headlights ABS、 Vehicle terminal (driving recorder+compatible with BeiDou GPS)
External sunshade, aluminum alloy air reservoir, central locking system, automatic adjustment arm, polymorphic switch, leather multifunction steering wheel, right turn alert sound, overspeed alarm。
Truck configuration:
External Dimensions: 12000 × 2550 × 3995mm
External Dimensions: 11000 × 2550 × 3995mm
External Dimensions: 10200 × 2550 × 3995mm
Inner Dimensions: 9360 × 2450 × optional
Inner Dimensions: 8360 × 2450 × optional
Inner Dimensions: 7560 × 2450 × optional
Total weight: 25000Kg
Payload: 13070Kg
Curb weight: 11800Kg
Other Details:
The cabin adopts a fully enclosed structural frame design, made of all aluminum alloy profiles, with light weight, high strength, and strong rust resistance.

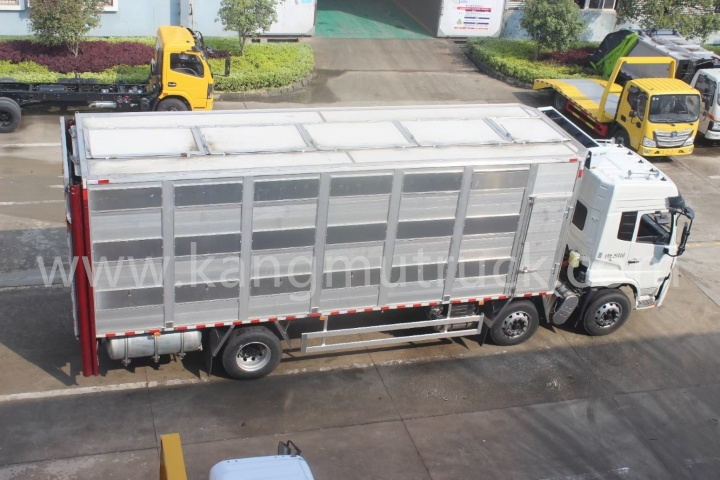

The top adopts advanced umbrella roof design, which can be raised and lowered upwards for easy top loading and unloading, cleaning and disinfection, and temperature control during transportation. It is equipped with axial flow fans (positive pressure) on one side of each floor and column as standard Each floor of the high-end configuration is equipped with front positive pressure and rear negative pressure axial flow fans.
The dedicated device adopts Dutch technology and adopts a tail lifting loading and unloading method. It has dual internal channels and can be flipped up for easy loading, unloading, cleaning, and disinfection. Manual sliding windows are designed on both sides of each compartment for emergency use in high temperatures and extreme weather conditions, with manual opening/optional manual flip cover.
Customized production: Non layered, two-layer, three-layer, four layer (foldable layers), five layer (foldable layers), 3 partitions in the middle, double layered board, shaft connection, optional hydraulic lifting tailboard at the rear or double door tailboard at the rear, hydraulic remote control operation, each layer is equipped with fans, sprinkler water, lighting, temperature sensing probes, camera system, steel wire rope hydraulic lifting tailboard.
