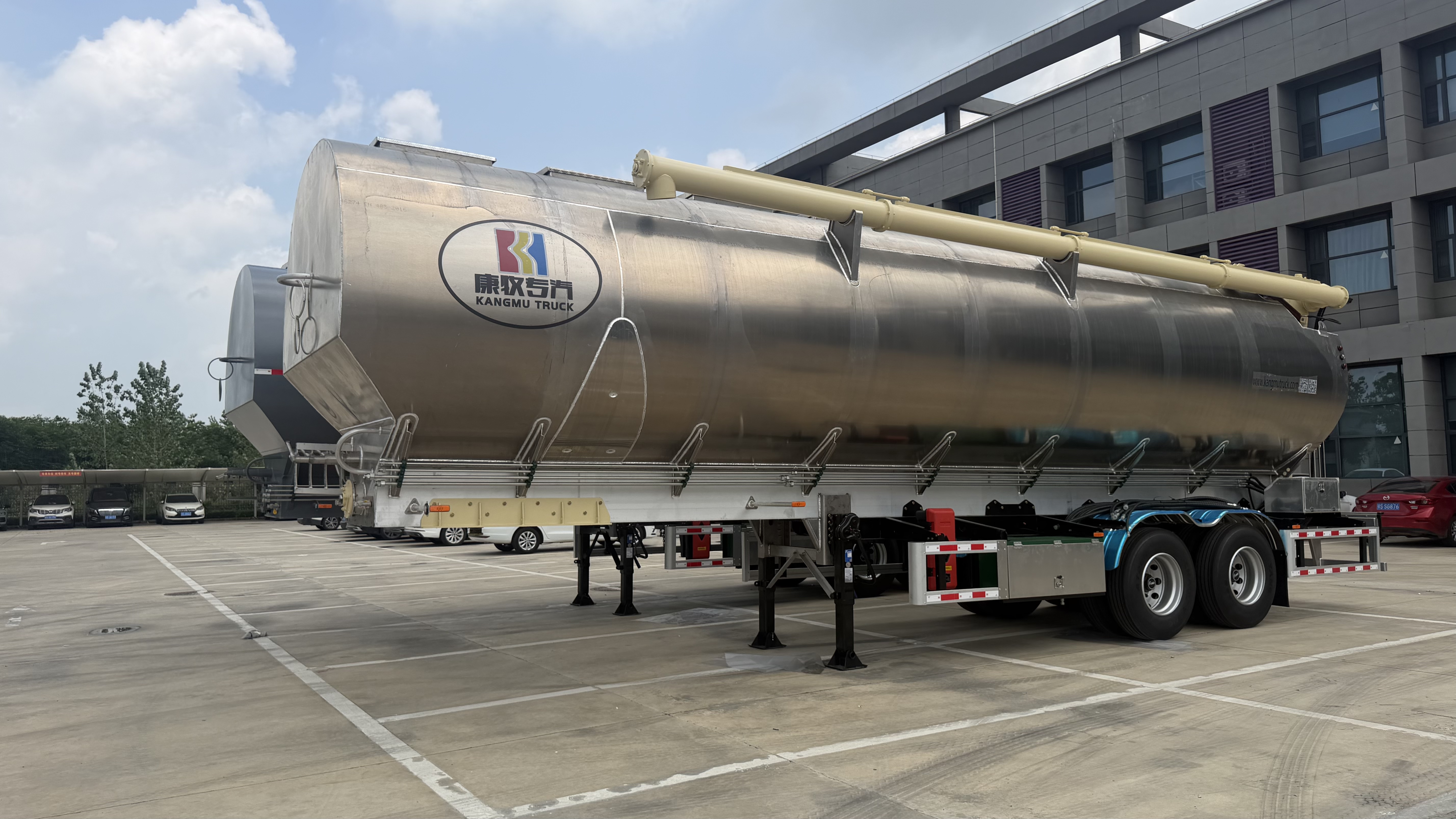

| 49 m³Aluminum Bulk Feed Semi-Trailer |
| 一、基本参数 / General Parameters |
| 产品类型 / Product Type |
49方铝合金散装饲料半挂 (49 m³Aluminum Bulk Feed Semi-Trailer) |
| 载重量 / Payload Capacity |
28 吨 (28 Tons) |
| 总容积 / Total Volume |
49 m³ |
| 外形尺寸 (L×W×H) / Overall Dimensions |
11500 mm × 2550 mm × 3995 mm |
| 舱室数量 / Compartments |
8个独立舱室，独立手动控制卸料 (8 independent compartments, separate manual control) |
| 二、材质与结构 / Materials & Structure |
| 罐体主体 (侧板/隔板) / Tank Body |
铝合金 5052 (Aluminum Alloy 5052)，前封头6mm，隔板5mm |
| 罐体挤压型材 / Extruded Profiles |
铝合金 6061 (Aluminum Alloy 6061) |
| 走道板与护栏 / Walkway & Guardrail |
铝合金花纹板 / 铝合金型材 (Aluminum patterned plate / Aluminum alloy) |
| 车架主梁 / Main Beam (Main Frame) |
HJ700 高强度钢，厚度 6mm (HJ700 high-strength steel, 6mm) |
| 纵梁腹板 / Longitudinal Web |
Q355B 低合金高强钢，厚度 8mm (Q355B high-strength steel, 8mm) |
| 挡泥板与侧防护 / Fenders & Side Guards |
Q355B 低合金高强钢 & 铝合金组合 (Q355B steel & Aluminum) |
| 罐体结构设计 / Tank Design |
尾部最大化设计，绞龙倾斜角度 10-15° (Maximized tail design, Auger slope 10-15°) |
| 三、卸料与液压系统 / Unloading & Hydraulic System |
| 卸料绞龙 / Discharge Auger |
铝制，长度 9米 (Aluminum, 9 meters) |
| 液压泵 / Hydraulic Pump |
丹尼逊 (Denison) T6CC-B25-2R00-C100 |
| 取力器 / Power Take-Off (PTO) |
伊顿 (Eaton) - 根据牵引车定制 (Customized for tractor) |
| 液压马达 / Hydraulic Motors |
垂直出料马达 HY-G0293 + 底部马达 HY-G00152 + 蜗轮蜗杆一体马达 HY-0018 |
| 液压阀 / Hydraulic Valve |
YL (YOULI) 标配 |
| 多路阀 / Multi-way Valve |
标配 (Standard) |
| 控制系统 / Control System |
遥控器控制 (2台) + 304不锈钢卸料杆带锁孔 (Remote control 2 units + SS304 unloading rod) |
| 液压油箱 / Hydraulic Oil Tank |
1350 × 560 × 650 mm |
| 散热器 / Radiator |
AH 1490T-P |
| 四、底盘与行走系统 / Chassis & Running Gear |
| 车桥 / Axles |
富华 (Fuhua) 16T，ABS，自动调整臂 (16T with ABS & auto adjustment arm) |
| 悬挂系统 / Suspension |
美式二桥反装机械加厚悬架，高度 H=250 (American style 2-axle reverse, thickened, H=250) |
| 制动系统 / Braking System |
科密 (Kemi) ABS + 全新威伯科 (WABCO) 继动阀 |
| 板簧 / Leaf Springs |
10片 × 13mm × 90mm (10 leaves) |
| 轮胎 / Tires |
朝阳 (CHAOYANG) 12R22.5 12PR |
| 轮毂 / Wheels |
9.00 × R22.5 |
| 牵引销 / Fifth Wheel (Coupling Pin) |
装配式 90# (3.5英寸) (Pre-fabricated 90#) |
| 支腿 / Landing Gear |
28T 承载力，材质随罐体 (28T, material matches tank) |
| 备胎 / Spare Tire |
1套 (含支架) (1 set with bracket) |
| 五、附件与标准配置 / Accessories & Standard Fittings |
| 顶盖 / Top Lids |
8个平开式铝合金手仓盖及控制锁 (8 flat-opening alu lids with control lockers) |
| 安全走道 / Safety Walkway |
标配 (Standard) |
| 舱口锁 / Compartment Locks |
8个 (8 units) |
| 检修口 / Inspection Ports |
加装螺母、螺栓 (With nuts and bolts) |
| 附件 / Extras |
灭火器箱、控制盖盒 (Fire extinguisher box, Control cover box) |
