| Availability: | |
|---|---|
| Quantity: | |

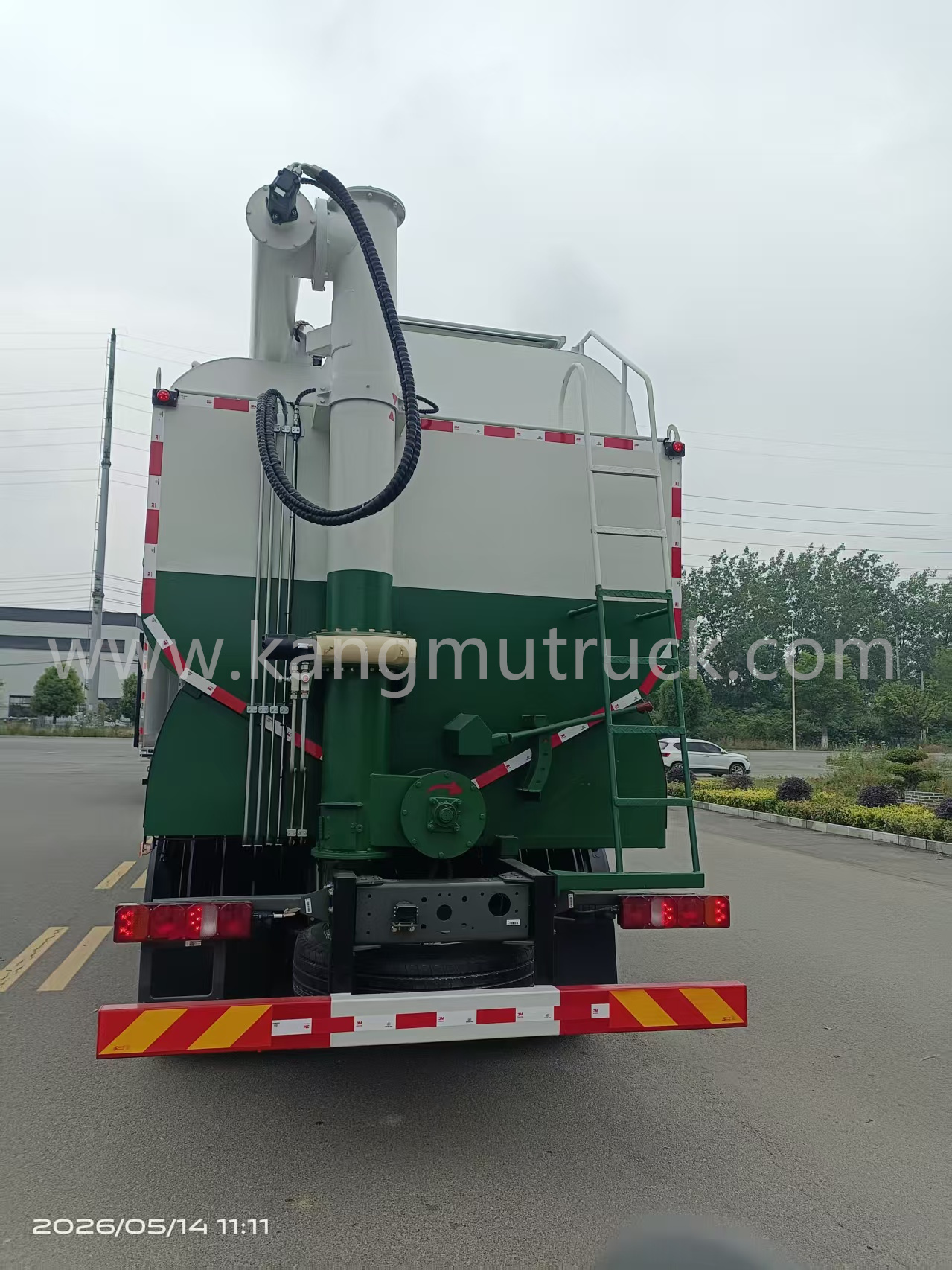

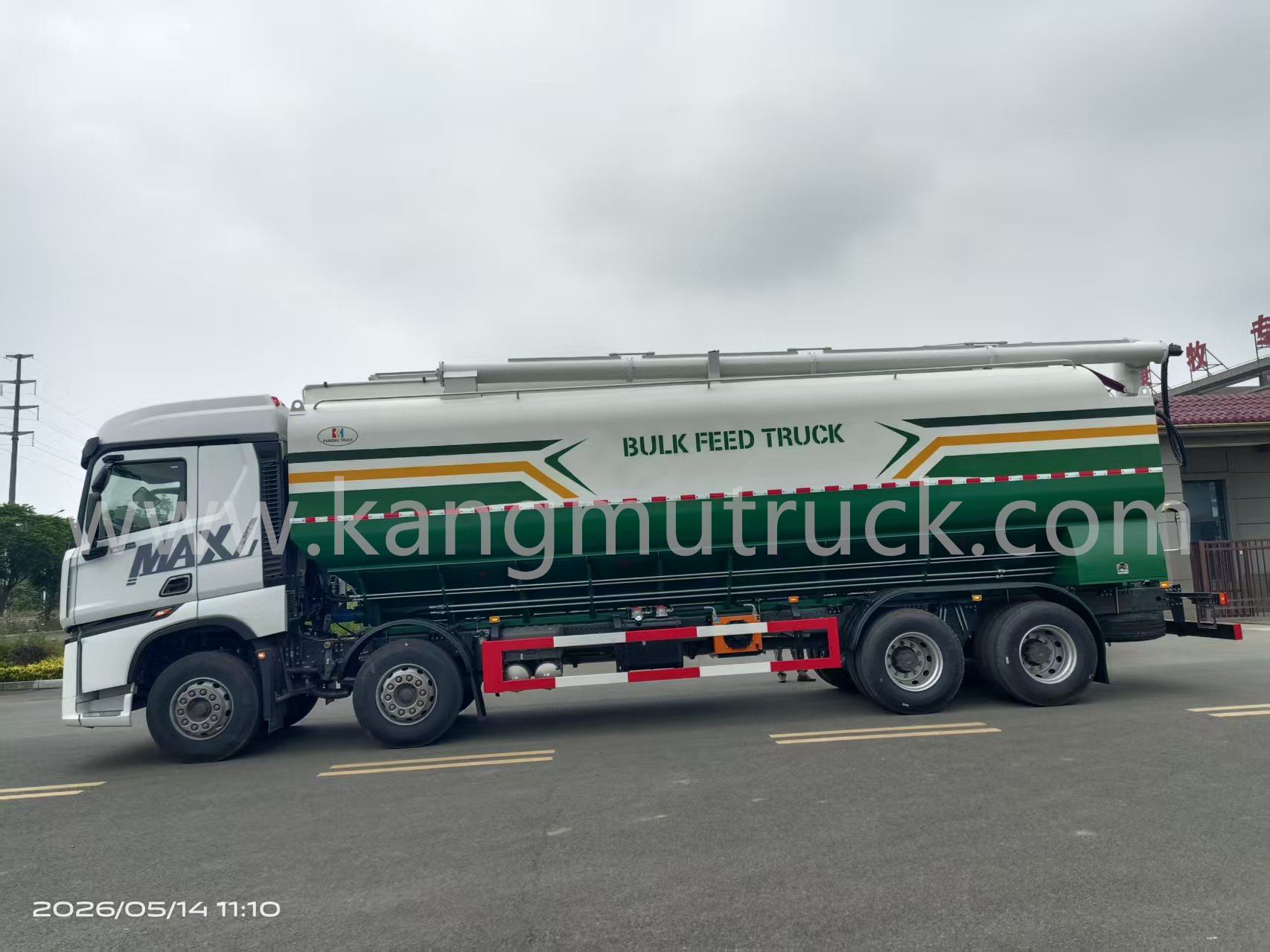

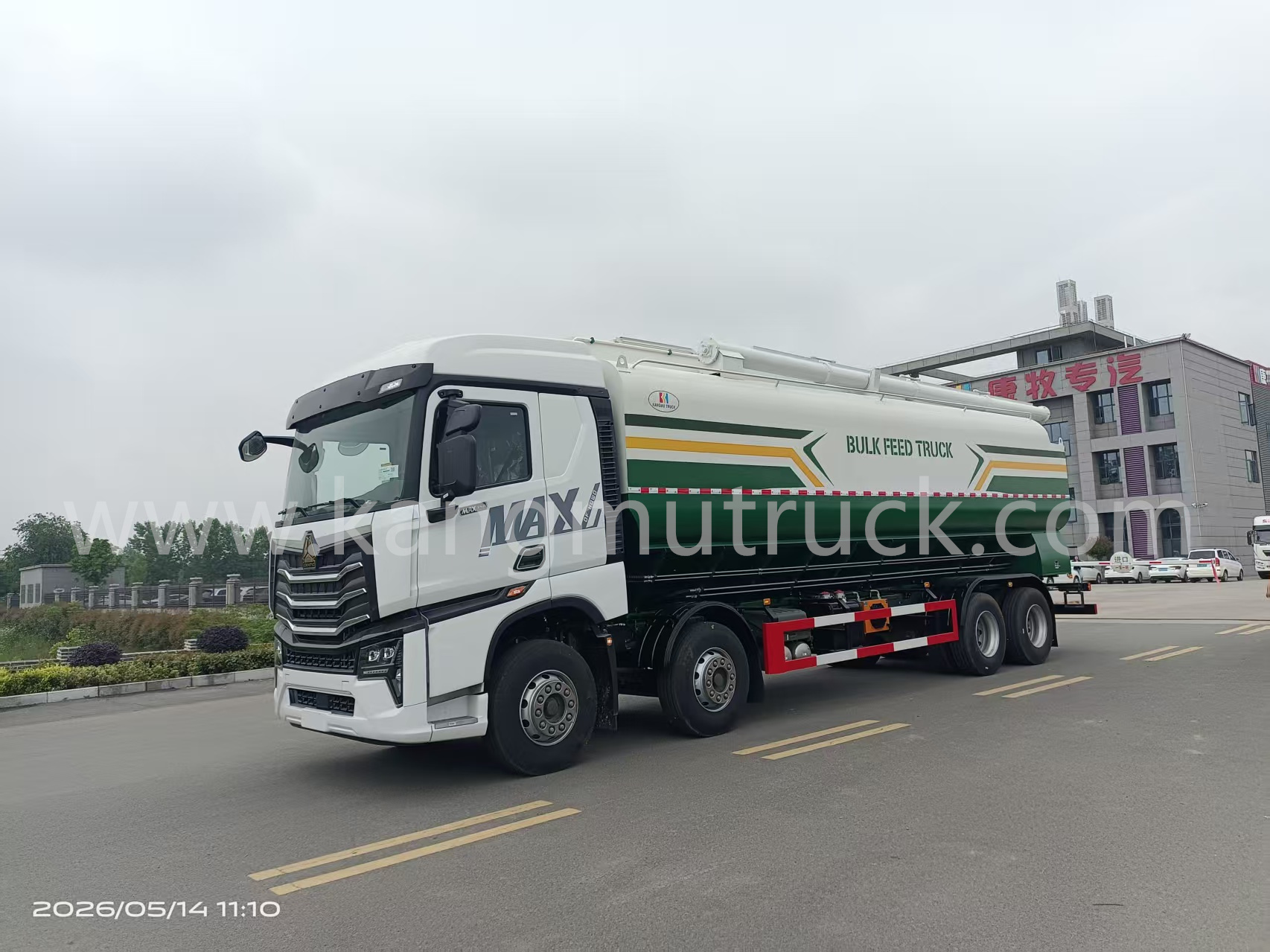

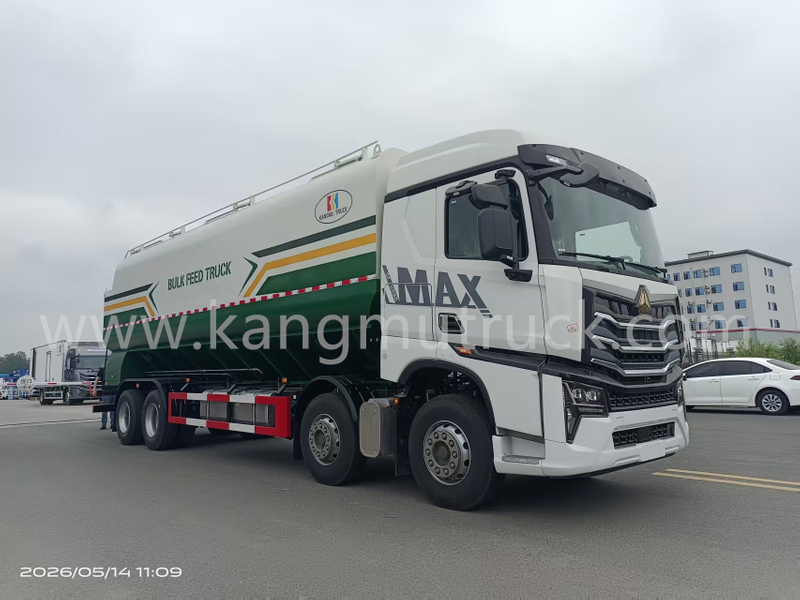

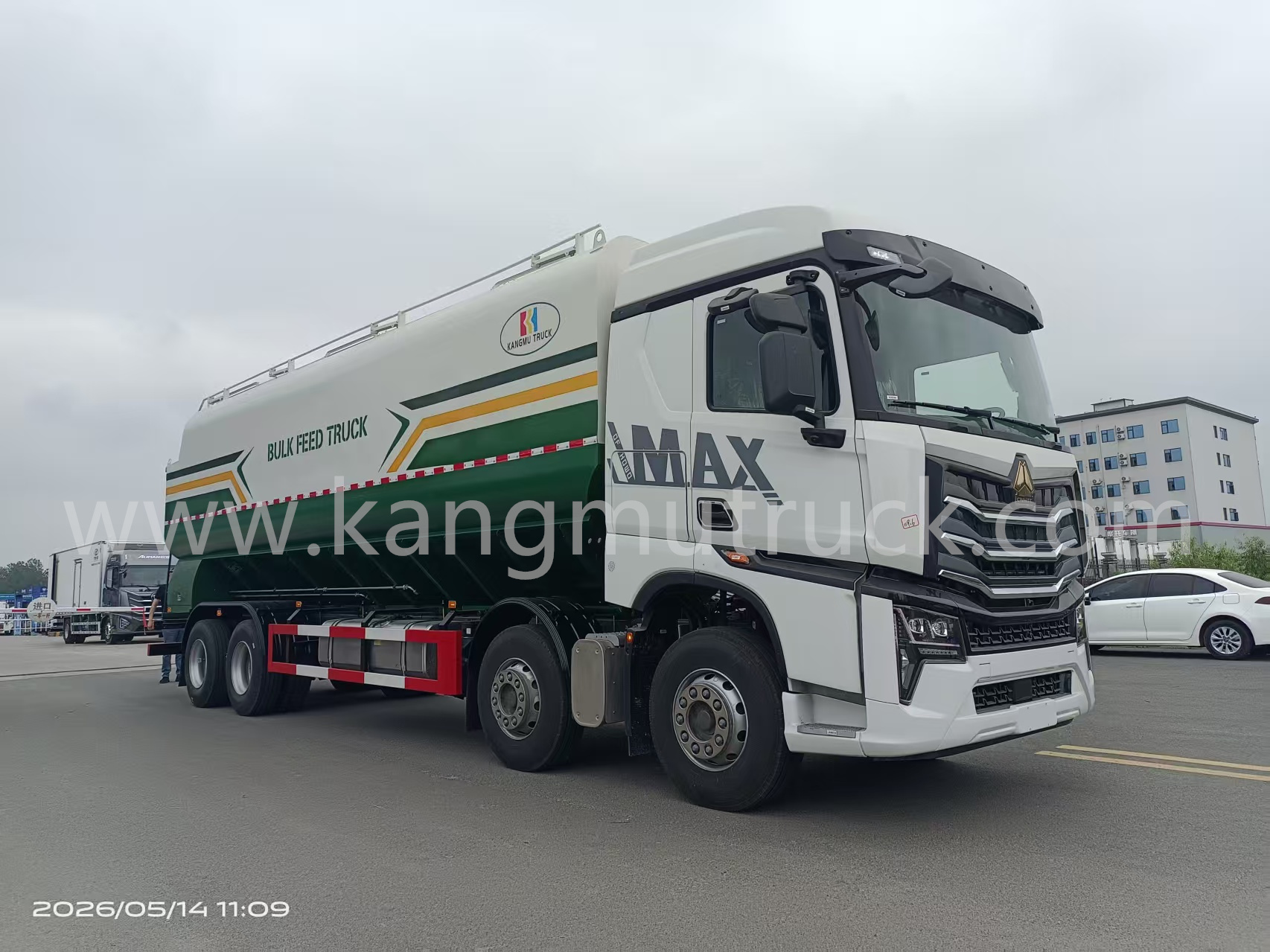

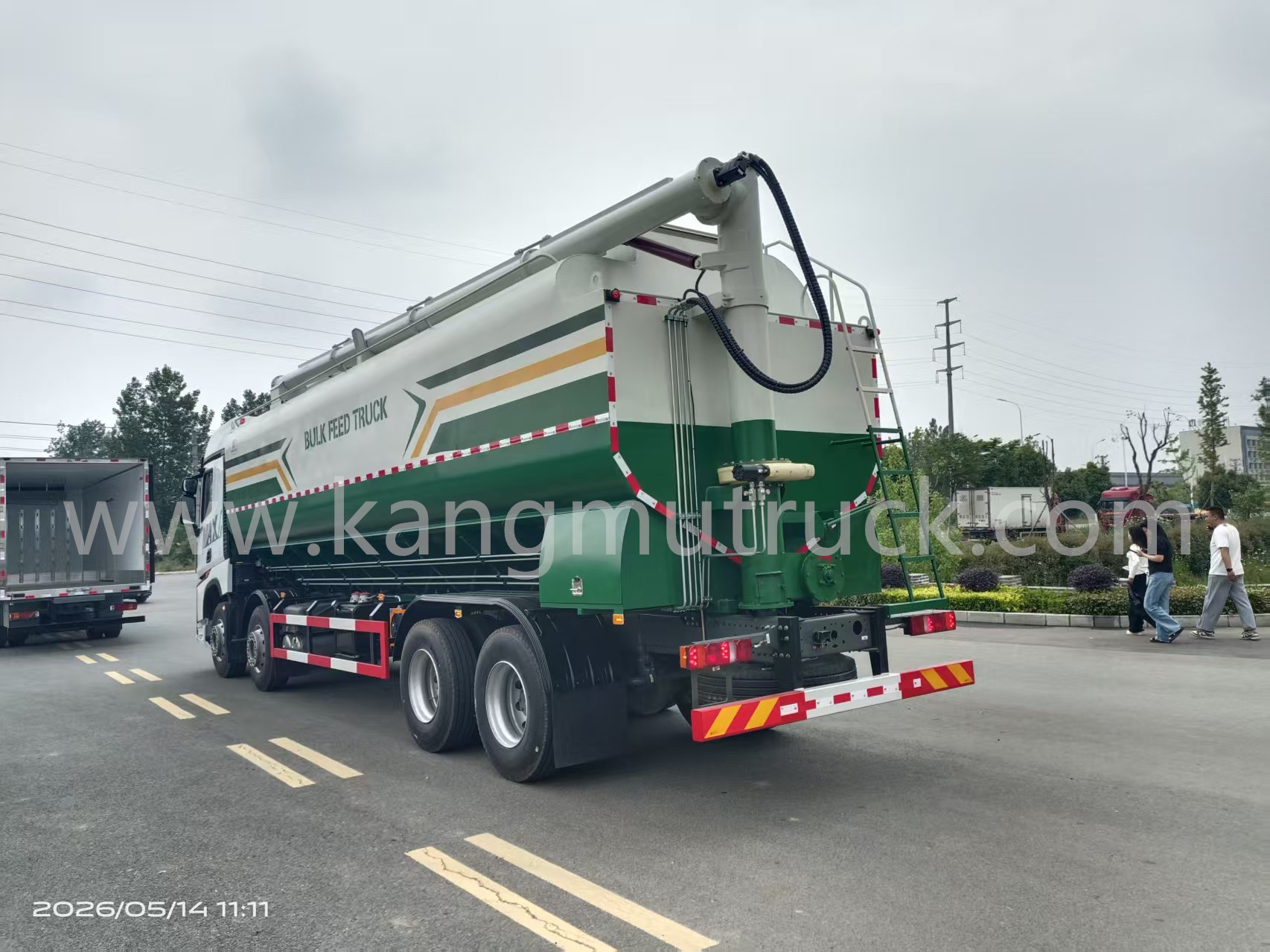

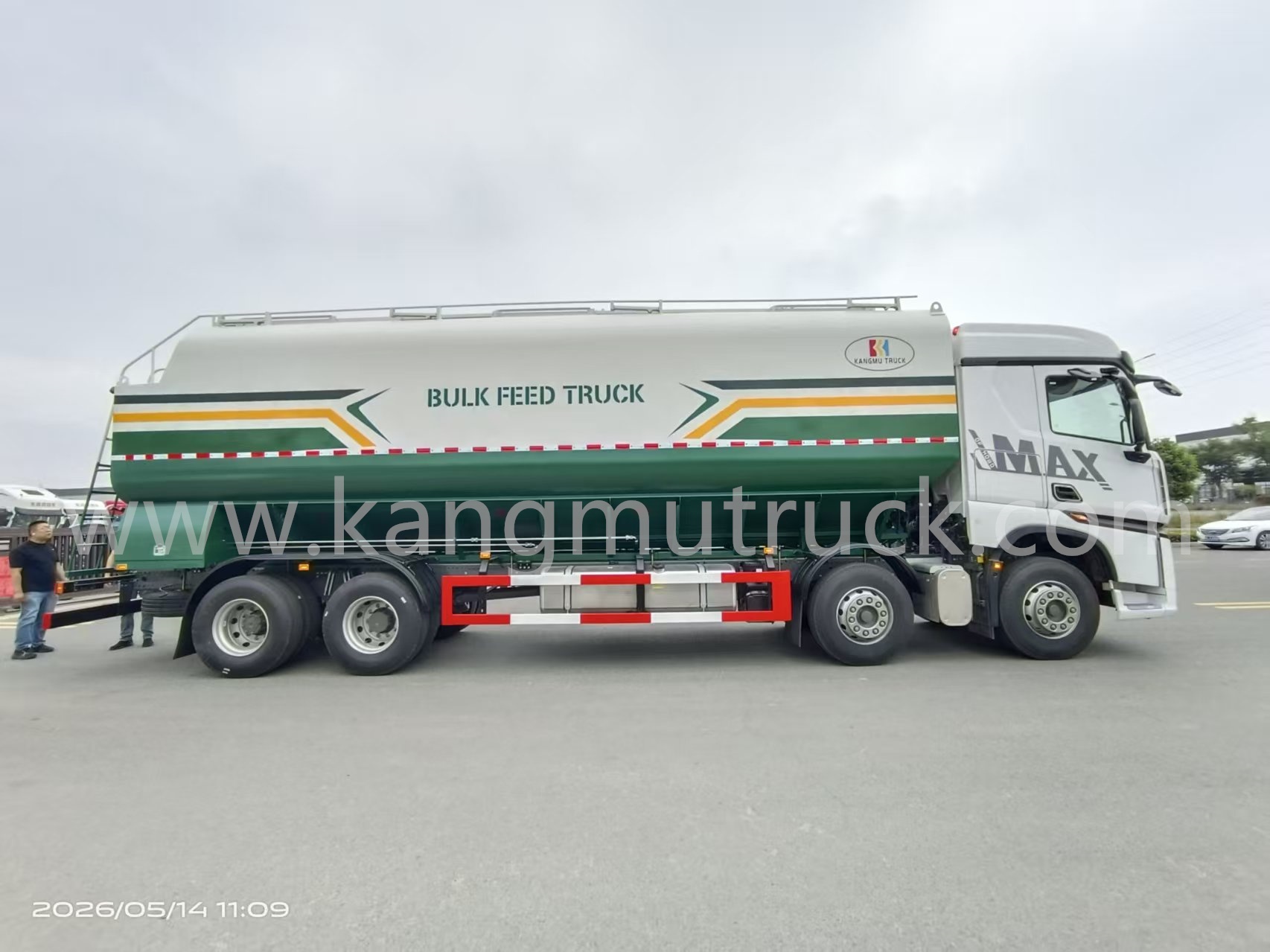

| BULK FEED TRUCK MAIN TECHNICAL DATA | ||||||
| Item | Description | Parameter | ||||
| Overall Parameter | Dimension(LxWxH) | AROUND 12000x2500x3999 MM | ||||
| Wheelbase | 1950+5100+1400 MM | |||||
| G.V.W. | 31000 KG | |||||
| Kerb Weight | 14750 KG | |||||
| Chassis Parameter | Chassis Brand | Sinotruk HOWO | ||||
| Engine | MC07H.35-50 | |||||
| Horsepower | 350HP | |||||
| Emission Standard | Euro V | |||||
| Gearbox | HW16709XSTL 9-Gear | |||||
| Suspension | Steel Springs | |||||
| Tire | 12R22.5 18PR | |||||
| Fuel Tank | 600 L | |||||
| Bodyparts Parameter | Tank Volume | 32 CBM | ||||
| Tank Size | 9000×2500×2530 MM | |||||
| Tank Material | Carbon Steel Q235 | |||||
| Tank Thikness | 2.2 MM | |||||
| Tank Shape | U-Shape | |||||
| Compartment | 4 | |||||
| Discharge Auger Length | 8 M | |||||
| Discharge Method | Hydraulic PTO | |||||
| Discharge Height | More than 7.5 M | |||||
| Discharge Rate | 850 KG/MIN | |||||
| Other Details | Equipped with A/C, and other standard features. The top auger conveyor rotates and positions with plus or minus 180 degree. discharge auger elevation angle (°): 0~60, residual rate (%): ≤ 0.22 Painting: yellow+green color, according to the customers' request. | |||||
