KANGMU
High-end 43cbm Carbon Steel and Aluminium Alloy Livestock Transport Trailer

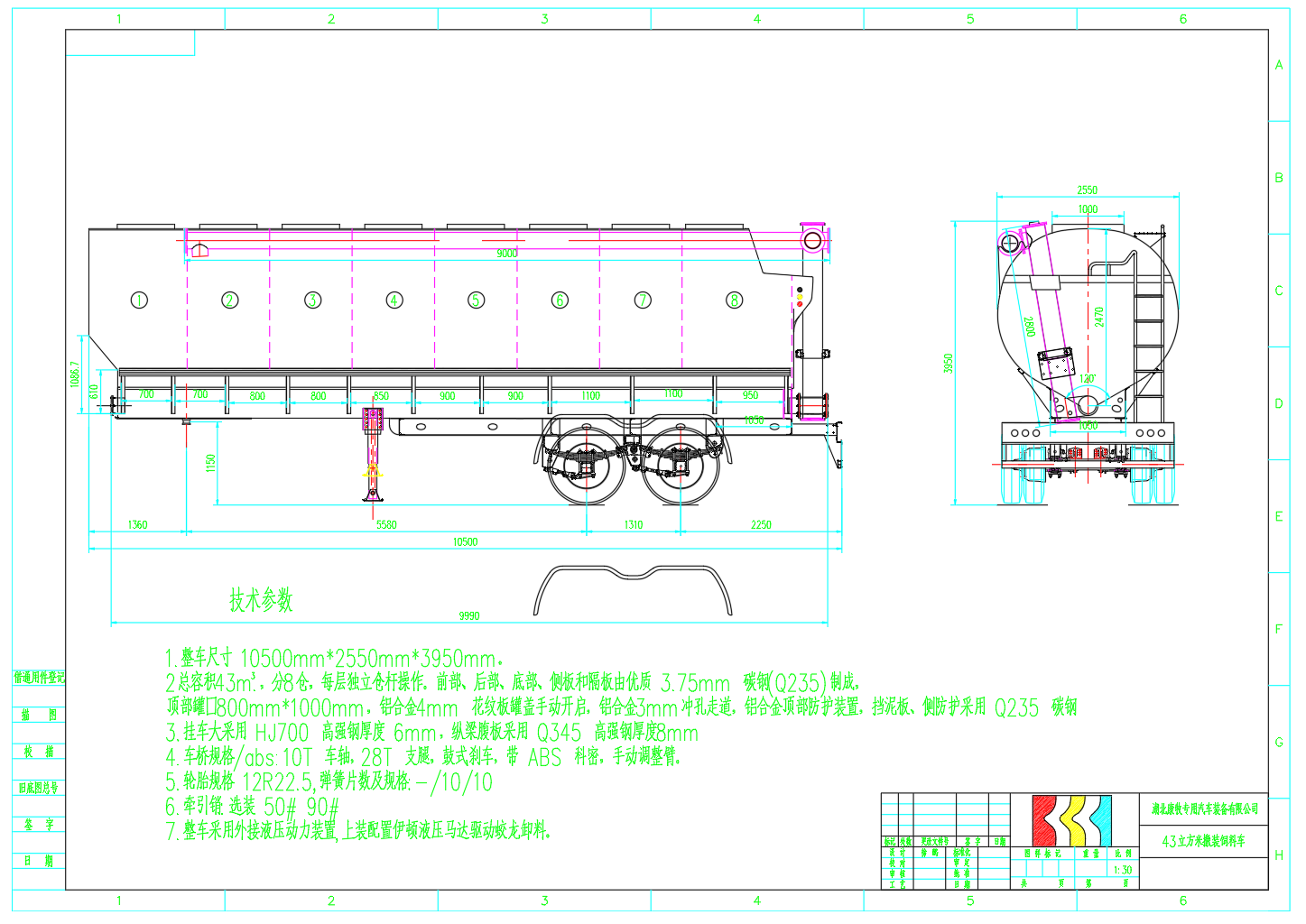

| Category | Specifications |
| Vehicle Dimensions | 10500mm * 2550mm * 3950mm |
| Total Volume | 43 m³ |
| Curb Weight | 9390 kg |
| Compartment Configuration | Divided into 8 compartments, each layer controlled by an independent compartment lever |
| Body Material (Front/Rear/Bottom/Side Panels/Partitions) | High-quality 3.75mm carbon steel (Q235) |
| Top Tank Opening | 800mm * 1000mm |
| Tank Cover | 4mm aluminum alloy checker plate, manually operable |
| Walkway | 3mm aluminum alloy perforated walkway |
| Top Protection Device | Aluminum alloy top protection device |
| Mudguards & Side Guards | Q235 carbon steel |
| Trailer Frame Material | 6mm-thick HJ700 high-strength steel |
| Longitudinal Beam Web | 8mm-thick Q345 high-strength steel |
| Axle Specification | 10-ton axle, 28-ton support legs |
| Brake System | Drum brakes, equipped with Kemi ABS and manual adjustment arms |
| Tire Specification | 12R22.5 |
| Spring Leaf Quantity & Specification | -/10/10 |
| Fifth Wheel Coupling | Optional 50# or 90# |
| Power Unit | External hydraulic power unit |
| Upper-Mounted Unloading System | Eaton hydraulic motor to drive the auger for unloading |







High-end 43cbm Carbon Steel and Aluminium Alloy Livestock Transport Trailer
| Category | Specifications |
| Vehicle Dimensions | 10500mm * 2550mm * 3950mm |
| Total Volume | 43 m³ |
| Curb Weight | 9390 kg |
| Compartment Configuration | Divided into 8 compartments, each layer controlled by an independent compartment lever |
| Body Material (Front/Rear/Bottom/Side Panels/Partitions) | High-quality 3.75mm carbon steel (Q235) |
| Top Tank Opening | 800mm * 1000mm |
| Tank Cover | 4mm aluminum alloy checker plate, manually operable |
| Walkway | 3mm aluminum alloy perforated walkway |
| Top Protection Device | Aluminum alloy top protection device |
| Mudguards & Side Guards | Q235 carbon steel |
| Trailer Frame Material | 6mm-thick HJ700 high-strength steel |
| Longitudinal Beam Web | 8mm-thick Q345 high-strength steel |
| Axle Specification | 10-ton axle, 28-ton support legs |
| Brake System | Drum brakes, equipped with Kemi ABS and manual adjustment arms |
| Tire Specification | 12R22.5 |
| Spring Leaf Quantity & Specification | -/10/10 |
| Fifth Wheel Coupling | Optional 50# or 90# |
| Power Unit | External hydraulic power unit |
| Upper-Mounted Unloading System | Eaton hydraulic motor to drive the auger for unloading |
