Dayun 126 Horsepower Material Crushing Truck

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: Dayun 126 Horsepower Material Crushing Truck
  • Keywords: Street Sweeper Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:
Dayun 126 Horsepower Material Crushing Truck
The material crushing truck, also known as the branch crushing vehicle, consists of a 900 type crusher, a material bin, and a discharge device. The crusher is driven by a transfer case installed on the chassis, without the need for a secondary engine. The crushed material is sprayed into the silo through a nozzle, and there is a discharge hinge at the bottom of the silo, which is driven by a hydraulic motor. This vehicle is mainly used for urban landscaping, highways, and power departments. It is a high-altitude operation vehicle that integrates the crushing, pruning, and transportation of garden branches.
Material Crushing Truck Parameters:
Wheelbase 3300, engine D20TCIF1, maximum net power 88, displacement 1999, rotation rate 3200;
Upper body configuration:
Crusher model: DF900, power 55KW, output 3000-4000kg/H, maximum crushing diameter 150MM,
The capacity of the silo is 6 cubic meters, and the discharge method is hydraulic motor-driven auger. The curb weight is 4070kg

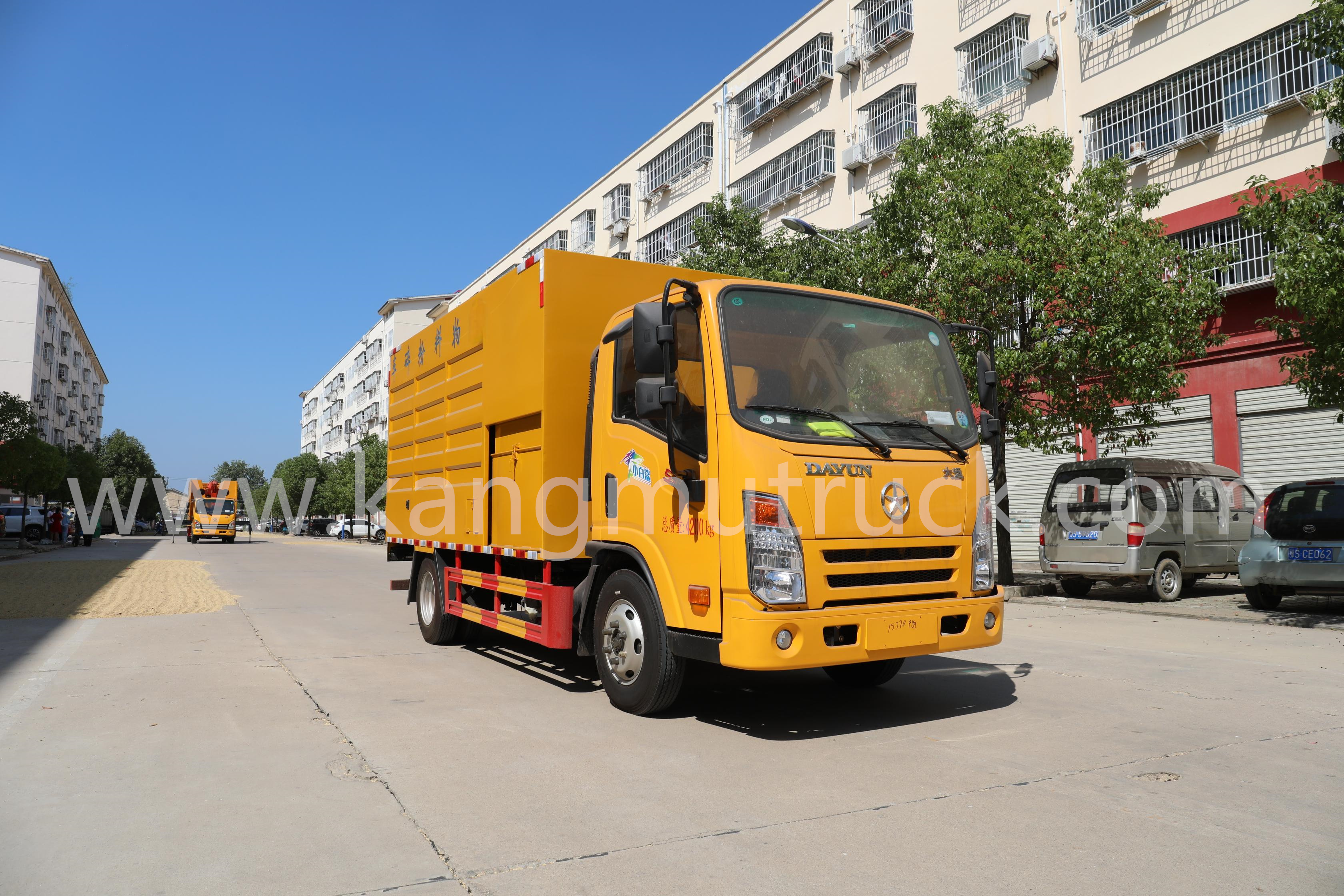

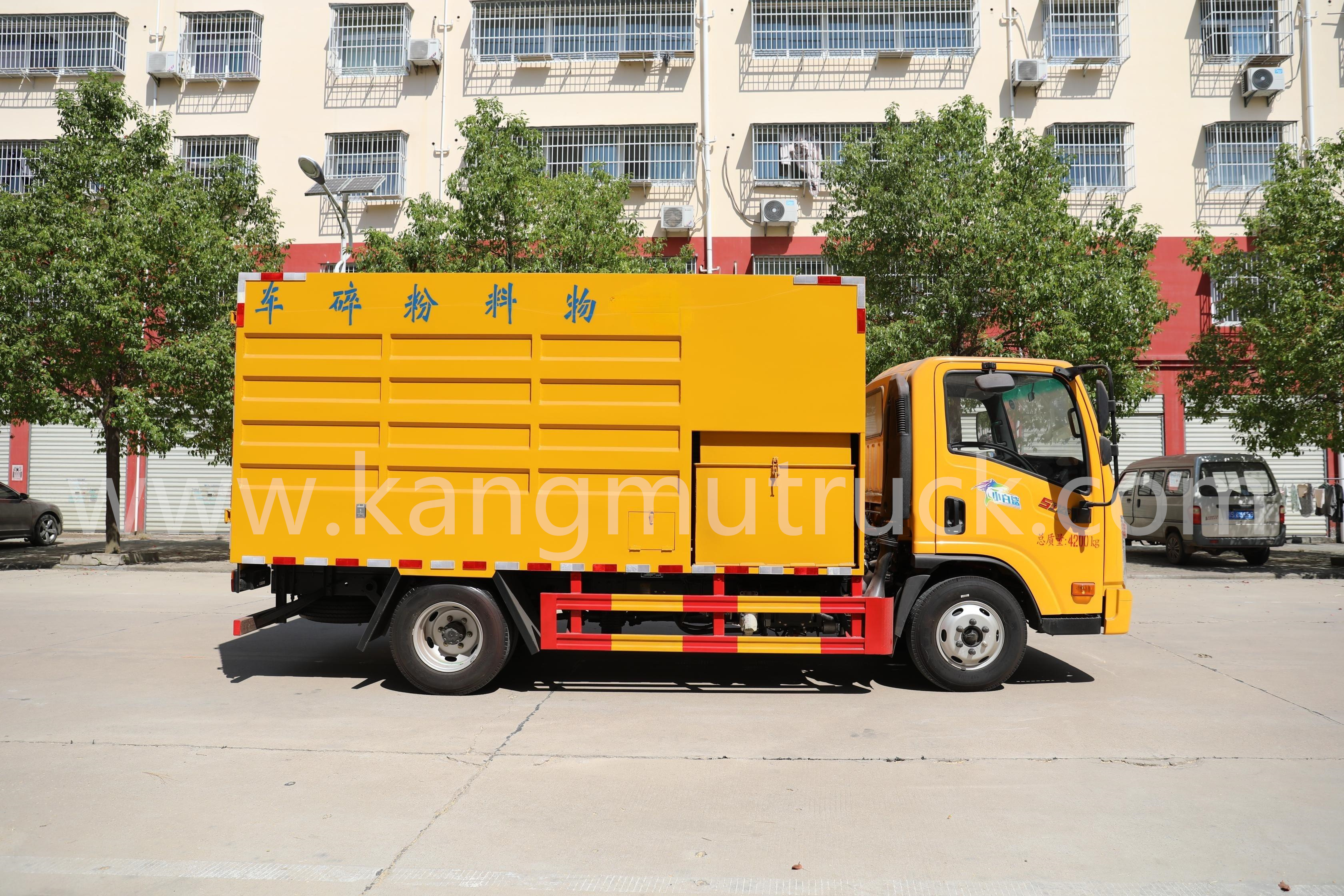

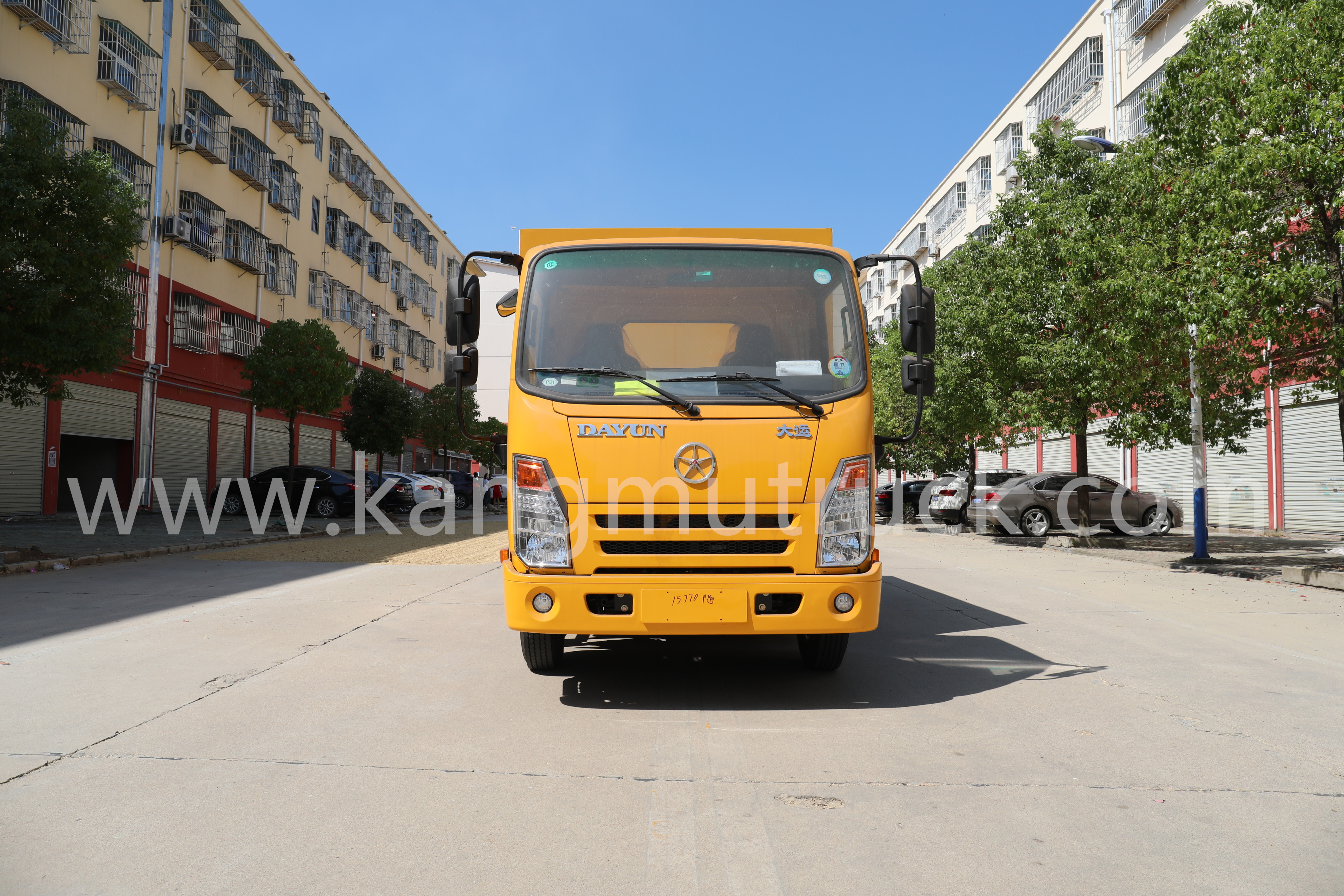

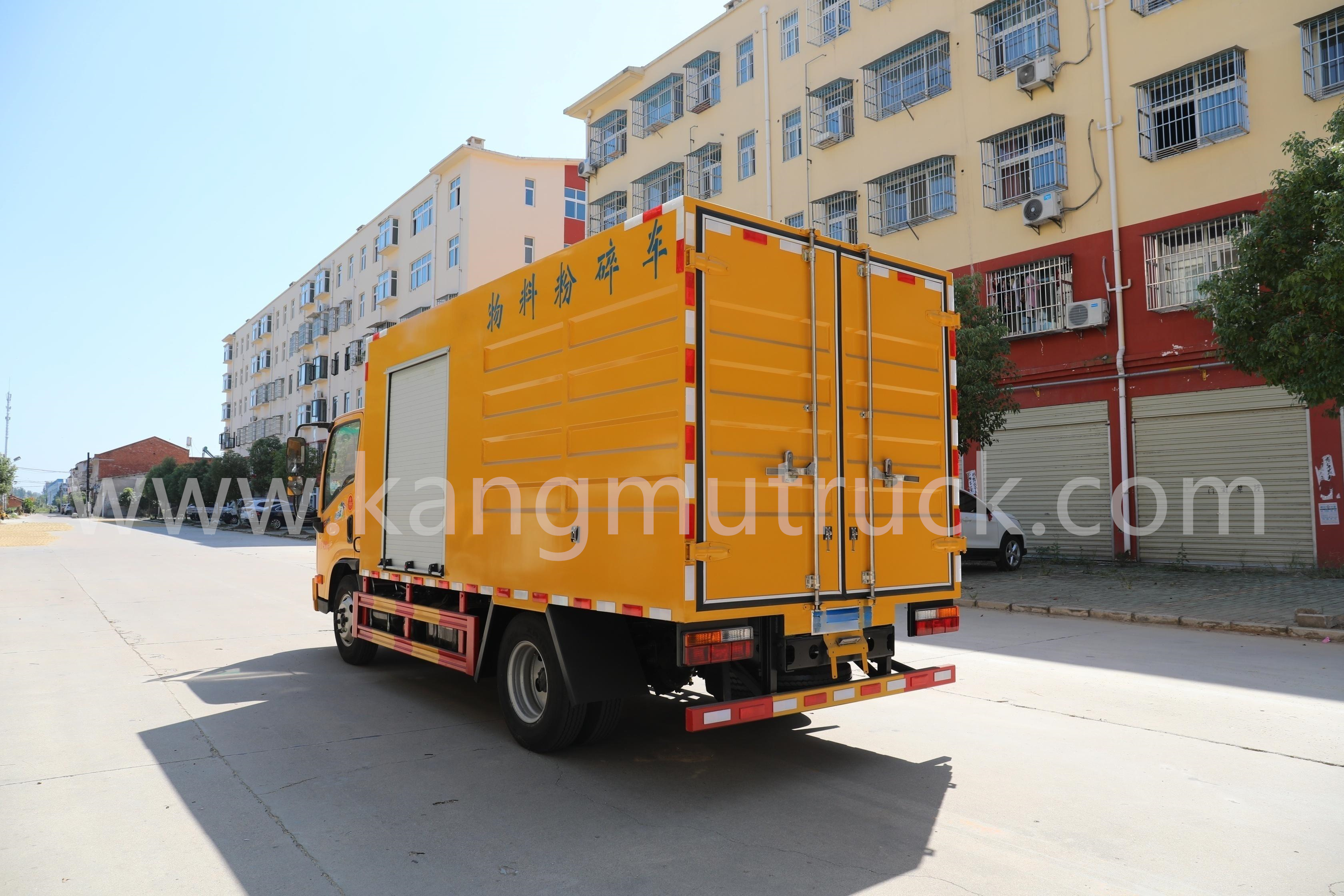

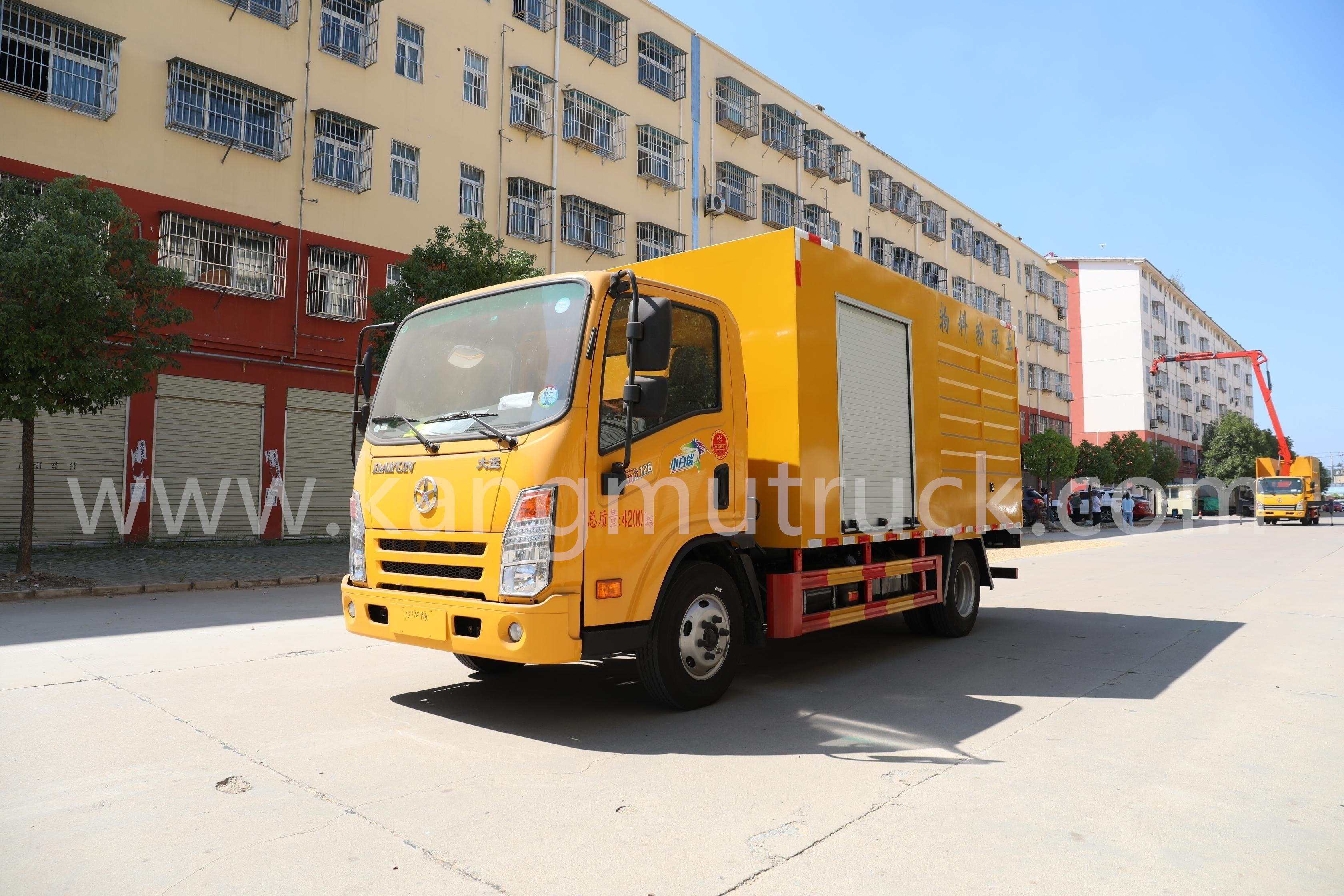

微信图片_20240730153045微信图片_20240730153047微信图片_20240730153033微信图片_20240730153051微信图片_20240730153049微信图片_20240730153042

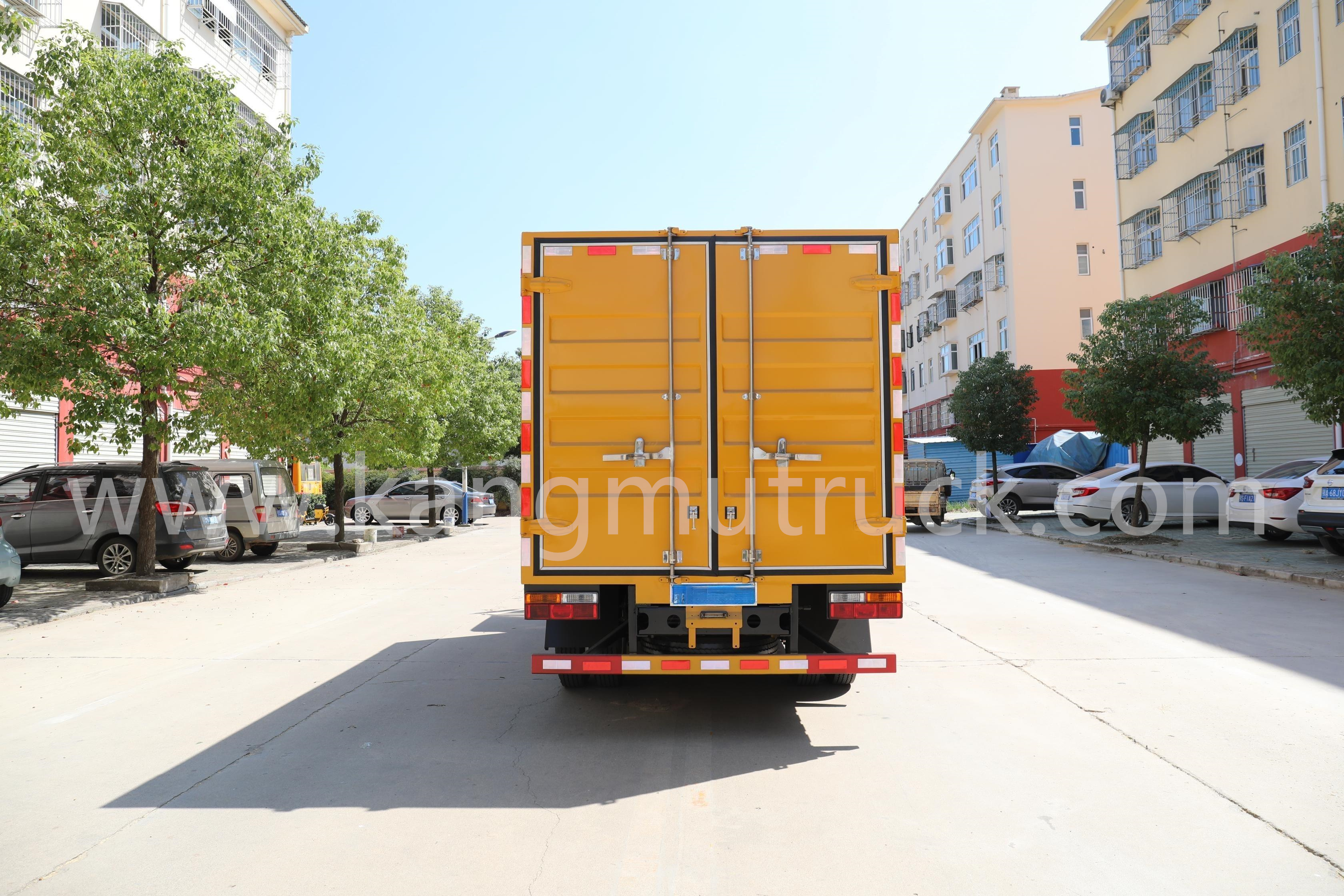

微信图片_20240730153053

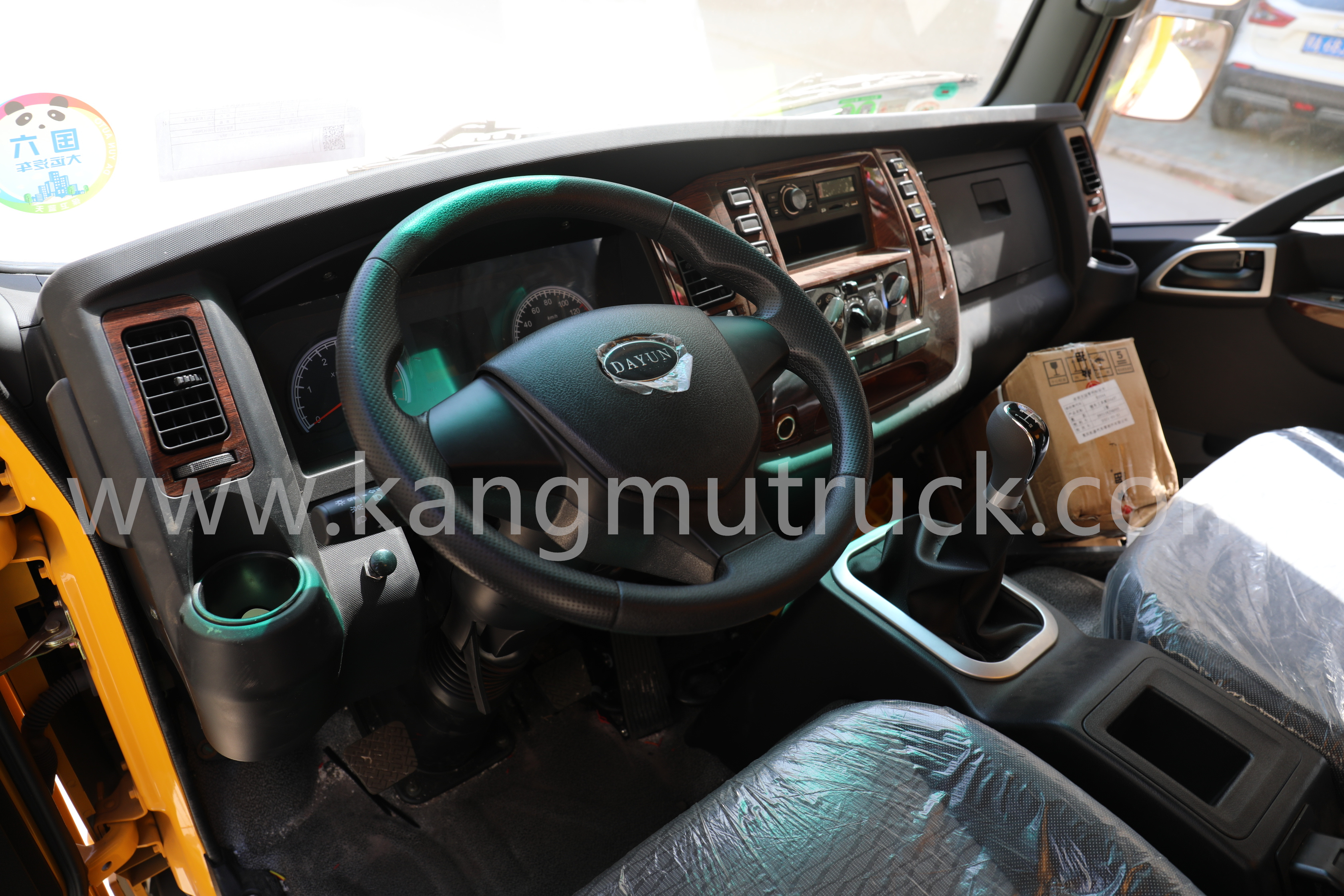

微信图片_20240730153056
