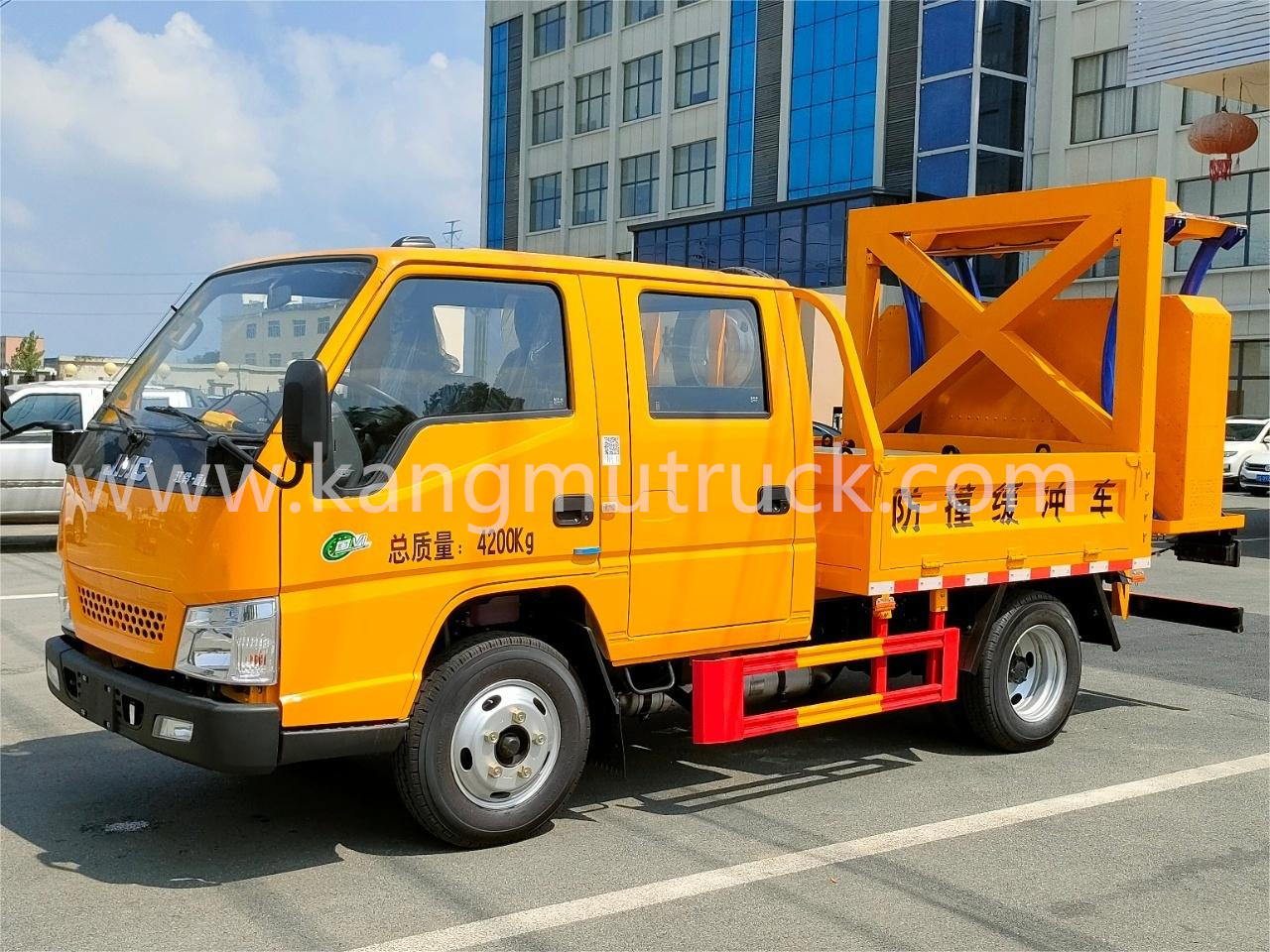

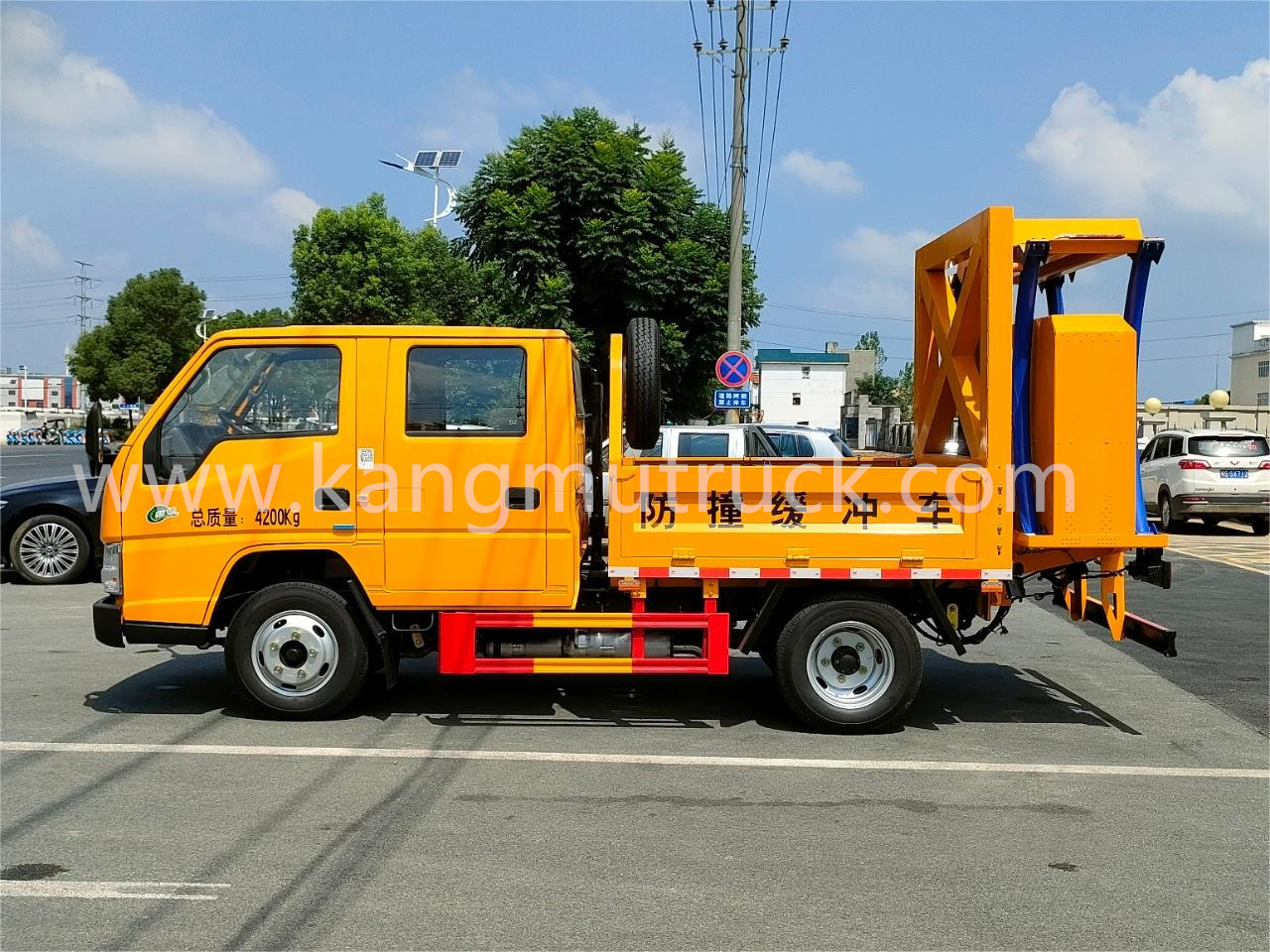

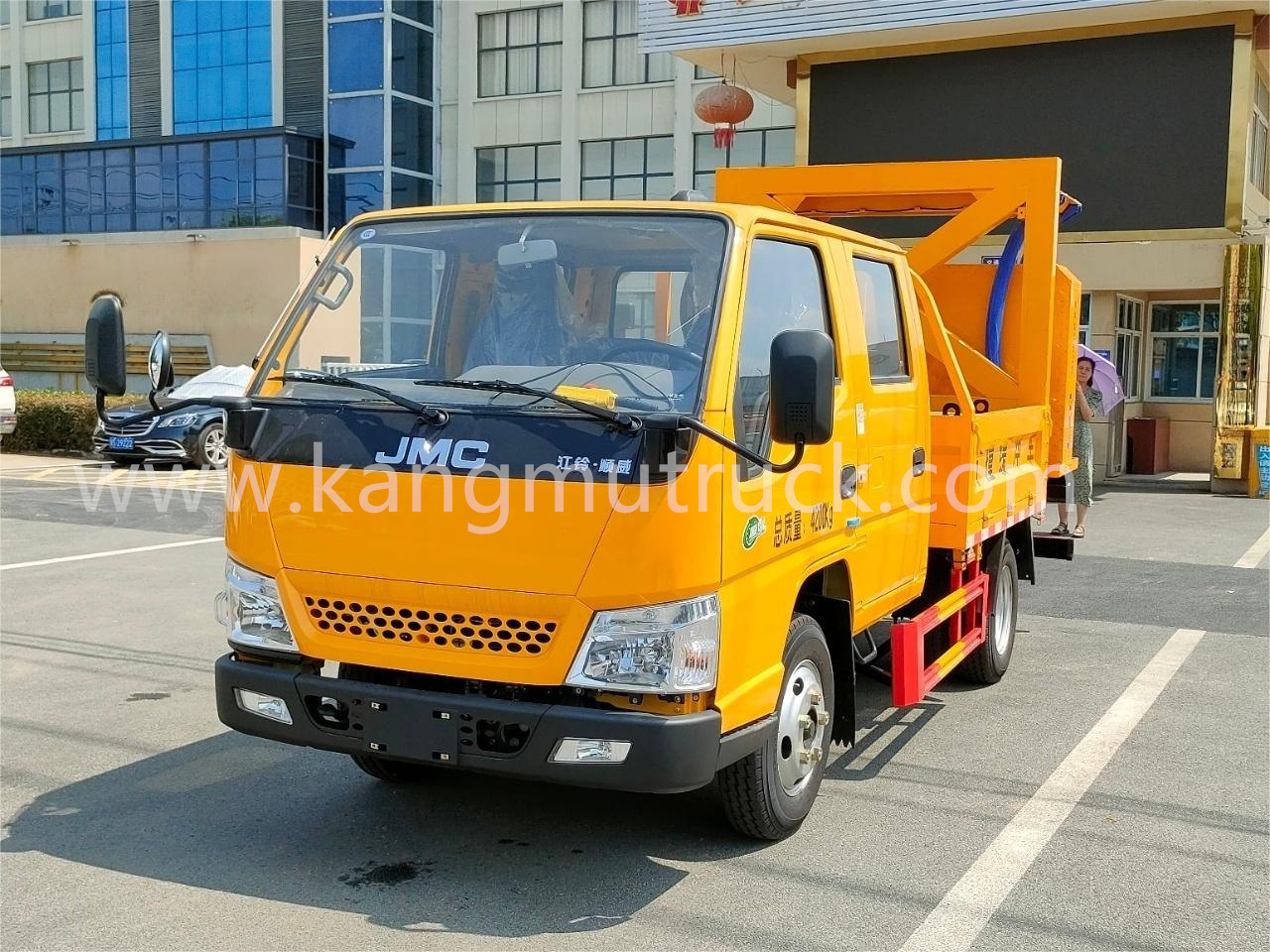

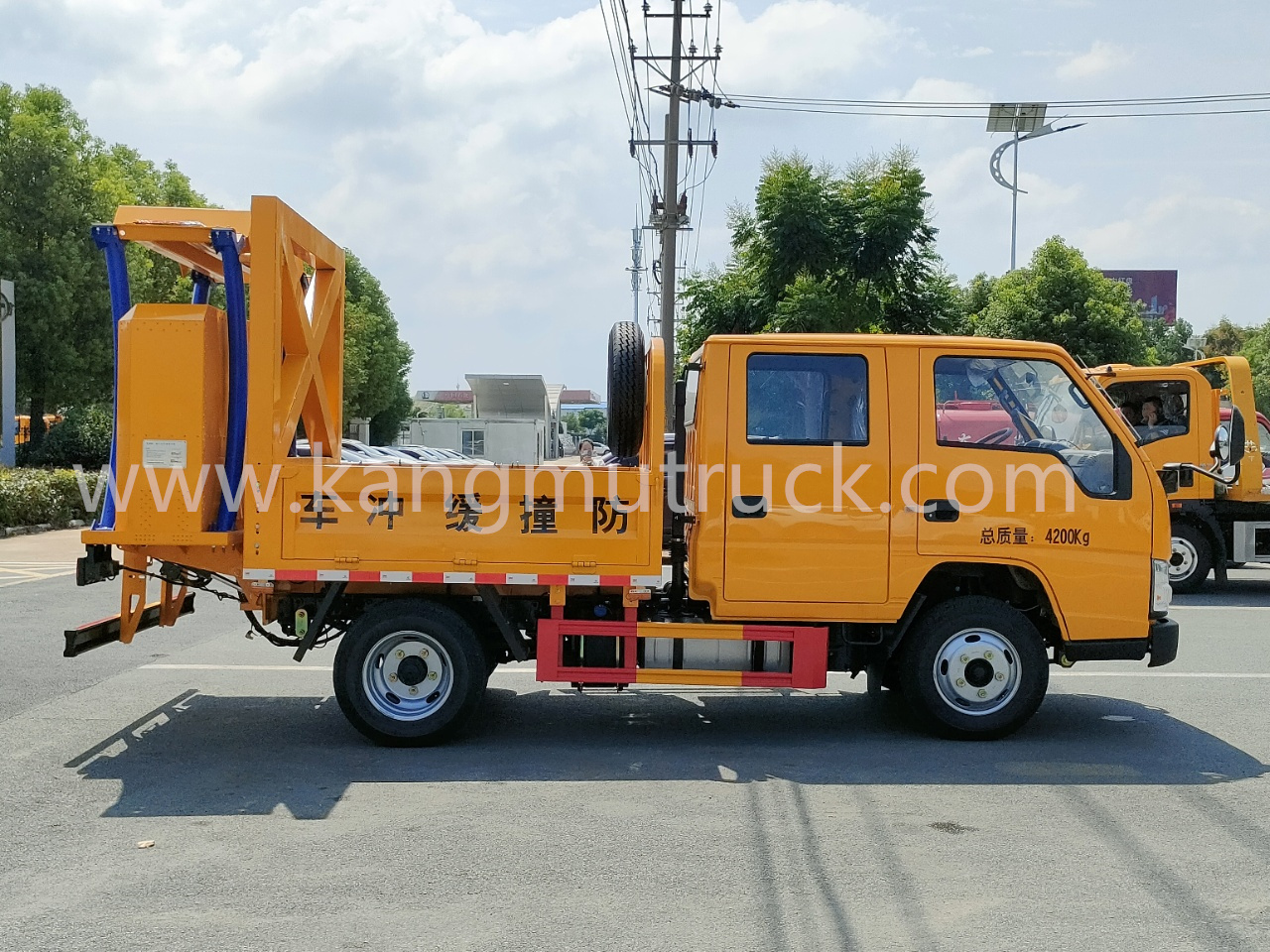

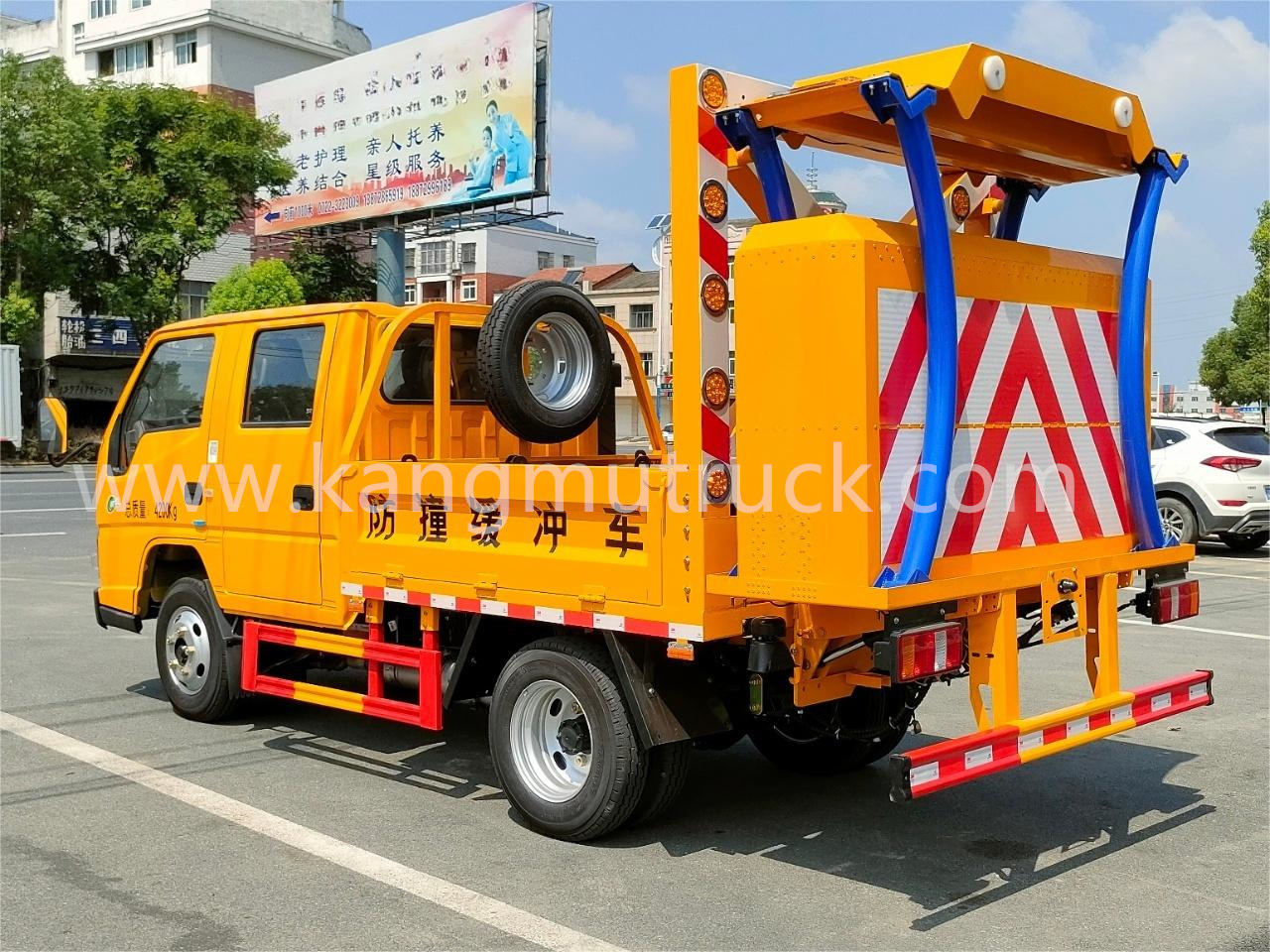

JMC 70K/80K Anti-Collision Buffer Truck Collision Prevention Truck |
Chassis configuration: |
JMC Shunwei dual cab, chassis model JX1041TSGB262800 wheelbase, D20TCIF11 engine with 122 horsepower, 5-speed gearbox, air conditioning, hydraulic brake, electric front and rear doors and windows, 6.50R16LT tires. |
Upper body configuration: |

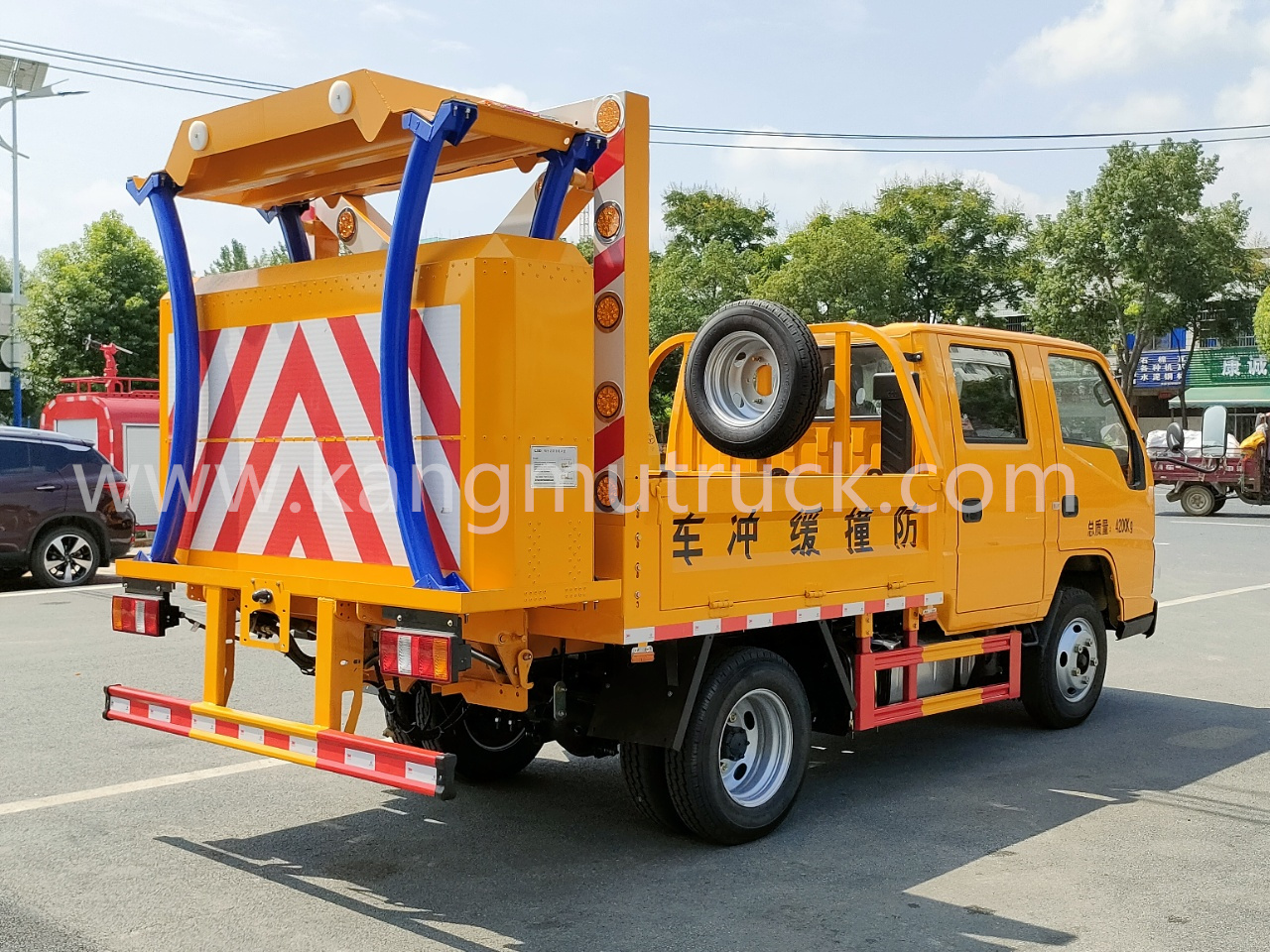

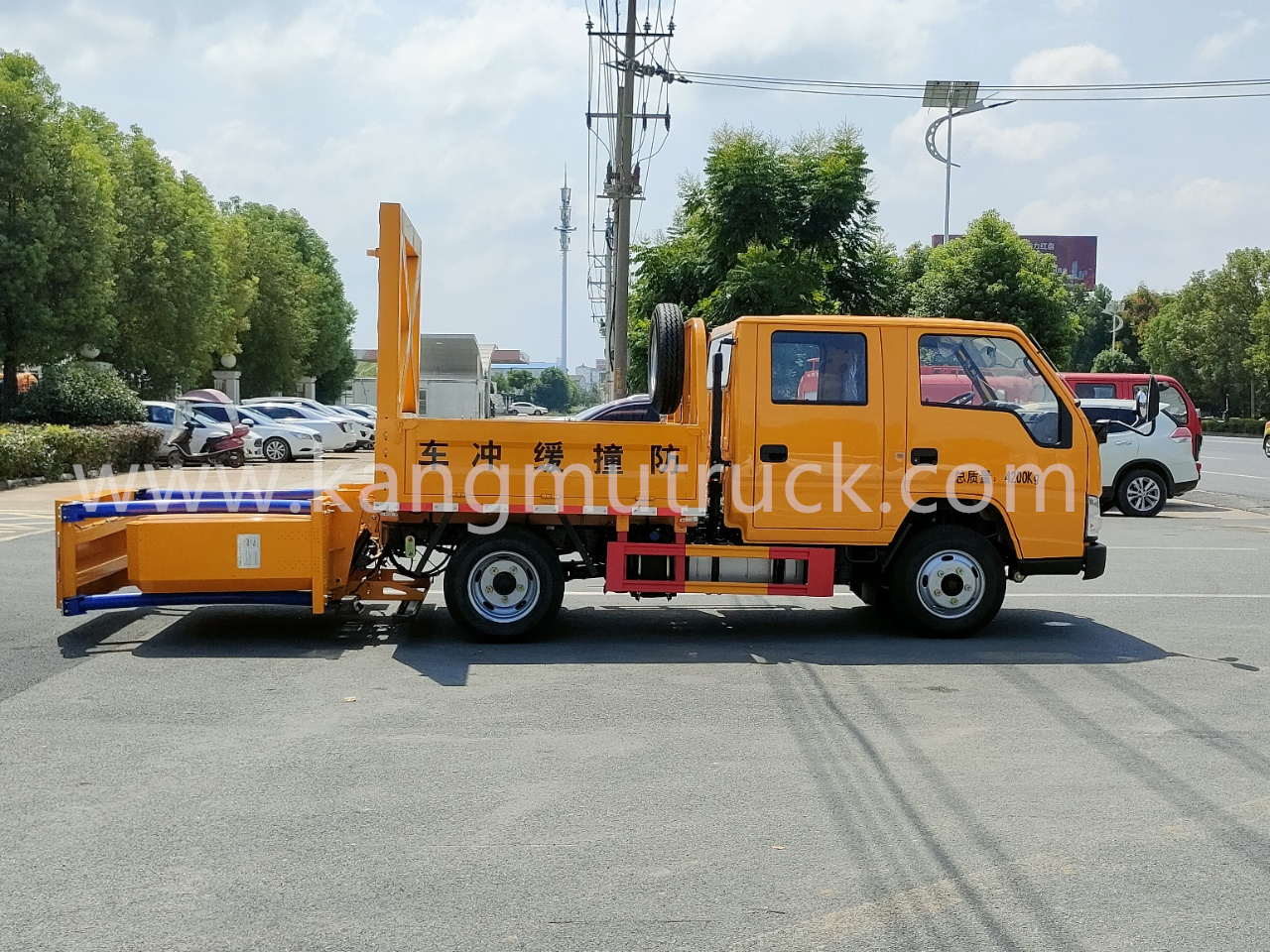

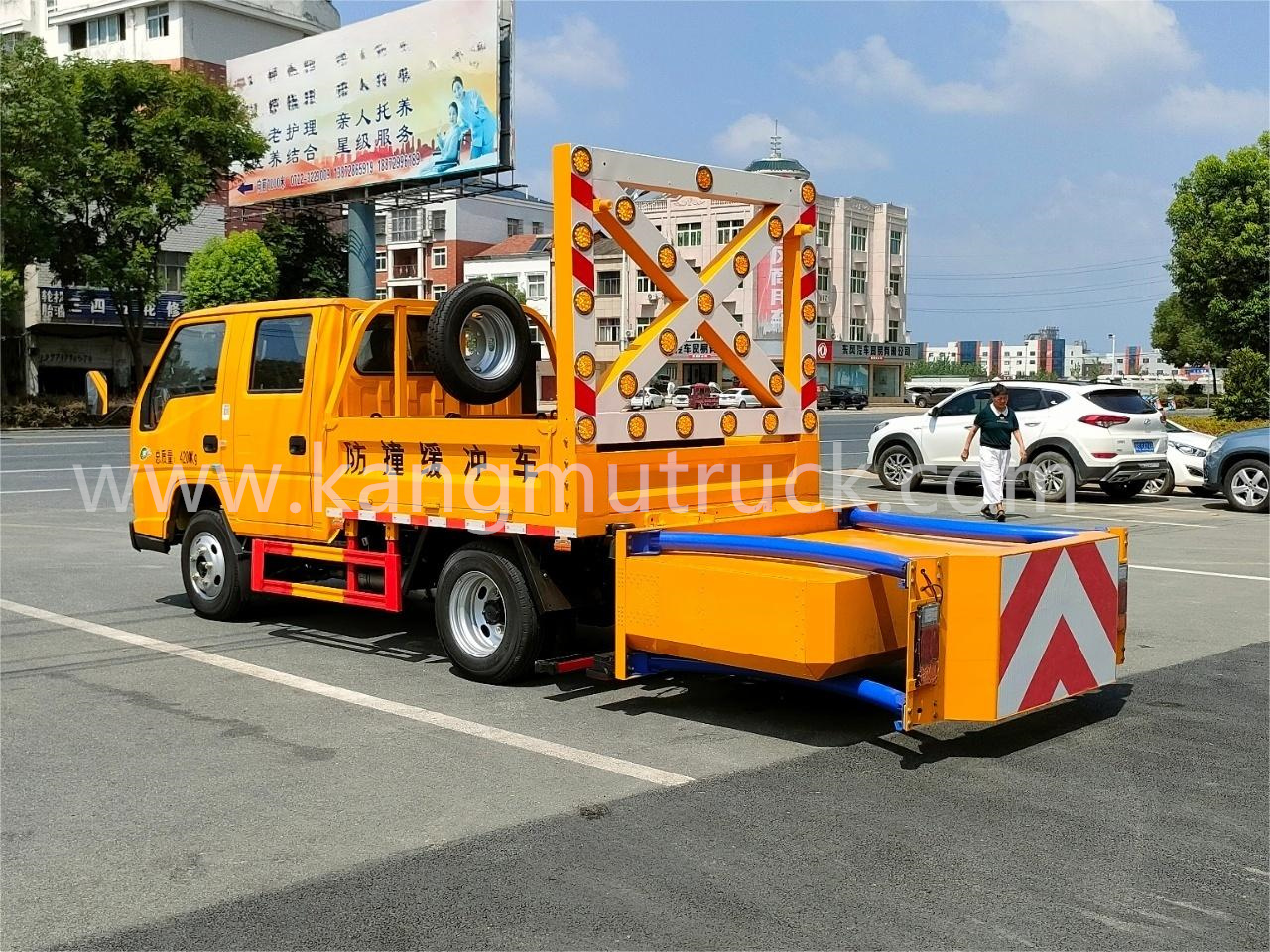

The box body is crafted from high - quality national standard sheet metal. For the rear anti - collision buffer module of the box body, we choose internationally renowned technology products, specifically the 70K/80K anti - collision buffer module with smooth operation. The anti - collision buffer energy - absorption module is principally made up of a car anti - collision buffer pad and a guide sign frame. The lightweight frame is able to be equipped with a variety of sound - and - light warning systems, like an LED screen, LED arrow indicator lights, voice warning horns, LED flashing lights, and so on. This setup functions as a buffer guard at the rear of the construction vehicle. In the event of a rear - end collision, a buffer zone can be established between the vehicle involved and the construction area in front. This buffer zone absorbs the impact energy through the deformation of the mechanical structure, thus reducing the likelihood of protected personnel and equipment being hit. There is a high - performance hydraulic system installed. It is capable of rapid lifting and lowering operations, guaranteeing safety, stability, and high efficiency. |
Advantages of our anti-collision package: |
1. The anti - collision buffer energy - absorption module makes use of internationally famous technology products, the 70K/80K anti - collision bags. It has successfully passed the NCHRP350TL - 2 collision test in the United States and is able to absorb the impact energy generated by a 2 - ton vehicle moving at a speed of 70 kilometers or 80 kilometers per hour. The interior of the anti - collision buffer pad is filled with aerospace - grade cushioning material. In the event that a vehicle experiences an accidental rear - end collision, the cushioning material will be compressed and deformed, thus realizing the absorption of collision energy. |
2. On the top and bottom of the collision buffer pad, there are four sets of metal curved pipes. During a collision, these curved pipes absorb a large amount of initial collision energy beforehand. Once the collision energy exceeds the deformation limit of the aluminum tube, the structure filled with cushioning material enters a state of deformation - energy absorption. The aluminum alloy film - peak material applied in the collision buffer pad will experience controllable deformation to efficiently absorb the collision energy. |
