KMH5250GXWD6
KANGMU

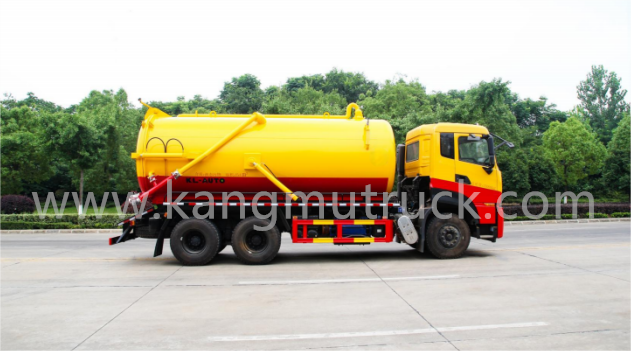

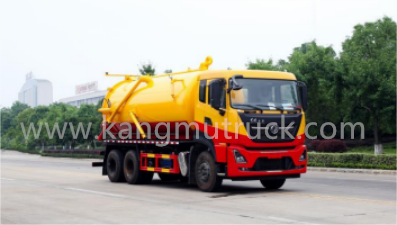

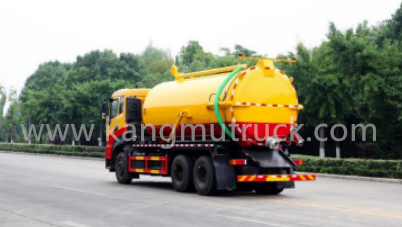

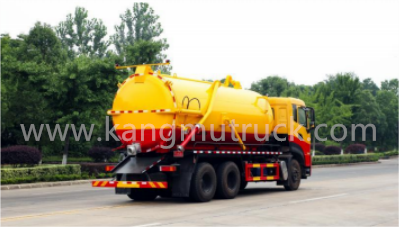

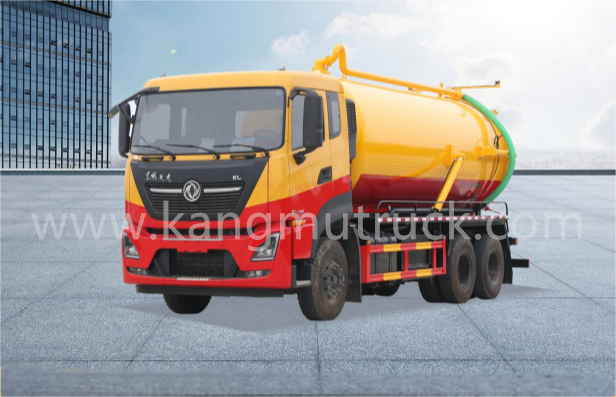

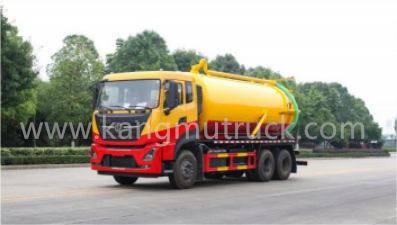

Dongfeng KL 18Cbm Sewage Suction Truck
NAME | SPECIFICATIONS | |
1 | Vehicle Model | KMH5250GXWD6 |
2 | Wheelbase | 4350+1350,4600+1350MM |
3 | Engine Model | D6.7NS6B290 /DDi75E350-60 |
4 | Engine Power | 213/257KW |
5 | Vehicle Dimensions(L*W*H) | (9100, 9120, 9350)*(2500, 2550)*(3750, 3800, 3950) |
6 | Curb Weight | 13000 |
7 | Total Quality | 25000 |
8 | Tank Volume | 18CBM |
9 | Hydraulic System Pressure | 18MP |
10 | Fuel Type | Diesel oil |
11 | Emission Standard | National VI |
12 | Operation Type | Manual |
13 | Tank Dimensions | 5500×2000MM (HEIGHT*DIAMETER) |
14 | Tank Material | 8MM CARBON STEEL |
Upper Body Configuration:
The appearance dimensions are made according to the announcement, with a butterfly shaped head, hydraulic opening of the rear door of the tank body, mechanical locking, lifting and self unloading of the tank body, a sight pipe above the rear head of the tank body, a 150 ball valve below the rear head, equipped with double 10 ton vacuum pumps, water oil separators, overflow valves, live side lights, one 8-meter suction pipe, and other standard equipment.
Product Advantages:
1. The tank body adopts a circular tank body with a tighter structure, which can withstand higher pressure and provide greater suction. The suction range is far, and the tail discharge port is designed with a hydraulic cylinder lifting method, which can more comprehensively discharge the absorbed impurities.
2. The whole vehicle has the characteristics of high suction efficiency, self suction, self discharge, long service life, fast working speed, easy operation, and convenient transportation.
