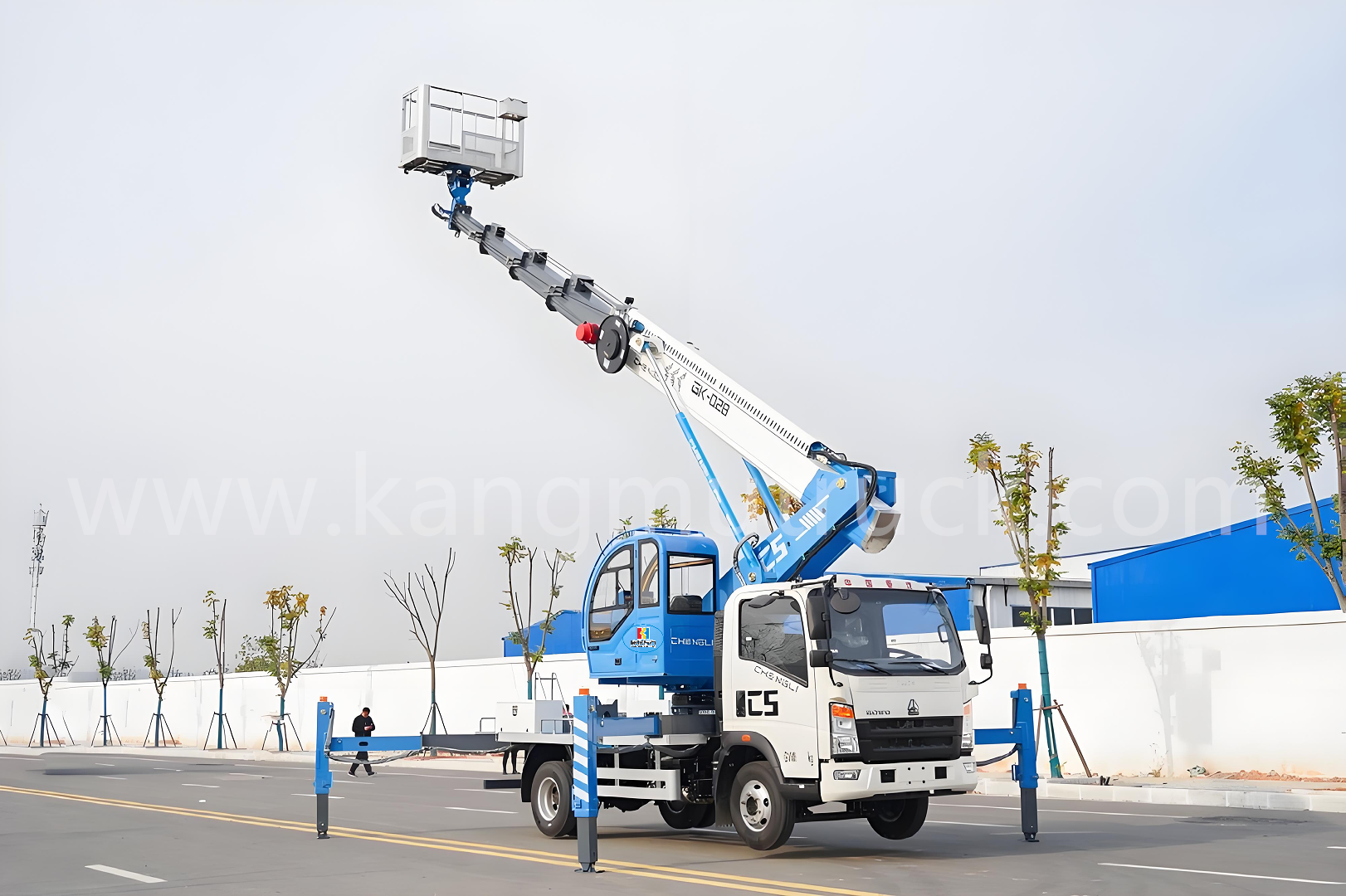

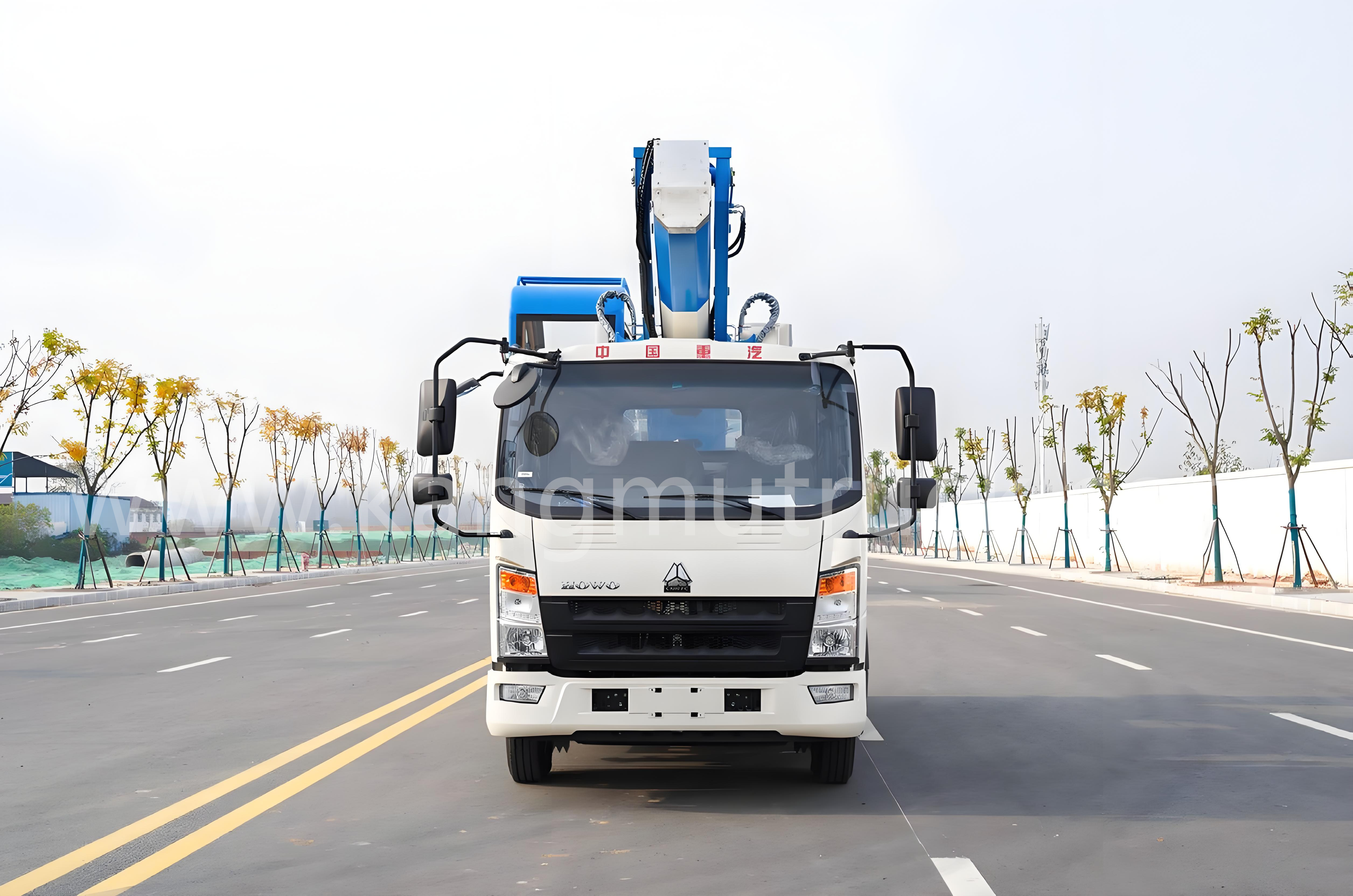

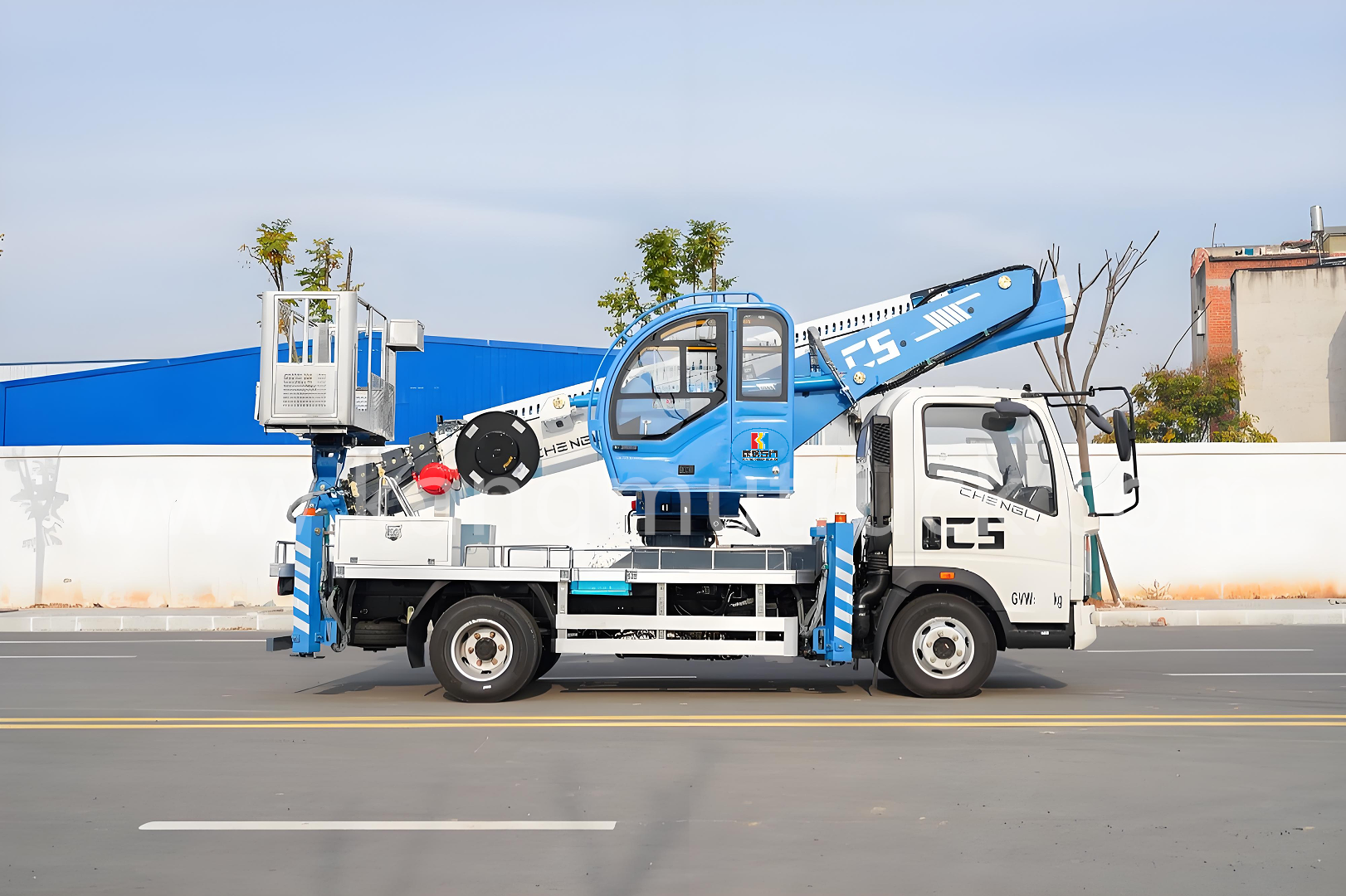

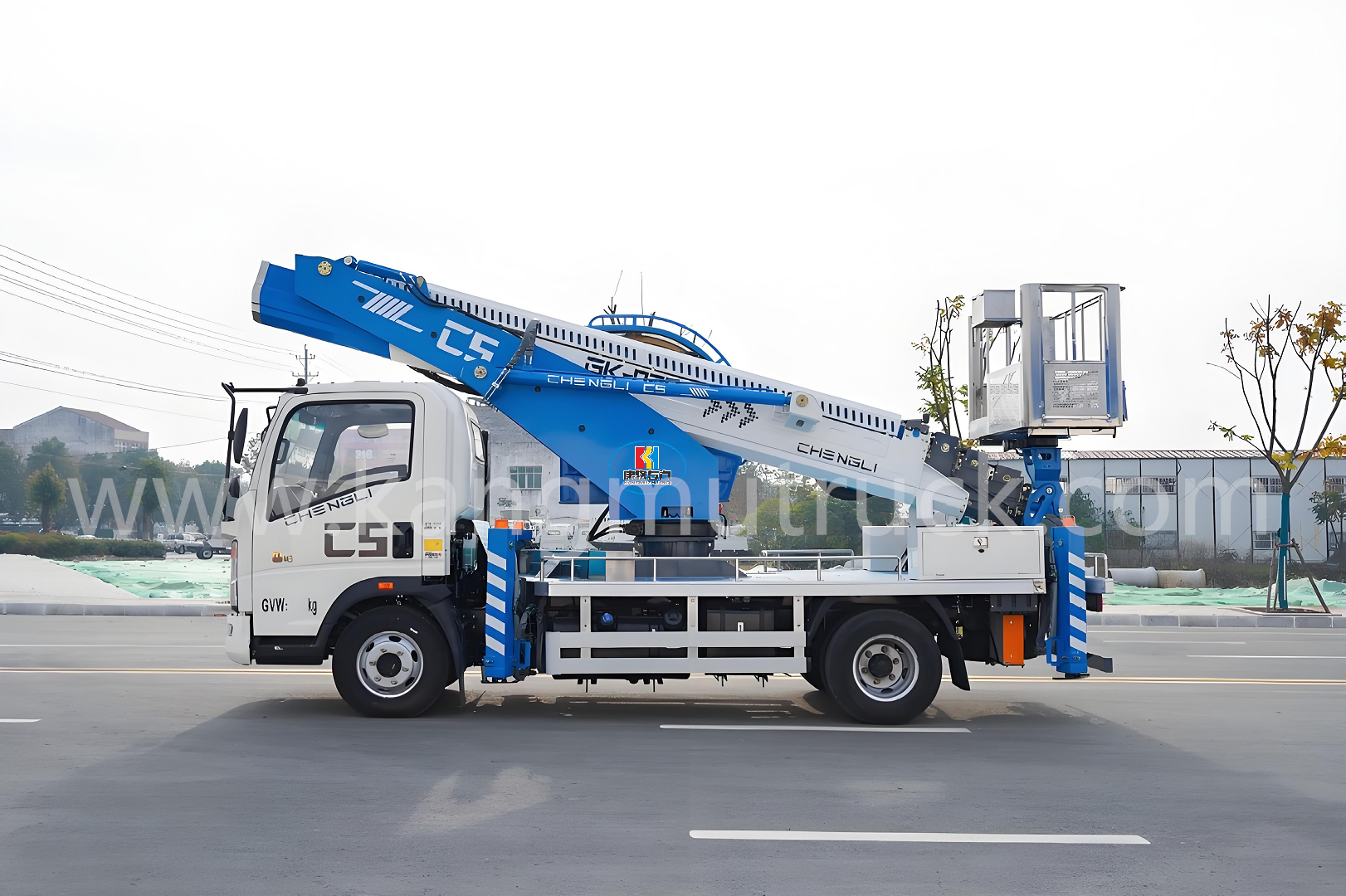

Sinotruk HOWO 28-m Aerial Lift Truck

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: Sinotruk HOWO 28-m Aerial Lift Truck
  • Keywords: Aerial Lift Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:
Inquire Add to Basket

  • KANGMU

Sinotruk HOWO 28-m  Aerial Lift Truck


Category Parameter Details
Vehicle Parameters Dimensions: 5995×2090×3080mm (Length×Width×Height)
Gross Vehicle Mass: 4495kg
Chassis Parameters Kerb Mass: 4365kg
Emission Standard: China VI
Gearbox: Fast Gear Five - Speed
Tyres: 700R16*7
Wheelbase: 3300
Engine Model: D20TCIF1
Displacement (ml): 1999
Power (kw): 93
Horsepower (ps): 125
Upper Body Configuration Boom: Five - section fourteen - sided large boom with synchronous telescoping
Outriggers: Front V - shaped and rear V - shaped double - section outriggers
Lateral Span: 5800mm
Longitudinal Span: 5800mm
Basket Dimensions: 1500×700×1100mm (Length×Width×Height)
Rated Load of Working Platform: 200kg
Maximum Working Height: 28m
Side Reach: 17.5m
Rear Reach: 22m
Optional Equipment: Cab, 1.8m/2m (foldable) basket, hydraulic winch hook, dual - fuel (diesel and electric), electric reel

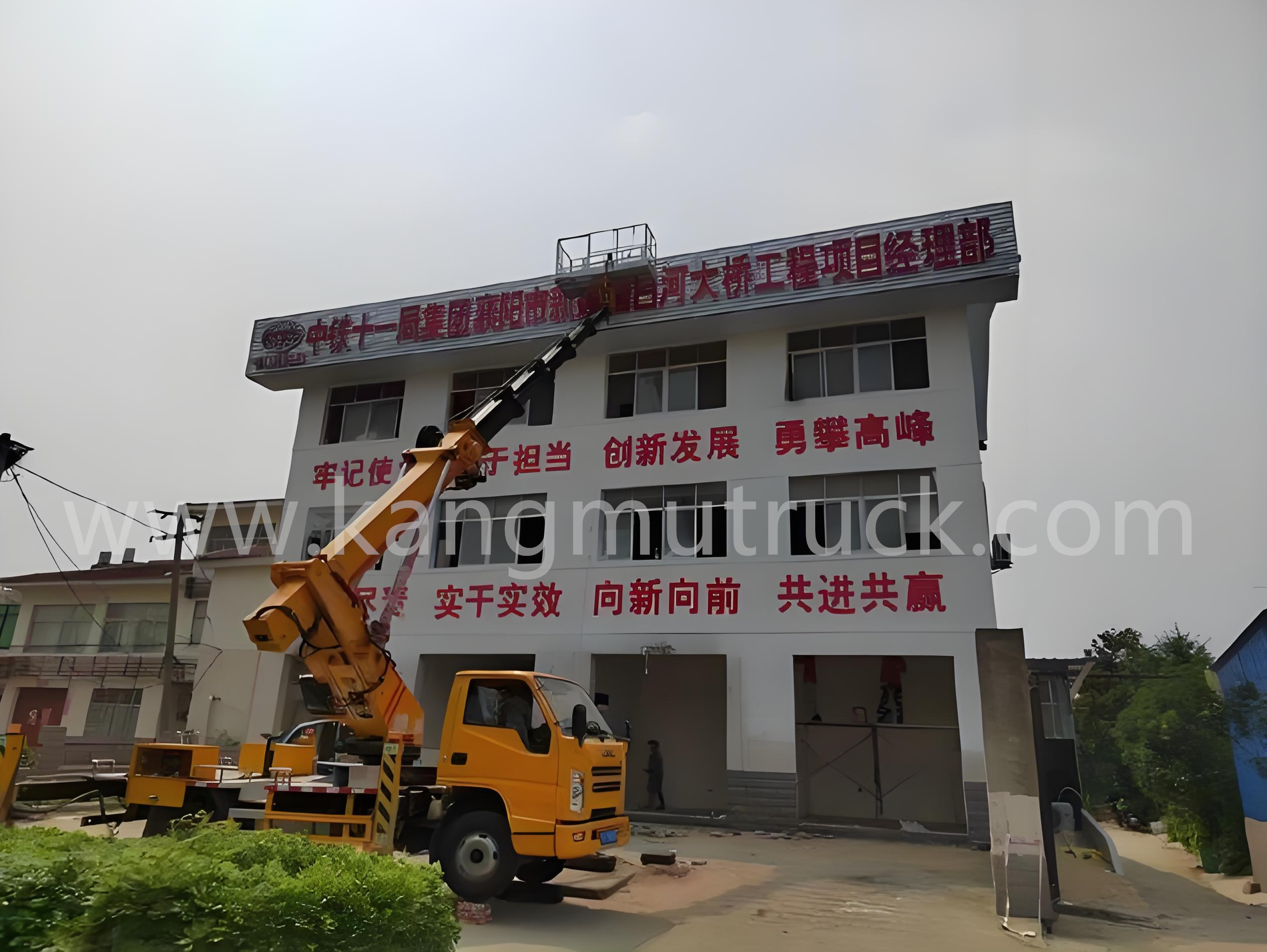

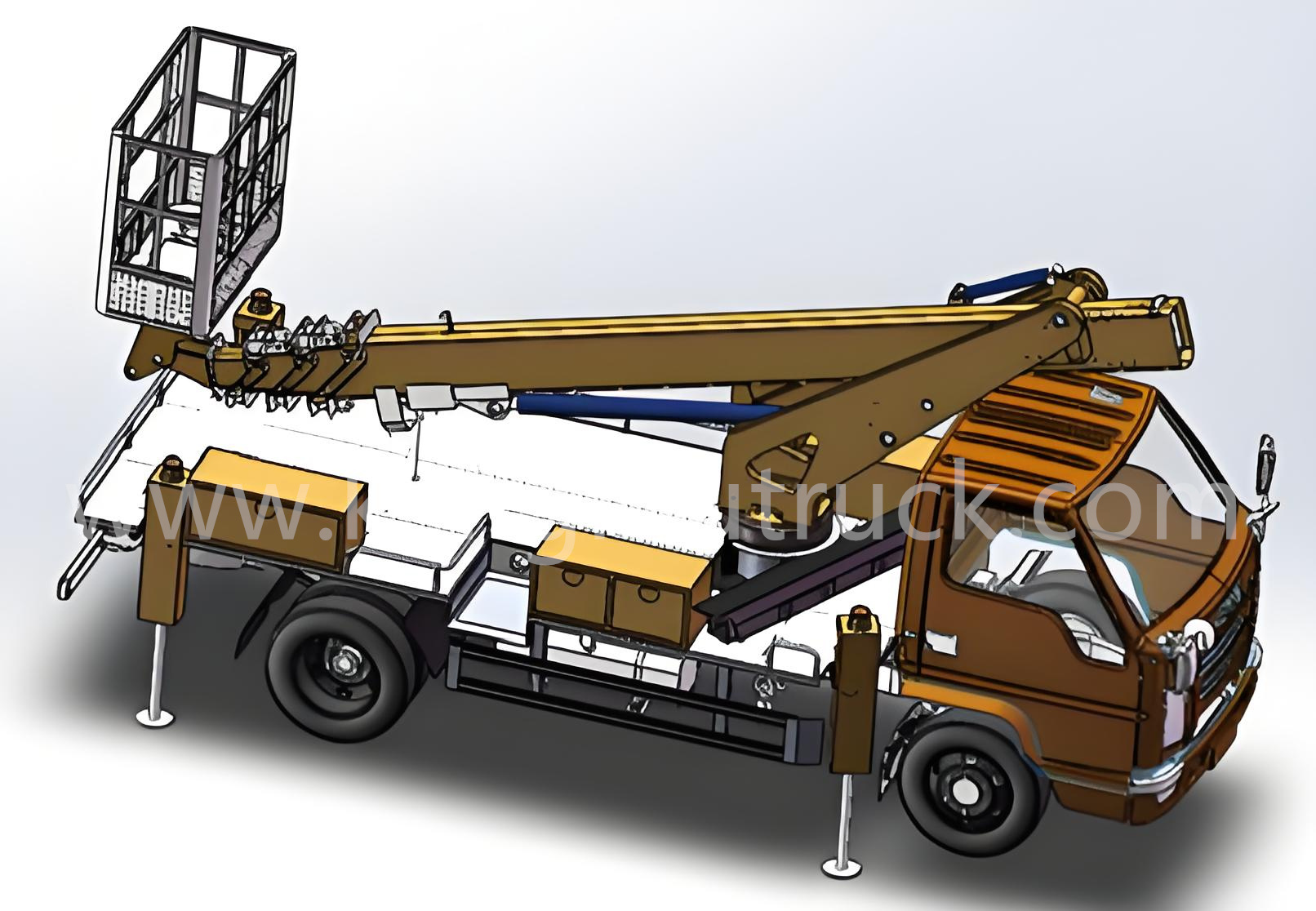

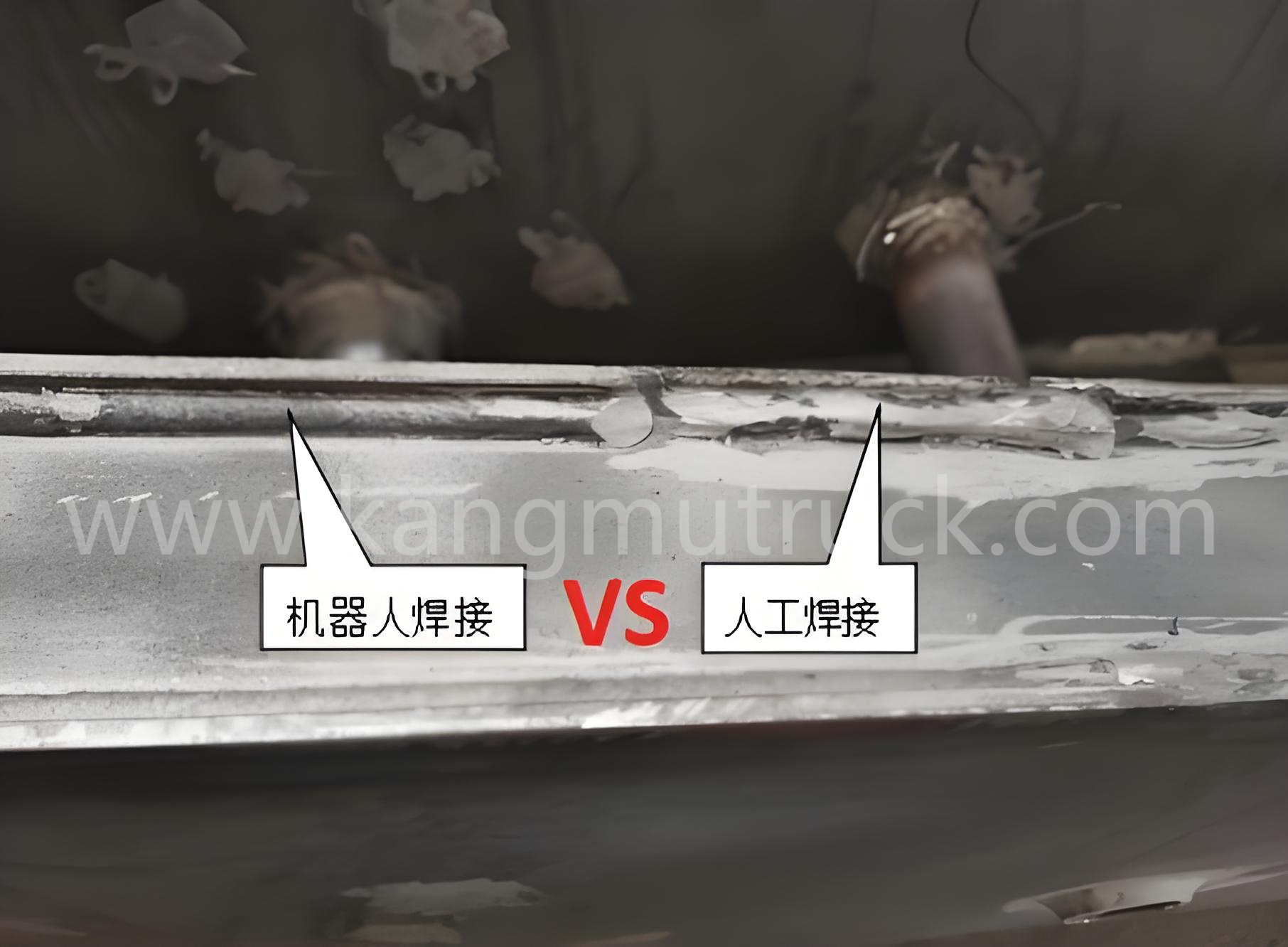

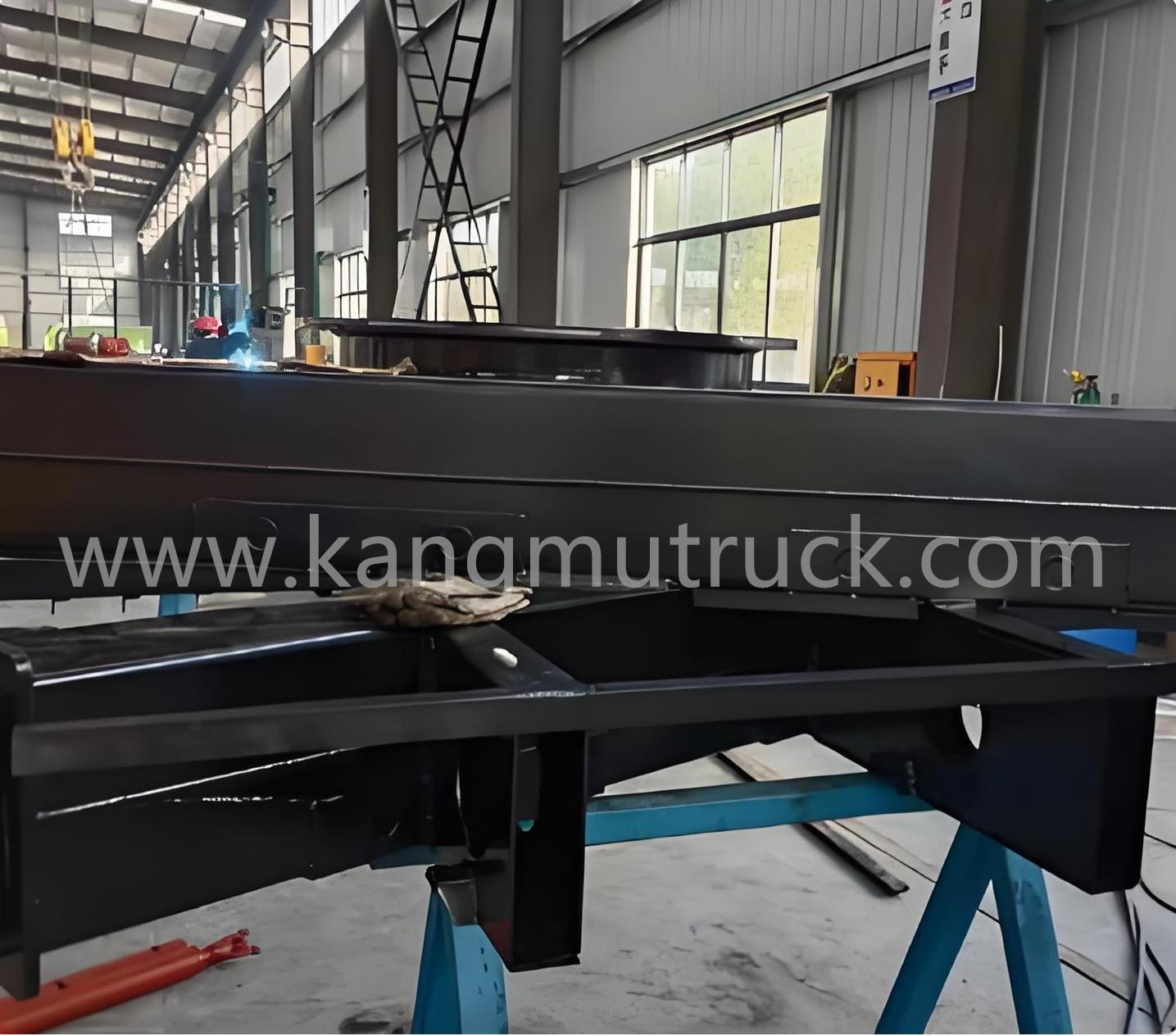

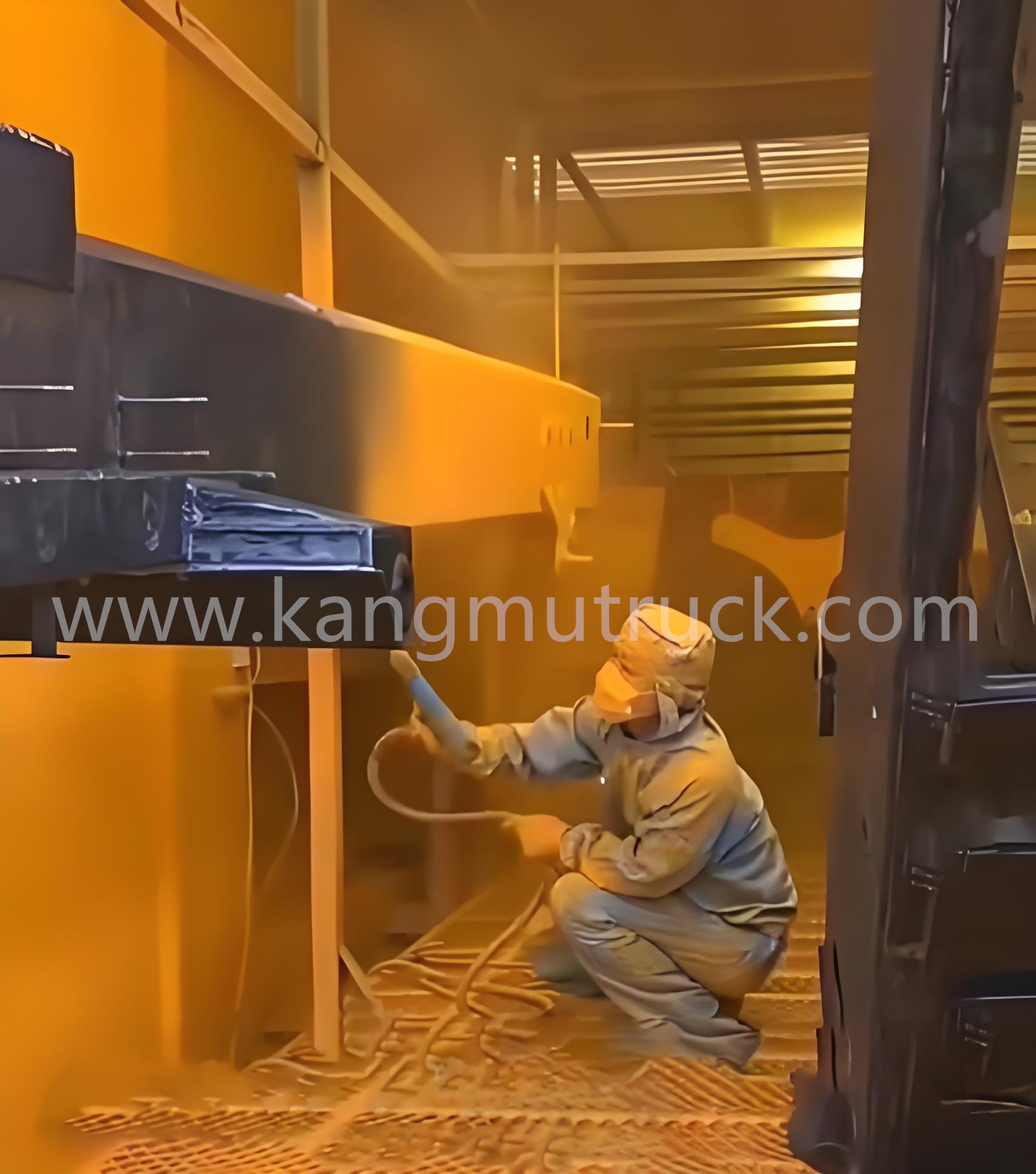

1745464459390174546450006313174546452610121745464554867场景 (2)
