QL1250FNFZY
KANGMU

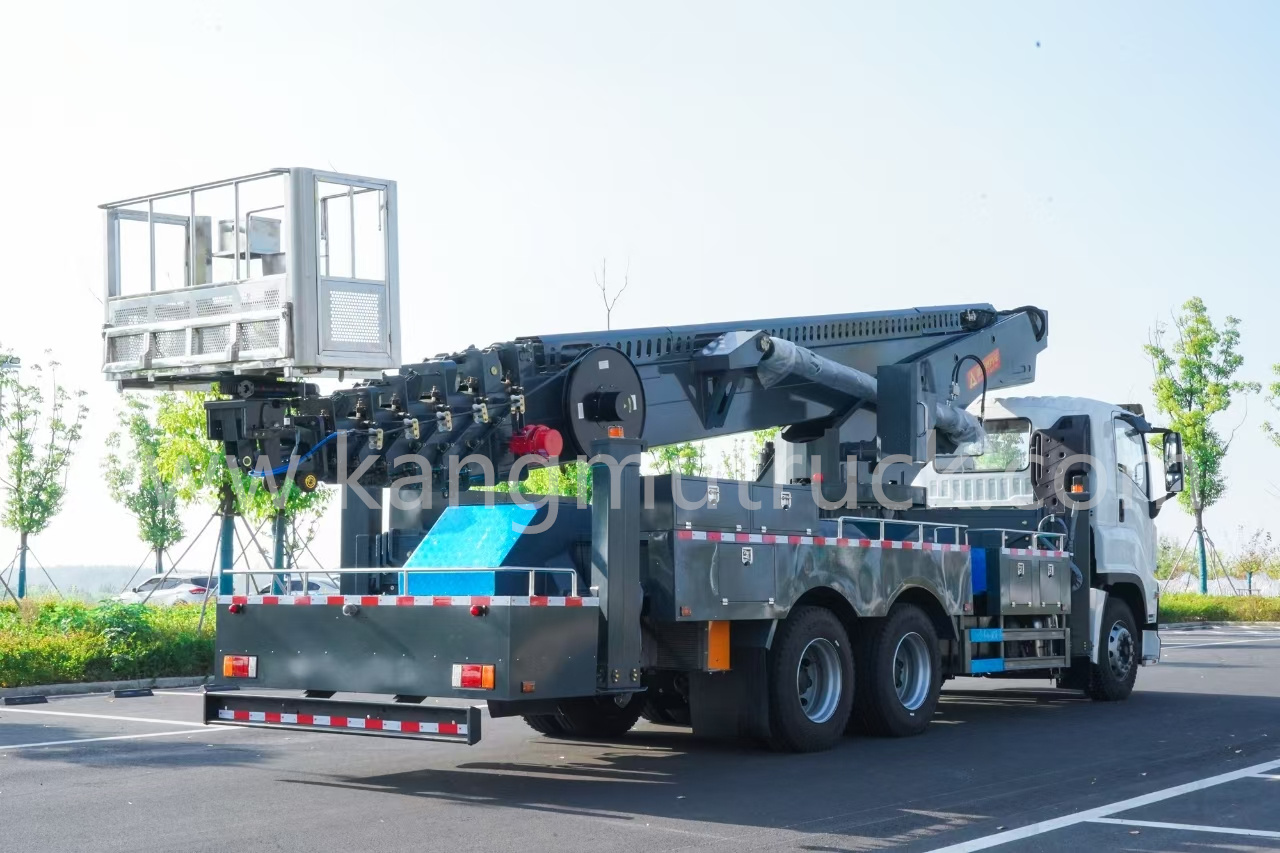

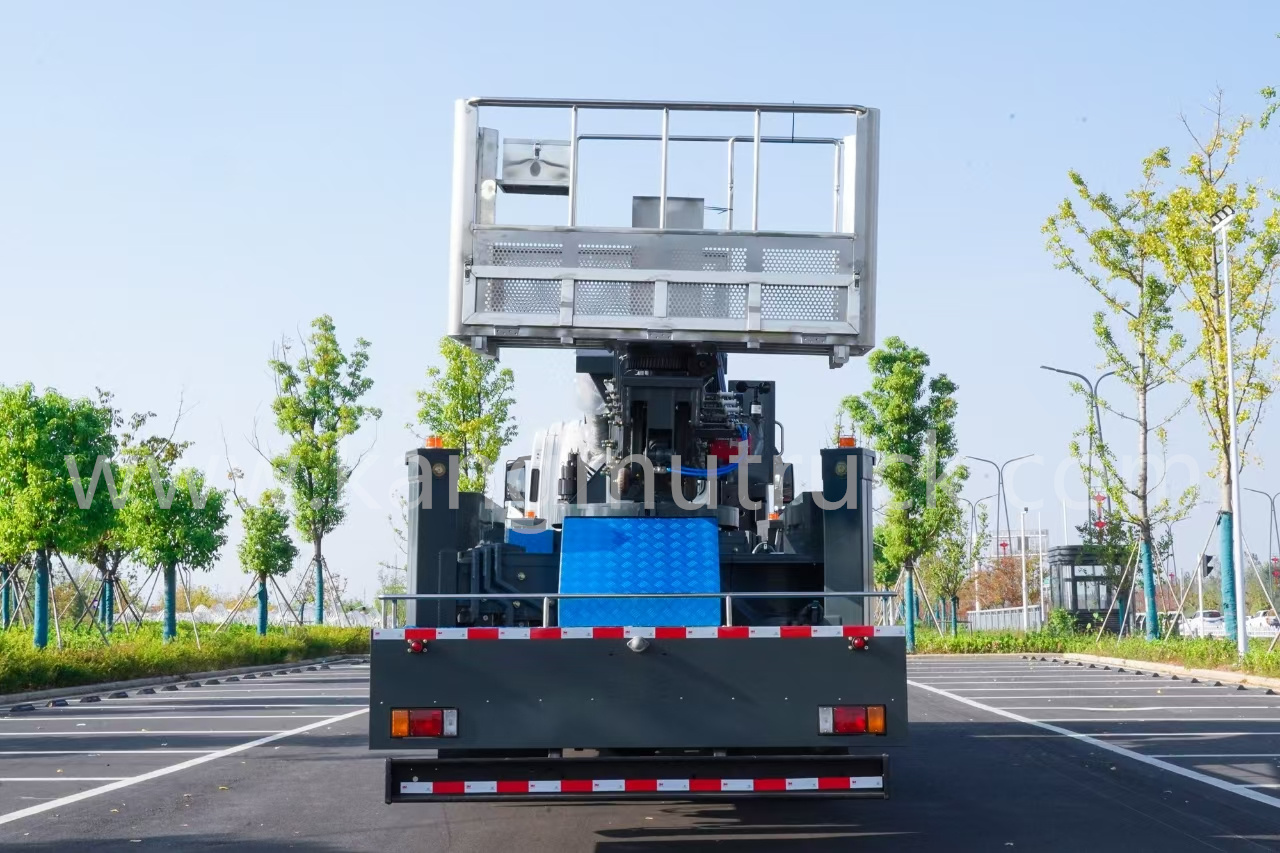

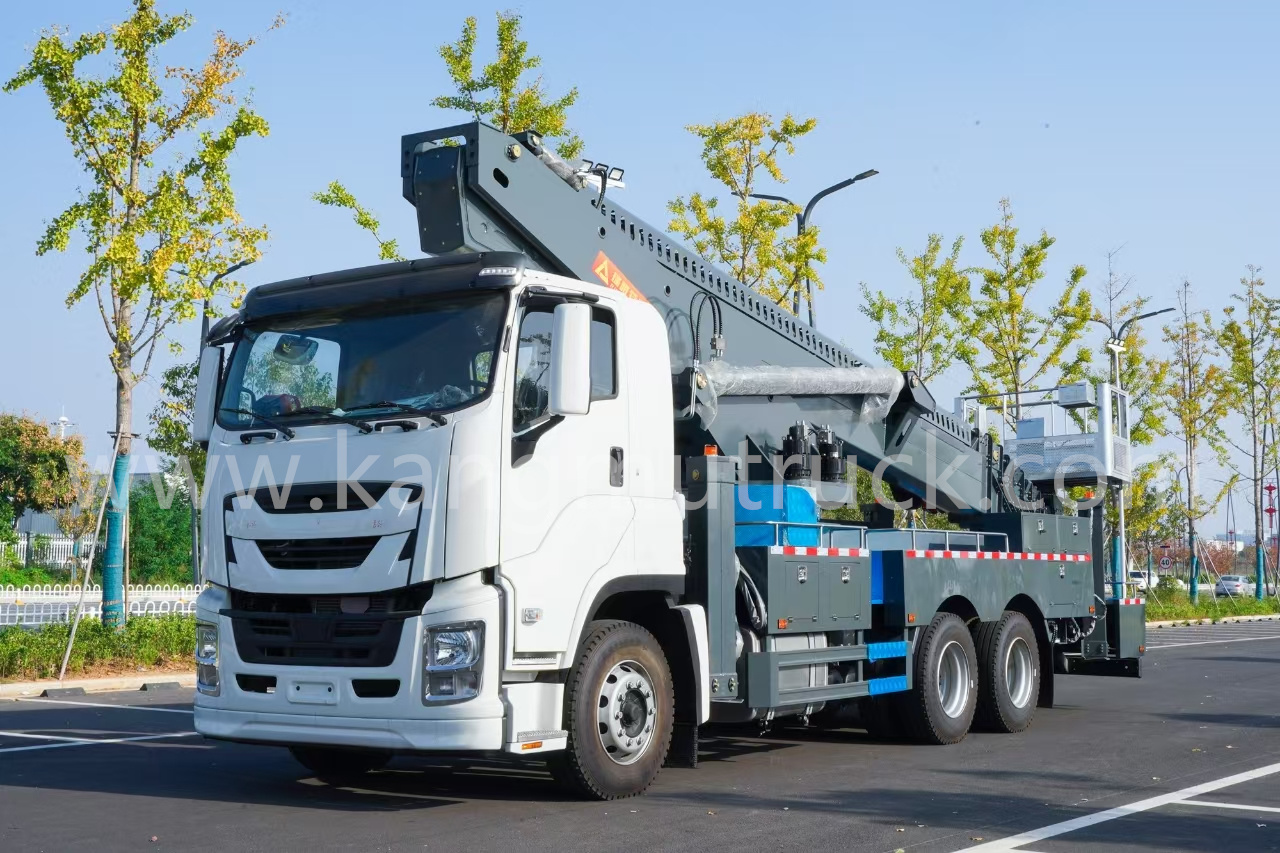

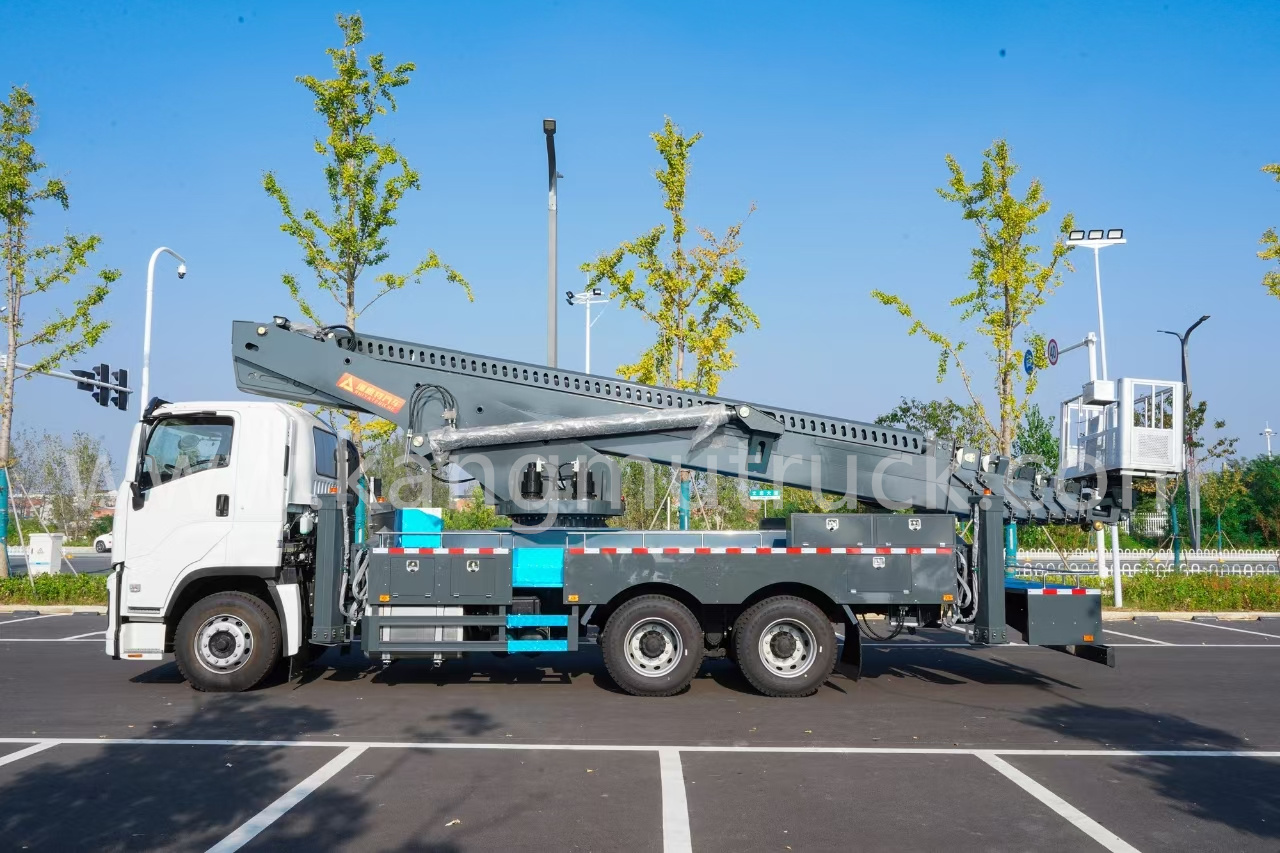

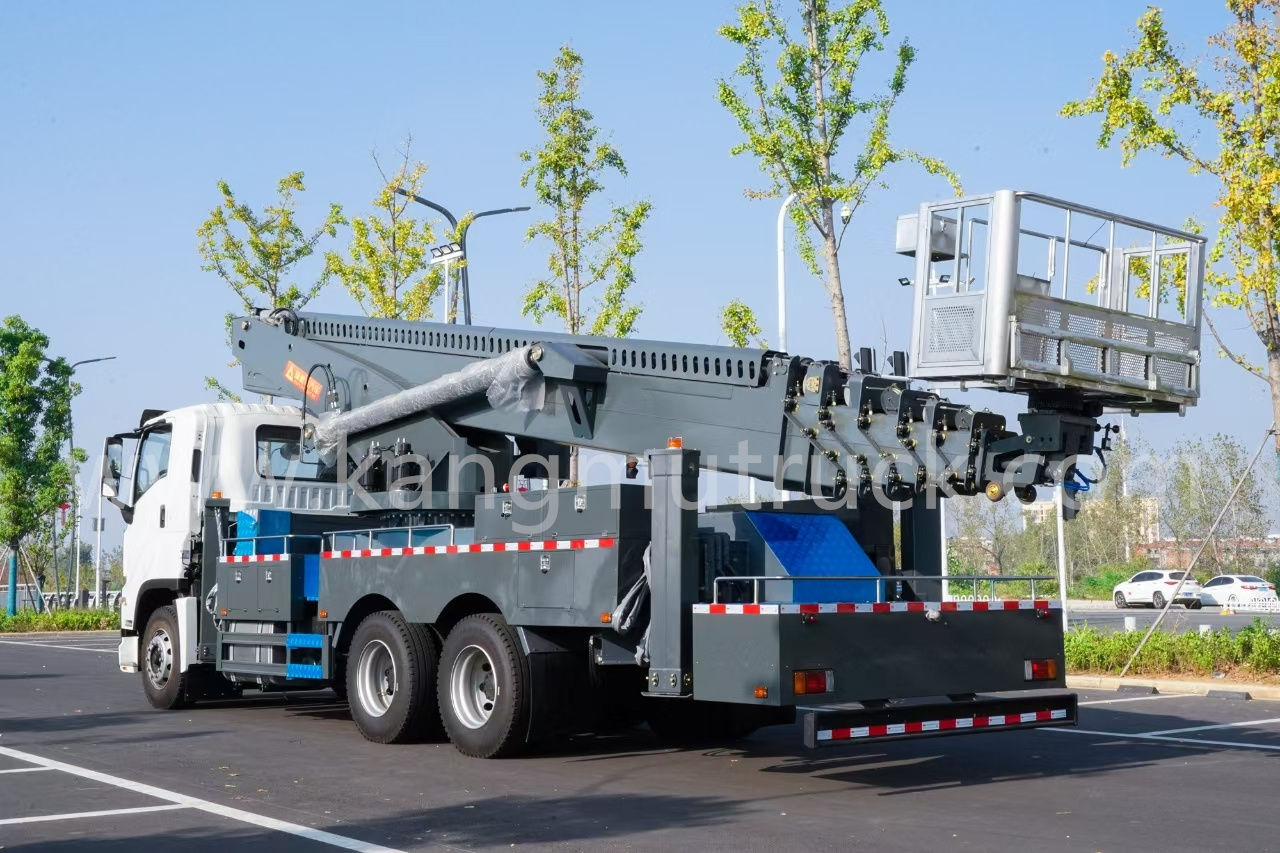

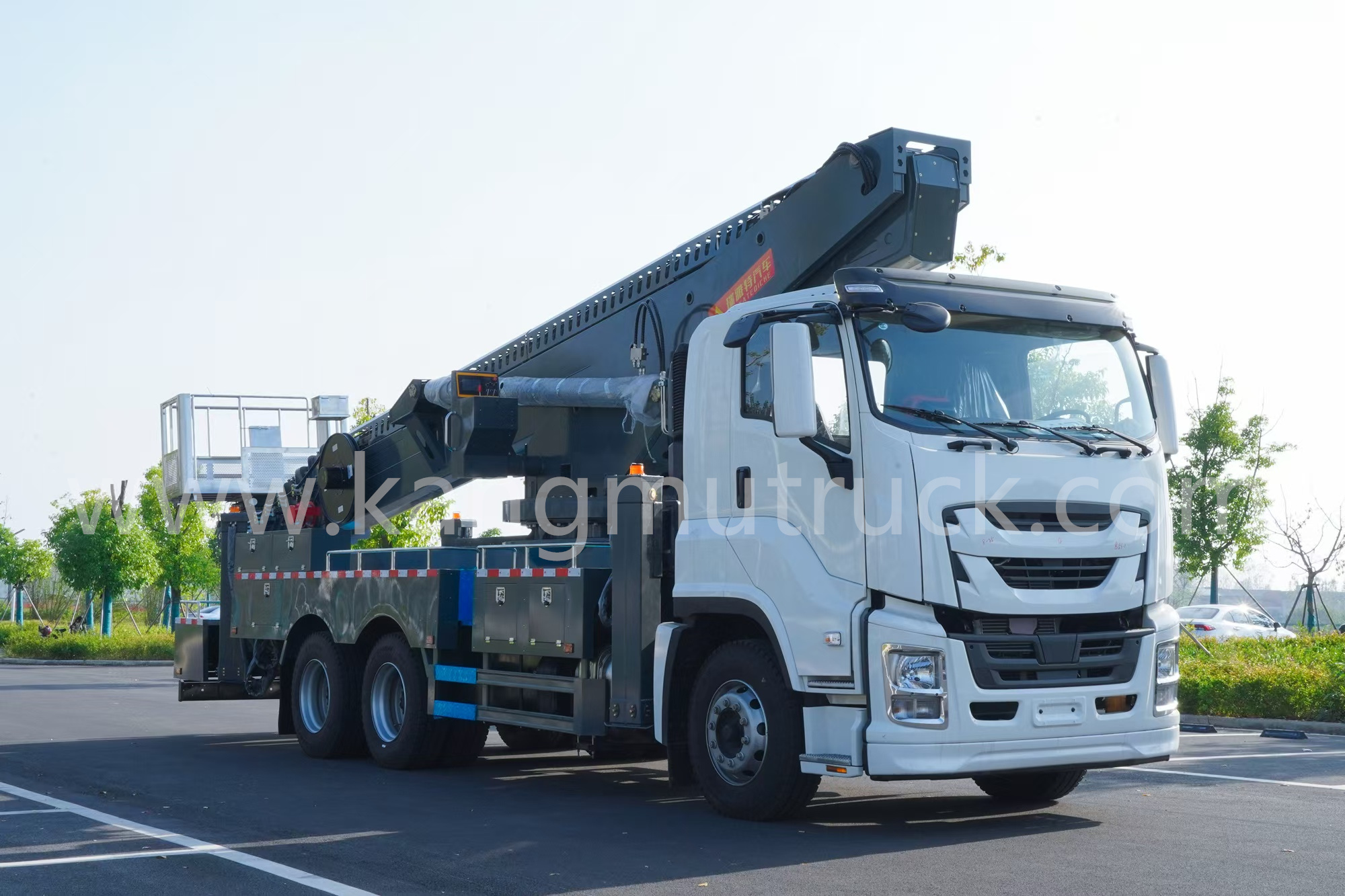

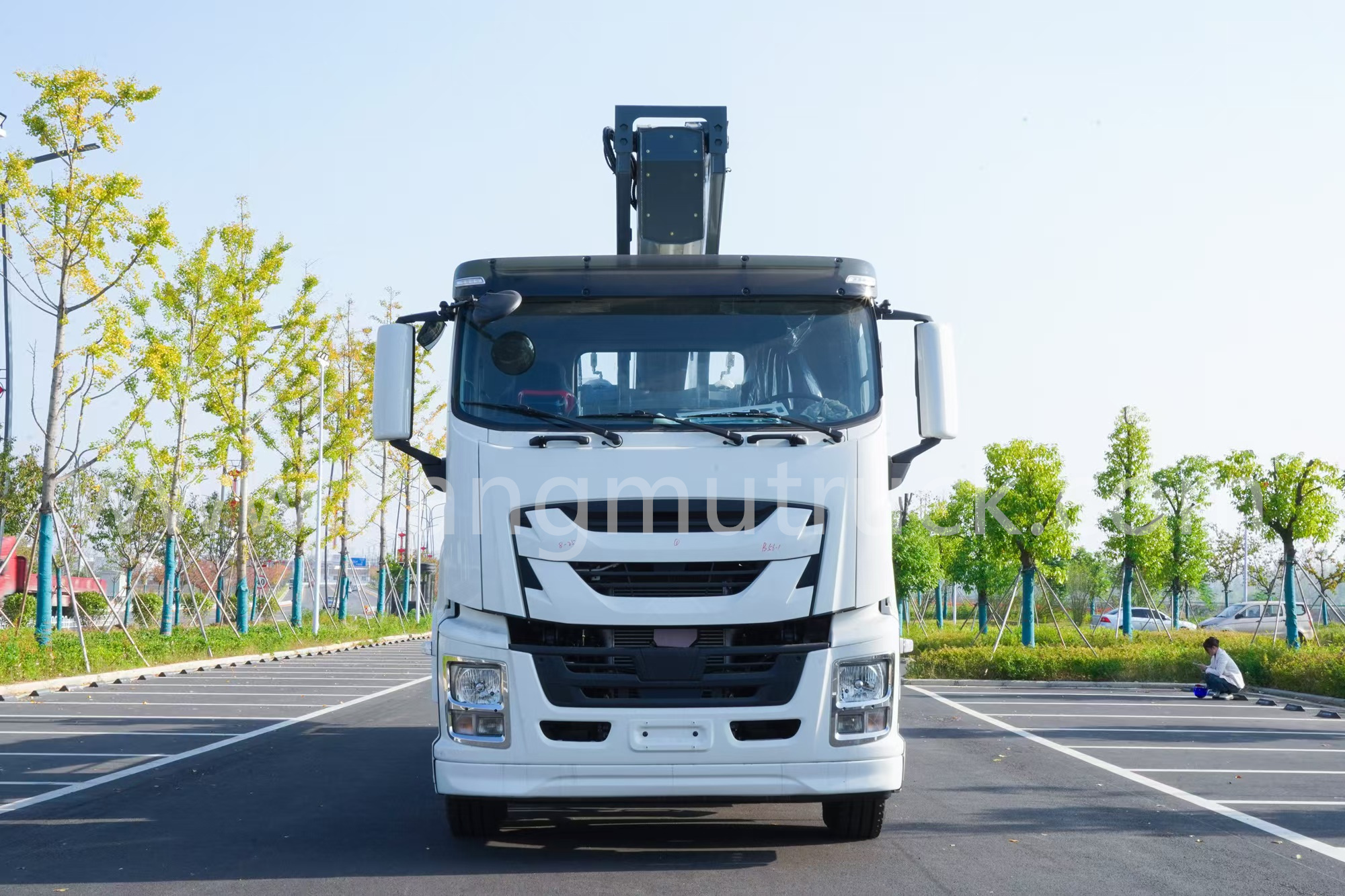

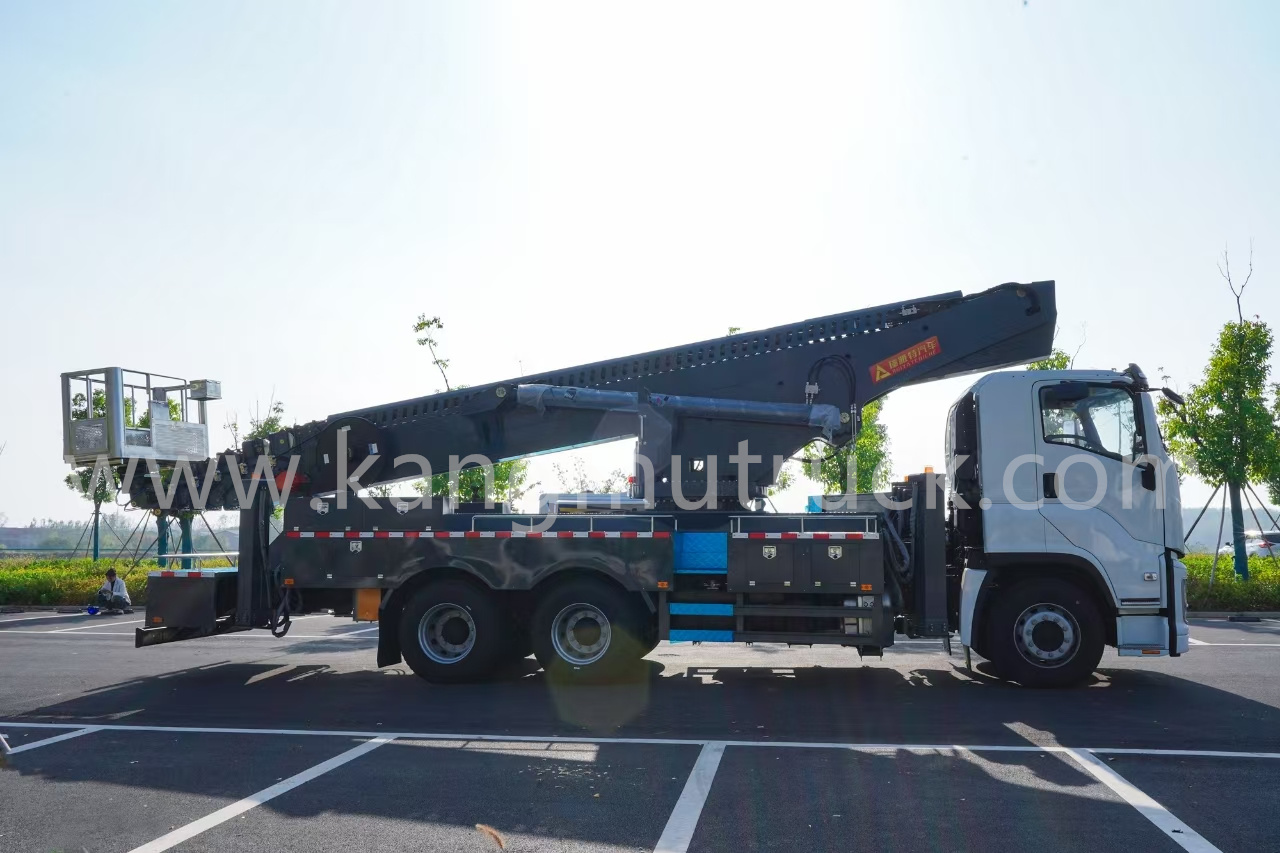

ISUZU 56-meter aerial lift truck
Item | Data | |
size parameter | 11500*2550*4020mm | |
Number of passengers allowed | 3 | |
Total mass | 11995KG | |
working platform load rating | 400KG | |
MAX. operating height | 56M | |
MAX. operating range | 29M | |
outrigger span | Transverse direction | 8600mm |
Longitudinal direction | 9400mm | |
work platform rotation | 360° | |
Arm amplitude change time | 100≤t≤120s | |
Arm extension time | 110≤t≤130s | |
Arm rotation speed | 120≤t≤160s/r | |
Leg extension and retraction time | 60≤t≤90s | |
Front overhang | 1155mm | |
Rear overhang | 3185mm | |
wheelbase | 4350+1370mm | |
Max driving speed | 100km/h | |
Min ground clearance | 450mm | |
Approach angle | 20° | |
Departure angle | 9° |
Component Name | Brief description |
Chassis | (ISUZU) QL1250FNFZY |
Engine | 6HK1-TcG60 7.79L(Displacement) 221Kw 300ps |
Cabin Configuration | New Isuzu 5x Vc61 cabin, air conditioning, heating, power steering, central locking, electric windows, multi-function steering wheel, multi-function liquid crystal instrument panel, with ABS, air brake. |
Fence And Walkway Board | Stainless steel fence, aluminum alloy anti slip walkway board |
Power Take-Off System | pneumatic power take-off |
Working Platform | 2000 × 700 × 1000mm (The size of the hanging basket can be customized according to customer requirements) |
Arm Form | Nine section fourteen sided synchronous telescopic arm |
Rotator | 360° continuous rotation |
Outrigger | Front V-shaped and rear V-shaped three legged support, individually adjustable and synchronously extendable |
Operate | Fixed operation of the turntable, wireless remote control box operation, hydraulic handle operation of the vehicle, equipped with an electric emergency pump, the entire vehicle can achieve full hydraulic electric emergency operation. |
Control System | Ruiyate self-developed high-altitude vehicle control system with strong stability |
Leveling System | Hydraulic automatic leveling |
Chain Extension Force Balance | Set up a balance mechanism for extending the rope to ensure that the force on the left and right steel wire ropes is balanced |
Leg Soft Leg Detection | Real-time detection of the leg force state, once the leg is detected loose alarm limit movement |
Get On And Off Automatic Interlocking Device | Automatic realization of up and off interlock, prevent on and off the operation at the same time, to achieve safety protection |
Emergency Electric-Hydraulic Pump | send the staff back to the ground when the chassis engine or hydraulic main pump fails Face |
Emergency Stop Device | Three emergency stop devices to ensure that all operations are stopped in an emergency |
Automatic Limit | Ensure that the whole vehicle operates within a safe range of operation |
Complete Vehicle Level Status Tester | It can detect the vehicle in both transverse and longitudinal directions |
Engine Ignition And Flameout | The turntable and remote control box can ignite and flameout control of the engine |
Composite Move | you can do combined movements at the same time, such as platform rotation, platform rotation, and the amplitude of the boom and telescopic |
Broken Chain Protection Device | The balance mechanism is set to ensure the balance of the left and right wire rope |
Emergency Operation Function | In emergency situations, restore vehicle movement to ensure that personnel can be safely transported back to the ground in dangerous working conditions |
