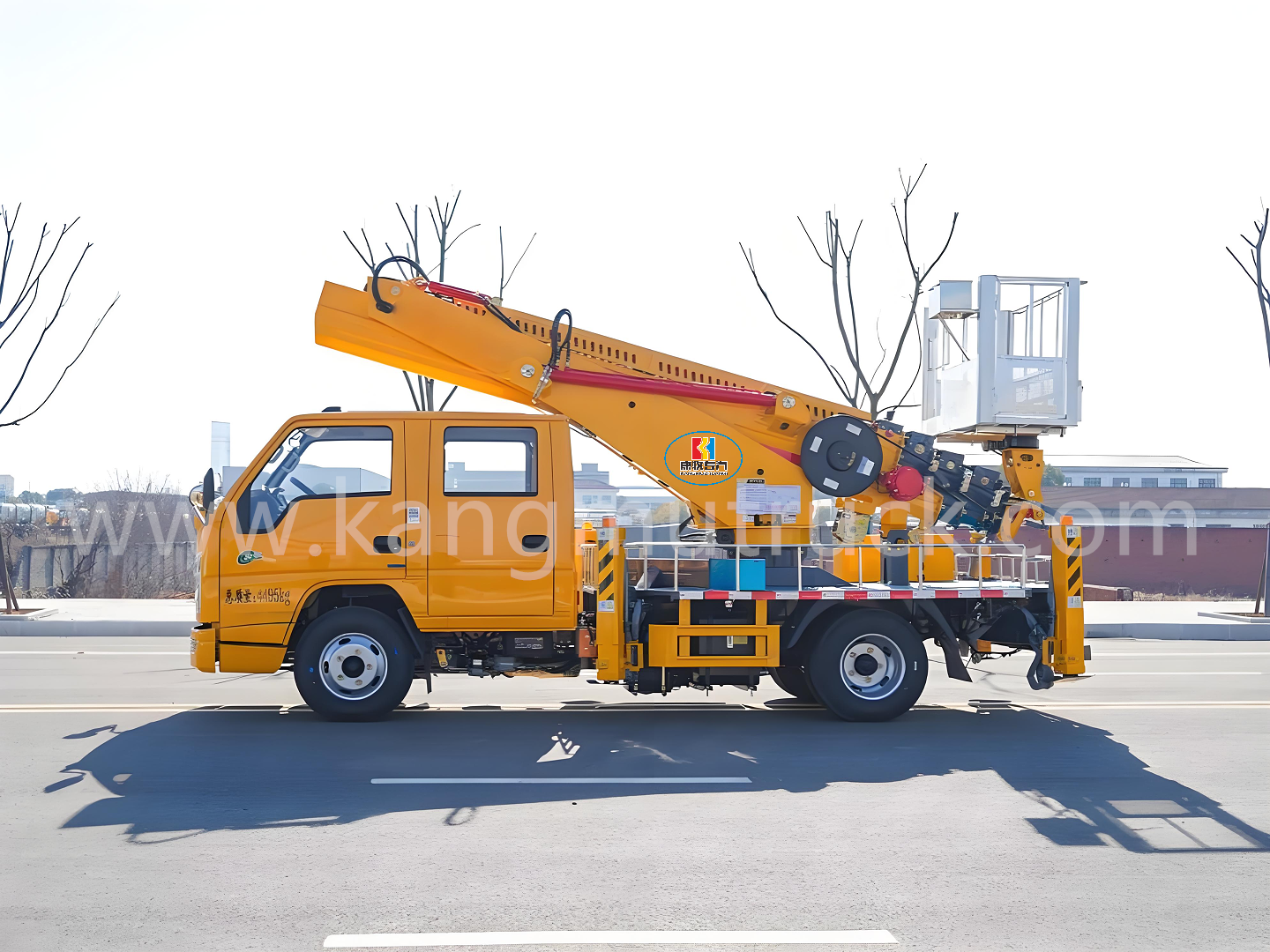

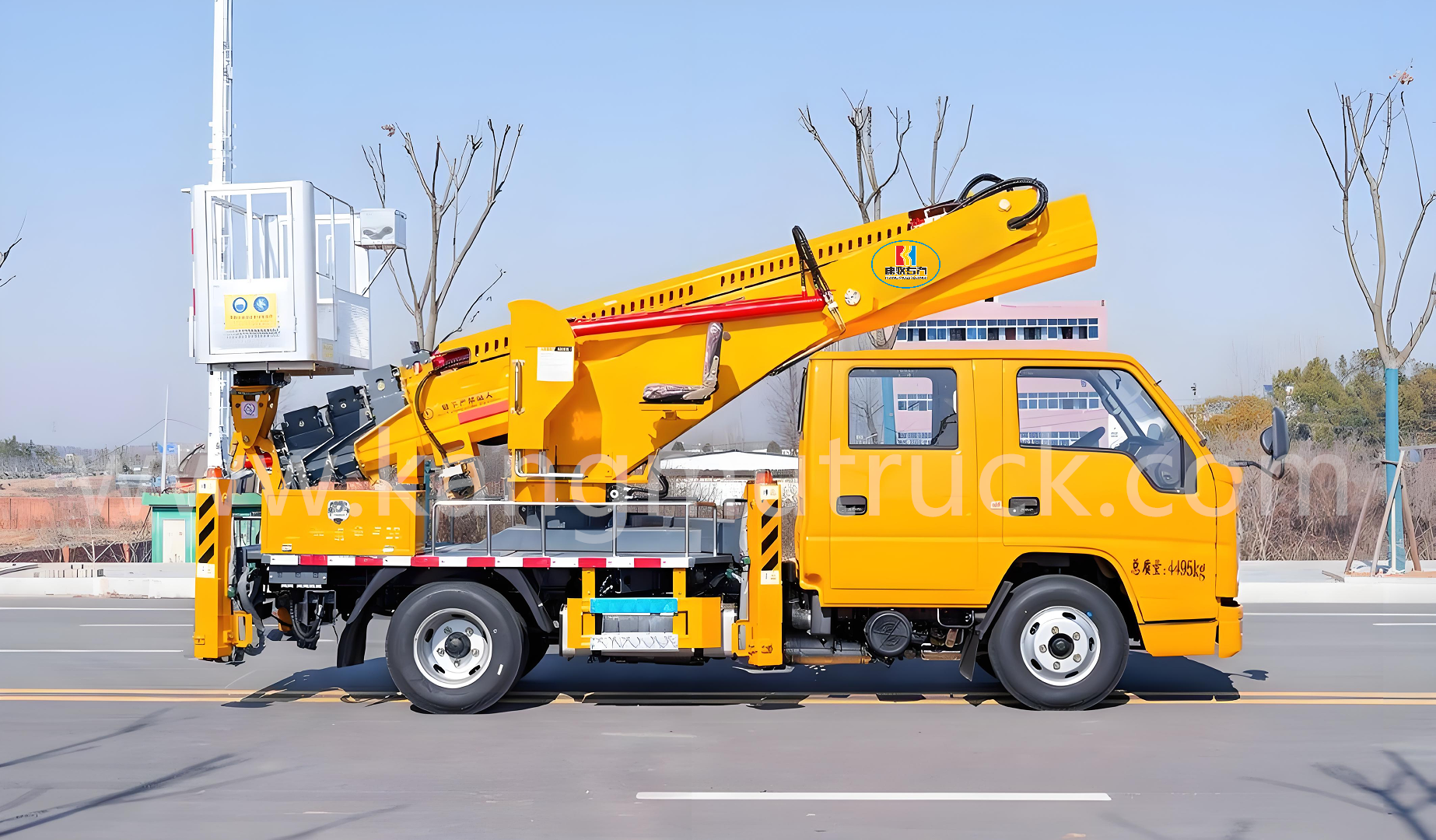

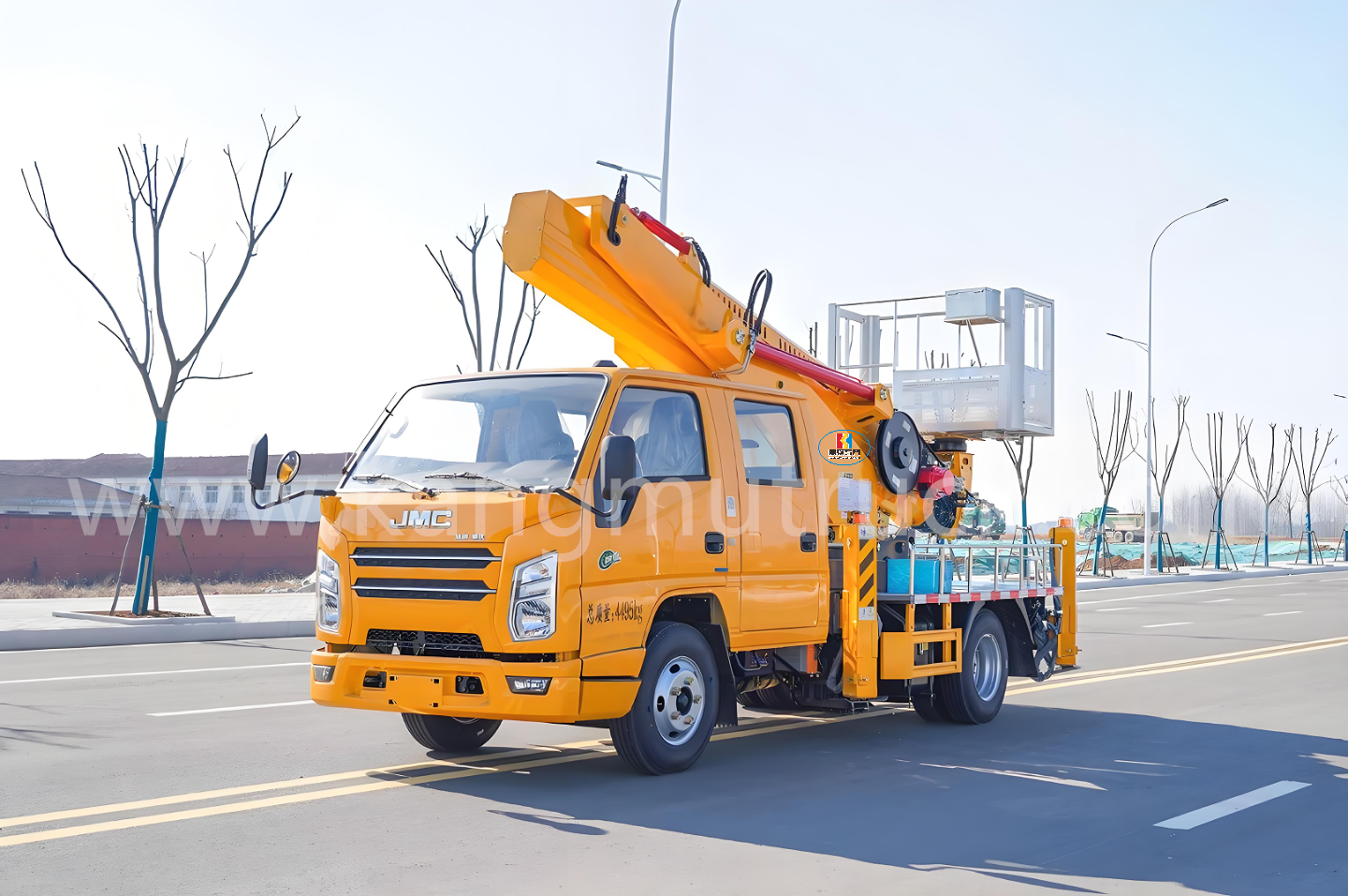

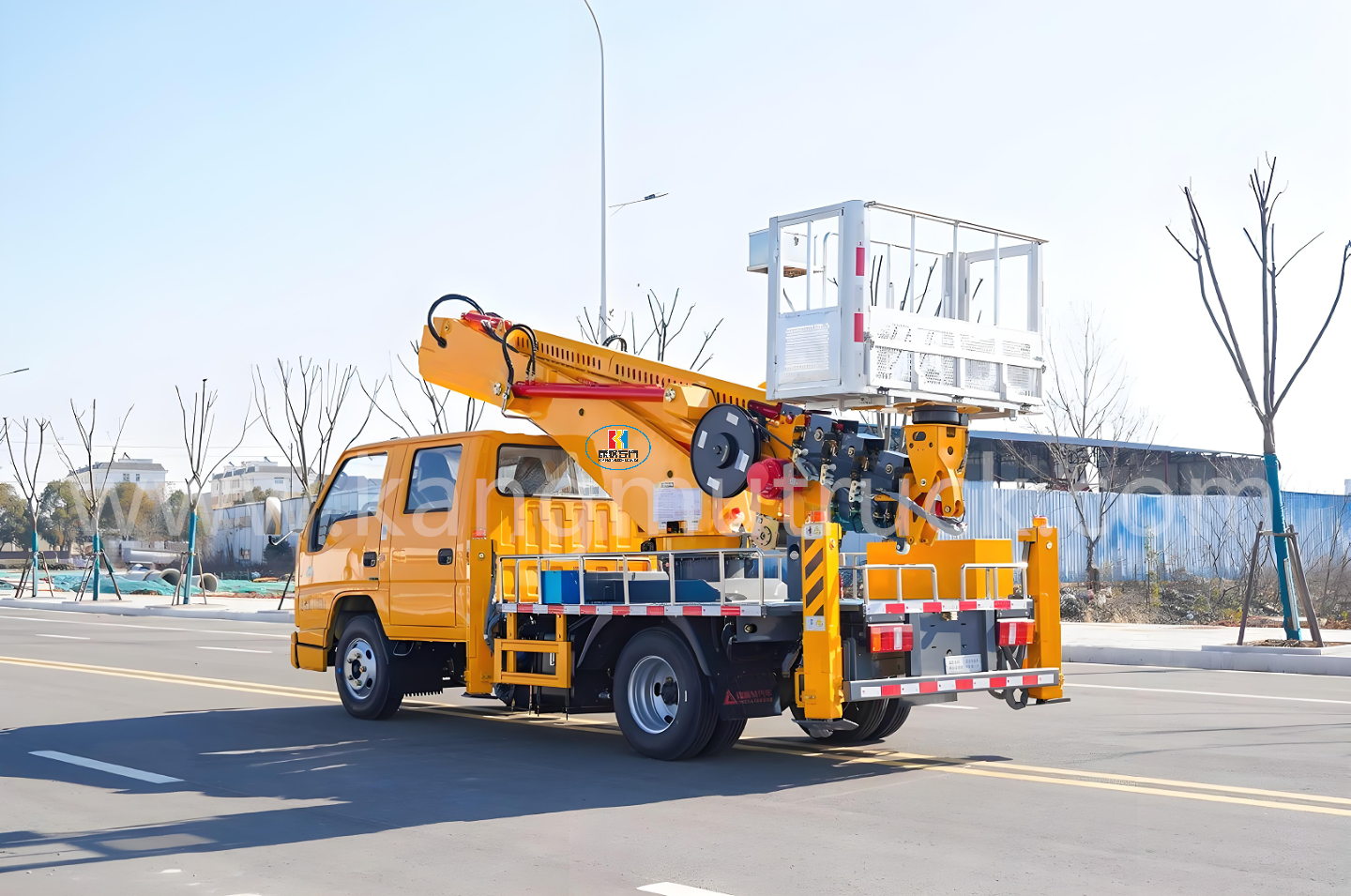

JMC Shunda 23-Meter Double-Row-Seat Aerial Lift Truck

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: JMC Shunda 23-Meter Double-Row-Seat Aerial Lift Truck
  • Keywords: Aerial Lift Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:
Inquire Add to Basket

JMC Shunda 23-Meter Double-Row-Seat Aerial Lift Truck


Category Item Unit Data
Dimensional Parameters Overall Length mm 5995



Overall Width mm 2080
Overall Height mm 3050
Mass Parameters Number of Occupants (including driver) person 5
Gross Mass kg 4495

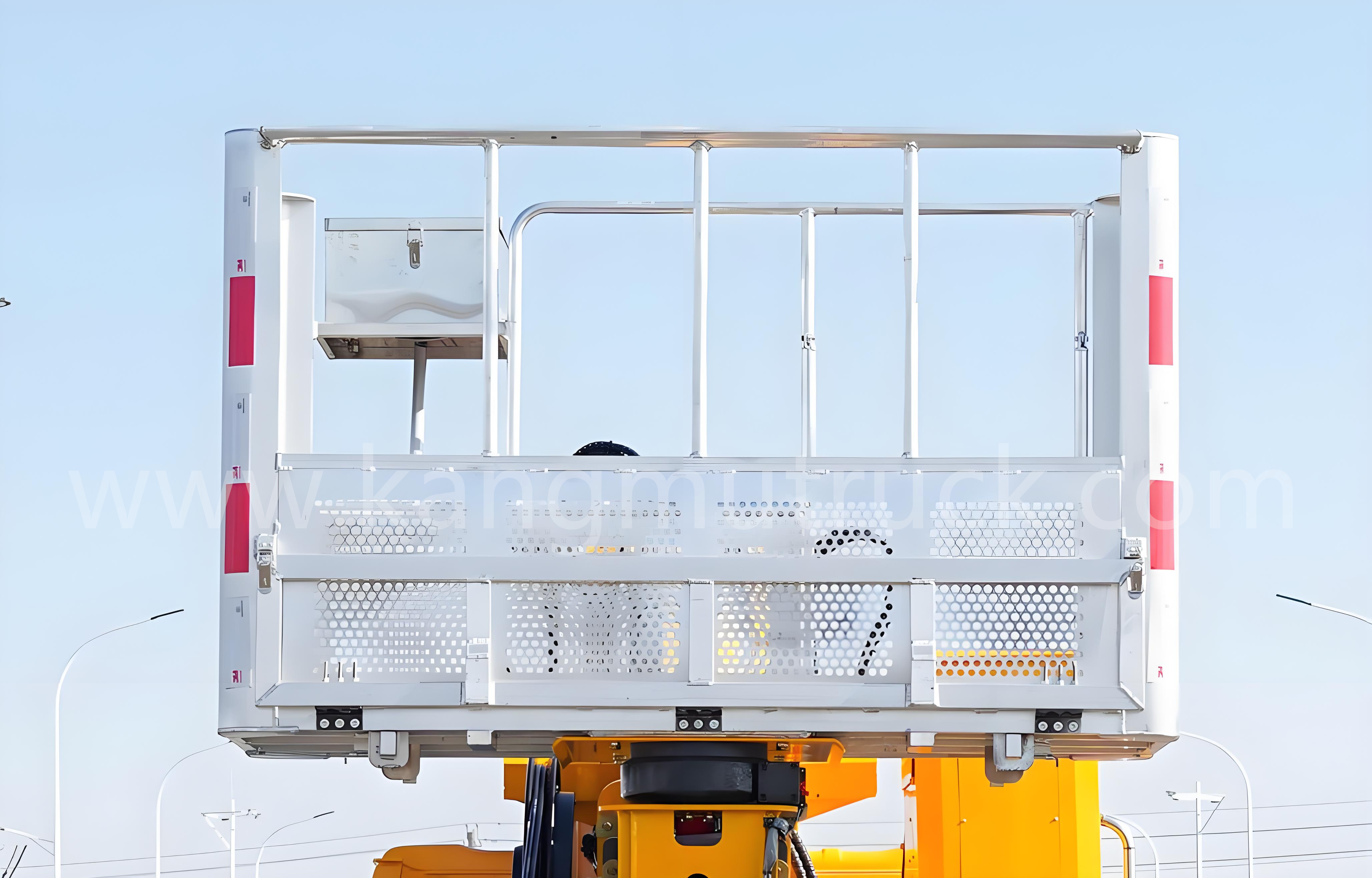

Main Performance Parameters Rated Load of Work Platform kg 200

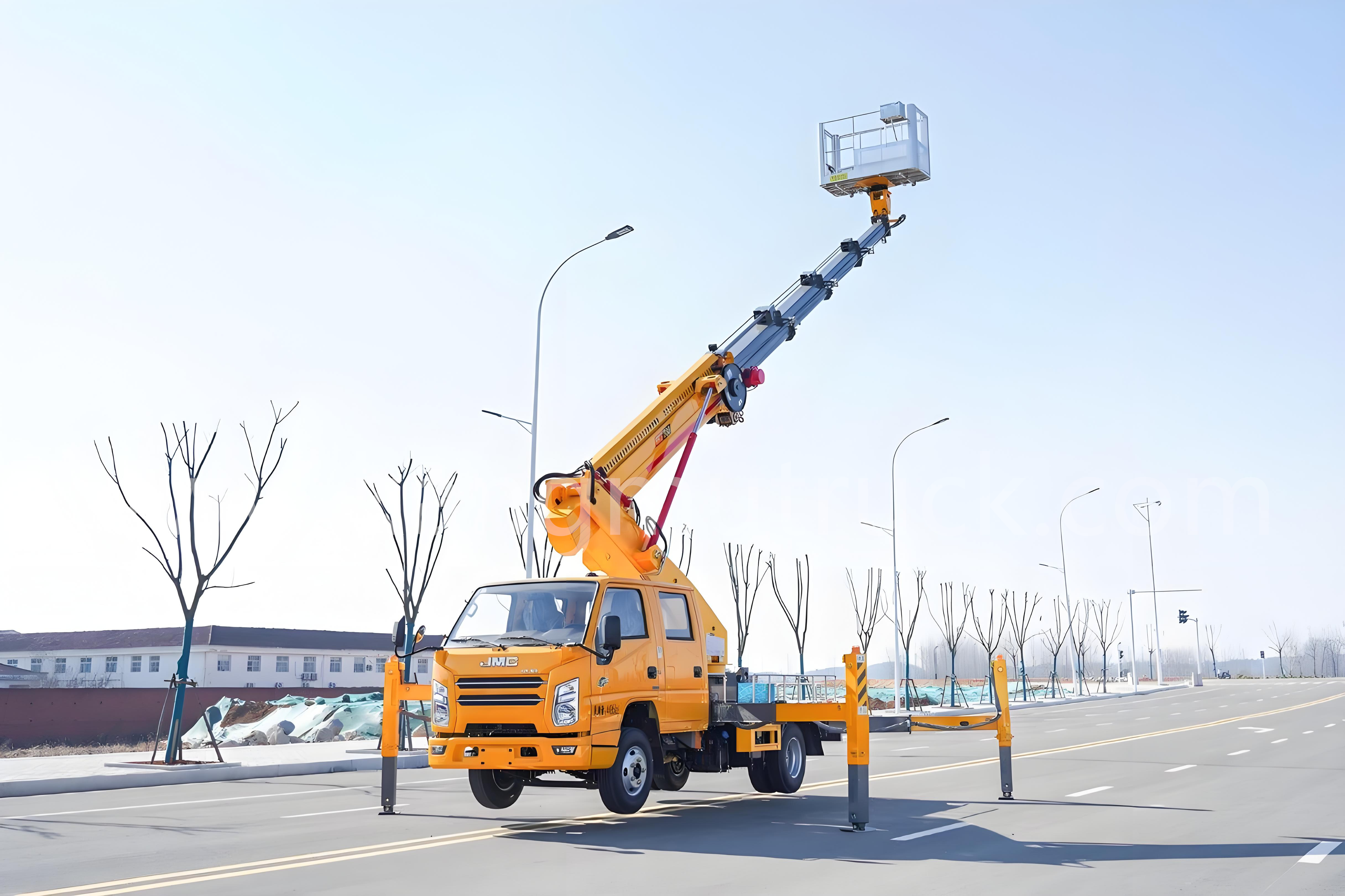

Maximum Working Height m 23
Working Range at Maximum Working Height m 4

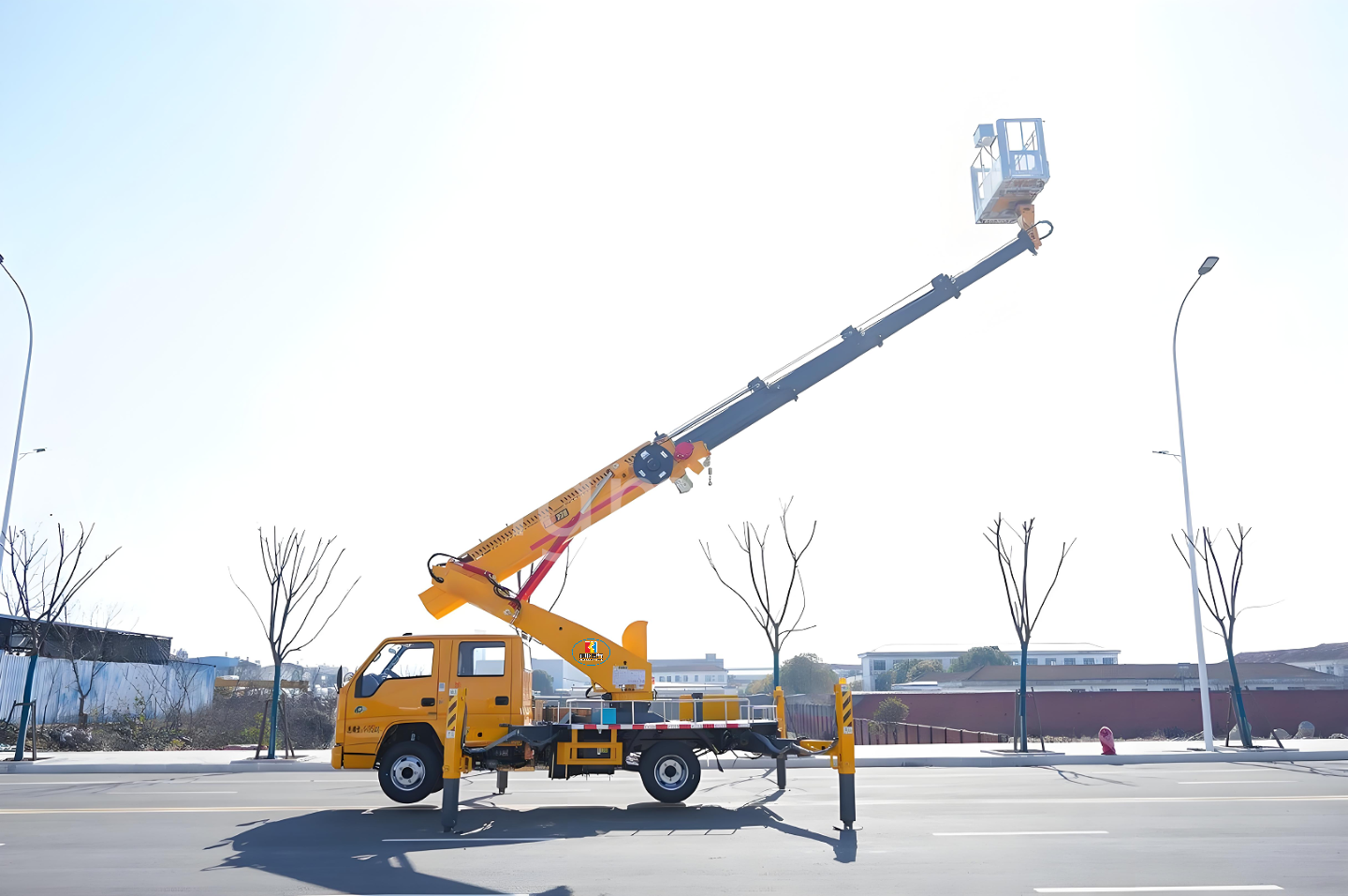

Maximum Working Range m 17
Working Height at Maximum Working Range m 5
Outrigger Span Transverse mm 5500
Outrigger Span Longitudinal mm 4500
Work Platform Rotation ° 360
Boom Luffing Time s 40 ≤ t ≤ 50
Boom Telescoping Time s 50 ≤ t ≤ 60
Boom Rotation Speed s/r 120 ≤ t ≤ 130
Outrigger Deployment and Retraction Time s 40 ≤ t ≤ 50
Travel Parameters Front Overhang mm 1075
Rear Overhang mm 1560
Front Extension mm /
Rear Extension mm /
Wheelbase mm 3360
Maximum Travel Speed km/h 100
Minimum Ground Clearance mm 340
Approach Angle ° 20
Departure Angle ° 13

4月21日(1)4月21日(3)4月21日(2)17453040694984月21日(4)17453040947984月21日1745304137496
