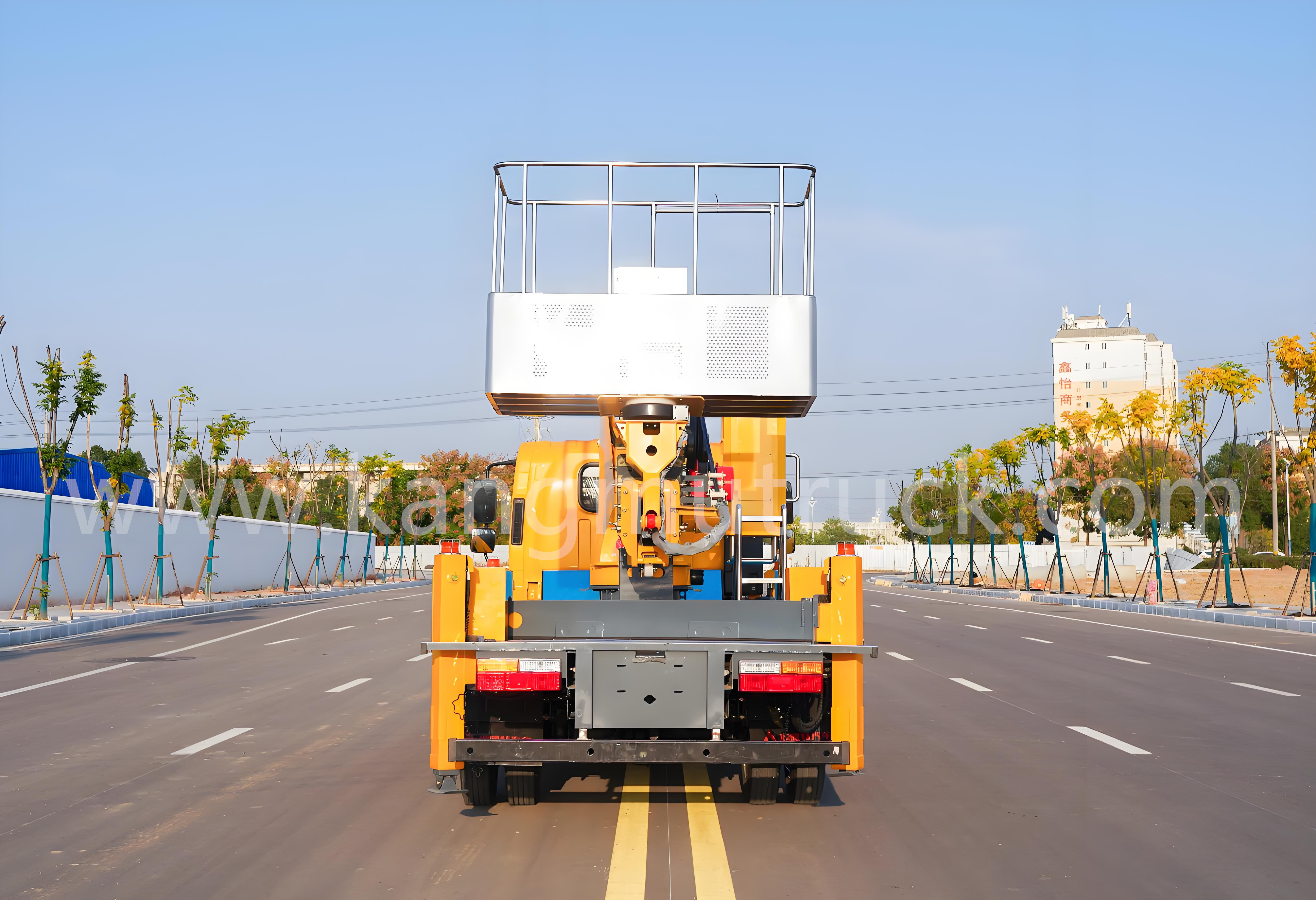

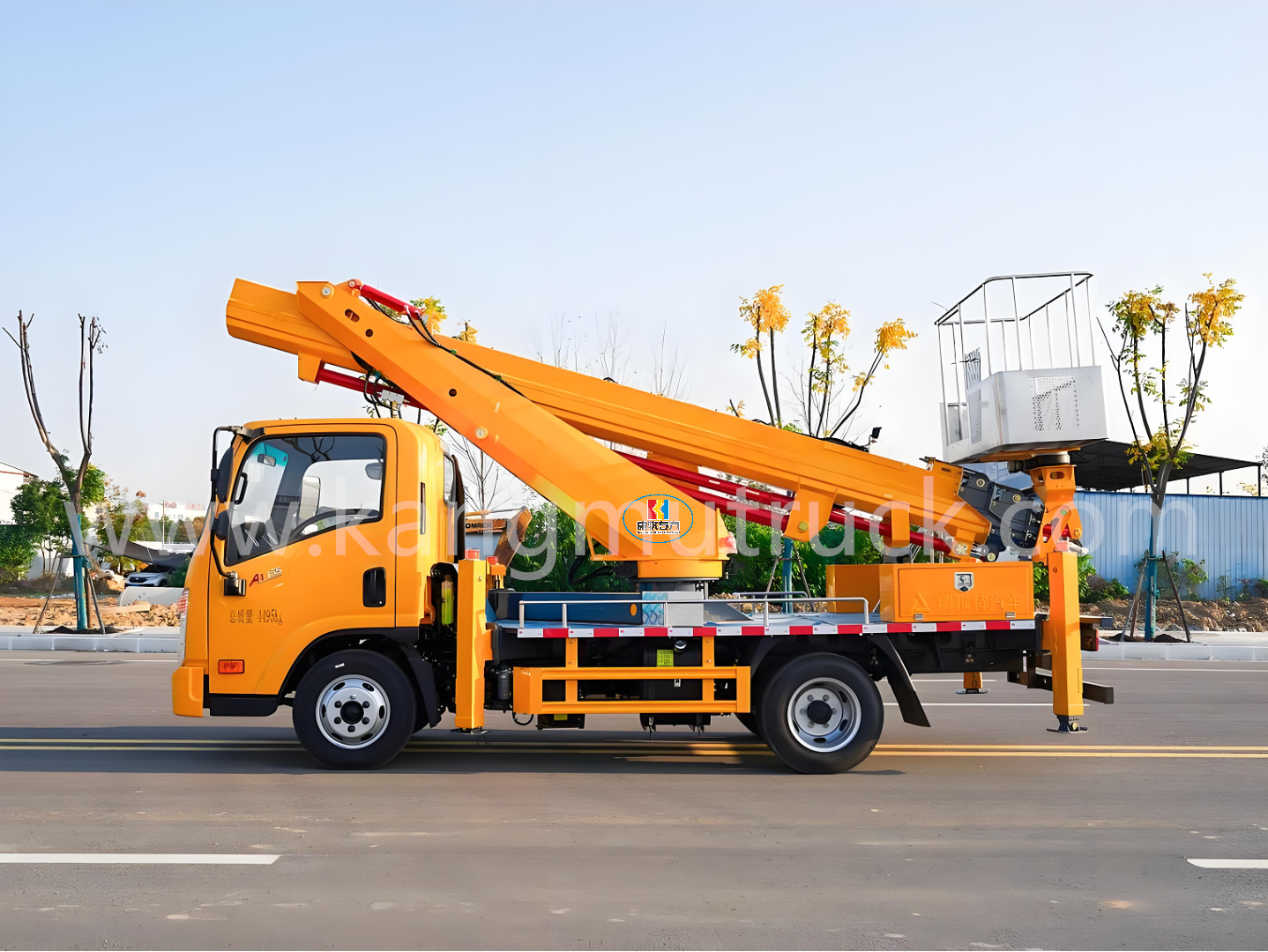

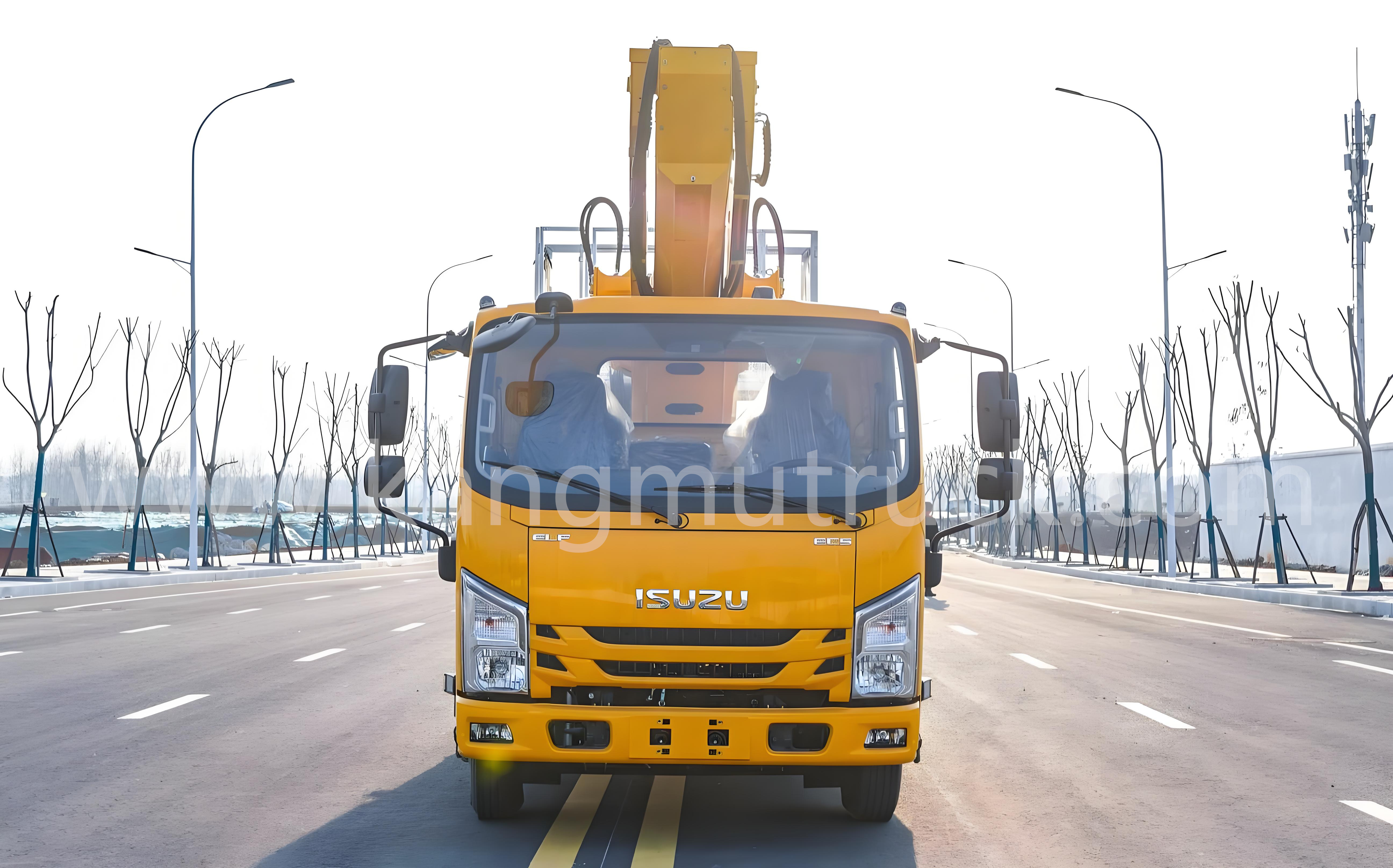

ISUZ 23-meter Arial Lift Truck

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: ISUZ 23-meter arial lift truck
  • Keywords: Aerial Lift Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:
Inquire Add to Basket

ISUZ 23-meter arial lift truck


Main Technical Parameters of Aerial Work Platforms
Category Project Unit Data
Dimensions Parameters Overall length mm 6400
Overall width mm 2080
Overall height mm 3120
Mass Parameters Number of passengers (including driver) person 3
Gross mass kg 4495

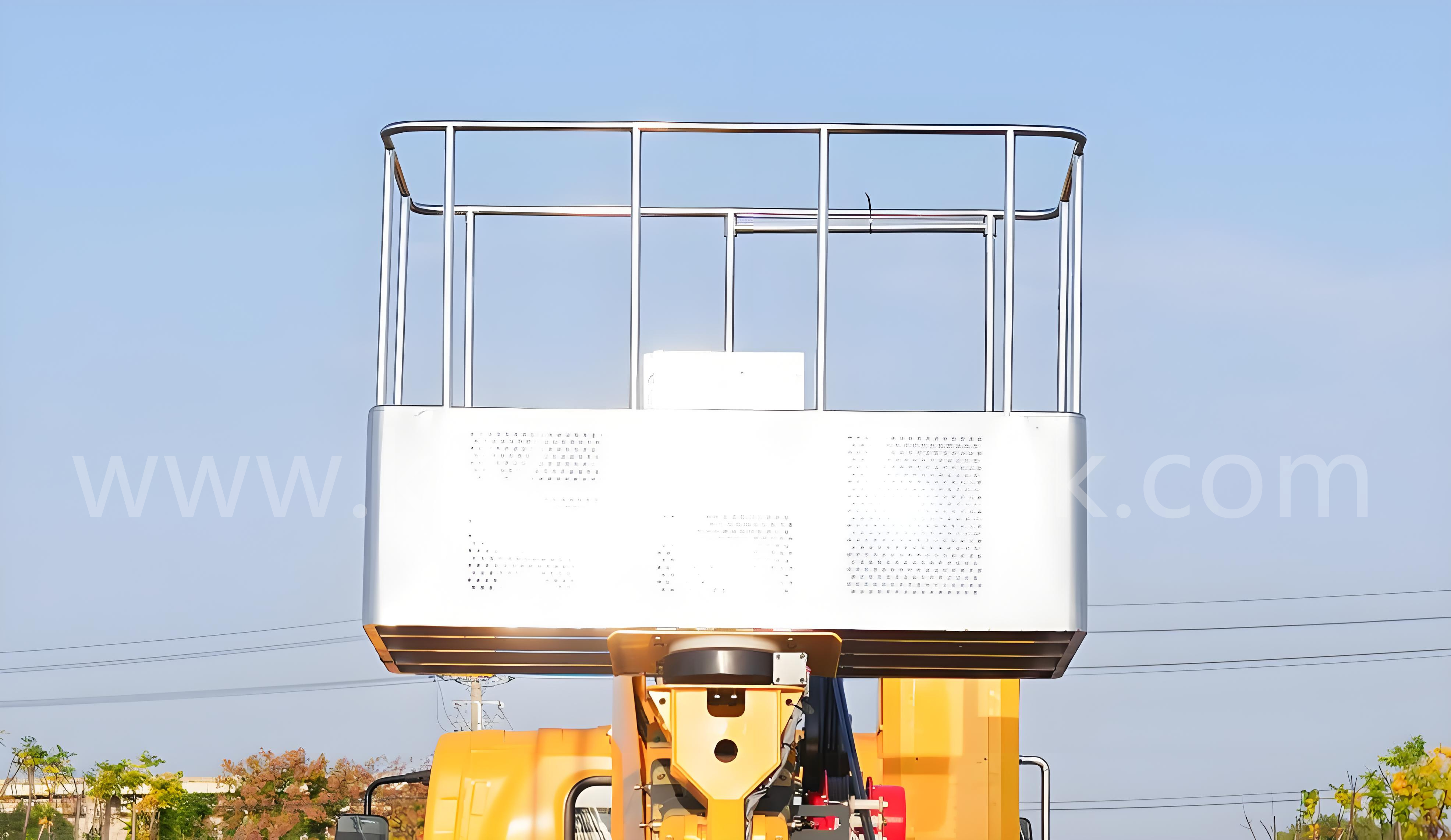

Main Performance Parameters Rated load of work platform kg 200
Maximum working height m 23
Maximum working radius m 16
Outrigger span - Transverse mm 4400
Outrigger span - Longitudinal mm 5000
Work platform rotation ° 360
Boom luffing time s 60 ≤ t ≤ 80
Boom telescoping time s 70 ≤ t ≤ 90
Boom slewing speed s/r 120 ≤ t ≤ 160
Outrigger retraction time s 50 ≤ t ≤ 60
Driving Parameters Front overhang mm 1090
Rear overhang mm 1950
Front reach mm /
Rear reach mm /
Wheelbase mm 3360
Maximum driving speed km/h 90
Minimum ground clearance mm 380
Approach angle ° 18
Departure angle ° 14

11745215757354174521578586717452158818711745215591293217452158508061745216065538

Previous:
Next:
Special Van Truck Aerial Lift Truck Lift Truck operation truck Special truck

Related Products

Refueling LPG Tanker Fuel Transport Truck
Refueling LPG Tanker Fuel Transport Truck
Dongfeng KR Medical Waste Treatment Truck
Dongfeng KR Medical Waste Treatment Truck
Dongfeng Dolica Street Sweeper Truck
Dongfeng Dolica Street Sweeper Truck
Dongfeng 6x4 Dust Suppression Truck
Dongfeng 6x4 Dust Suppression Truck
Feeds Farm Use Water Purification Truck
Feeds Farm Use Water Purification Truck
25 Ton Dump Truck with 10 Wheels
25 Ton Dump Truck with 10 Wheels
HOWO 8x4 Truck With Crane Dump Truck Cargo Flatbed Truck
HOWO 8x4 Truck With Crane Dump Truck Cargo Flatbed Truck
10 Cubic Meters Mixer Truck Concrete Mixer Truck
10 Cubic Meters Mixer Truck Concrete Mixer Truck

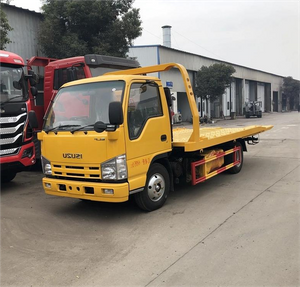

4x2 Isuz Wrecker Truck Road Recovery Truck
4x2 Isuz Wrecker Truck Road Recovery Truck
Dongfeng 13m Aerial Lift Truck
Dongfeng 13m Aerial Lift Truck

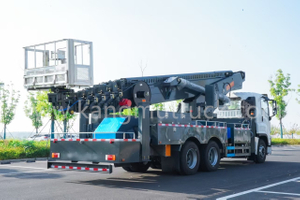

ISUZU 56-meter Aerial Lift Truck
