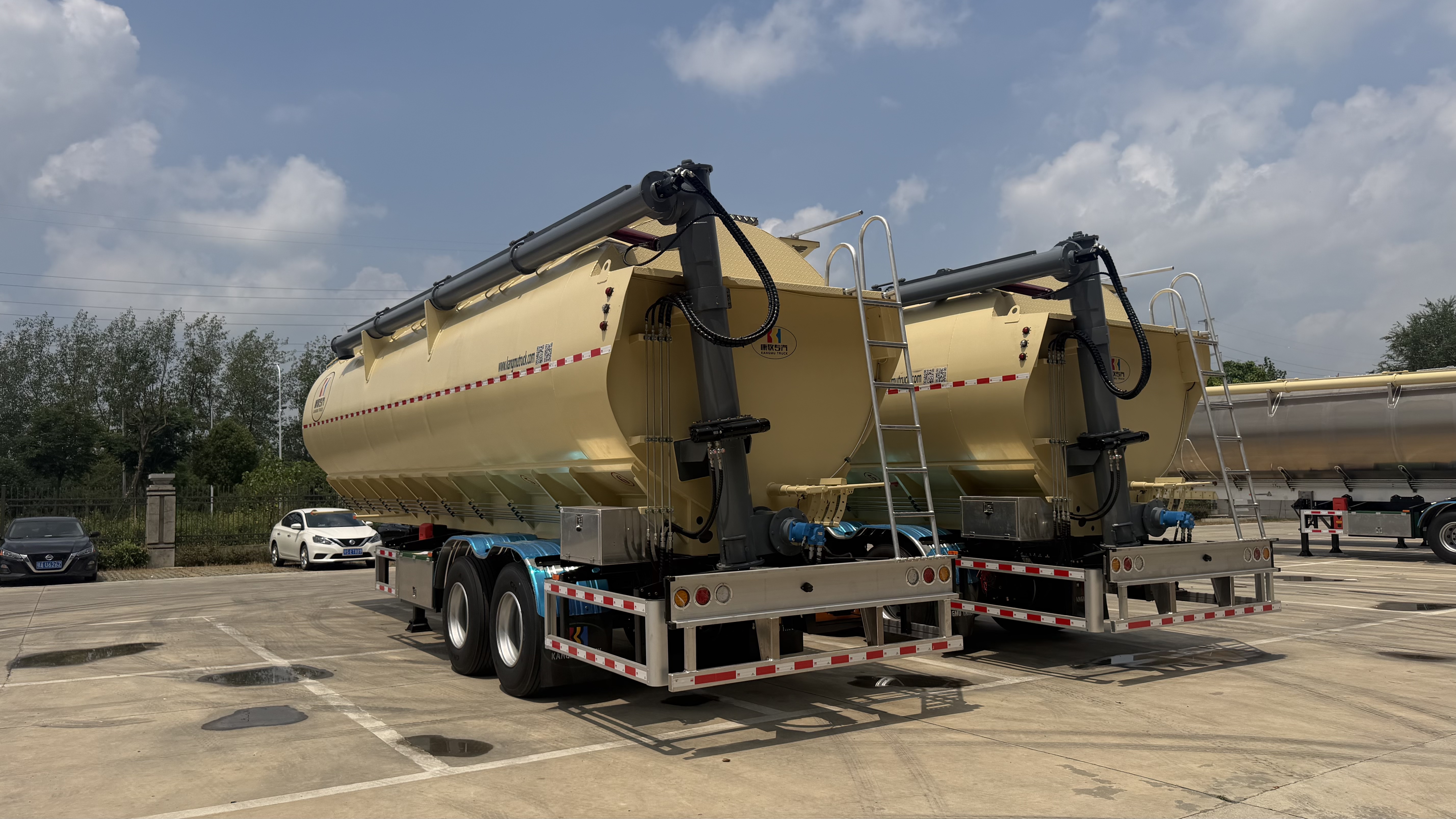

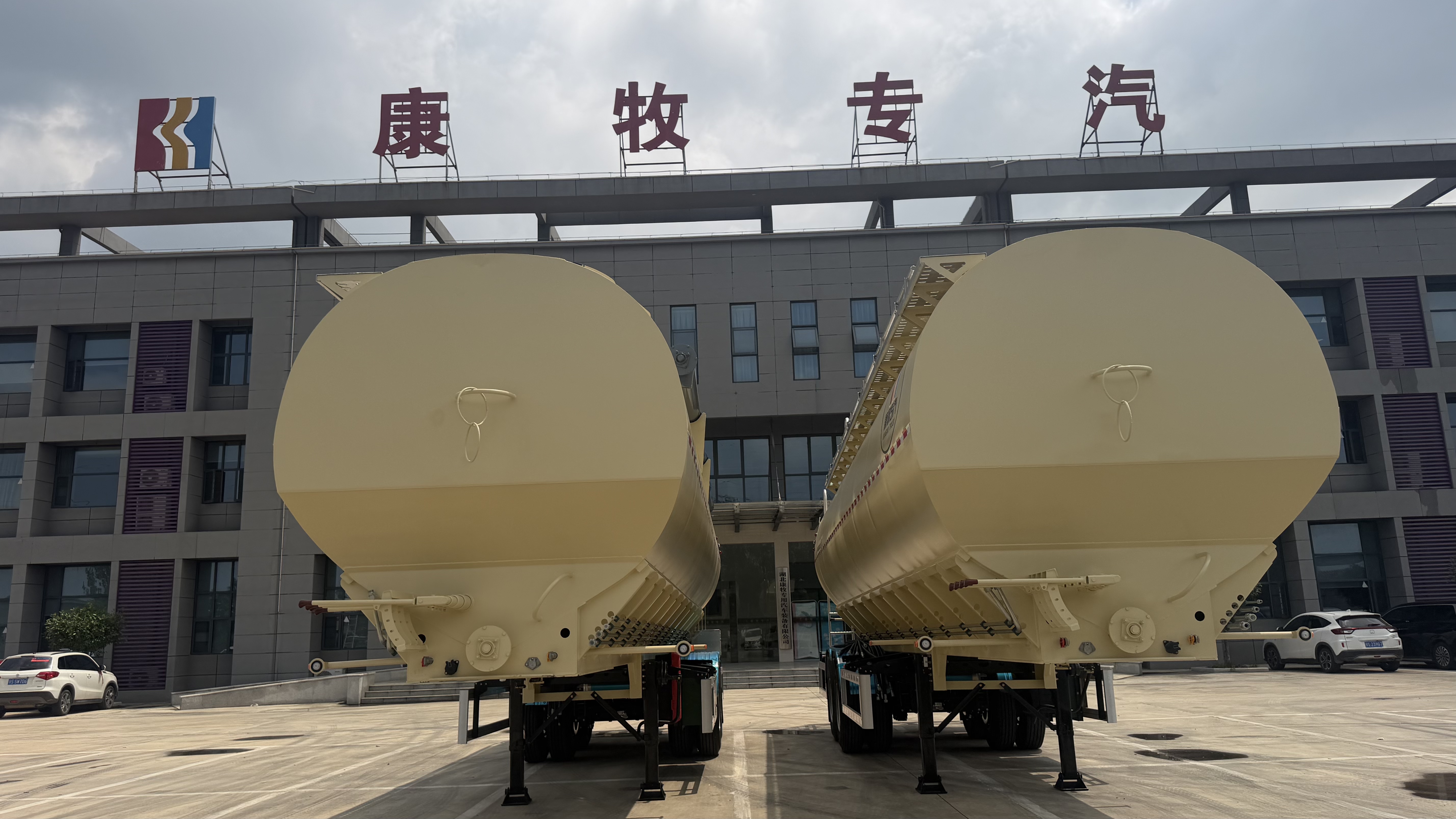

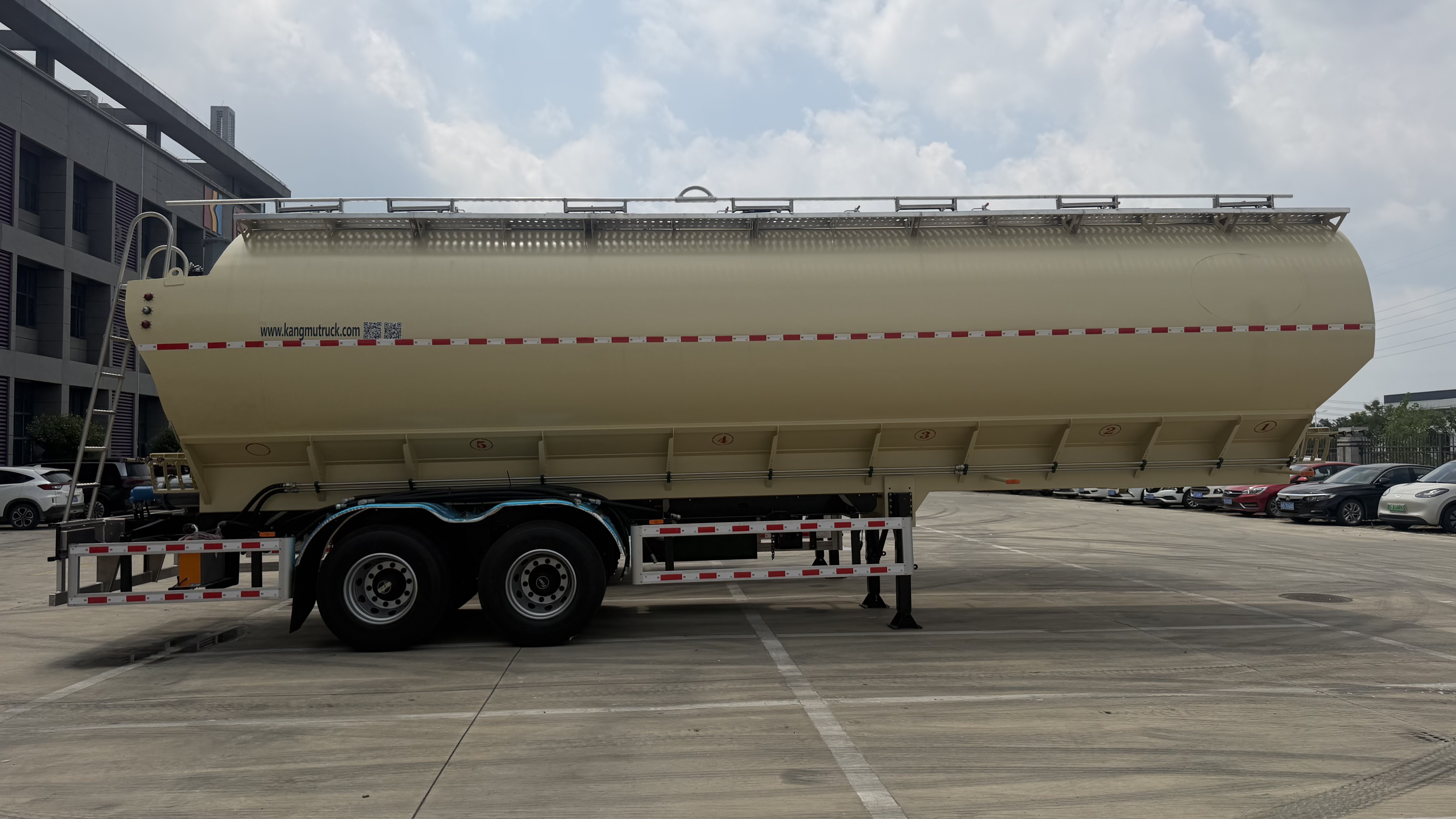

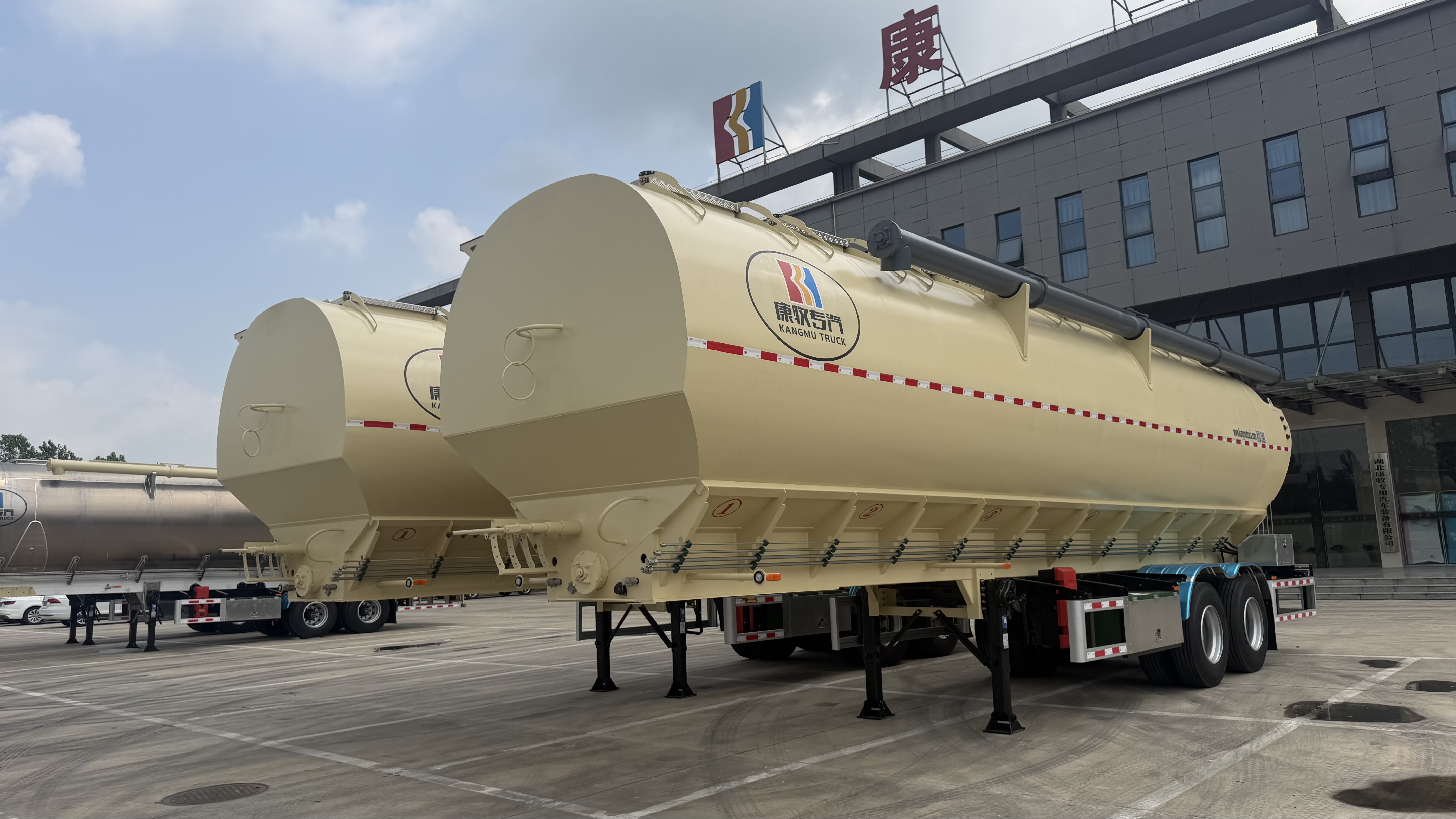

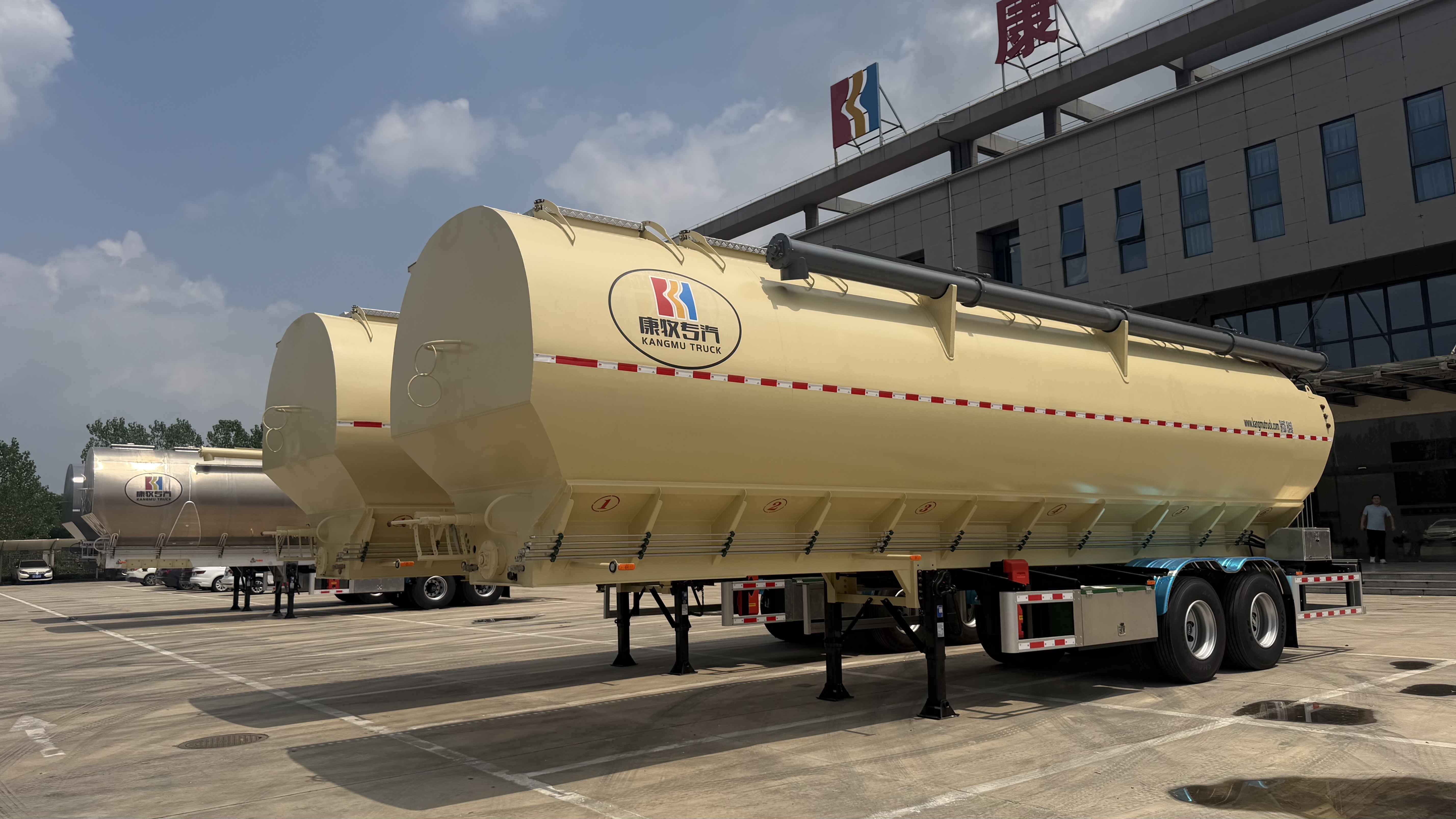

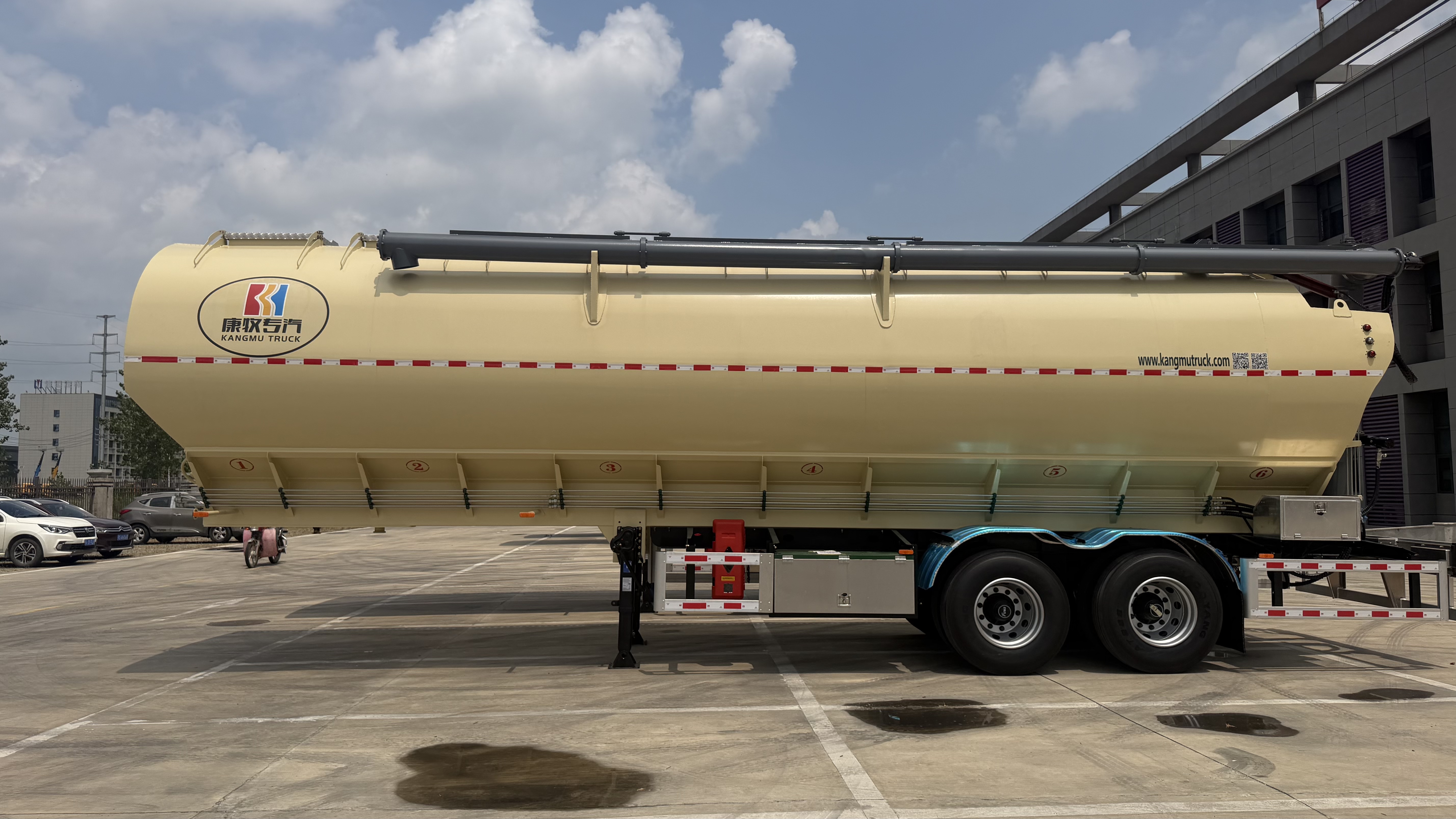

| 28-ton 8-Compartment Carbon Steel Feed Semi-Trailer |
| Basic Parameters |
| Overall Dimensions (LxWxH) | 11500 mm x 2550 mm x 3995 mm |
| Total Volume | 49 m³ |
| Load Capacity | 28 tons |
| Number of Compartments | 8 |
| Chassis & Tank Body |
| Tank Body Material | High-strength steel LG700XL |
| Tank Side Panel / Partition Thickness | 3.75 mm |
| Main Beam | HJ700 high-strength steel (6mm) |
| Sub-frame Beam | Q345 high-strength steel (8mm) |
| Chassis & Auxiliary Plates | Q355B low-alloy steel / Q235B carbon steel (4-12mm) |
| Top Manhole Cover Type | Sliding / Flat-opening cover |
| Top Walkway Plate | Q235B carbon steel patterned plate |
| Side Guards & Mudguards | Aluminum alloy |
| Auger Inclination Angle | 10° - 15° |
| Hydraulic Discharge System |
| Vertical Discharge Motor | HY-G0293 |
| Bottom Discharge Motor | HY-G00152 |
| Discharge Auger Length | 9 meters |
| Hydraulic Pump | Denison T6CC-B25-2R00-C100 |
| Hydraulic Oil Tank | 1350x560x650 mm |
| Hydraulic Valve | YOULI (standard) |
| Radiator | AH 1490T-P |
| Power Take-Off (PTO) | Eaton, customized according to the tractor |
| Integrated Worm Gear Motor | HY-0018 |
| Control Method | Remote control (2 units) + manual operation |
| Discharge Rod | SS 304 stainless steel pipe (with locking hole) |
| Running Gear & Braking |
| Axle | Fuhua 16T (with ABS, automatic slack adjuster) |
| Suspension System | American-style 2-axle reverse-mounted heavy-duty suspension (H=250) |
| Leaf Spring | 10 leaves x 13mm x 90mm |
| Tire | Chaoyang 12R22.5 12PR |
| Wheel Rim | 9.00 x R22.5 |
| Landing Gear | Fuhua linkage landing gear HJLD25T |
| Braking System | Kemi ABS |
| Relay Valve | New WABCO |
| Accessories |
| Drawbar Pin (Kingpin) | Pre-fabricated 90#-12 (optional 50#) |
| Compartment Manhole Locks | 8 units |
| Inspection Port | Equipped with nuts and bolts |
| Spare Tire & Bracket | 1 set |
| Fire Extinguisher Box | Plastic material |
| Control Cover Box | Aluminum alloy |
| Paint Color | As per customer requirement |
| Top Structure |
| Sliding Covers | flat cover / sliding cover |
