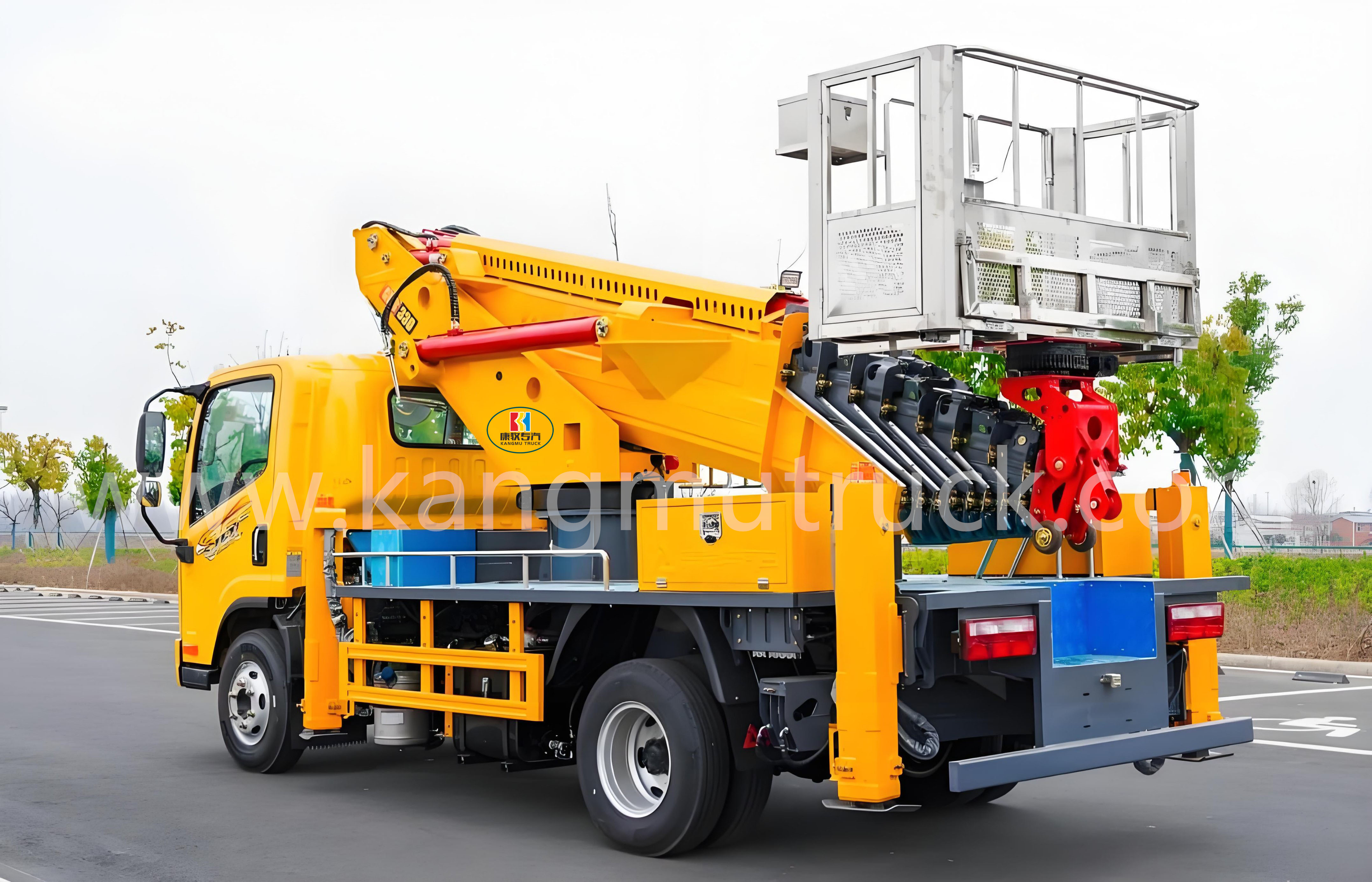

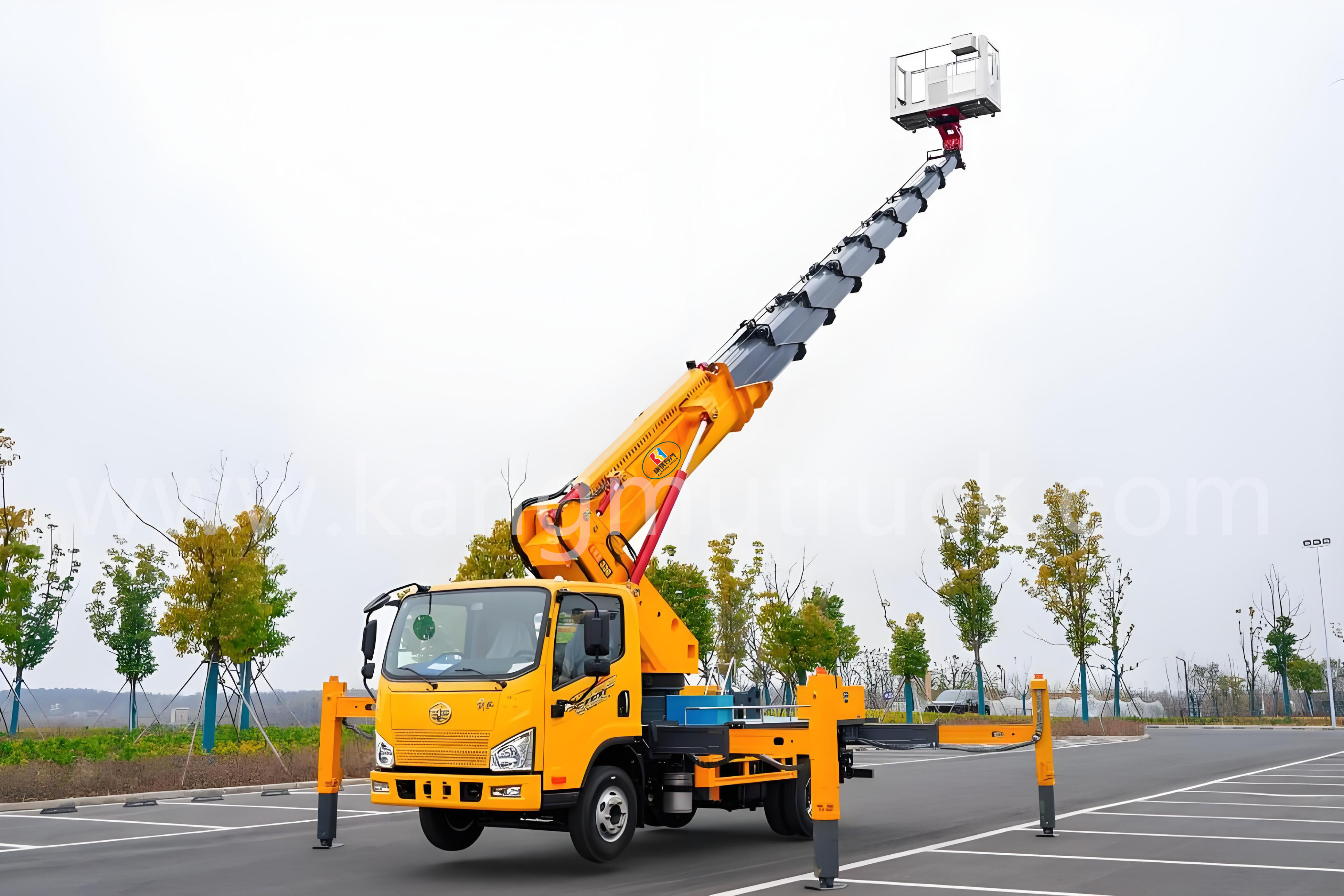

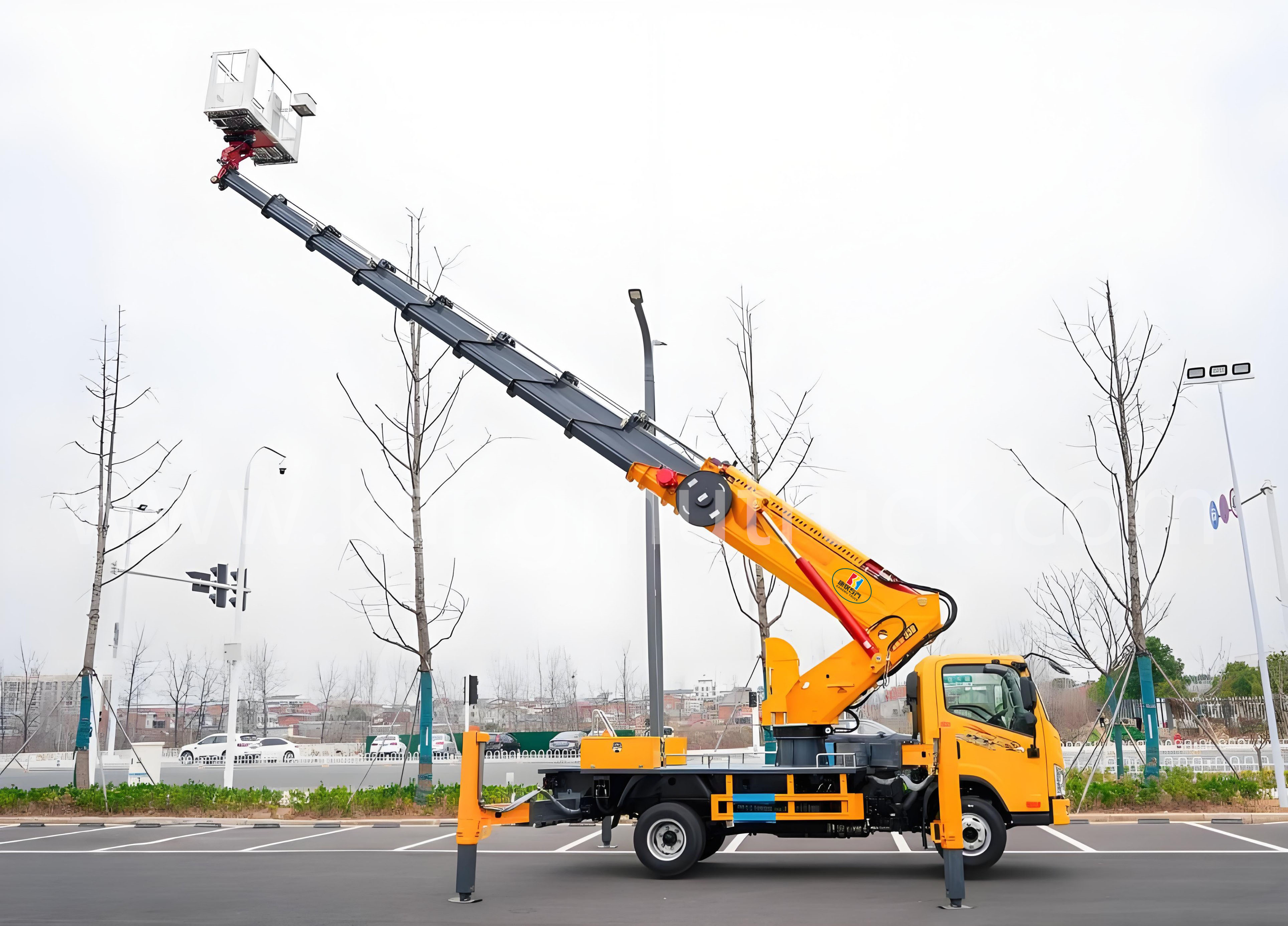

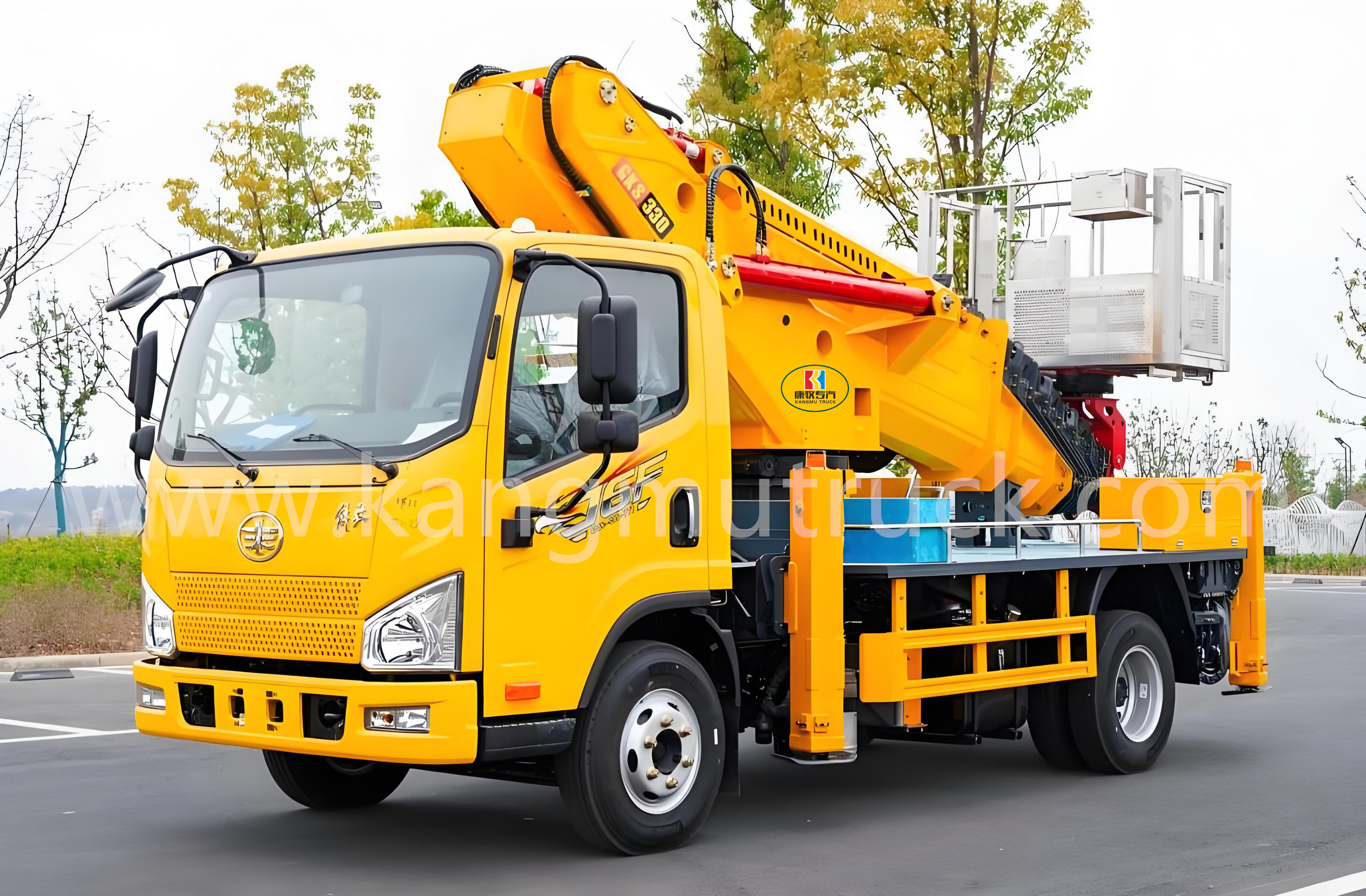

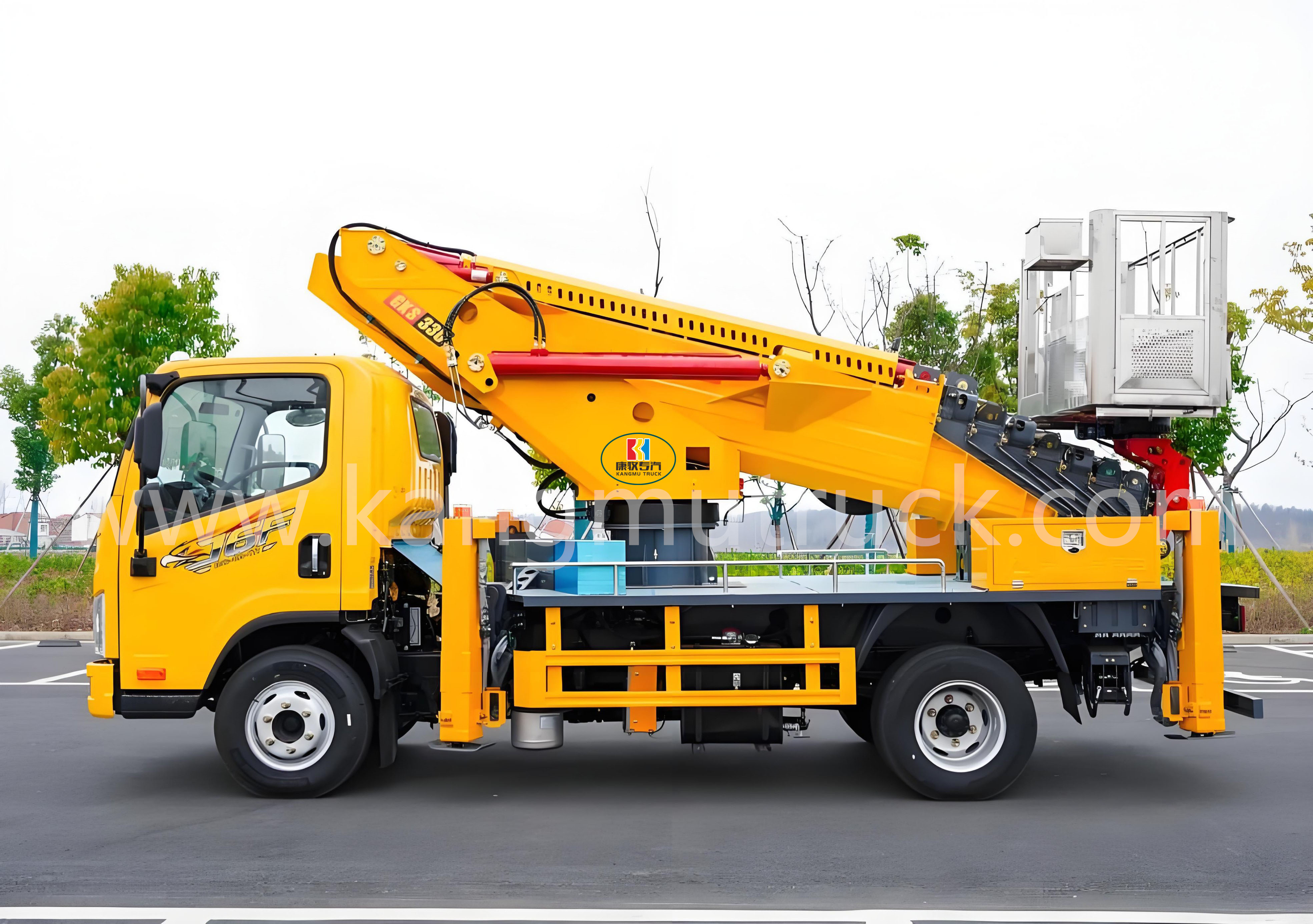

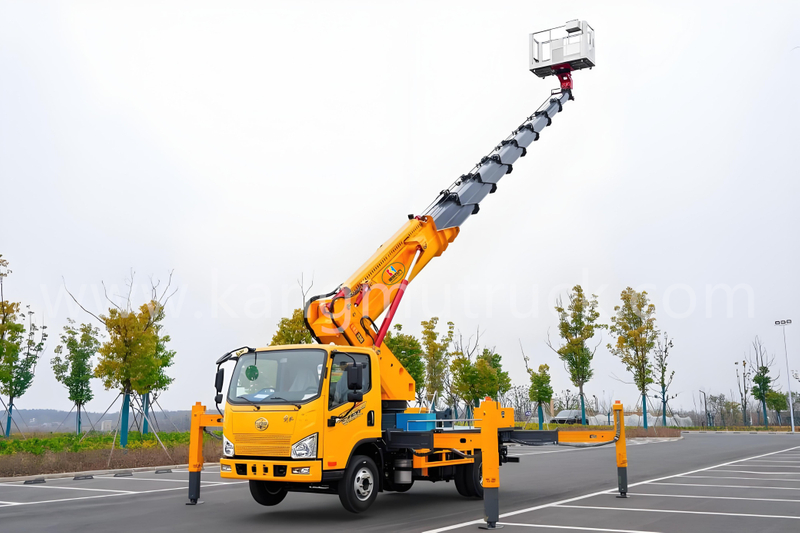

FAW Jiefang 33-Meter Nine-Section Boom Aerial Lift Truck

Product Specifications:

Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
Product Name: FAW Jiefang 33-Meter Nine-Section Boom Aerial Lift Truck
Keywords: Aerial Lift Truck
Attributes: With After-Sale Service, One Year Warranty, Truck

Availability:

Quantity:



Inquire Add to Basket

Brand:
KANGMU

Features

FAW Jiefang 33-Meter Nine-Section Boom Aerial Lift Truck

Main Technical Parameters of Aerial Work Platforms
Category	Item	Unit	Data
Dimension Parameters	Overall Length	mm	5995
	Overall Width	mm	2200
	Overall Height	mm	2955
Mass Parameters	Number of Passengers (including the Driver)	Person	3
Mass Parameters	Gross Vehicle Weight	kg	4495
Main Performance Parameters	Rated Load of the Working Platform	kg	200
	Maximum Working Height	m	33
	Maximum Working Radius	m	11/13
	Horizontal Outrigger Span	mm	5650
	Longitudinal Outrigger Span	mm	4800
	Rotation of the Working Platform	°	360
	Boom Luffing Time	s	50≤t≤80
	Boom Telescoping Time	s	70≤t≤100
	Boom Rotation Speed	s/r	120≤t≤180
	Outrigger Deployment/Retraction Time	s	60≤t≤90
Driving Parameters	Front Overhang	mm	1115
	Rear Overhang	mm	/
	Front Extension	mm	/
	Rear Extension	mm	/
	Wheelbase	mm	3300
	Maximum Driving Speed	km/h	100
	Minimum Ground Clearance	mm	450
	Approach Angle	°	/
	Departure Angle	°	/

The company owns a full range of aerial work vehicles with various heights such as 17.5 meters, 20 meters, 23 meters, 25 meters, 28 meters, 30 meters, 32 meters, 33 meters, 36 meters, and 45 meters. It can customize personalized aerial work vehicles according to customer needs.
