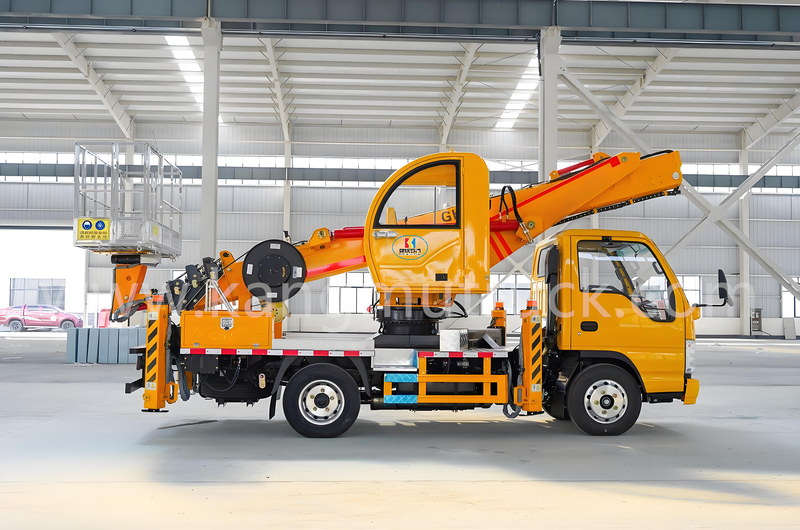

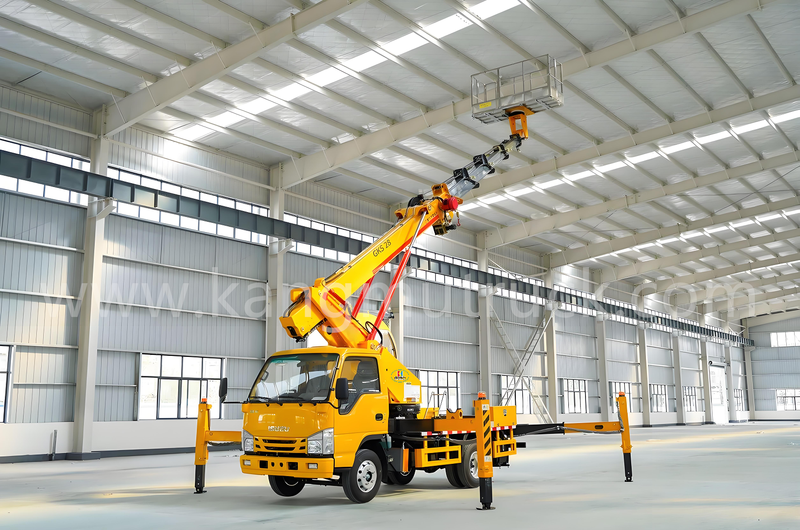

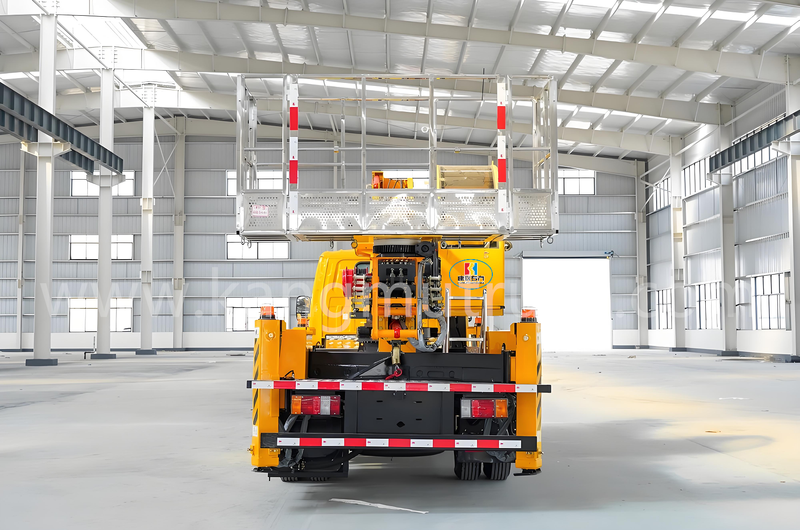

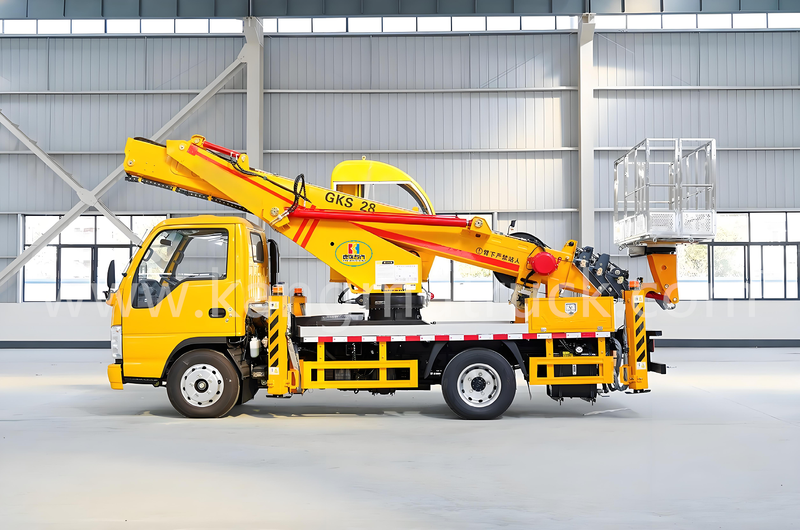

Isuz 28-Meter Aerial Lift Truck

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: Isuz 28-Meter Aerial Lift Truck
  • Keywords: Aerial Lift Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:
Inquire Add to Basket

  • KANGMU

Isuz 28-Meter Aerial Lift Truck



Vehicle Parameters Vehicle Name Isuzu 28-meter Blue-plate Aerial Work Vehicle
Overall Dimensions 5995*2010*3010mm (Length*Width*Height)
Gross Vehicle Mass 4495kg
Kerb Mass 4365kg
Chassis Parameters Emission Standard China VI
Rear Overhang 1815
Tires 6.50R16LT 10PR
Wheelbase 2800
Engine Model 4KH1CN6LB
Displacement (ml) 2999
Power (kw) 88
Horsepower (ps) 120
MSB 5-speed Transmission, with Air Conditioning, Power Steering, Central Locking, Power Windows, and Remote Key
Upper Body Configuration Boom Five-section Hexagonal Boom with Synchronous Extension
Outriggers Front V-shaped and Rear V-shaped Double-section Outriggers
Lateral Span 5500mm
Longitudinal Span 5500mm
Basket Dimensions 1500×700×1100mm (Length*Width*Height)
Rated Load of Working Platform 200kg
Maximum Working Height 28m
Lateral Reach 18m
Rear Reach 21m
Optional: Dual-fuel (Diesel-electric) Device, Rear-view Camera, Hydraulic Winch, Upper Operating Cab
