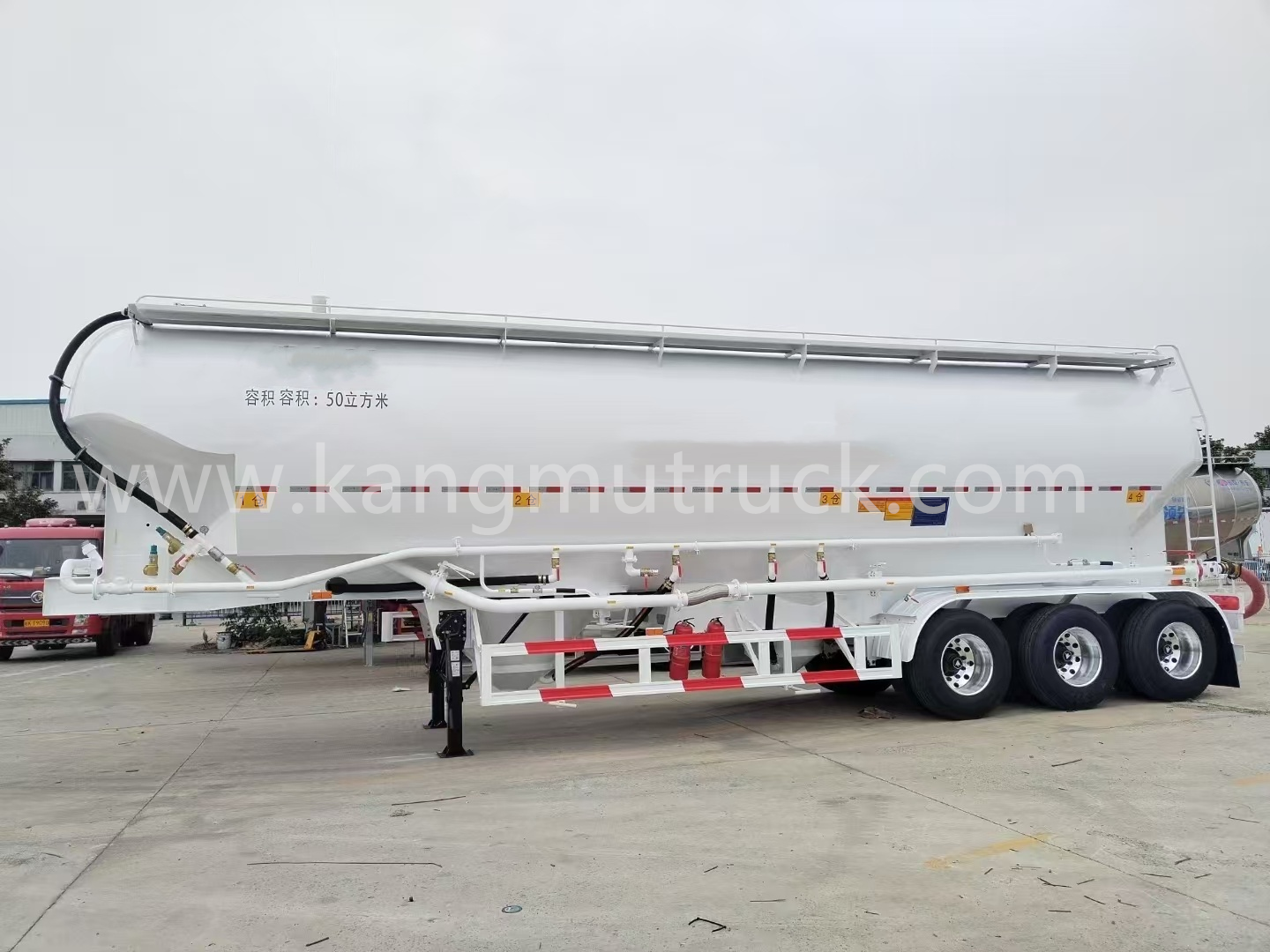

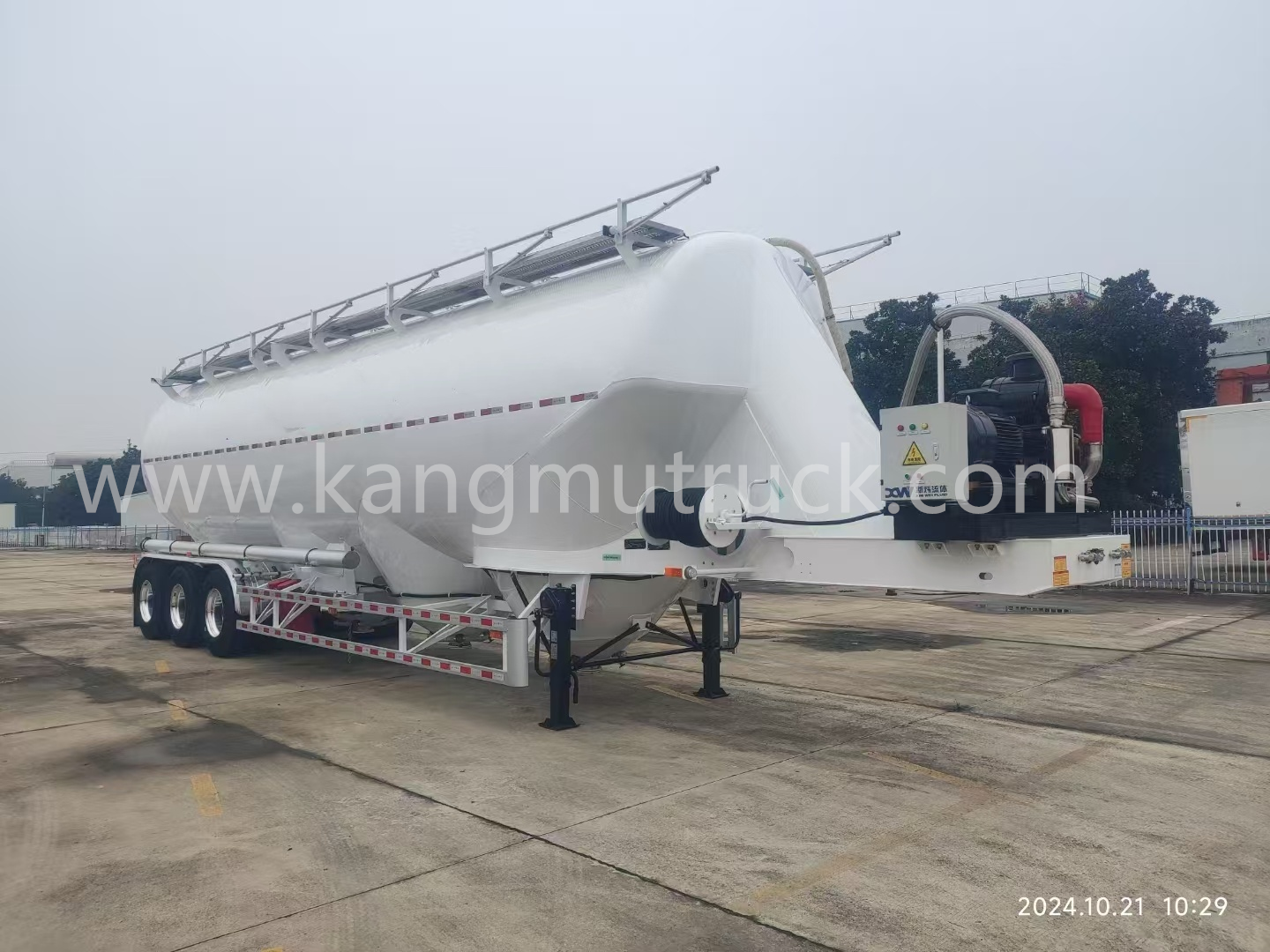

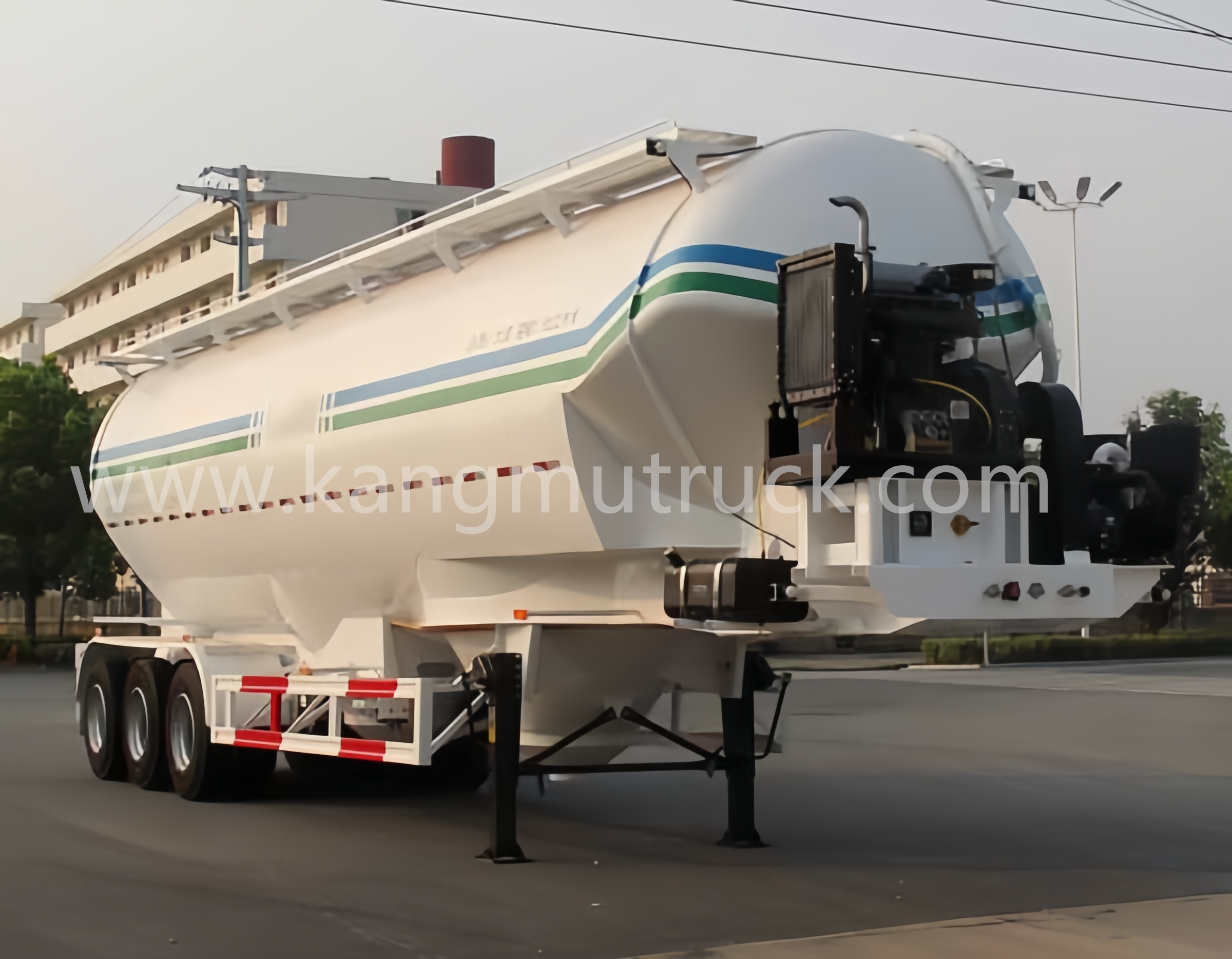

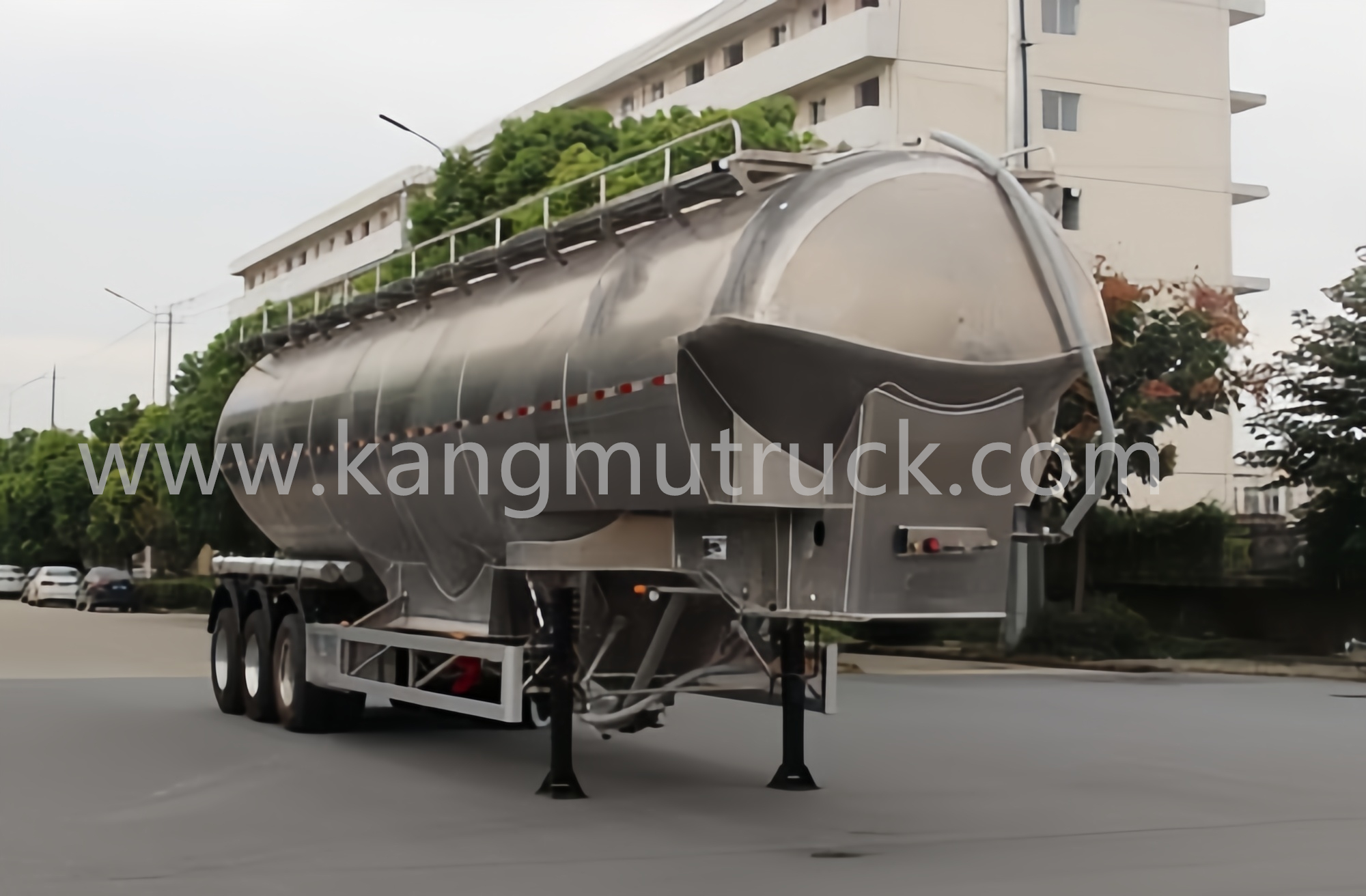

The tank body is made of aluminum alloy, featuring a frame and a four-cone structure. It is equipped with four factory-standard internal buckle manhole covers, a 2-inch external air source, two fully open safety valves, and one perspective window. Additionally, it includes a 50A bracket, a 90x4x22 leaf spring, and a Kaile/13T/1840/automatic adjustment arm with alarm. The standard equipment also comprises 12 genuine tires with factory logo, 9.0R22.5 steel rims (12 pieces), one spare tire rack, a factory-standard relay valve, and ABS.
The side and rear protections are made of carbon steel, along with factory-standard carbon steel legs, carbon steel fenders, and an aluminum alloy air storage cylinder. Optional features include a diesel power take-off system (Wuhu 12/2 or 1 pipe), a Sea 12.5/2 single-cylinder air compressor, and a factory-standard 7-meter discharge hose.
The standard safety configuration includes two 8KG extinguishers and a choice of 90# or 50# assembled traction pins.
| Vehicle Technical Parameters |
| Product trademark | KANGMU | Announcement Batch | 387 |
| Product Name | Bulk feed trailer | Product model | KMH9401GFL |
| Total weight (Kg) | 40000 | Tank volume (m3) | 47 |
| Rated load capacity (Kg) | 29600 | Dimensions (mm) | 12350,11700×2550×3995 |
| Curb weight (Kg) | 8500 | Cargo compartment size (mm) | ×× |
| Rated passenger capacity (person) |
| Total mass of quasi trailer (Kg) |
|
| Number of passengers allowed in the cab (person) |
| Maximum load capacity of saddle (Kg) | 16000 |
| Approach angle/departure angle (°) | -/27.8 | Front suspension/rear suspension (mm) | -/1000 |
| Axle load (Kg) | -/24000(3 axles) | Maximum speed (Km/h) |
|
| Other details | The vehicle's tank body features a straight section (excluding end caps) with a length of 10,350 mm, a maximum cross-sectional height of 3,440 mm, and a width of 2,500 mm. The tank has an effective volume of 48 cubic meters and a total capacity of 50 cubic meters. It is designed to transport feed, soybeans, and corn, each with a density of 600 kg/m³. The vehicle's top is closed and not slotted, and the rear is not openable. Optional equipment includes configurations without an air compressor, with a diesel engine, or with a diesel structure that includes an air compressor. The ABS systems available for the vehicle are as follows: -
WABCO Automotive Control Systems (China) Co., Ltd: Model 400500XXX0 -
Guangzhou Kemi Automotive Brake Technology Development Co., Ltd: Model CM2XL-4S/2M -
Jiaozuo Borek Control Technology Co., Ltd.: Model G ABS -
Zhejiang Wan'an Technology Co., Ltd: Model VIE-TABS II (4S/2M) The side and lower rear protection devices are made of Q235 material and are bolted in place. The lower rear protection has a standard cross-sectional size of 160 mm × 40 mm (with an optional size of 140 mm × 60 mm) and a ground clearance of either 450 mm or 390 mm. |
| Additional equipments | Optional non independent air suspension: -/-/-/-.
Optional front junction box style.
Optional mudguard structure.
Optional lower discharge structure.
Optional rear structure, optional tank top walkway structure, optional rear ladder style, optional right-hand toolbox structure, optional intake duct structure. Optional rear without toolbox structure. Optional left side without toolbox structure. Optional fire extinguisher style. Optional front fishing rod structure. Optional front position light bracket structure. Optional front handshake box structure. Optional tank coating style. Optional discharge pipeline structure. Optional rear external air source structure. Optional mixing device structure. Optional tank coating style. |
| Other parameters of the vehicle |
| Chassis Model |
| Chassis name |
|
| Trademark Name |
| manufacturing enterprise |
|
| Number of axes | 3 | Number of tires | 12 |
| Wheelbase (mm) | 7290+1305+1305 |
| Tire specifications | 11.00R20 12PR,12R22.5 12PR |
| Number of steel plate springs | -/10/10/10,-/7/7/7,-/4/4/4,-/-/-/- | Front wheelbase (mm) | - |
| Fuel type |
| Rear wheelbase (mm) | 1840/1840/1840 |
