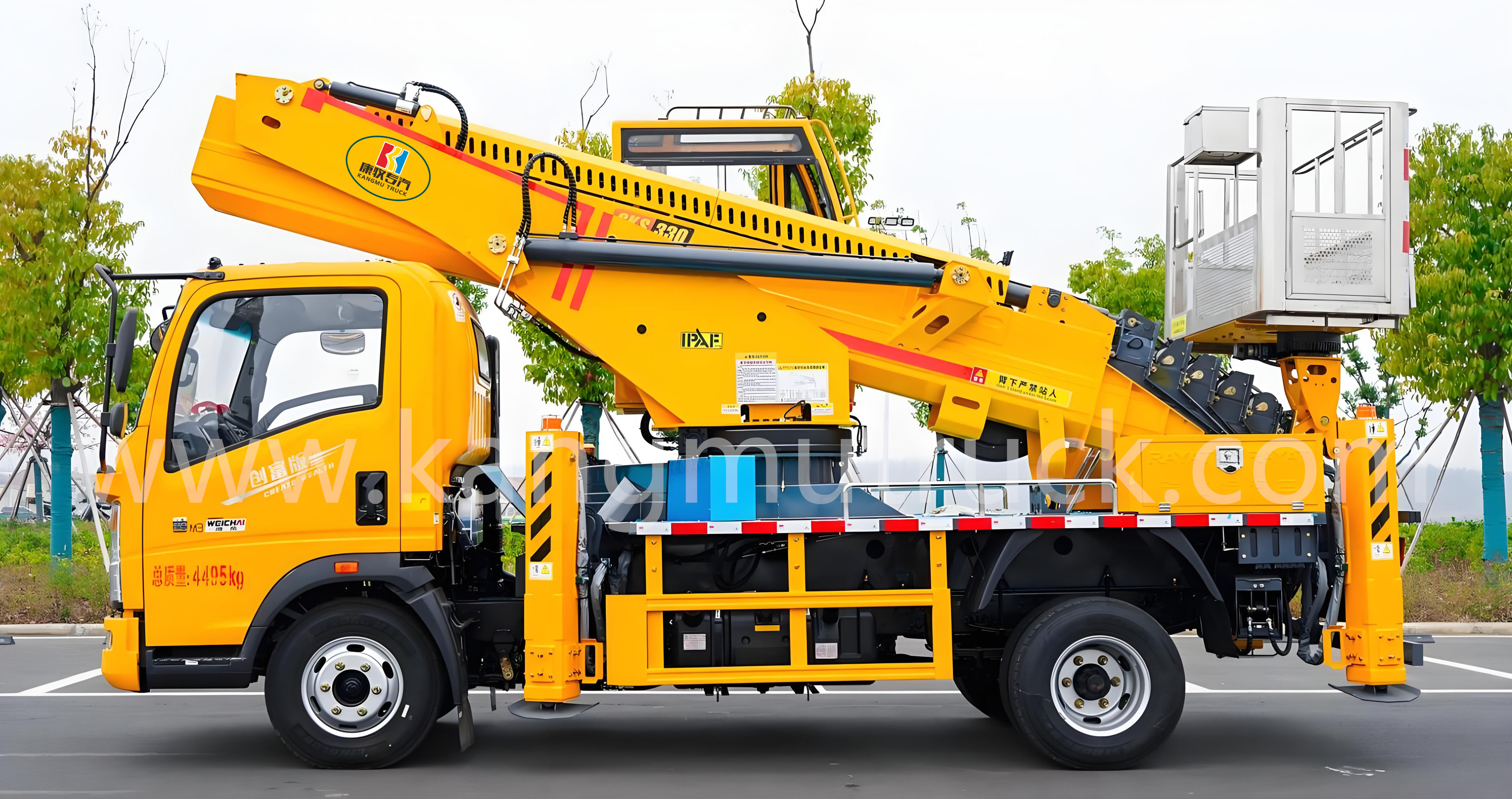

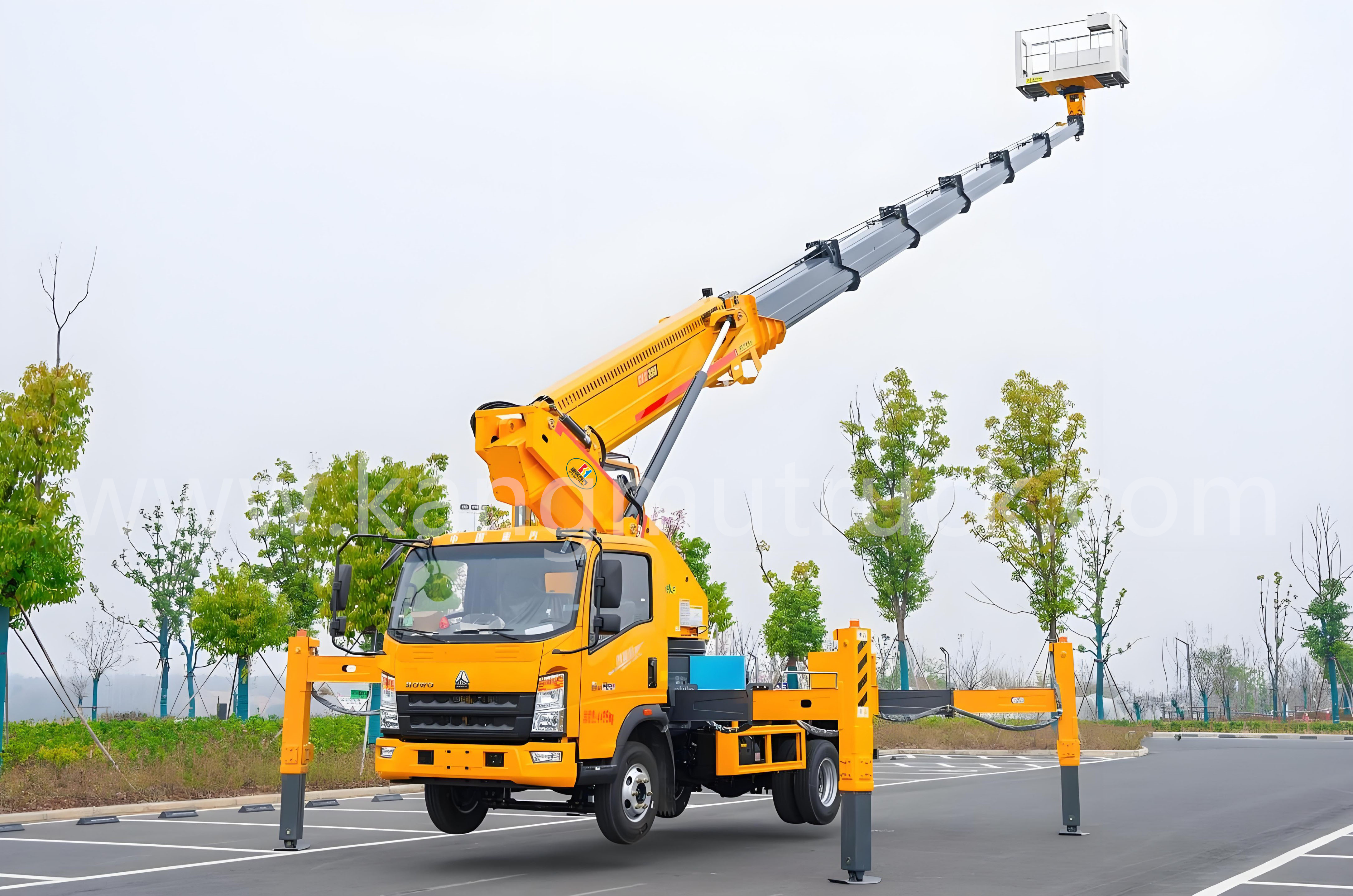

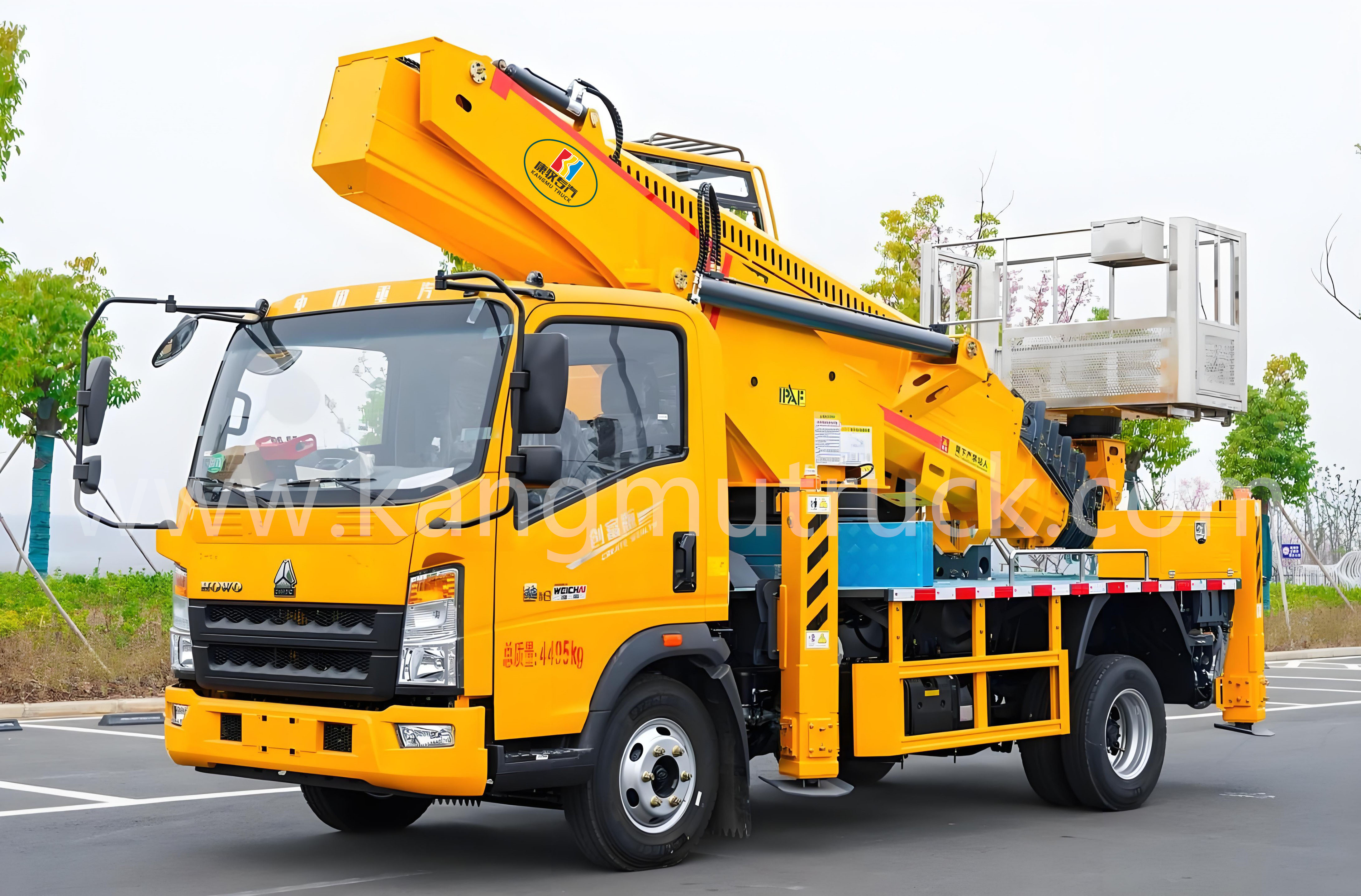

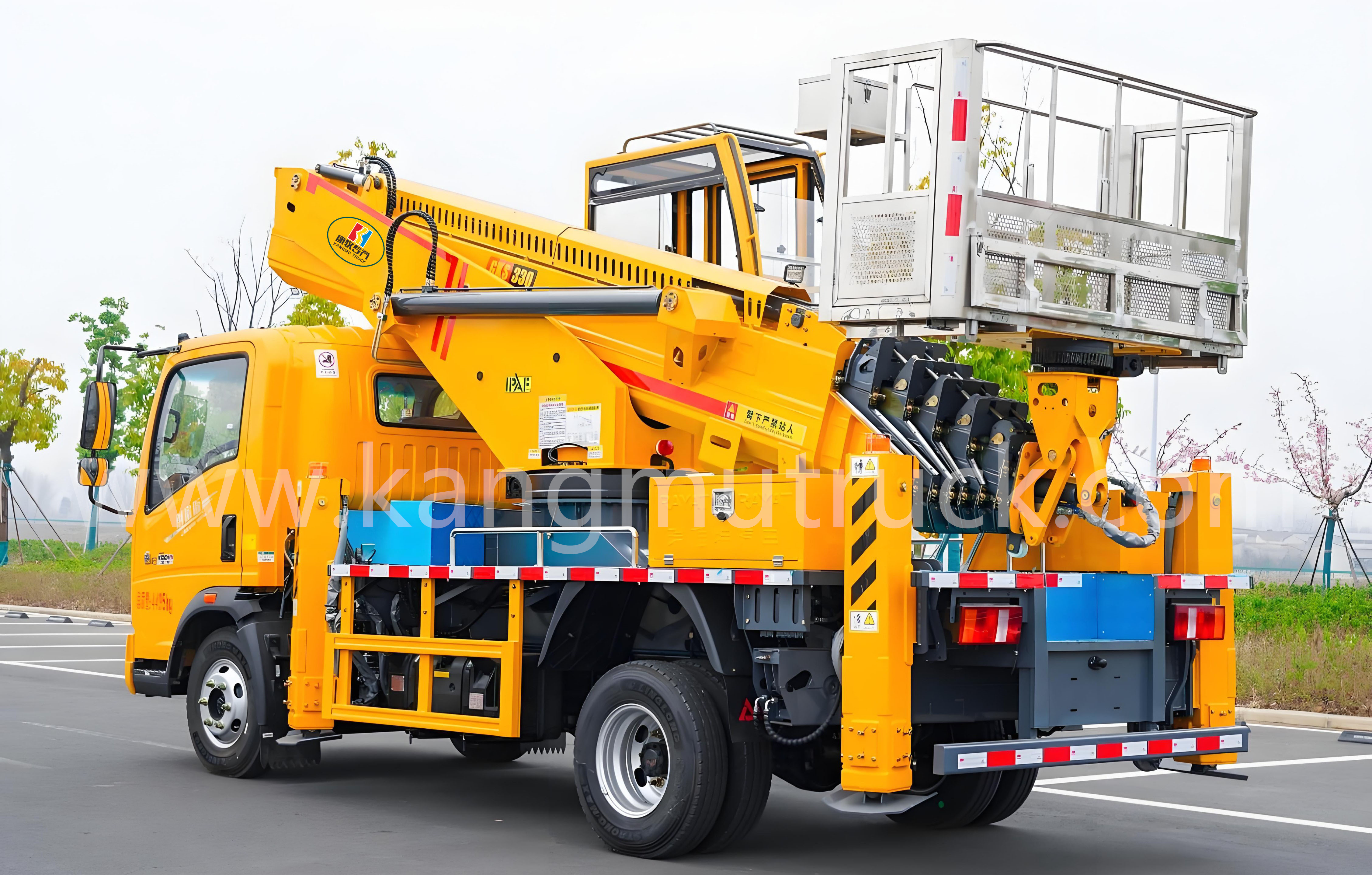

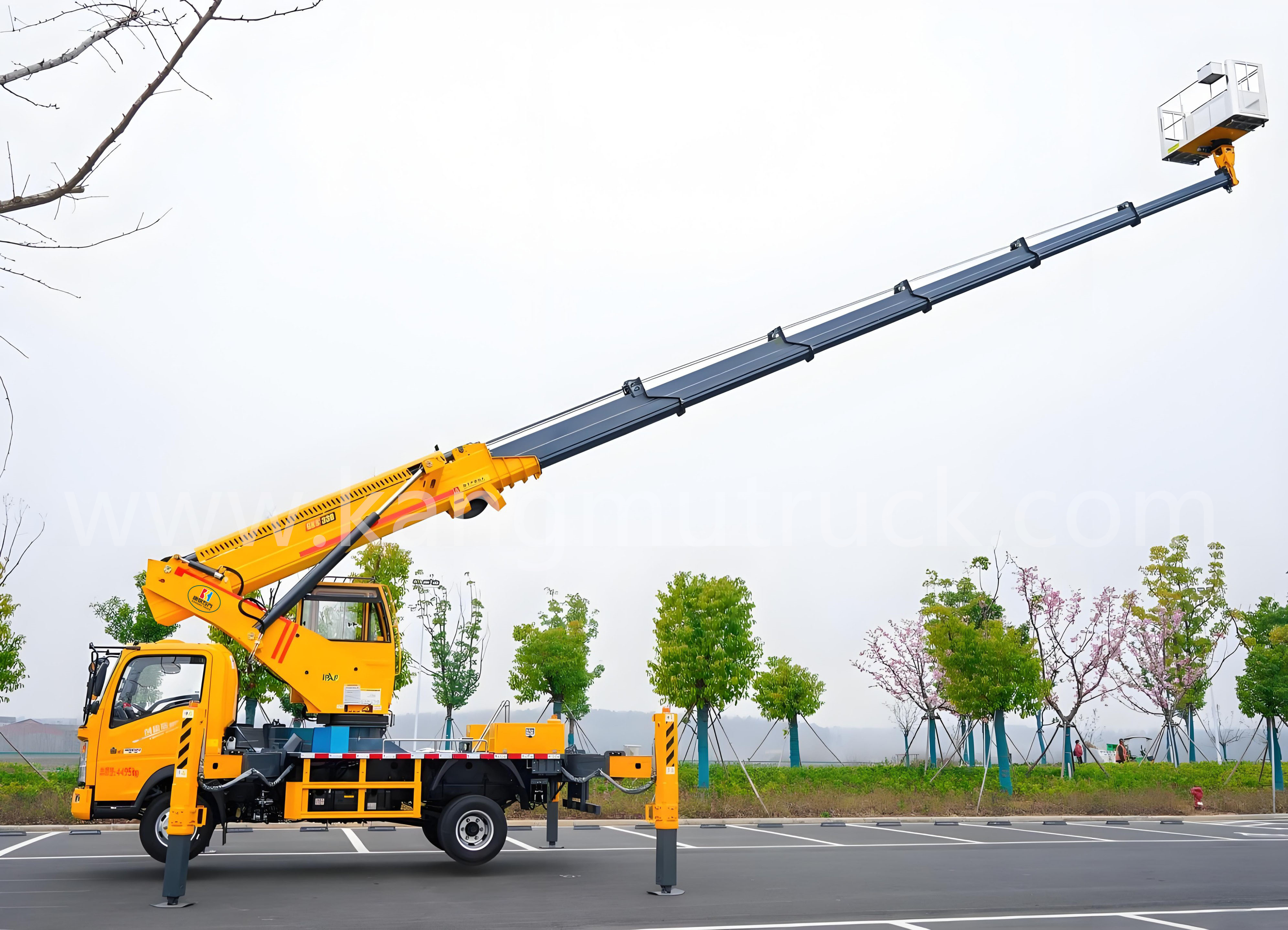

Sinotruk Howo 33-Meter Seven-Section Boom Aerial Lift Truck
| Main Technical Parameters of Aerial Work Platforms |
| Category | Item | Unit | Data |
| Dimension Parameters | Overall Length | mm | 5994 |
| Overall Width | mm | 2200 |
| Overall Height | mm | 3240 |
| Mass Parameters | Number of Passengers (including the Driver) | Person | 3 |
| Gross Vehicle Weight | kg | 4495 |
| Main Performance Parameters | Rated Load of the Working Platform | kg | 200 |
| Maximum Working Height | m | 33 |
| Maximum Working Radius | m | 11/15 |
| Horizontal Outrigger Span | mm | 5600 |
| Longitudinal Outrigger Span | mm | 5000 |
| Rotation of the Working Platform | ° | 360 |
| Boom Luffing Time | s | 50≤t≤80 |
| Boom Telescoping Time | s | 70≤t≤100 |
| Boom Rotation Speed | s/r | 120≤t≤180 |
| Outrigger Deployment/Retraction Time | s | 60≤t≤90 |
| Driving Parameters | Front Overhang | mm | 1160 |
| Rear Overhang | mm | / |
| Front Extension | mm | / |
| Rear Extension | mm | / |
| Wheelbase | mm | 3280 |
| Maximum Driving Speed | km/h | 100 |
| Minimum Ground Clearance | mm | 450 |
| Approach Angle | ° | / |
| Departure Angle | ° | / |
The company owns a full range of aerial work vehicles with various heights such as 17.5 meters, 20 meters, 23 meters, 25 meters, 28 meters, 30 meters, 32 meters, 33 meters, 36 meters, and 45 meters. It can customize personalized blue-plate or yellow-plate aerial work vehicles according to customer needs.
