FAW JieFang 33-Meter Seven-Section Boom Aerial Lift Truck

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: FAW JieFang 33-Meter Seven-Section Boom Aerial Lift Truck
  • Keywords: Aerial Lift Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:
Inquire Add to Basket

  • KANGMU

FAW JieFang 33-Meter Seven-Section Boom Aerial Lift Truck
Main Technical Parameters of Aerial Work Platforms
Category Item Unit Data
Dimension Parameters Overall Length mm 5995
Overall Width mm 2200
Overall Height mm 3210
Mass Parameters Number of Passengers (including the Driver) Person 3
Gross Vehicle Weight kg 4495
Main Performance Parameters Rated Load of the Working Platform kg 200
Maximum Working Height m 33
Maximum Working Radius m 11/13
Horizontal Outrigger Span mm 6400
Longitudinal Outrigger Span mm 5700
Rotation of the Working Platform ° 360
Boom Luffing Time s 50≤t≤80
Boom Telescoping Time s 70≤t≤100
Boom Rotation Speed s/r 120≤t≤180
Outrigger Deployment/Retraction Time s 60≤t≤90
Driving Parameters Front Overhang mm 1150
Rear Overhang mm /
Front Extension mm /
Rear Extension mm /
Wheelbase mm 3300
Maximum Driving Speed km/h 100
Minimum Ground Clearance mm 415
Approach Angle ° /
Departure Angle ° /

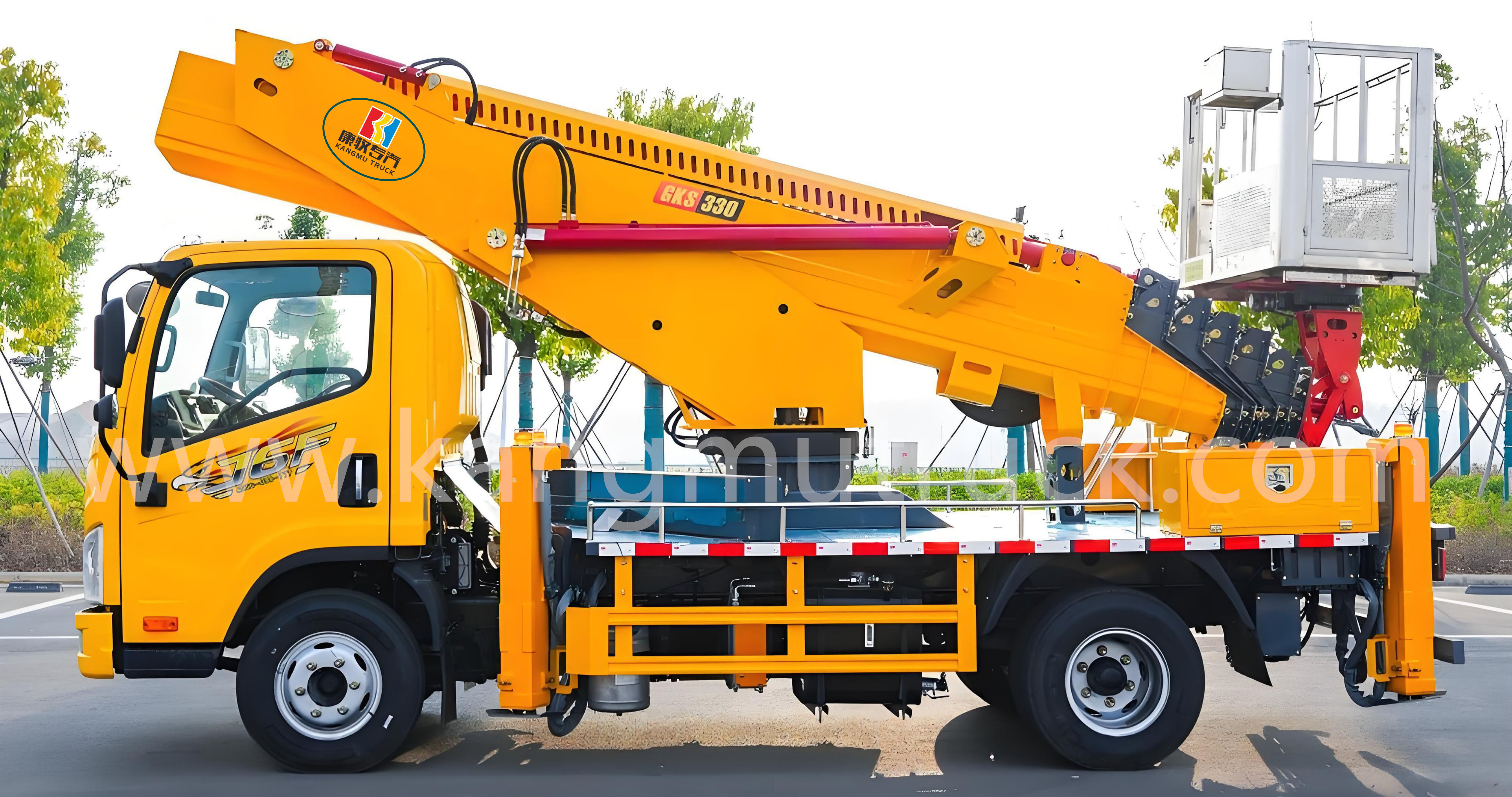

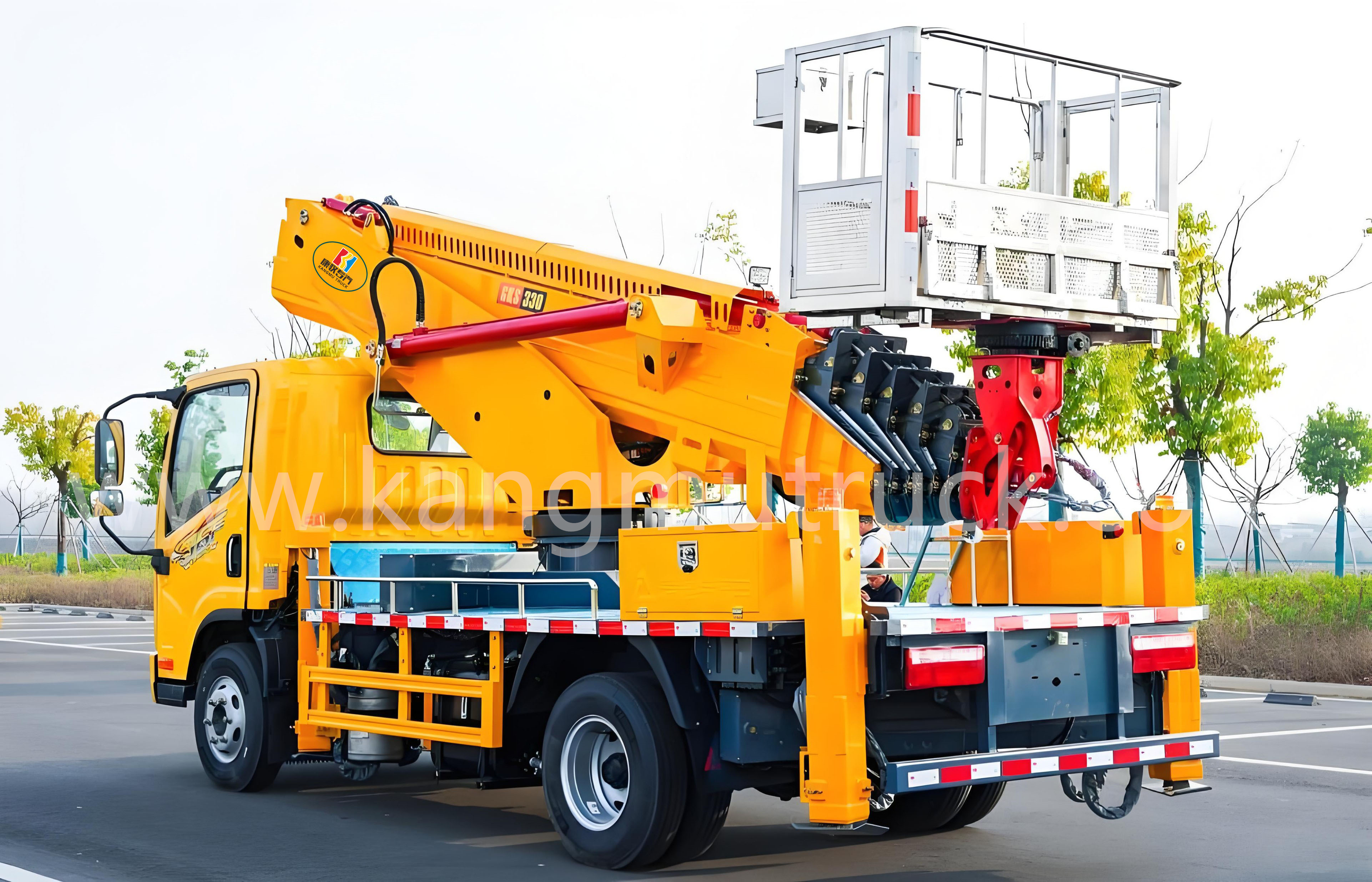

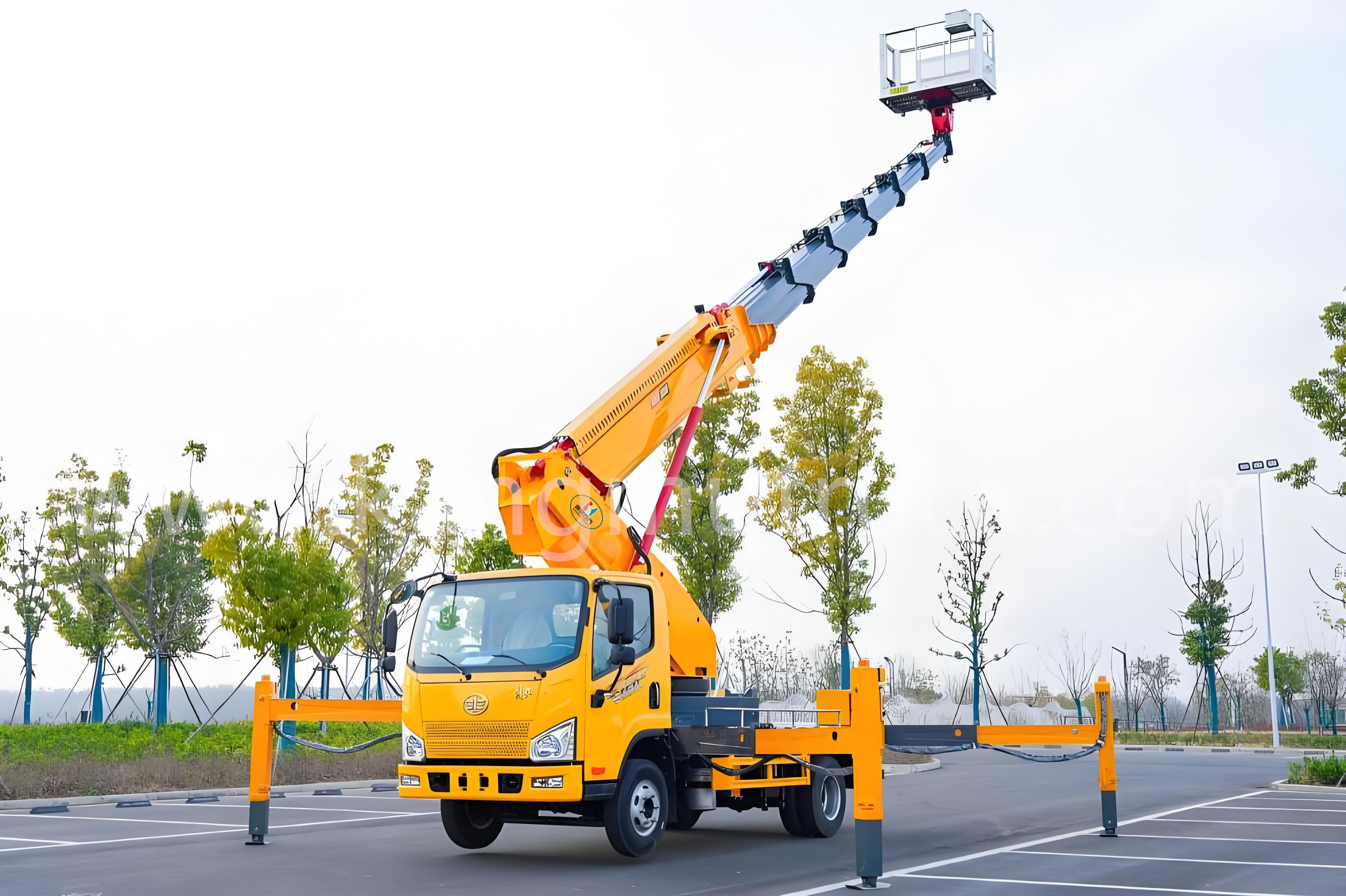

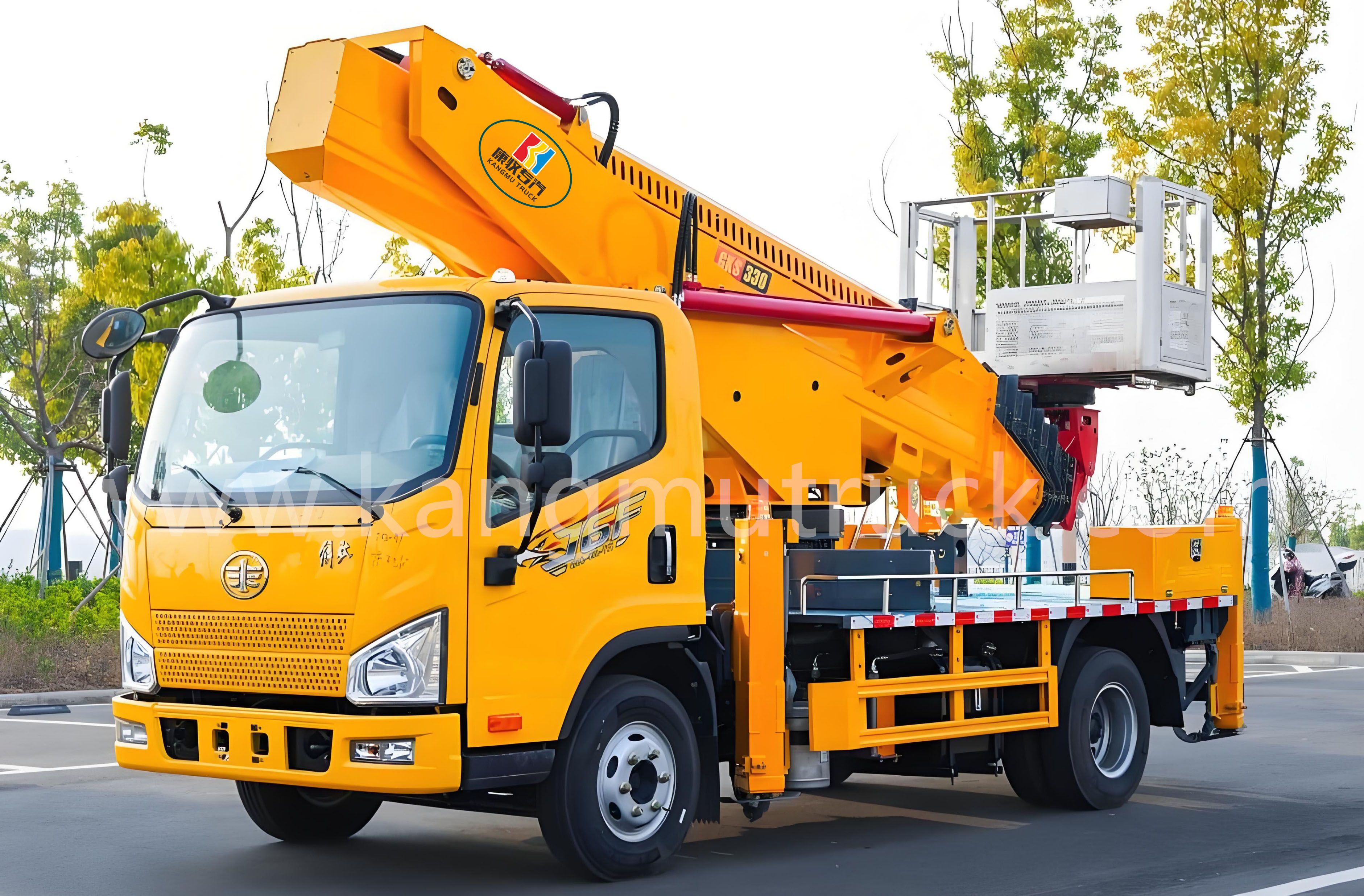

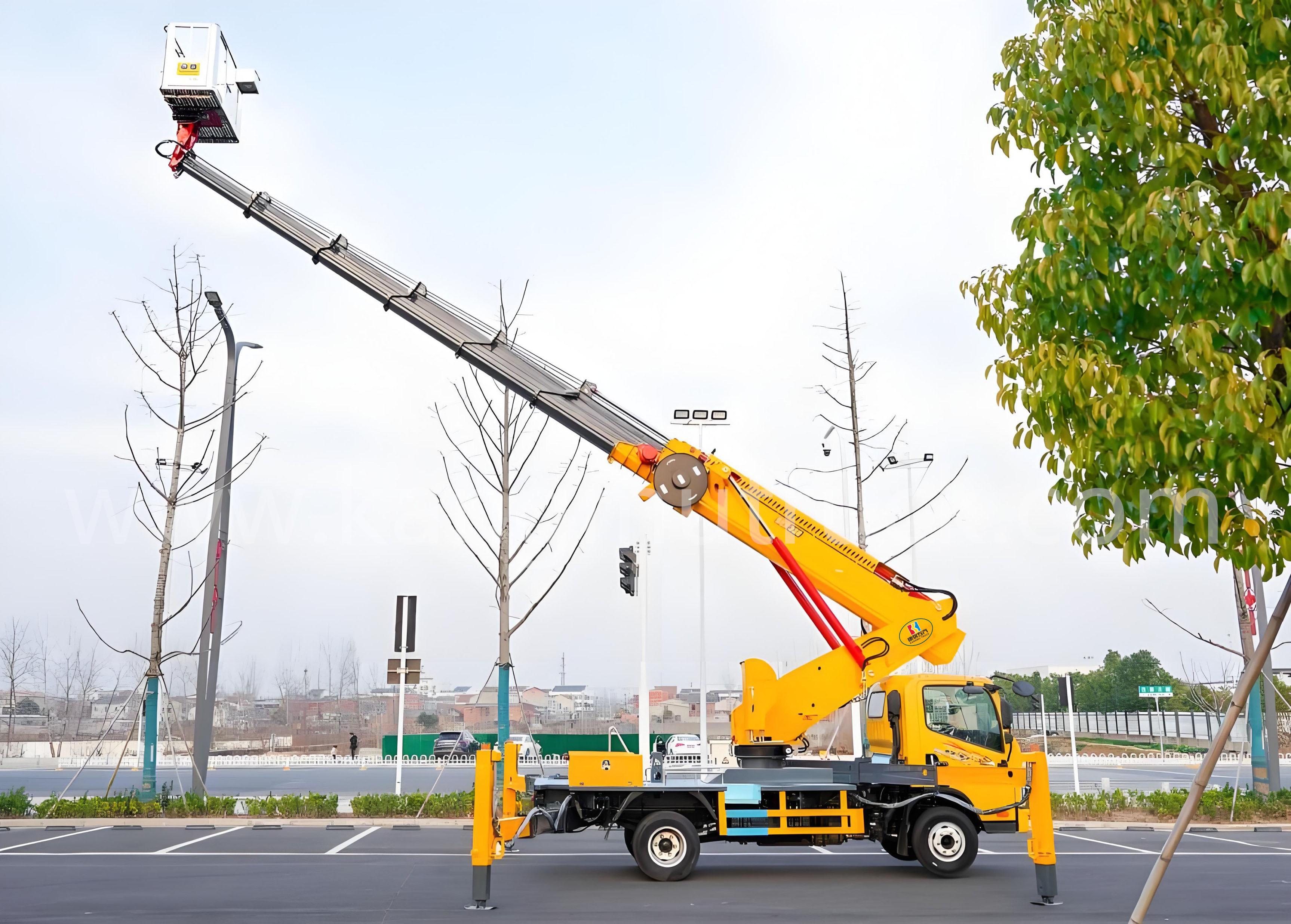

1749450678738副本1749450774035副本1749450571409副本1749450327725副本1749450422814副本
