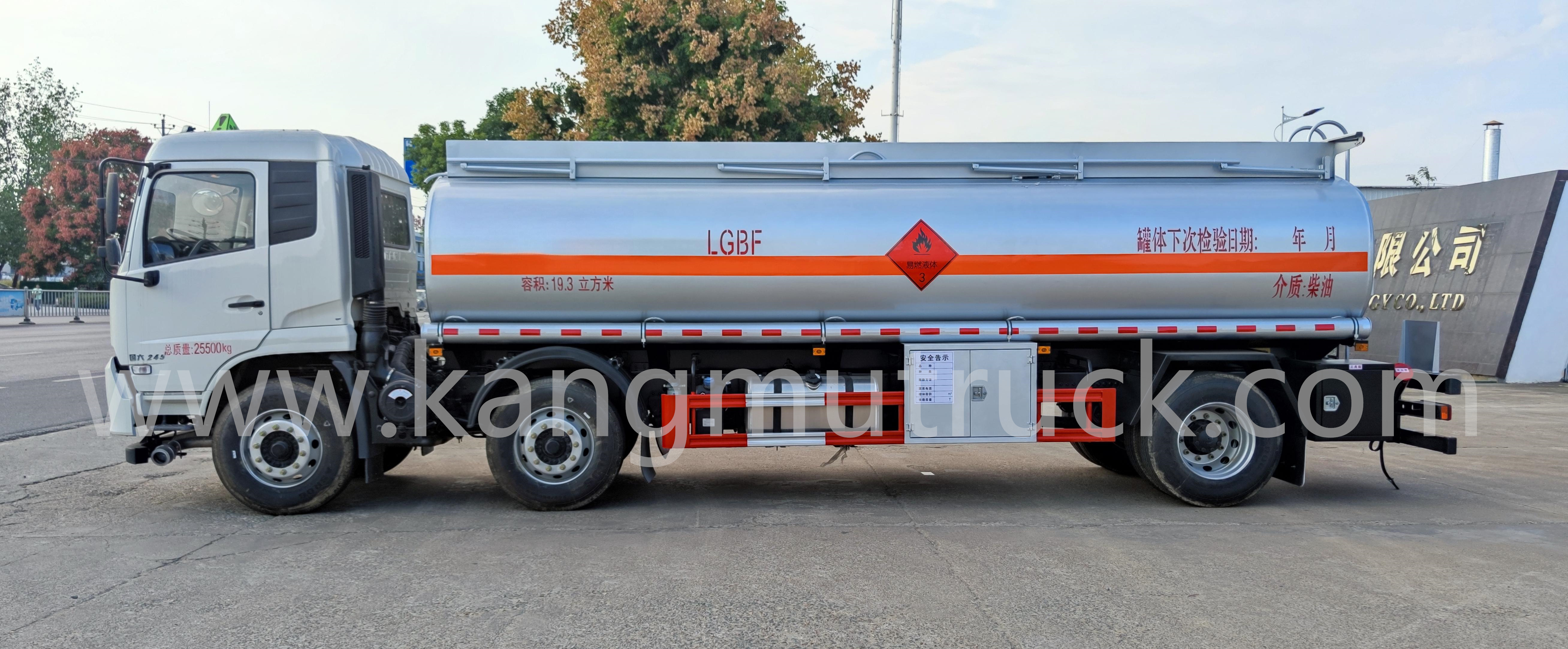

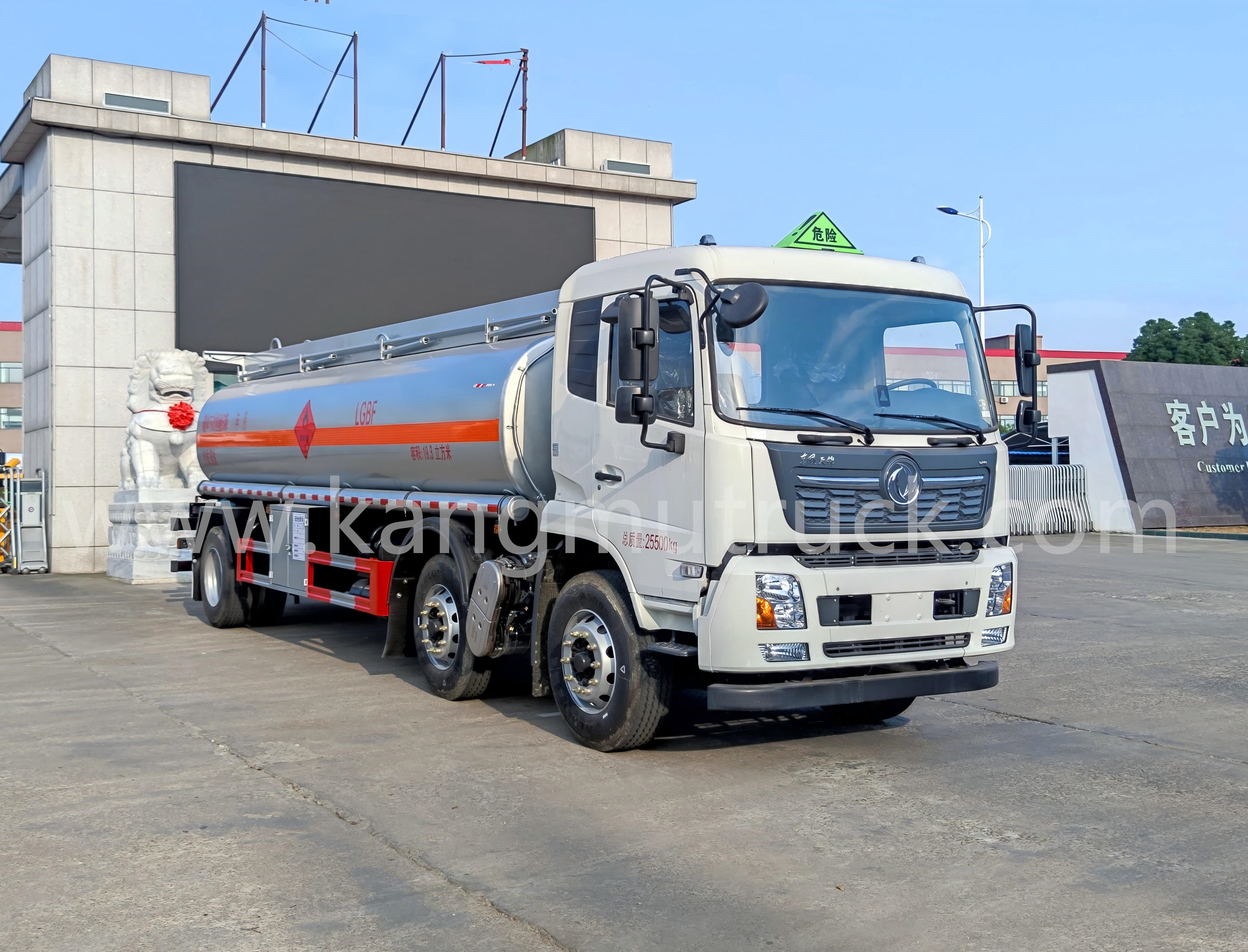

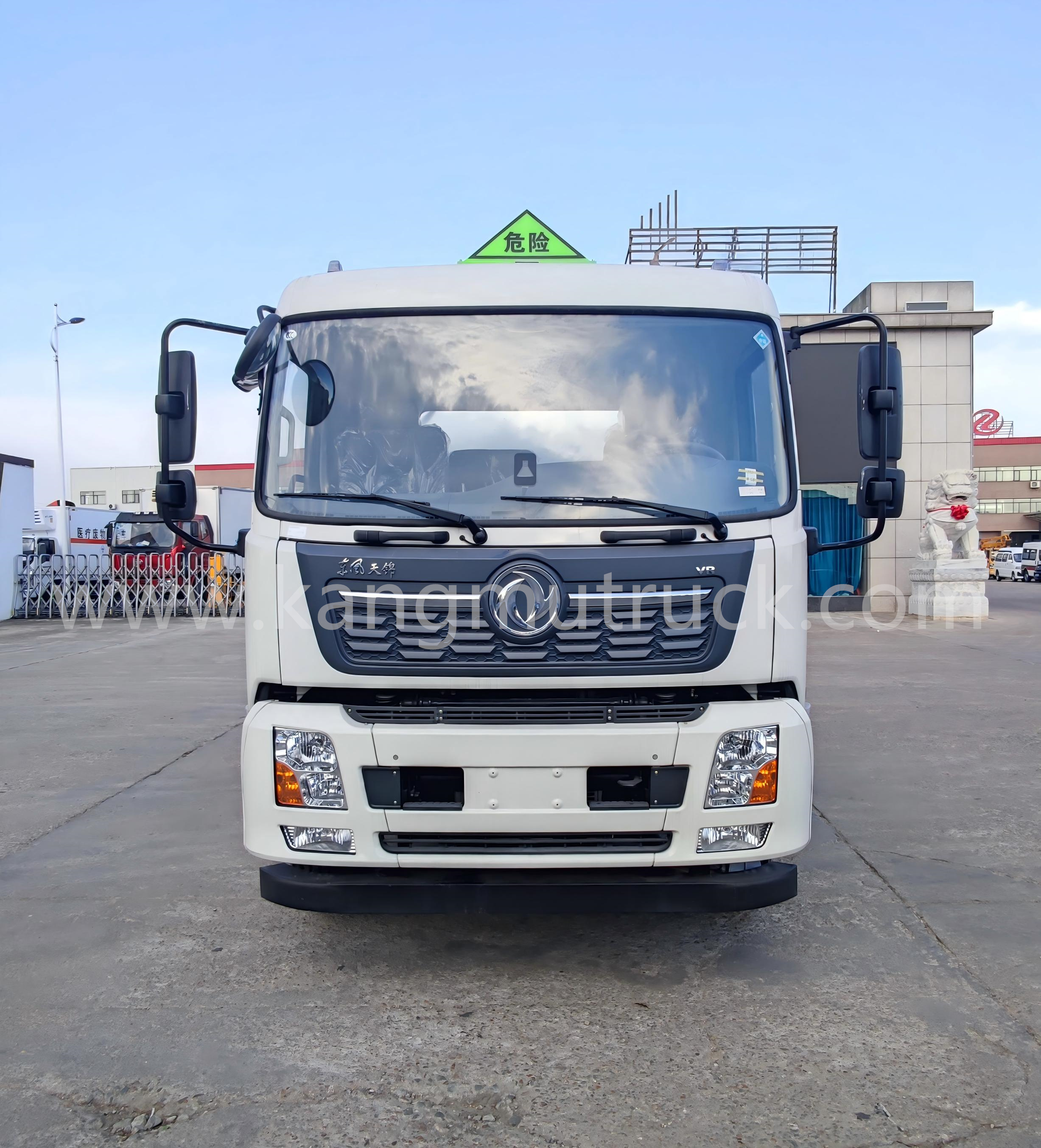

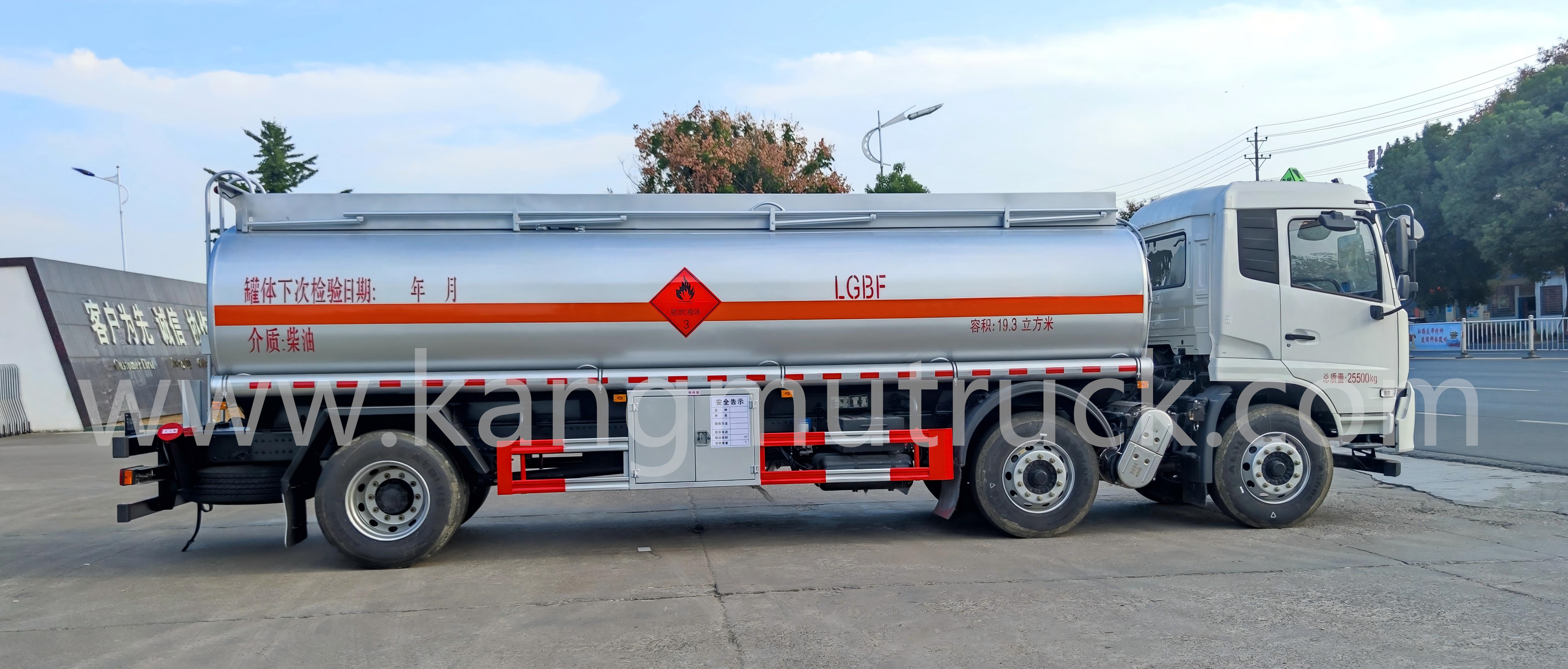

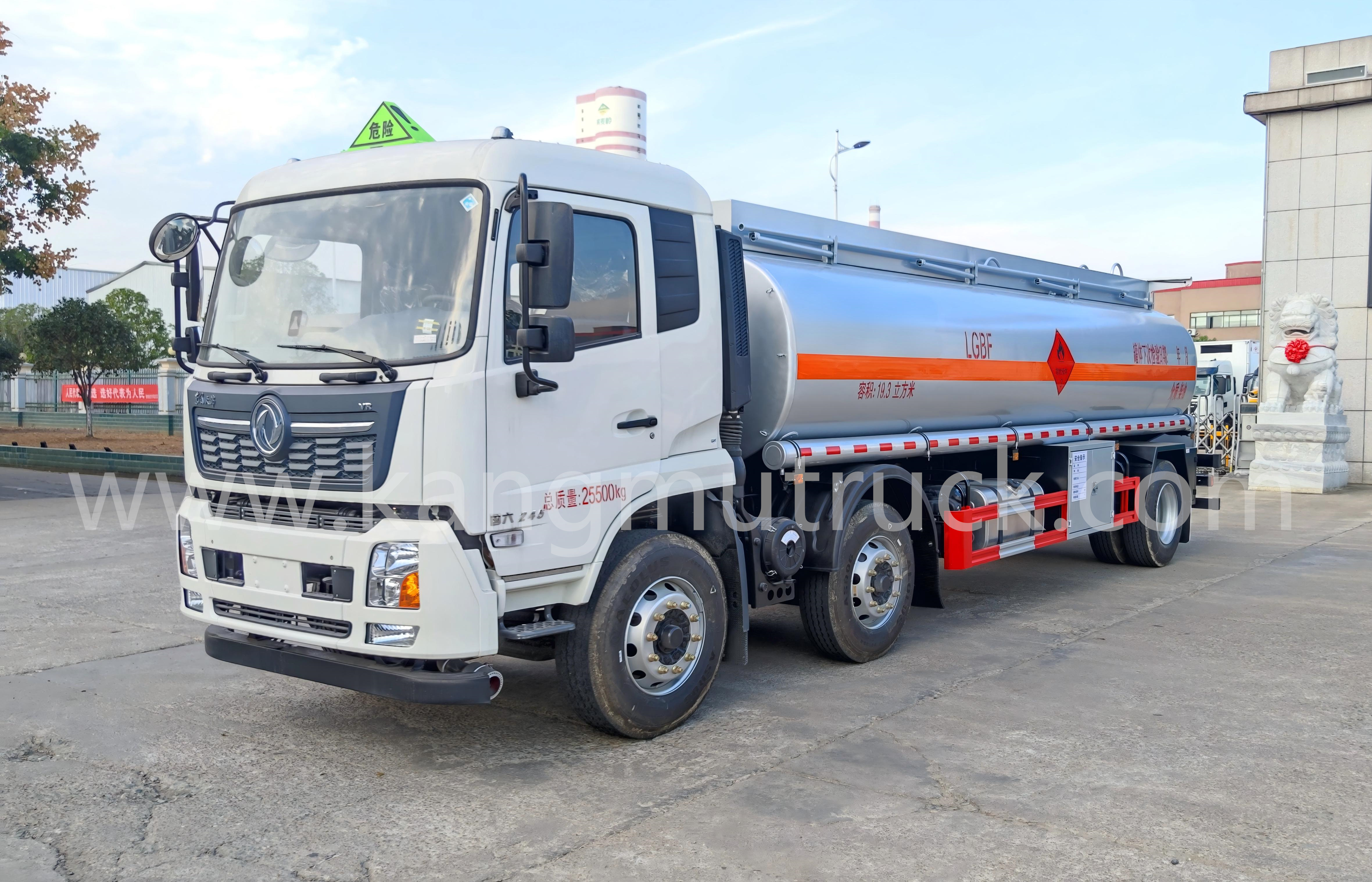

| Dongfeng KR 3-axle 19.3m³ Oil Tank Truck |
| 1. Basic Vehicle Data |
| Wheelbase: 1995+5000 mm |
| Medium transported: Diesel, effective tank volume 19.3m³ (nominal volume approx. 20m³) |
| Complete vehicle model: ZLC5260GYYDC6 |
| Chassis model: DFH1260BX2 |
| Overall dimension: 10300x2520x3100/3200/3540 mm |
| Gross vehicle weight (GVW): 25,500 kg |
| Rated payload: 15,325 kg / 15,260 kg |
| Curb weight: 10,045 kg |
| 2. Chassis Configuration |
| National VI Dongfeng Kinland 3-axle chassis, model DFH1260BX2 |
| Cab: D530 Kinland VR half-row cab |
| Engine: Cummins B6.2NS6B245, 245 HP |
| Transmission: DC7J100TA |
| Axles: Double front axles (6-ton capacity) + rear axle (10-ton capacity); rear axle air suspension |
| Tyre: 295/80R22.5 18PR |
| Fuel tank: 280L aluminum alloy fuel tank |
| Cab fittings: Factory air conditioner, electric windows, central locking (without remote key) |
| Brake & active safety systems: |
| Front disc brake, ABS, vehicle speed limiter, driving recorder, hazard warning lights, EBS Electronically Controlled Pneumatic Brake System, FCWS Forward Collision Warning System, LDWS Lane Departure Warning System, TPMS Tire Pressure Monitoring System for front axles, ESC Electronic Stability Control (rollover prevention) |
| 3. Superstructure & Tank Modification |
| Tank structure: Square-round composite tank with expansion-formed heads; tank material per design drawing; single compartment, nominal capacity 20m³ (actual diesel loading 19.3m³) |
| Pump system: Shandong Shenwei 80-60 oil pump with dedicated pump cabinet |
| Full set of European standard bottom loading assemblies: |
| 1 Euro standard manhole cover, 1 emergency bottom valve, complete bottom loading assembly, 1 vapor recovery valve, overfill prevention probe & socket, bottom valve alarm device |
| Safety accessories: Static grounding strap, retractable safety guardrail, dust cap, 2 equal-length oil hoses with male & female quick couplings, 2 fire extinguishers, 2 pipe plugs |

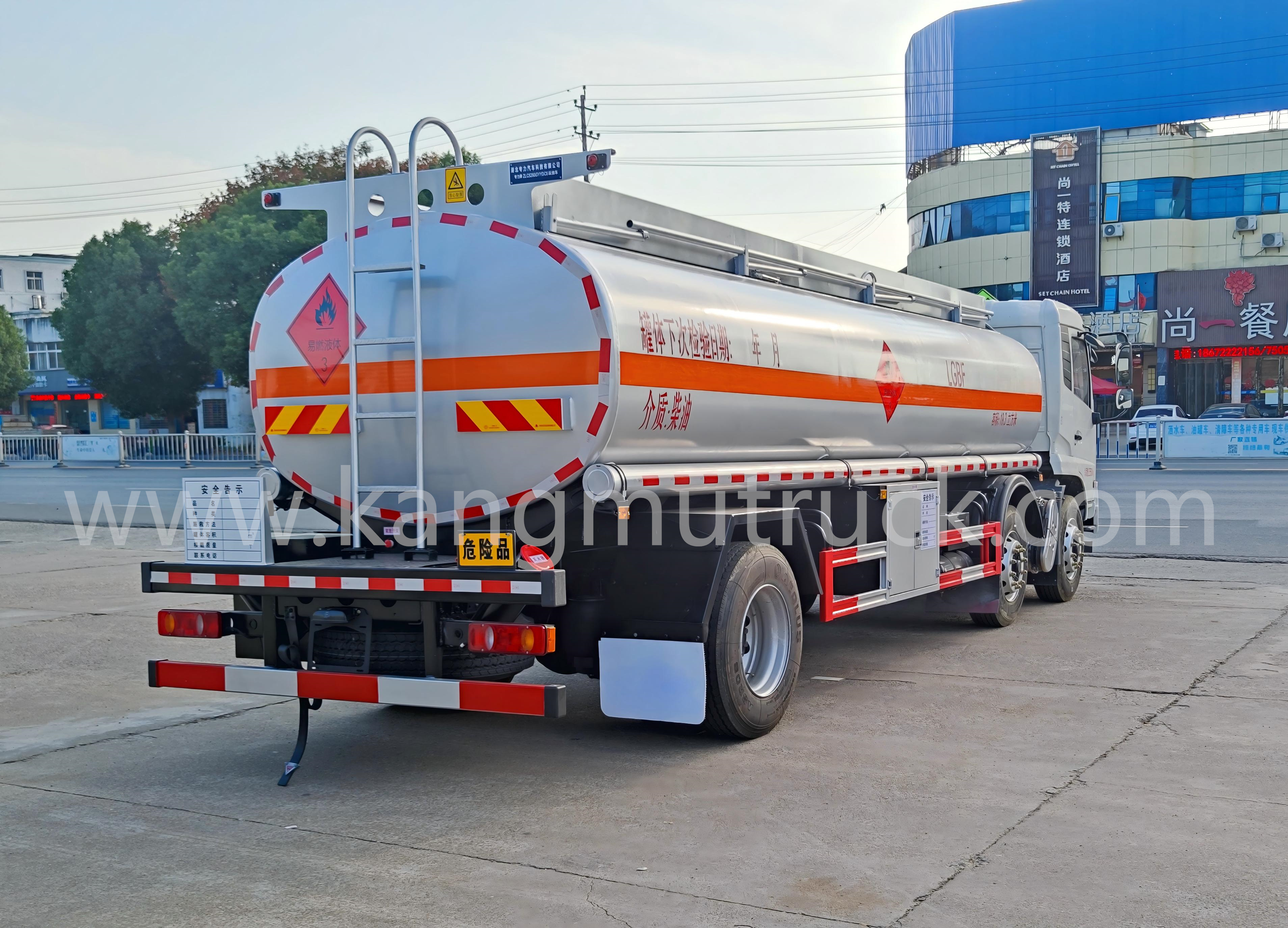

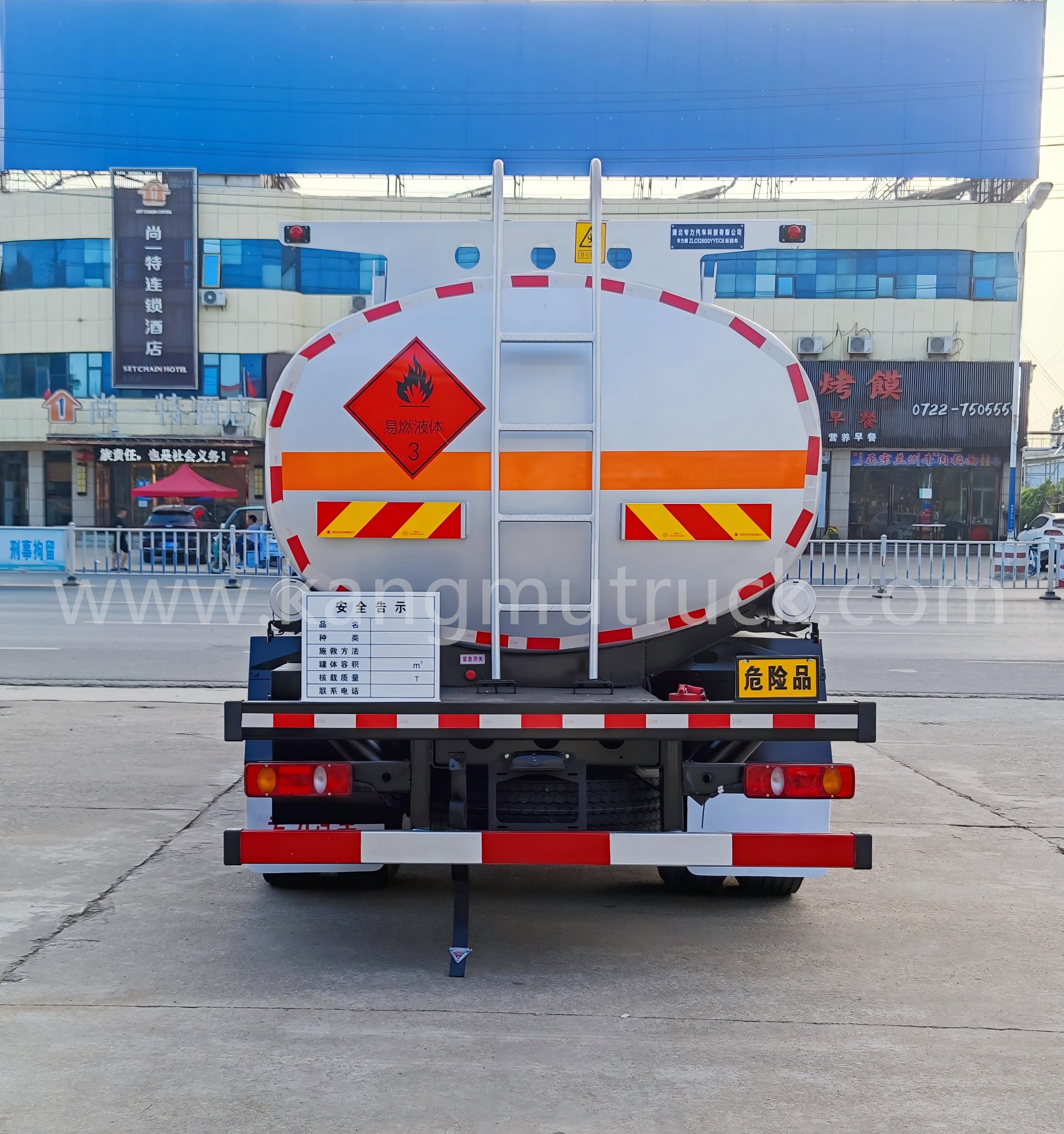

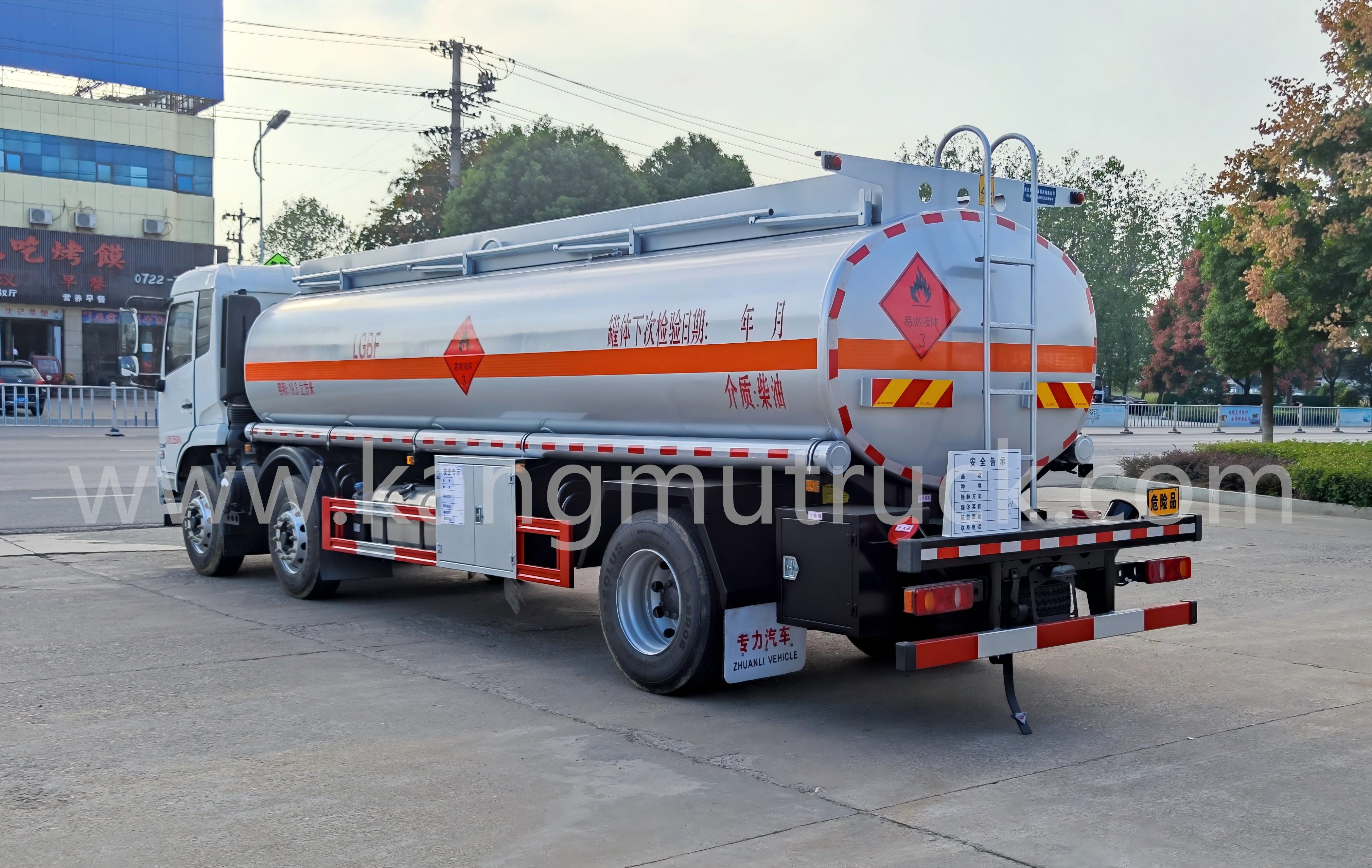

| Tank walkway & protection: Rear access ladder, anti-slip walkway/mesh on tank top, safety warning signs |
Standard vehicle fittings: Toolboxes on left & right sides, reinforced rear underrun protection, new regulatory standard front bumper. All other accessories comply with industry standards; overall vehicle dimensions are strictly maintained as specified.
|
