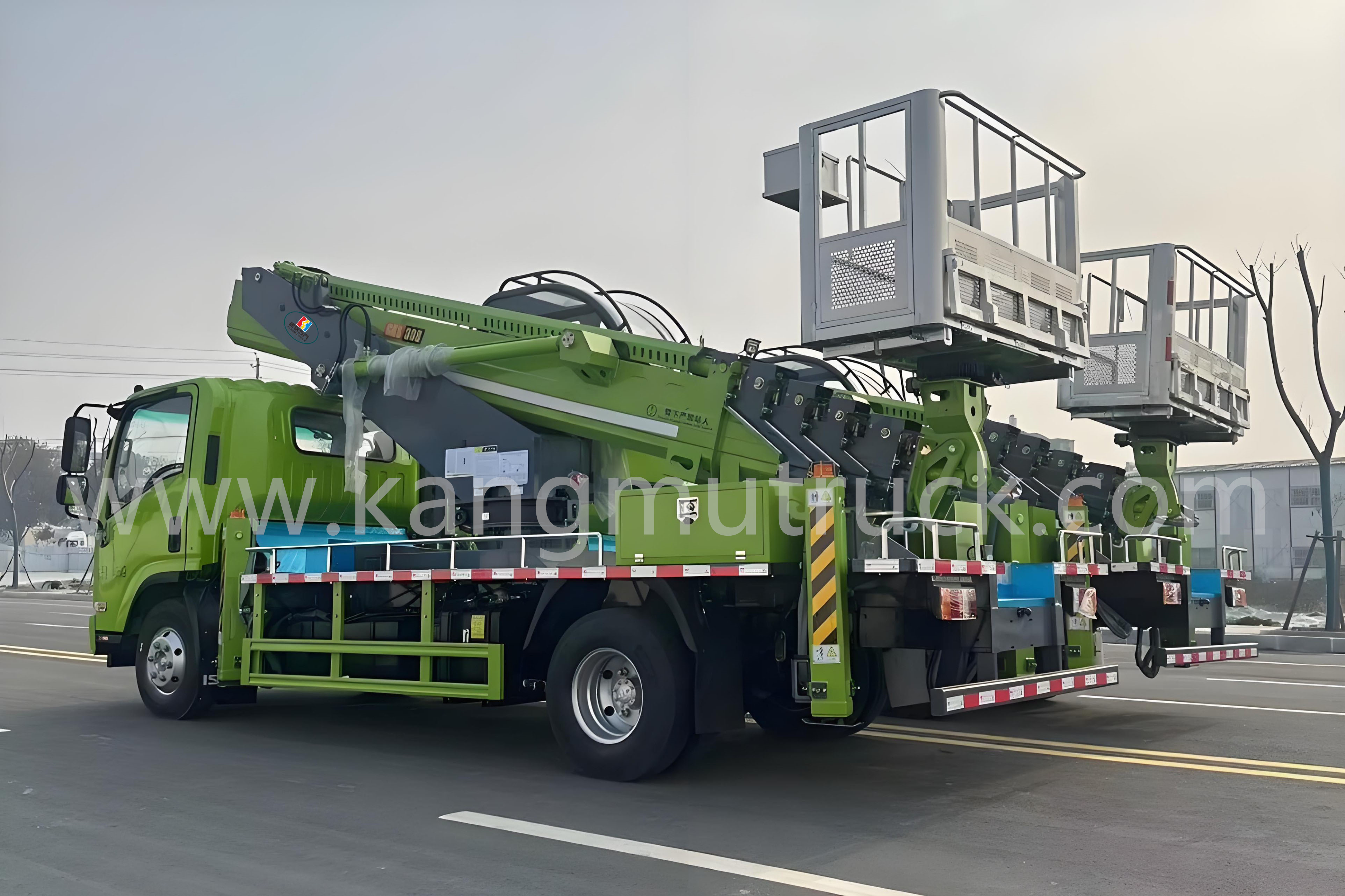

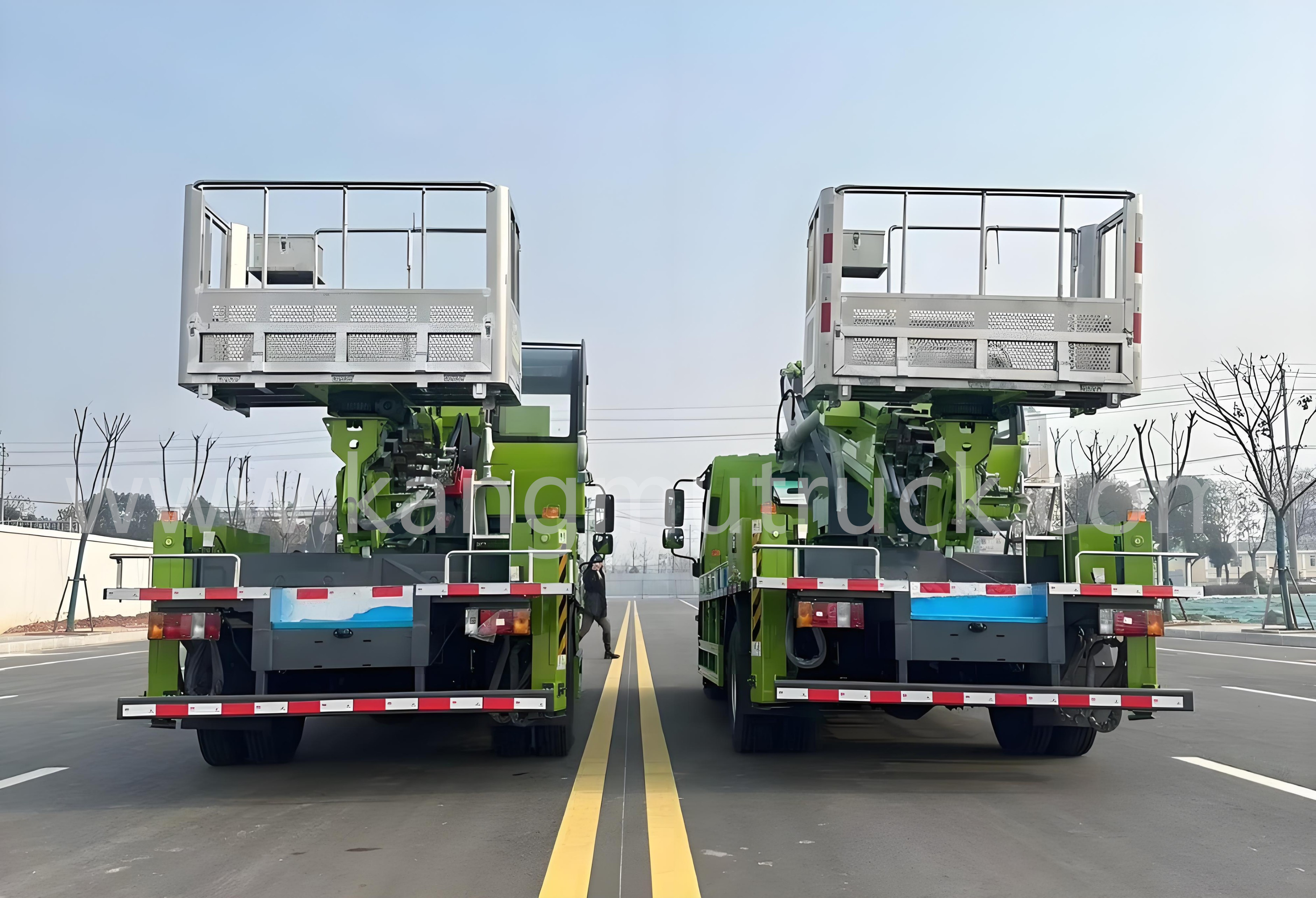

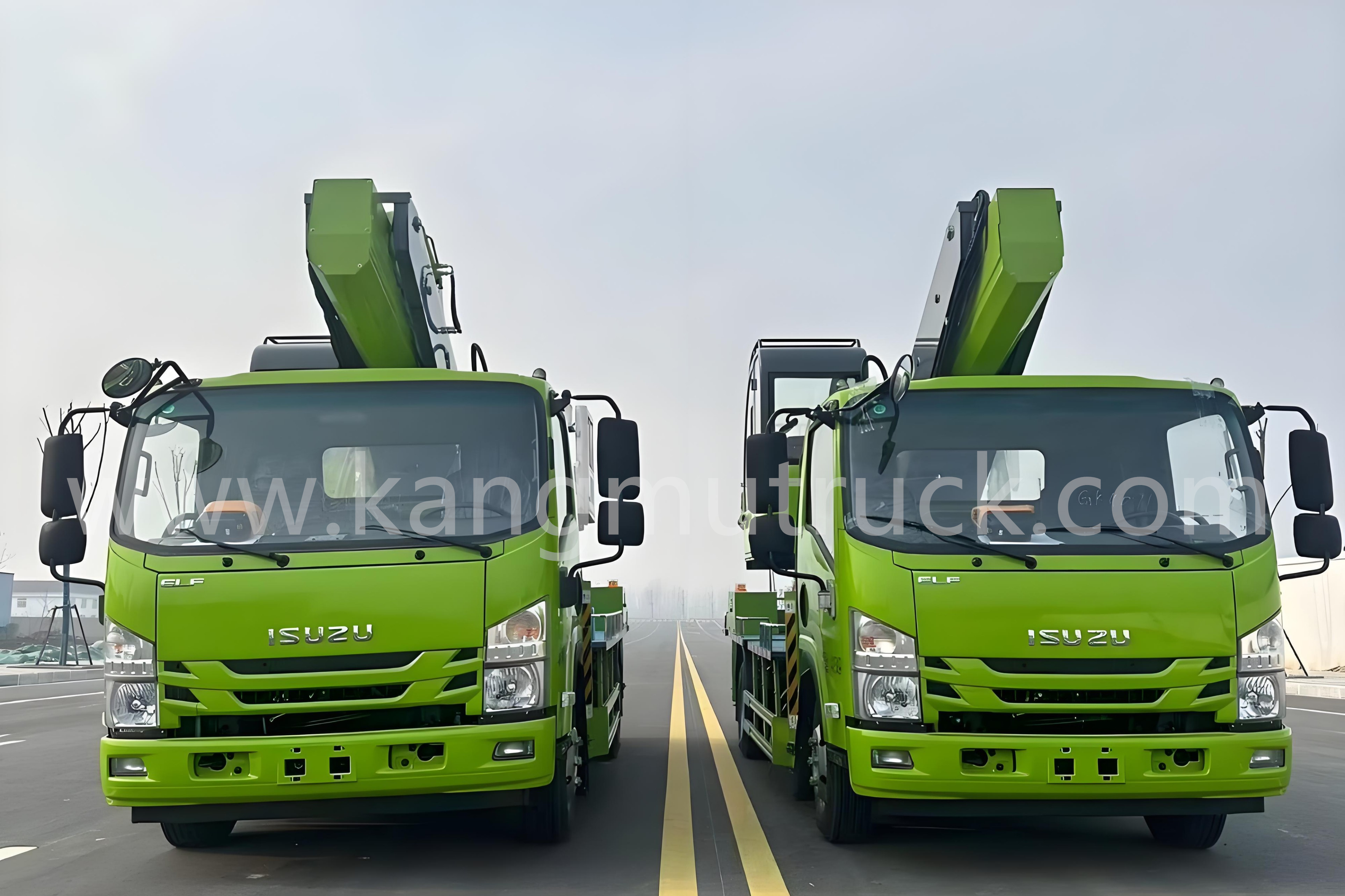

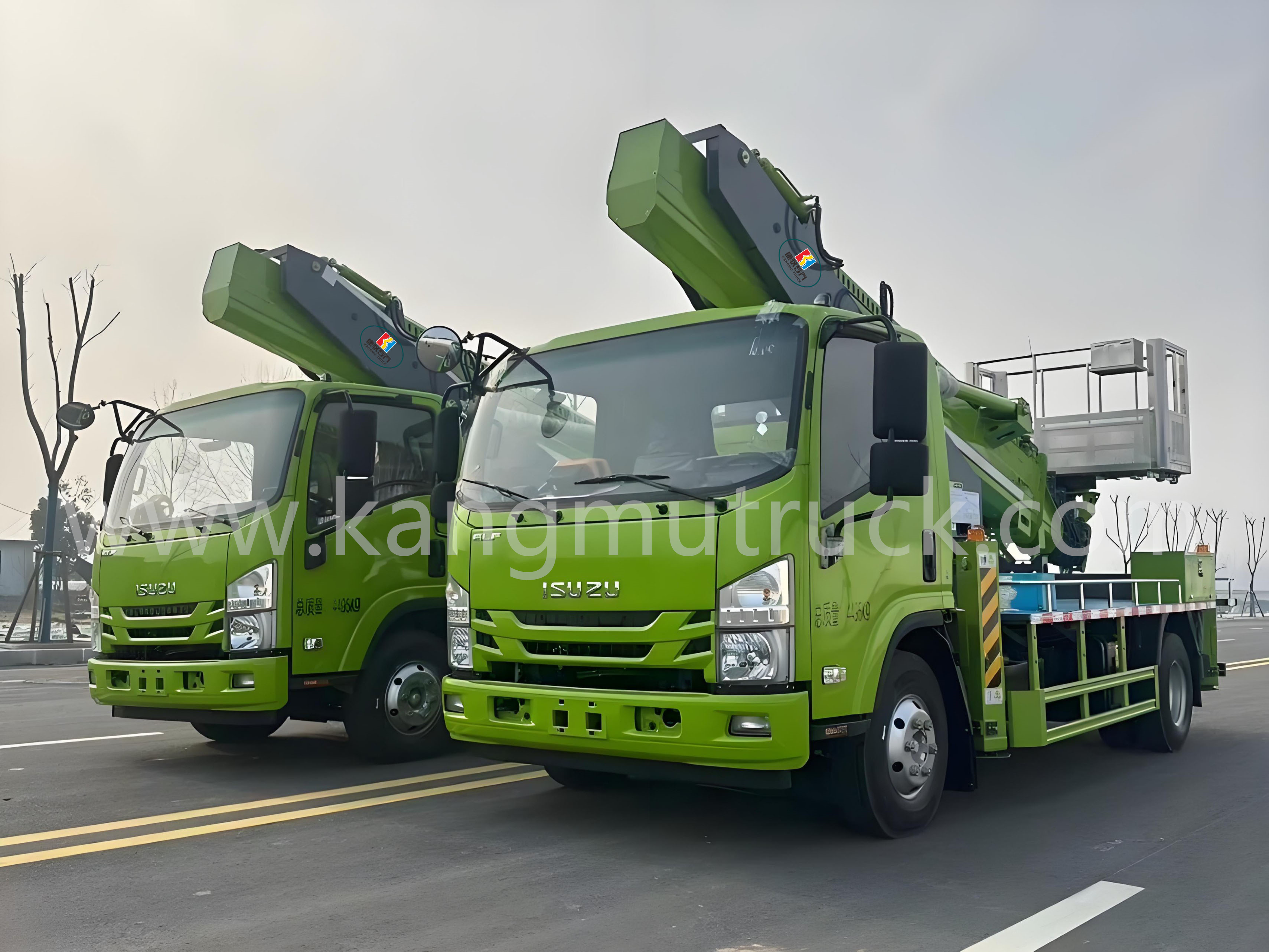

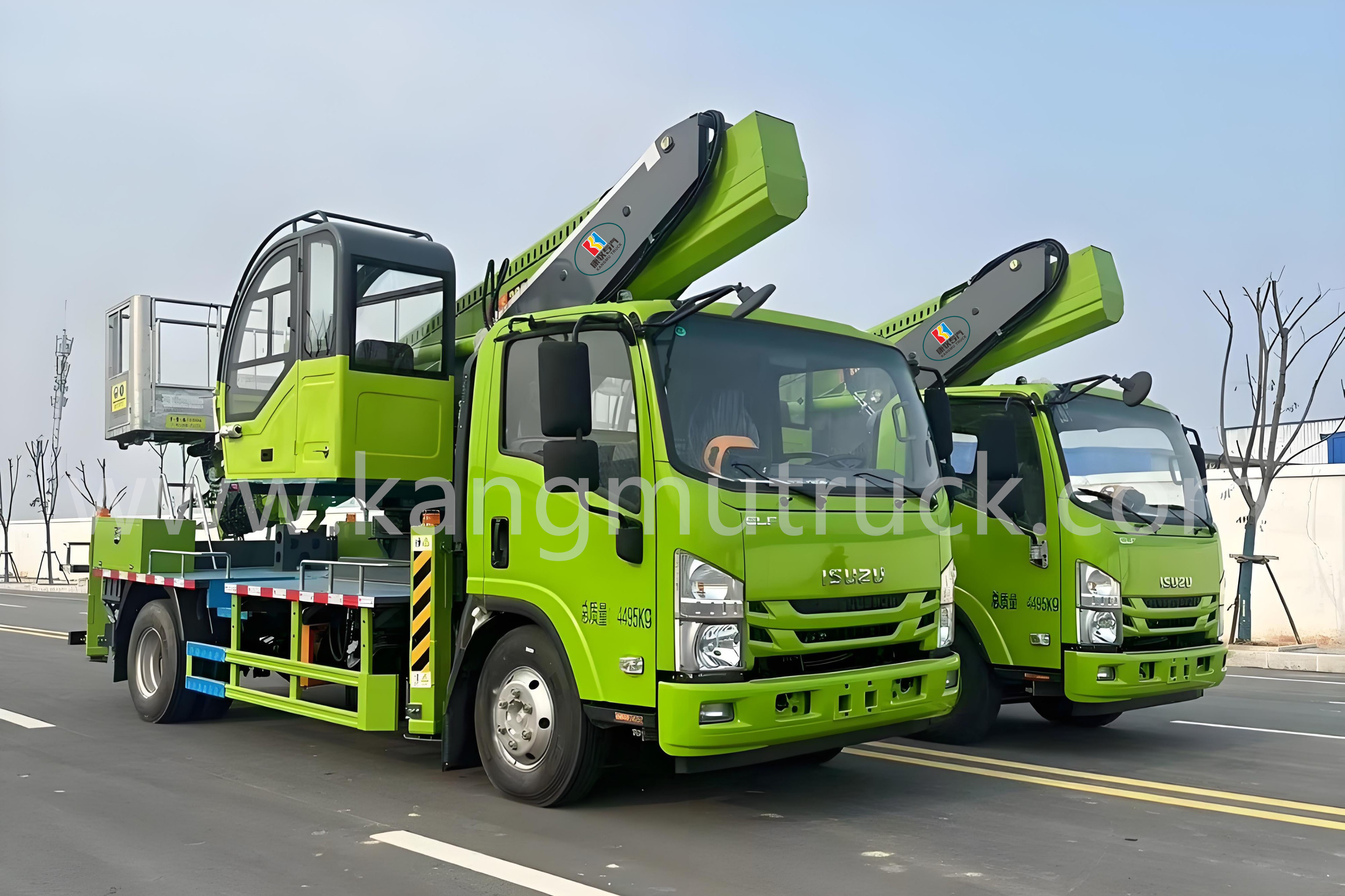

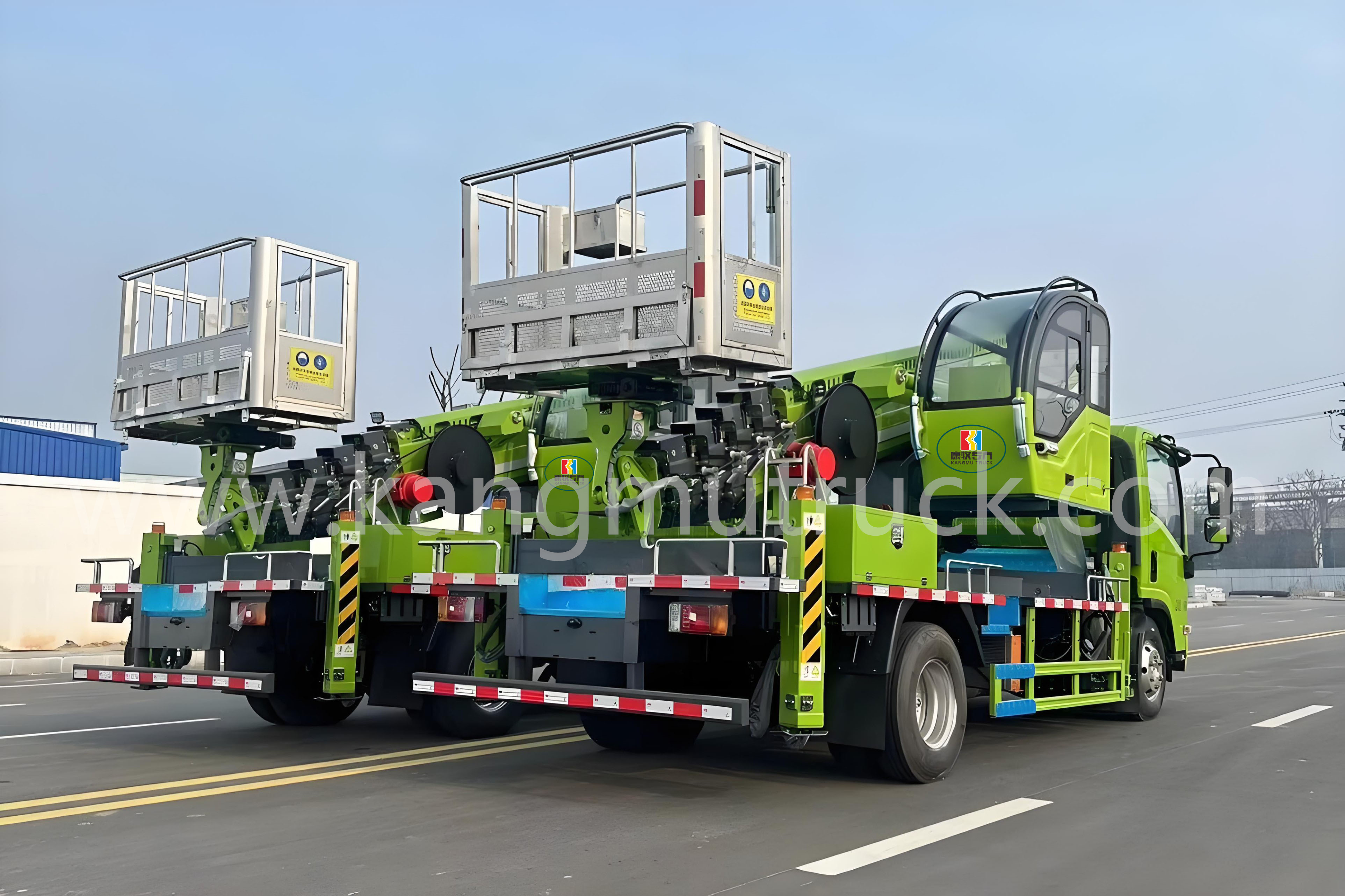

ISUZ 33-Meter Seven-Section Boom Aerial Lift Truck

Product Specifications:
  • Company: Hubei Kangmu Special Vehicle Equipment Co., Ltd.
  • Product Name: ISUZ 33-Meter Seven-Section Boom Aerial Lift Truck
  • Keywords: Aerial Lift Truck
  • Attributes: With After-Sale Service, One Year Warranty, Truck
Availability:
Quantity:
Inquire Add to Basket

  • KANGMU

ISUZ 33-Meter Seven-Section Boom Aerial Lift Truck


Main Technical Parameters of Aerial Work Platforms
Category Item Unit Data
Dimension Parameters Overall Length mm 6600
Overall Width mm 2200
Overall Height mm 3200
Mass Parameters Number of Passengers (including the Driver) Person 2/3
Gross Vehicle Weight kg 6650

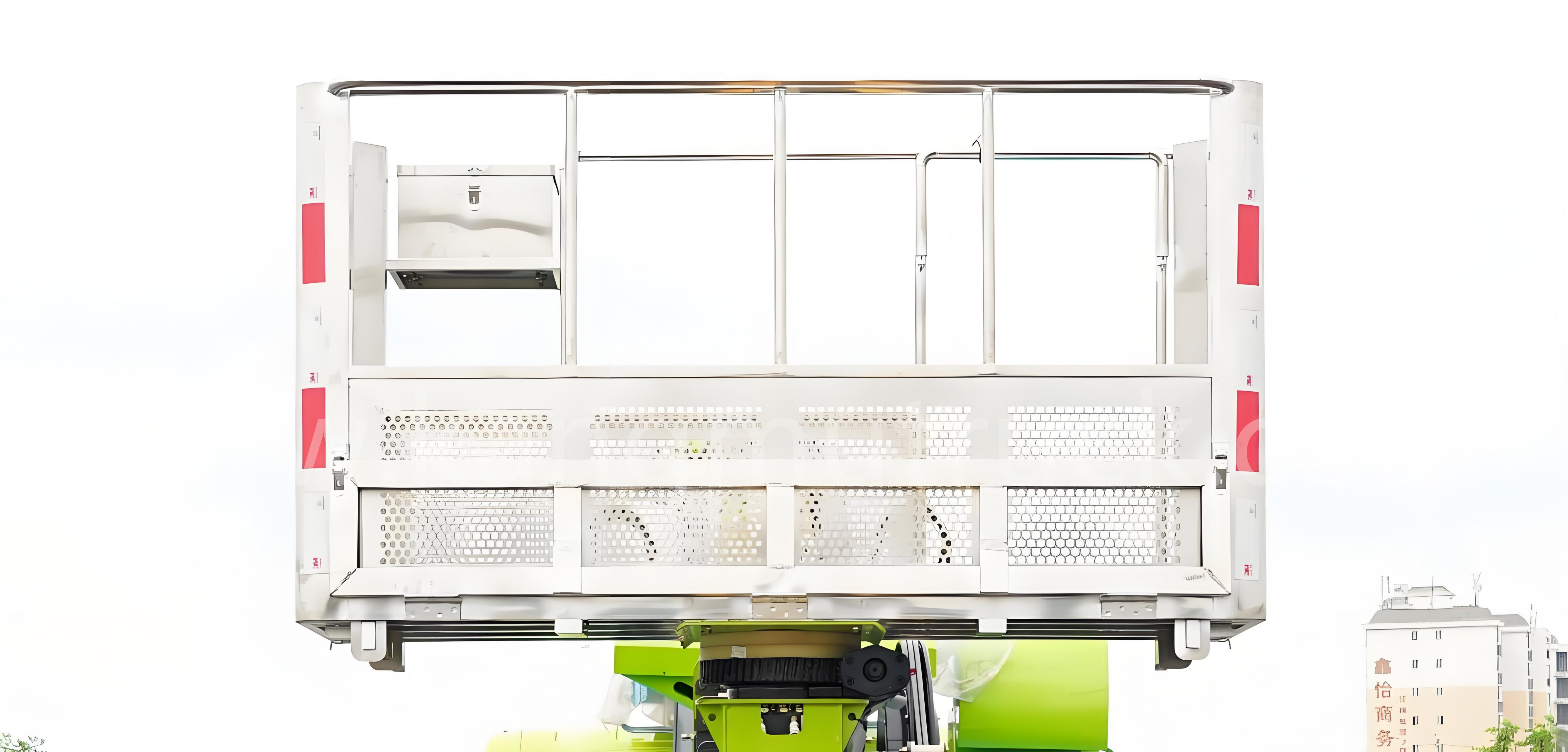

Main Performance Parameters Rated Load of the Working Platform kg 200
Maximum Working Height m 33
Working Radius at Maximum Working Height m 4
Maximum Working Radius m 23
Working Height at Maximum Working Radius m 19
Horizontal Outrigger Span mm 5500
Longitudinal Outrigger Span mm 5600
Rotation of the Working Platform ° 360
Boom Luffing Time s 60≤t≤80
Boom Telescoping Time s 70≤t≤90
Boom Rotation Speed s/r 120≤t≤160
Outrigger Deployment/Retraction Time s 50≤t≤60
Driving Parameters Front Overhang mm 1120
Rear Overhang mm 1665
Front Extension mm /
Rear Extension mm /
Wheelbase mm 3815
Maximum Driving Speed km/h 105
Minimum Ground Clearance mm 220
Approach Angle ° 23
Departure Angle ° 10

1748999126983副本1748999165282副本17489992178371748999285138副本1748999321448副本174899935171917489995340121748999392698
